87631-3008: DescriptionPower to the Board Pwr Conn Hdr R/A THo THole .76AuLF 28Ckt; CategoryThe connector The connector; File Size36KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87631-3008 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87631-3008	-	-	View	Buy Now

87631-3008 Overview

Power to the Board Pwr Conn Hdr R/A THo THole .76AuLF 28Ckt

87631-3008 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	28
UL Flammability Code	94V-0
Base Number Matches	1

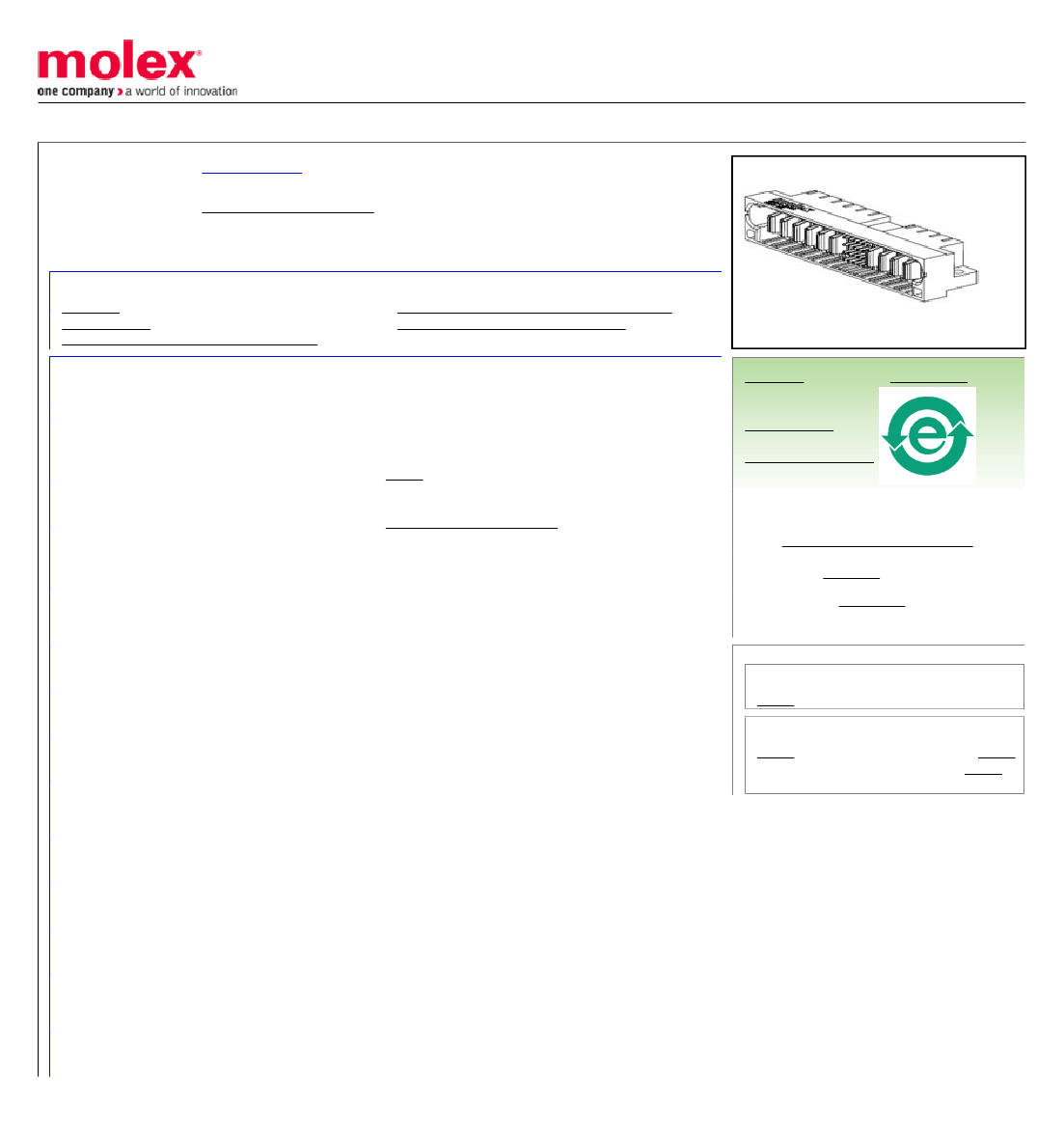

Preview

Download Datasheet

View All

This document was generated on 10/19/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

87631-3008

Active

EXTreme PowerPlus™ (SSI)

6.35mm Pitch Power, 2.54mm Pitch Signal, EXTreme PowerPlus™ P-S-P Header,

Through Hole, Right Angle, Short Contacts, 28 Circuits, Power Alpha 2, Signal 24,

Power Beta 2, Recessed Signal Pin B4, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87631-006 (PDF)

Application Specification AS-87631-018 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Series

Agency Certification

CSA

TUV

LR19980

R50078473

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

PCB Headers

87631

Board-to-Board, Power

<LI>Short Contacts|<LI>Recessed Signal Pin: B4

EXTreme PowerPlus™ (SSI)

EXTreme PowerPlus™

822348533602

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

(p)ower-(s)ignal Configuration

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

2p - 24s - 2p

Black

100

Yes

94V-0

Yes

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

18.368/g

Right Angle

3.43mm

Yes

1.60mm

Tray

2.54mm, 6.35mm

0.762µm

2.540µm

Yes

Fully

Search Parts in this Series

87631Series

Mates With

87633 Vertical Press-Fit Receptacle, 87622

Vertical Through Hole Receptacle, 87632

Right Angle Through Hole Receptacle
