FH30-60S-03SHW05

Description
FFC u0026 FPC Connectors 60POS 0.30MM R/A CONN FPC BOTTOM
CategoryThe connector
File Size915KB,8 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Download Datasheet Parametric Compare View All

FH30-60S-03SHW05 Online Shopping

Suppliers Part Number Price MOQ In stock
FH30-60S-03SHW05 - - View Buy Now

FH30-60S-03SHW05 Overview

FFC u0026 FPC Connectors 60POS 0.30MM R/A CONN FPC BOTTOM

FH30-60S-03SHW05 Parametric

Parameter NameAttribute value
Product CategoryFFC & FPC Connectors
ManufacturerHirose
RoHSDetails
PackagingReel
Factory Pack Quantity1000

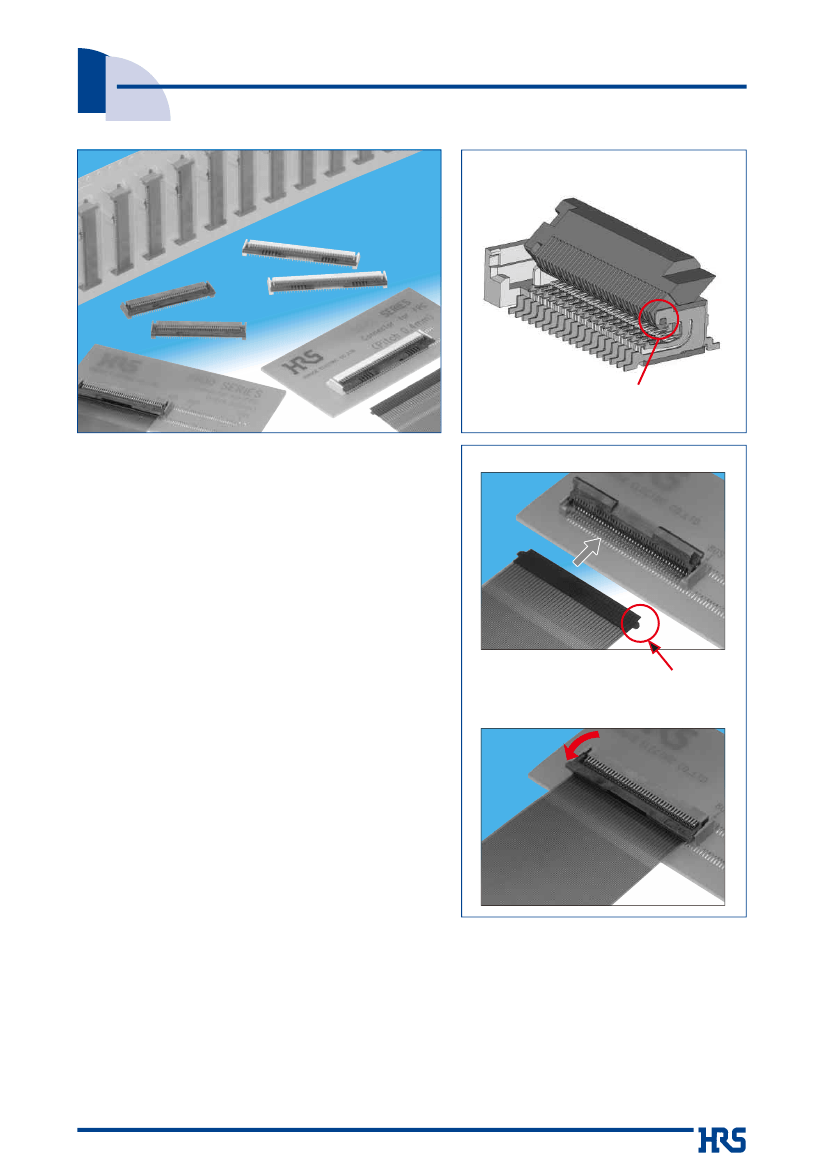

0.3 or 0.4 mm pitch, 3 mm above the board, Flip-Lock actuator,
Flexible Printed Circuit ZIF connectors
FH30 Series
Strong actuator construction
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Enclosed shaft of the actuator
prevents it from dislocation
■Features
1. Strong actuator retention
Actuator will not be dislodged when operating under harsh
conditions.
Simple FPC insertion
2. Rotating Flip–Lock actuator
Rotating actuator permits easy insertion and retention of the
FPC.
Tactile sensation confirms complete FPC insertion and reliable
mechanical and electrical connection.
3. FPC position hold
Tabs on each side of the FPC assure correct placement and
hold in the connector prior to closing of the actuator.
FPC positioning tab
4. Accepts standard FPC thickness
0.3mm thick standard Flexible Printed Circuit (FPC) can be
used.
Lock
5. Easy solderability on the PC board
The soldering leads are on 0.6 mm or 0.8 mm pitch, exiting on
the front and back of the connector.
6. Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate vacuum
pick-up and placement. Standard reel packaging contains 1000
connectors.
7. Conductive traces on the PCB can run under
the connector
No exposed contacts on the bottom of the connector.
8. Halogen-free
*
* As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
2013.11w
1
