56119-8328 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> 56119-8328

Preview

56119-8328: DescriptionD-Sub Contacts SOCKET CONTACT 24-20 gold over copper; CategoryThe connector Connector bracket; File Size26KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

56119-8328 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	56119-8328	-	-	View	Buy Now

56119-8328 Overview

D-Sub Contacts SOCKET CONTACT 24-20 gold over copper

56119-8328 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
Is Samacsys	N
Other features	MATING: GOLD OVER NICKEL (79), TERMINATION: TIN (39) OVER NICKEL (79)
Assembly name	CONTACT
Maximum number of cable entries	0.866 inch
Connector bracket type	CONNECTOR ACCESSORY
Contactor design	LOOSE
Contact point gender	MALE
Contact style	SQ PIN-SKT
DIN compliance	NO
Finished thickness	10
IEC compliance	NO
MIL compliance	NO
Material	PHOSPHOR BRONZE
Installation method	STRAIGHT
Terminal length	0.154 inch
Terminal type	CRIMP
Maximum wire diameter	18 AWG
Minimum wire diameter	22 AWG
Base Number Matches	1

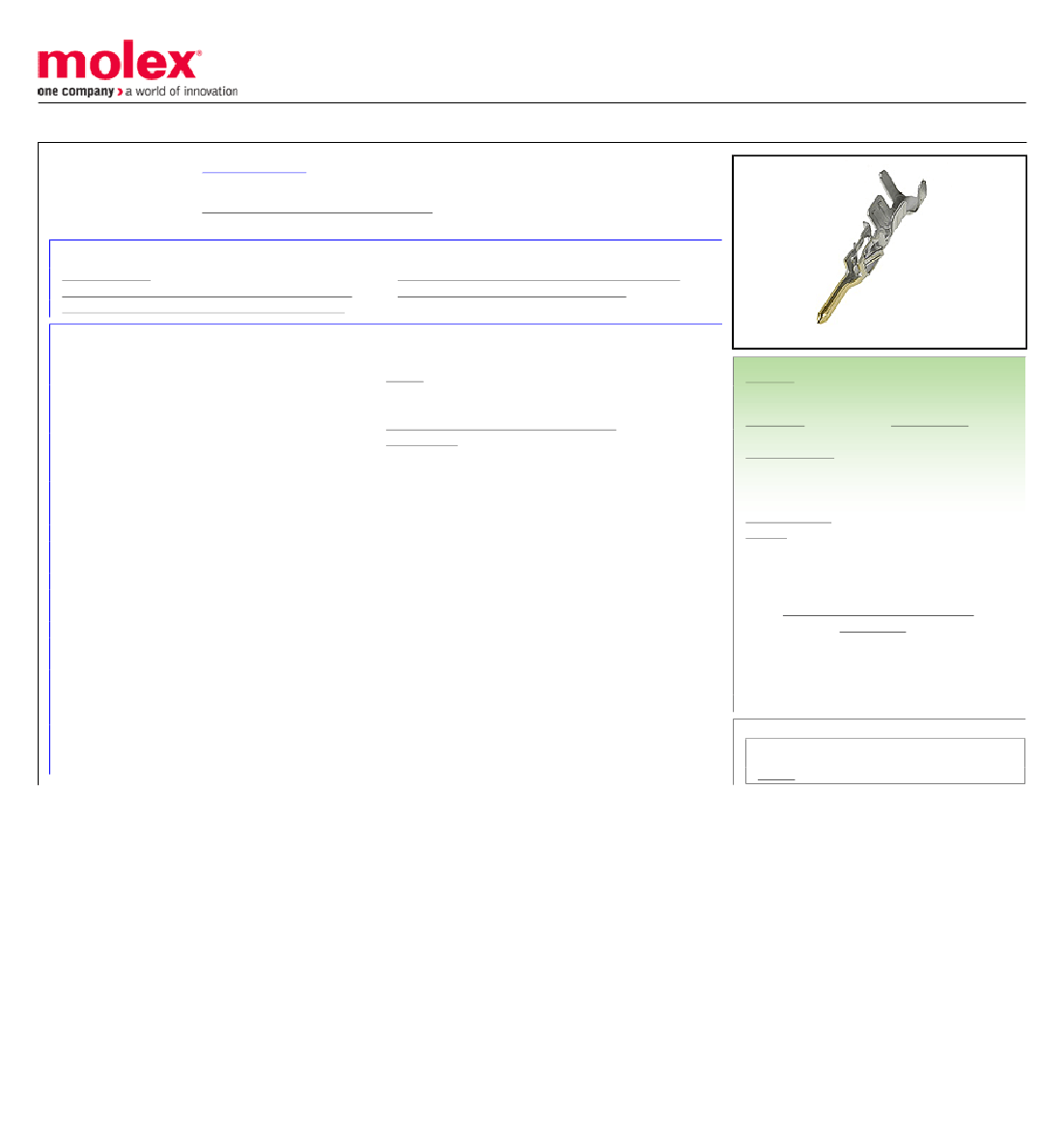

Preview

Download Datasheet

View All

This document was generated on 10/10/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0561198328

Active

CRC™ (Compact Robotic Connectors)

CRC Signal Male Terminal, Lead-Free, Loose, Gold (Au) Plating

Documents:

Drawing (PDF)

Product Specification PS-500810-001-001 (PDF)

Product Specification PS-51238-017-001 (PDF)

General

Product Family

Series

Application

Crimp Quality Equipment

Overview

Packaging Alternative

Product Name

UPC

Physical

Durability (mating cycles max)

Gender

Material - Metal

Material - Plating Mating

Net Weight

Packaging Type

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification PS-51238-018-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

Crimp Terminals

56119

Signal

Yes

CRC™ (Compact Robotic Connectors)

56119-8228 (Reel)

CRC

822350008945

50

Male

Brass

Gold over Nickel

71.866/mg

Bag

Crimp or Compression

N/A

18

N/A

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

PS-500810-001-001, PS-51238-017-001,

PS-51238-018-001

SD-56119-004

Search Parts in this Series

56119 Series

This document was generated on 10/10/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
