52610-2290

Description
FFC u0026 FPC Connectors VERTICAL SMT ZIF 22P vertical
CategoryThe connector    The connector
File Size479KB,7 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

52610-2290 Online Shopping

Suppliers Part Number Price MOQ In stock
52610-2290 - - View Buy Now

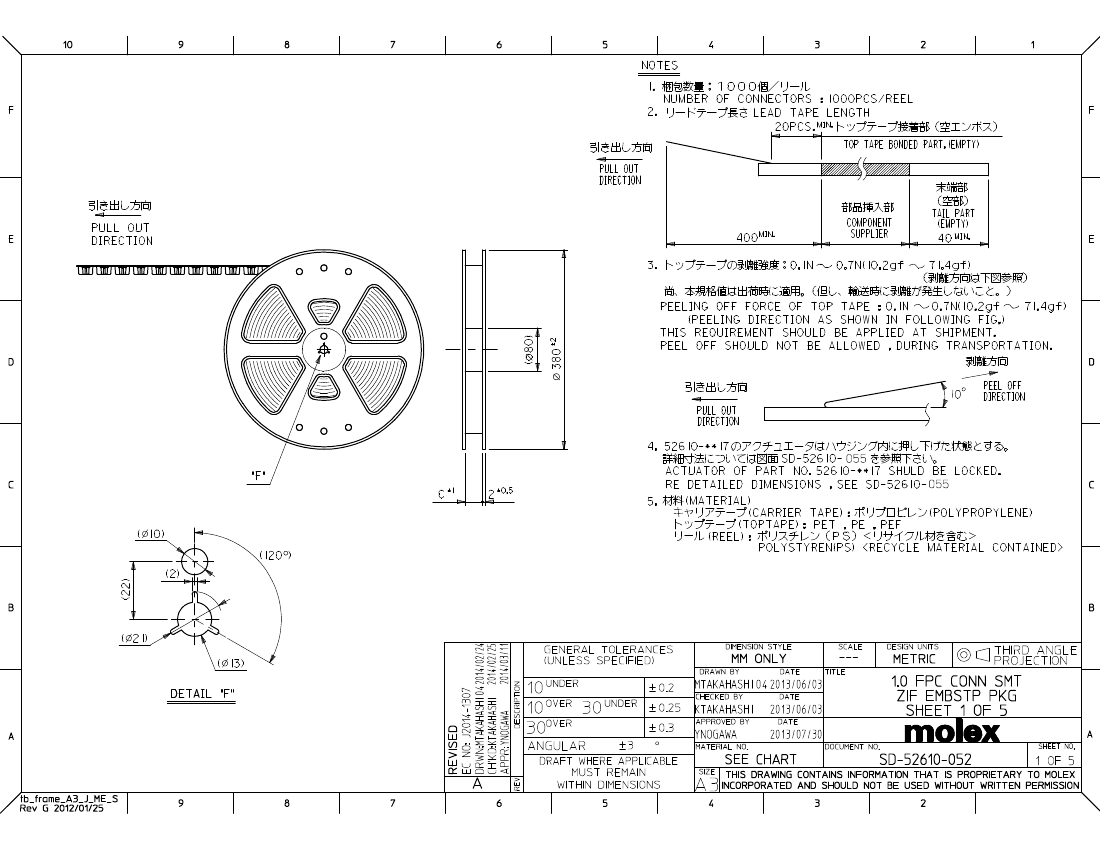

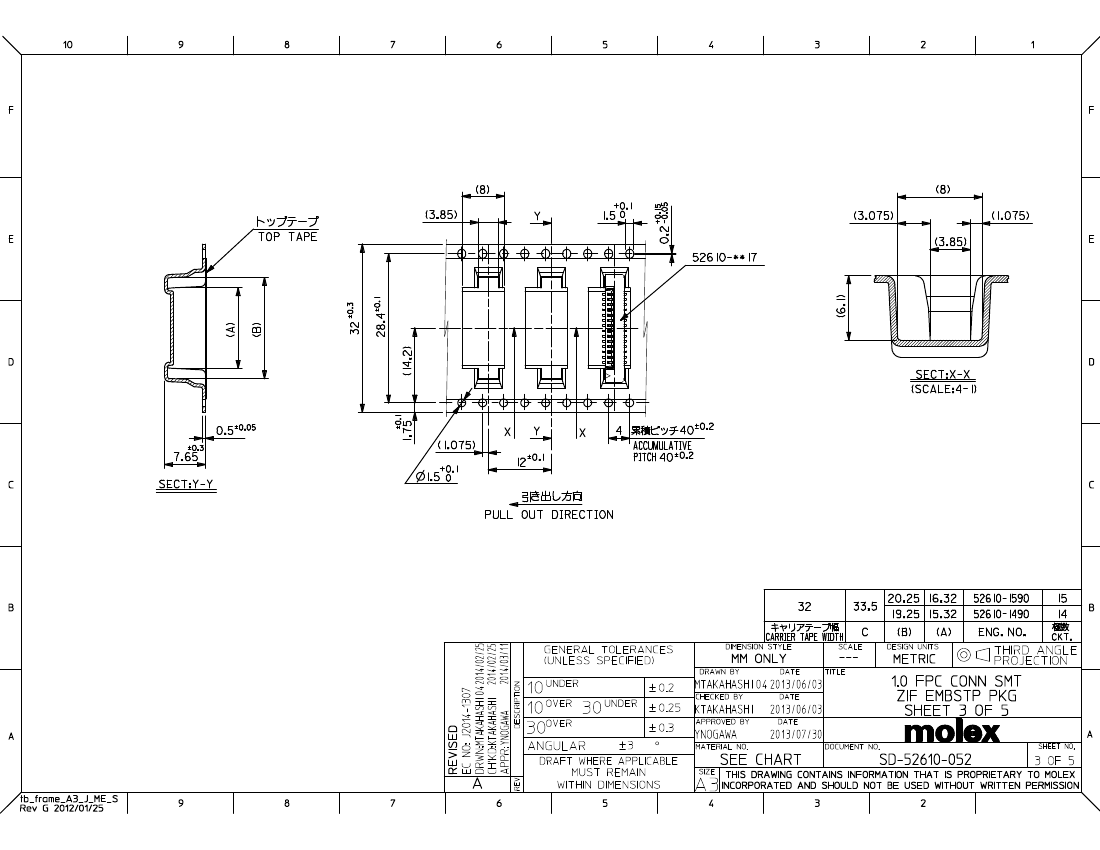

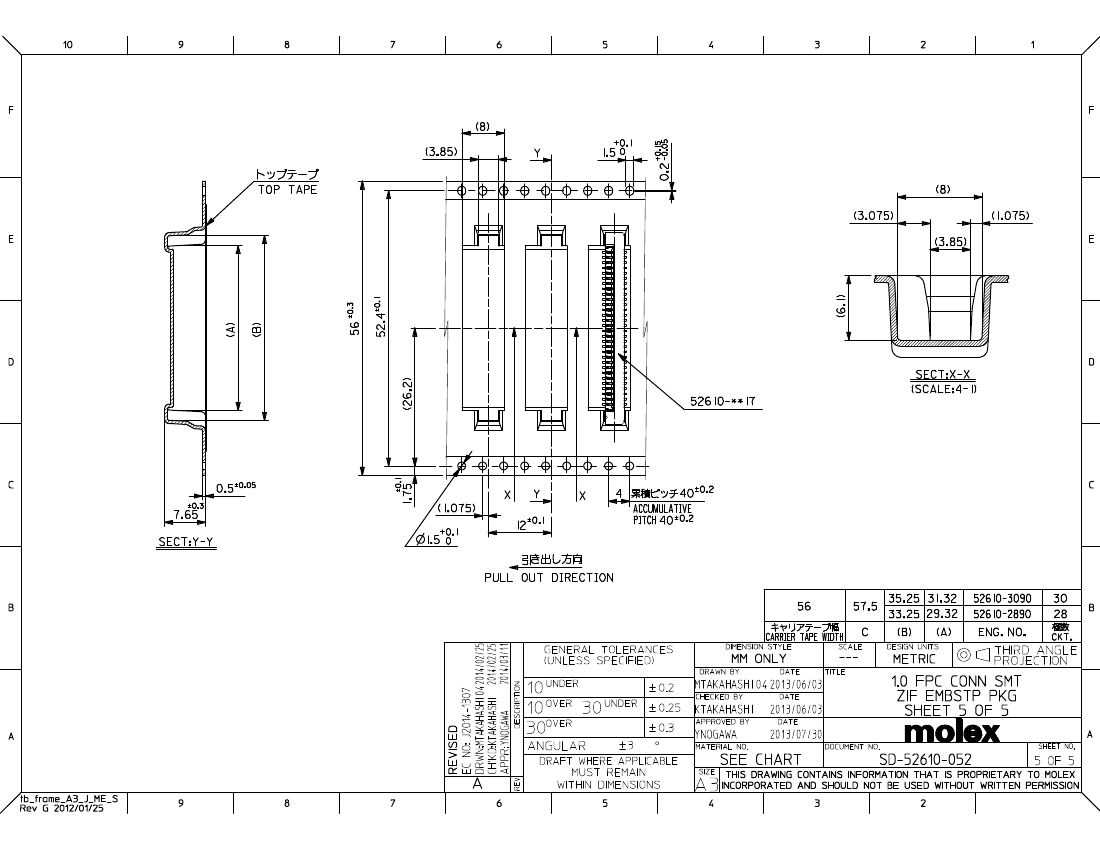

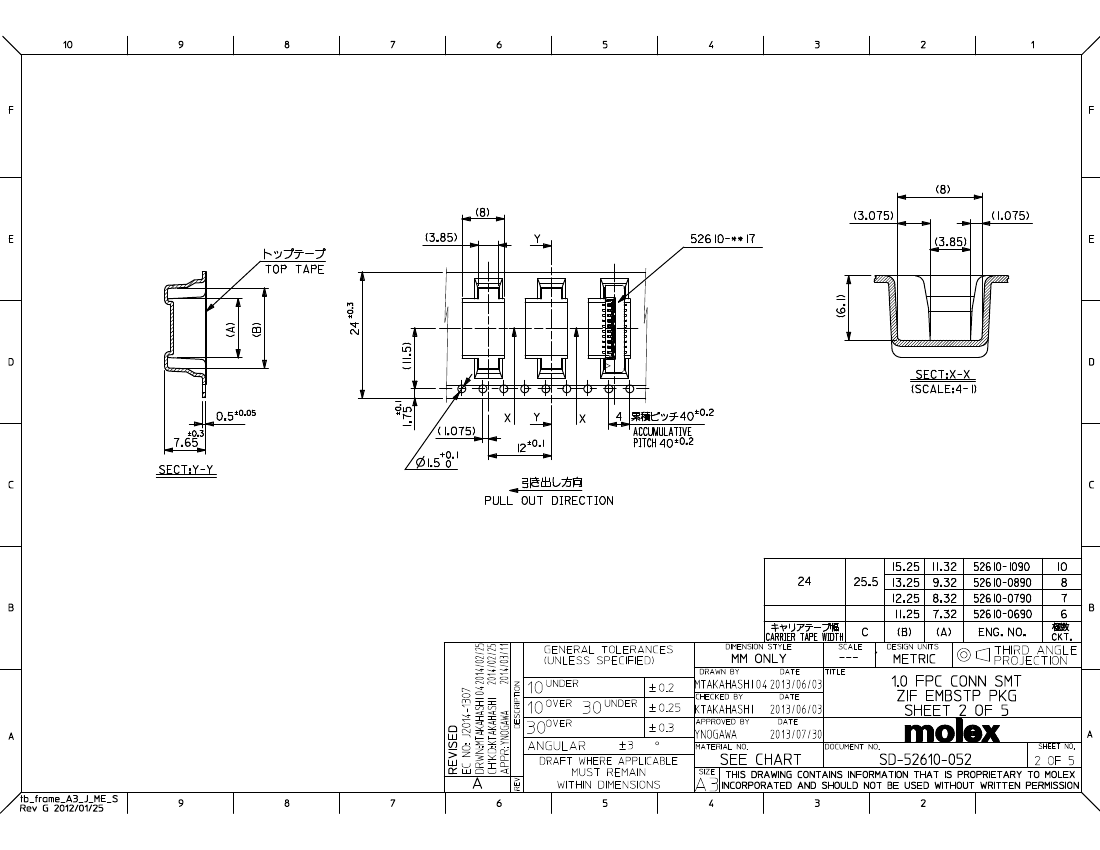

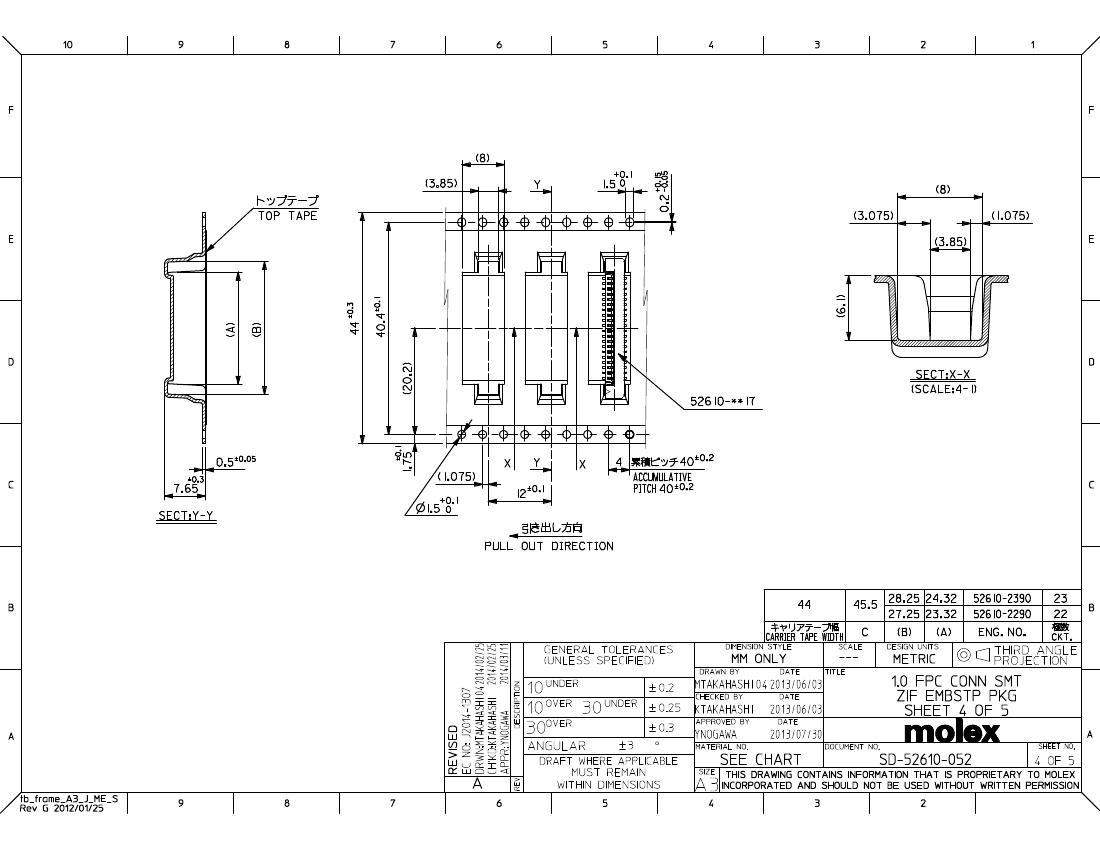

52610-2290 Overview

FFC u0026 FPC Connectors VERTICAL SMT ZIF 22P vertical

52610-2290 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresZIF
body width0.142 inch
subject depth0.226 inch
body length1.126 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance100000000 Ω
Insulator colorNATURAL
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.039 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing3.6068 mm
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts22
UL Flammability Code94V-0
Evacuation force-minimum valueZIF N

52610-2290 Related Products

52610-2290 52610-0690 52610-3090 52610-1290
Description FFC u0026 FPC Connectors VERTICAL SMT ZIF 22P vertical FFC u0026 FPC Connectors VERTICAL SMT ZIF 6P FFC u0026 FPC Connectors VERTICAL SMT ZIF 30P FFC u0026 FPC Connectors VERTICAL SMT ZIF 12P vertical
Is it lead-free? Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? conform to conform to incompatible conform to
Maker Molex Molex Molex Molex
Reach Compliance Code compliant compliant unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99
Other features ZIF ZIF ZIF ZIF
body width 0.142 inch 0.178 inch 0.178 inch 0.178 inch
subject depth 0.226 inch 0.285 inch 0.285 inch 0.285 inch
body length 1.126 inch 0.496 inch 1.441 inch 0.732 inch
Connector type FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE FEMALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 20 mΩ 20 mΩ 20 mΩ 20 mΩ
DIN compliance NO NO NO NO
Dielectric withstand voltage 500VAC V 500VAC V 500VAC V 500VAC V
Filter function NO NO NO NO
IEC compliance NO NO NO NO
maximum insertion force ZIF N ZIF N ZIF N ZIF N
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω
insulator material NYLON NYLON NYLON NYLON
MIL compliance NO NO NO NO
Plug contact pitch 0.039 inch 0.039 inch 0.039 inch 0.039 inch
Mixed contacts NO NO NO NO
Installation option 1 LOCKING FCC RETNN DVC FCC RETNN DVC FCC RETNN DVC
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD
PCB row number 2 2 2 2
Number of rows loaded 1 1 1 1
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -20 °C -20 °C -20 °C -20 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 3.6068 mm 3.7592 mm 3.7592 mm 3.7592 mm
Rated current (signal) 1 A 1 A 1 A 1 A
Guideline UL, CSA UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 1 mm 1 mm 1 mm 1 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 22 6 30 12
UL Flammability Code 94V-0 94V-0 94V-0 94V-0
