MJ3S-88DB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MJ3S-88DB

Preview

MJ3S-88DB: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size204KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric Compare View All

MJ3S-88DB Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack

MJ3S-88DB Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
body width	0.673 inch
subject depth	0.652 inch
body length	0.694 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJ3S
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

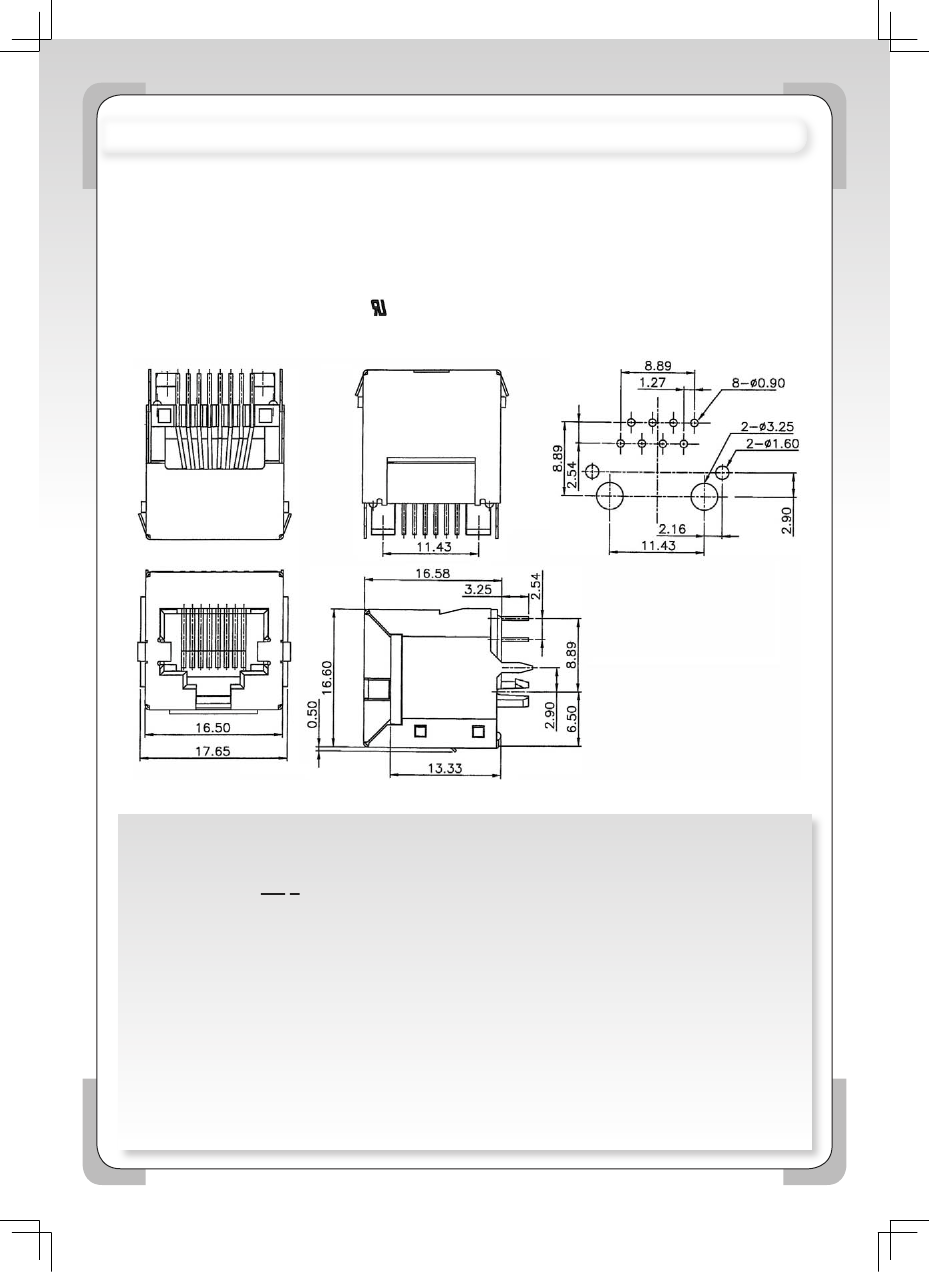

TOP ENTRY MODULAR PCB JACK 8P PROFILE=16.58MM (FULLY SHIELDED)

SPECIFICATIONS

MATERIALS

Insulation Resistance:

500MΩ

Min.

Contact Resistance:

20mΩ

Max.

Rating Current:

1.5A Max.

Rating Voltage:

120V AC.

Dielectric Voltage:

1000 Vrms 60 Sec. Min.

Temperature Range:

-40ºc / +85ºc

Durability:

500 Mating cycles Min.

Housing:

PBT Glass Filled (UL 94V-0)

Soldering Temperature:

235ºc

Color:

Black

Spring Wire:

Phosphor Bronze

Gold plating Over Nickel

Shield:

Brass plating Nickel Alloy

All materials must be RoHS compliant.

Recommended P.C.Board Layout

(TOP VIEW)

ORDERING INFORMATION:

P/N M J 3 S - x x x B

1 2

1. NO. OF POSITIONS & CONTACTS:

"88" 8P8C

"84" 8P4C

2. CONTACT FINISH:

"A" 6 MICROINCH GOLD

"B" 15 MICROINCH GOLD

"C" 30 MICROINCH GOLD

"D" 50 MICROINCH GOLD

J399

MJ3S-88DB Related Products

	MJ3S-88DB	MJ3S-88AB	MJ3S-84CB	MJ3S-88BB	MJ3S-84AB	MJ3S-84BB
Description	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack
Maker	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.673 inch	0.673 inch	0.673 inch	0.673 inch	0.673 inch	0.673 inch
subject depth	0.652 inch	0.652 inch	0.652 inch	0.652 inch	0.652 inch	0.652 inch
body length	0.694 inch	0.694 inch	0.694 inch	0.694 inch	0.694 inch	0.694 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJ3S	MJ3S	MJ3S	MJ3S	MJ3S	MJ3S
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	50u inch	6u inch	30u inch	15u inch	6u inch	15u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Terminal length	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8	8	8	8
Base Number Matches	1	1	1	1	1	-
