310-034

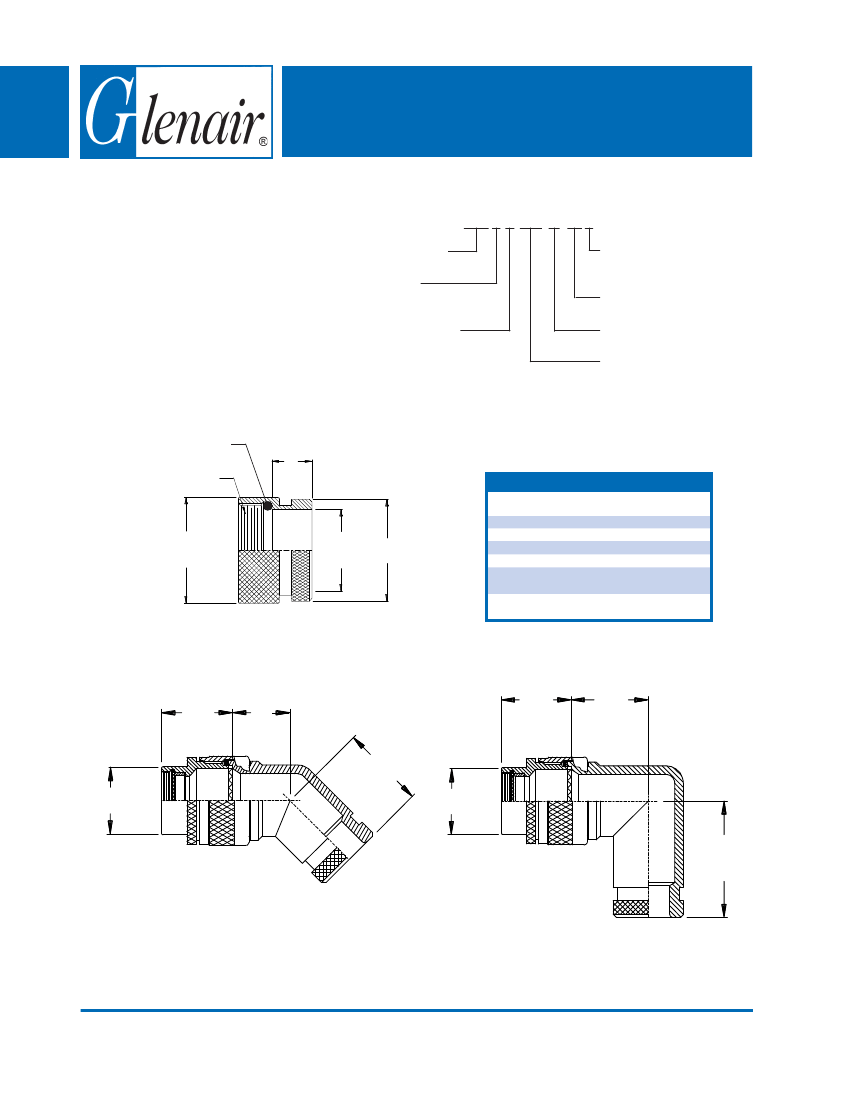

O-Ring Sealed Shrink Boot Adapter
Direct Coupling - Standard Profile
310
A-B -C-D-E-F
G-H-J-K-L-S
* Conn. Desig. B See Note 4
CONNECTOR
DESIGNATORS
*
310 D S 034 M 16 T
Product Series
Connector
Designator
Angle and Profile
H = 45°
J = 90°
S = Straight
Shrink Boot (Table III -
Omit for None)
Shell Size
Finish (Table II)
Basic Part No.
DIRECT
COUPLING
O-Ring
K
A Thread (Table I)
(
Table
V)
TABLE II - STANDARD FINISHES
GLENAIR
SYMBOL
B
C
G
M
NF
FINISH
Cadmium Plate, Olive Drab
Anodize, Black
Hard Coat, Anodic
Electroless Nickel
Cadmium Plate, Olive Drab Over
Electroless Nickel
B
(Table I)
Cable
Entry
L (Table V)
See Back Cover for Complete Finish Information
and Additional Finish Options
J
E
(Table III)
(Table IV)
F (Table IV)
B (Table I)
B (Table I)
J
(Table III)
G
(Table IV)
H
(Table IV)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 310 - Page 4
Direct Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
J-H-L-S
D-B-G-K
C
1.180 (30.0) 1.250 (31.8)
1.180 (30.0) 1.250 (31.8)
1.180 (30.0) 1.250 (31.8) 1.735 (44.1)
1.180 (30.0) 1.250 (31.8) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
TABLE IV: DIMENSIONS
E
F
G
Max
Max
Max
.639 (16.2) .810 (20.6) .750 (19.1)
.664 (16.9) .840 (21.3) .810 (20.6)
.688 (17.5) .860 (21.8) .870 (22.1)
.705 (17.9) .890 (22.6) .920 (23.4)
.732 (18.6) .910 (23.1) .980 (24.9)
.748 (19.0) .920 (23.4) 1.020 (25.9)
.773 (19.6) .940 (23.9) 1.080 (27.4)
.800 (20.3) .980 (24.9) 1.140 (29.0)
.823 (20.9) 1.010 (25.7) 1.200 (30.5)
1.041 (26.4) 1.180 (30.0) 1.480 (37.6)
1.092 (27.7) 1.370 (34.8) 1.610 (40.9)
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28
32
H
Max
.920 (23.4)
.980 (24.9)
1.040 (26.4)
1.110 (28.2)
1.170 (29.7)
1.190 (30.2)
1.250 (31.8)
1.330 (33.8)
1.400 (35.6)
1.640 (41.7)
1.880 (47.8)
Shell
Size
08
10/11
12/13
14/15
16/17
18
20
22
24
28
32
36
40
TABLE V: CABLE ENTRY AND SHRINK BOOT
L
Cable Entry
Max
Min
K Max
Shrink Boot *
.688 (17.5)
.250 (6.4)
.500 (12.7)
770-001S103
.803 (20.4)
.355 (9.0)
.500 (12.7)
770-001S103
.938 (23.8)
.491 (12.5)
.500 (12.7)
770-001S104
770-001S104
.565 (14.4)
.500 (12.7) 1.063 (27.0)
770-001S106
.690 (17.5)
.500 (12.7) 1.238 (31.4)
770-001S106
.769 (19.5)
.500 (12.7) 1.310 (33.3)
770-001S107
.844 (21.4)
.500 (12.7) 1.436 (36.5)
770-001S107
.500 (12.7) 1.560 (39.6) 1.019 (25.9)
770-001S108
.500 (12.7) 1.686 (42.8) 1.134 (28.8)
770-001S108
.687 (17.4) 2.062 (52.4) 1.369 (34.8)
770-001S109
.687 (17.4) 2.312 (58.7) 1.615 (41.0)
Consult Factory
.687 (17.4) 2.562 (65.1) 1.830 (46.5)
Consult Factory
.687 (17.4) 2.812 (71.4) 2.045 (51.9)
* Equivalent boot may be suppplied in lieu of stated part number.
1. Cable Entry is defined as the accomodation range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
2. See Shrink Boot Reference Information (page 40).
3. Metric dimensions (mm) are indicated in parentheses.
4. When using Connector Designator B refer to pages 18 and 19 for part
number development.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 310 - Page 5
REV. 13 JUNE 2010
310
310-034
O-Ring Sealed Shrink Boot Adapter
