L17RRD2F112K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> L17RRD2F112K

L17RRD2F112K: DescriptionD-Sub Contacts Skt Cont 24-28 AWG Flash Gold/78u Sn; CategoryThe connector; File Size2MB，8 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

L17RRD2F112K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	L17RRD2F112K	-	-	View	Buy Now

L17RRD2F112K Overview

D-Sub Contacts Skt Cont 24-28 AWG Flash Gold/78u Sn

L17RRD2F112K Parametric

Parameter Name	Attribute value
Product Category	D-Sub Contacts
Manufacturer	Amphenol
RoHS	Details
Packaging	Reel
Factory Pack Quantity	2000

Preview

Download Datasheet

View All

RR-HR

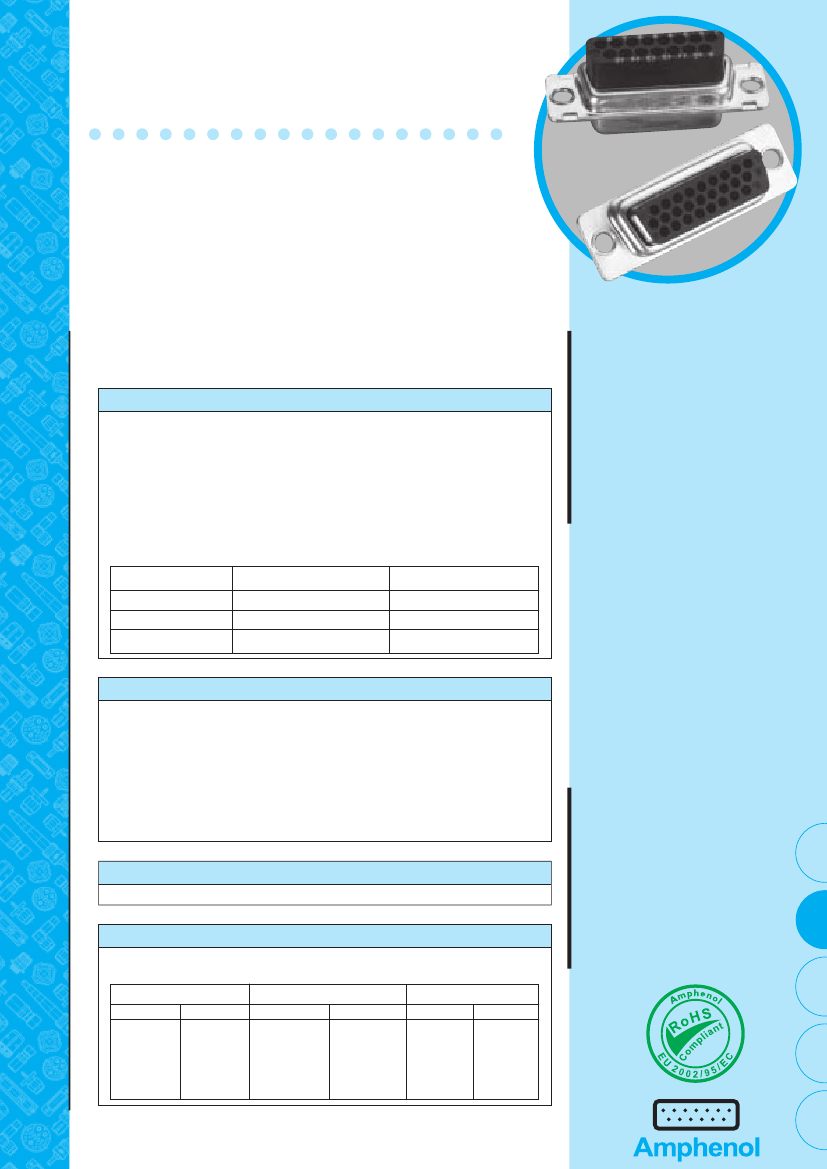

D-Sub connectors - Stamped and Formed Contacts

REAR RELEASE

CRIMP CONNECTORS

D R PTI O

ESC I

Specifications

C AR TER STI C

H AC I

• Connectors according to MIL C24308

Materials and Platings

Shells

Insulator

Boardlock

Tinned

steel with or without dimples

on plug connector

Black glass-filled thermoplastic, UL 94V-0

Brass, 3µm to 5µm (118µ" to 197µ")

tin over nickel 2µm to 3µm

(78µ" to

118µ")

Brass, 6µm to 10µm (236µ" to 394µ")

tin over nickel 2µm to 3µm

(78µ" to

118µ")

Under plating

2µm (78µ") nickel

Crimp side

gold flash or tin

Designed for high volume

production, Amphenol's rear

release crimp connector and

contacts provide significant cost

saving.

- EMI / RFI shell configuration.

- Removable, reusable contacts.

- Automatic and manual tooling

available.

Screwlock

Contacts-Brass

0.2µm (8µ") gold

µm (20µ") gold

0.76µm (30µ") gold

Electrical Data

Current rating

Voltage rating

Withstanding voltage

Insulation resistance

Contact resistance

Wire size

500V AC/rms 50Hz

RR:

1000V AC/rms 50Hz for 1 minute

HR:

1000V AC/rms 60Hz for 1 minute

RR:

5000MΩ

HR:

1000MΩ

10mΩ max

20-28

AWG

max insulation

Ø1.27mm (.05")

Simplify

your cable

assemblies

APPLI C O S

ATI N

•

Commercial

•

Industrial

•

Telecom

•

Any industry standard

I / O connections

Climatic Data

Operating temperature

-55°C to +125°C

Mechanical Data

Mating and unmating force

Unit: kg ( lb)

No. of Cts

9 (size E)

15 (size A)

25 (size B)

37 (size C)

50 (size D)

15 (size E)

26 (size A)

44 (size B)

62 (size C)

78 (size D)

Mate (max)

3.05 (6.74) 3.81 (8.42)

5.09 (11.24) 5.95 (13.16)

8.44 (18.66) 9.26 (20.46)

12.51 (27.65) 13.48 (29.78)

14.65 (32.38) 15.82 (34.96)

Unmate (min)

0.36 (0.79)

0.46 (1.01)

0.81 (1.8)

1.1 (2.47)

1.6 (3.56)

0.52 (1.14)

1.05 (2.32)

1.37 (3.02)

1.76 (3.88)

2.02 (4.46)

RR-HR / E11
