5-794621-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-794621-0

5-794621-0: Description20P MICRO MNL ASSY,R/A,SMT LF; CategoryThe connector The connector; File Size196KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-794621-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-794621-0	-	-	View	Buy Now

5-794621-0 Overview

20P MICRO MNL ASSY,R/A,SMT LF

5-794621-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	POLARIZATION
Board mount options	SPLIT BOARD LOCK
body width	0.341 inch
subject depth	0.615 inch
body length	1.339 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	2-794617-0
Mixed contacts	NO
Installation option 1	FRICTION RAMP
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.6228 mm
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL,CSA,TUV
reliability	COMMERCIAL
Shell material	NYLON
Terminal pitch	2.9972 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
UL Flammability Code	94V-0
Evacuation force-minimum value	.6672 N
Base Number Matches	1

Preview

Download Datasheet

View All

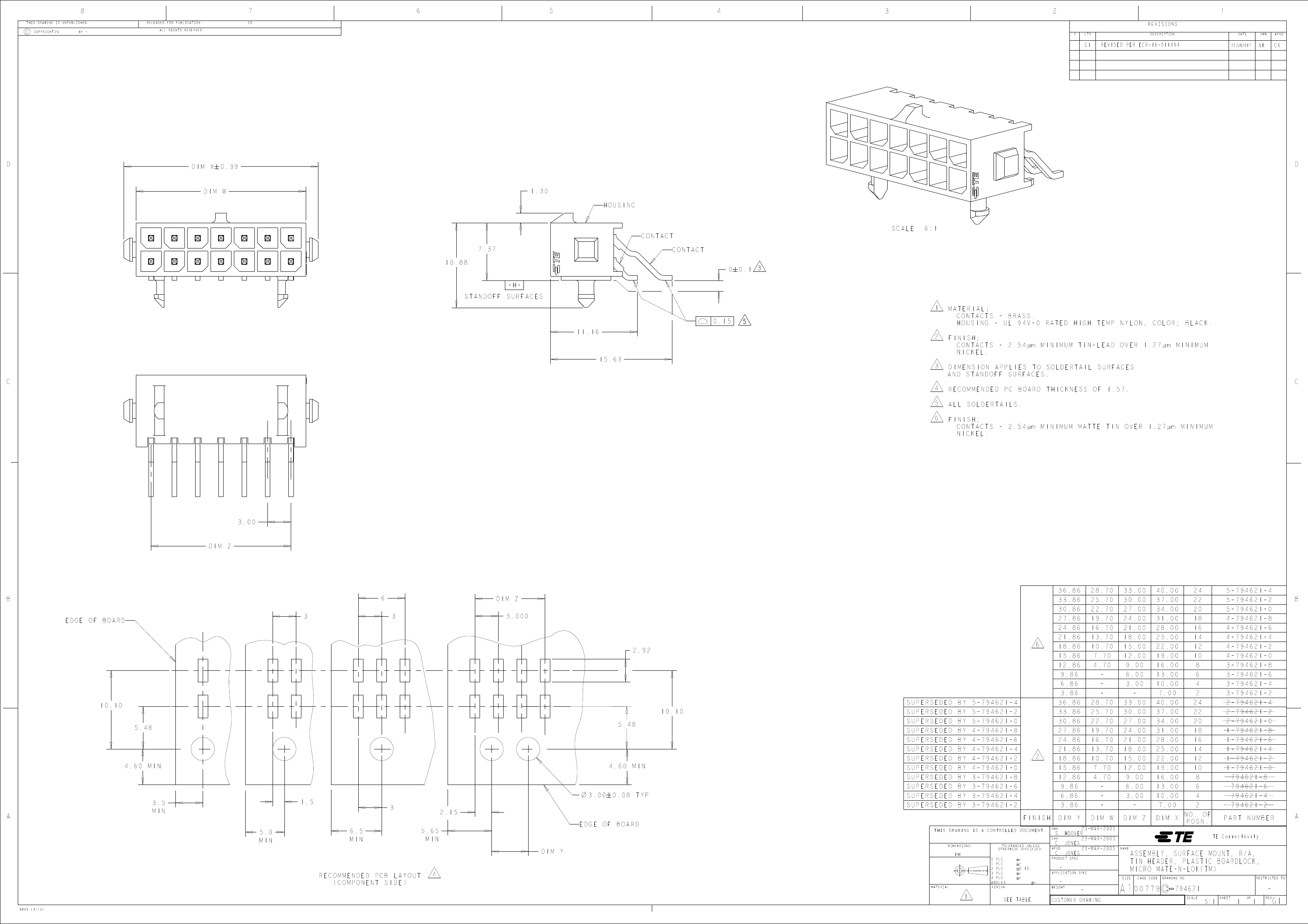

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-16-011494

22JUN2017

DIM X # 0.39

DIM W

1.30

HOUSING

SCALE

CONTACT

-H-

STANDOFF SURFACES

11.16

15.63

MATERIAL;

CONTACTS - BRASS.

HOUSING - UL 94V-0 RATED HIGH TEMP NYLON, COLOR; BLACK.

FINISH;

CONTACTS - 2.54µm MINIMUM TIN-LEAD OVER 1.27µm MINIMUM

NICKEL.

DIMENSION APPLIES TO SOLDERTAIL SURFACES

AND STANDOFF SURFACES.

RECOMMENDED PC BOARD THICKNESS OF 1.57.

ALL SOLDERTAILS.

FINISH;

CONTACTS - 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

6:1

CONTACT

7.37

10.88

3.00

DIM Z

EDGE OF BOARD

DIM Z

3.000

36.86

33.86

30.86

24.86

2.92

18.86

12.86

6.86

9.86

15.86

21.86

27.86

28.70

25.70

19.70

13.70

10.70

4.70

28.70

7.70

16.70

22.70

33.00

30.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

21.00

27.00

40.00

34.00

31.00

28.00

25.00

22.00

16.00

13.00

10.00

40.00

37.00

34.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

DIM X

31.00

7.00

19.00

37.00

NO. OF

POSN.

5- 794621 -4

5- 794621 -2

4- 794621 -8

4- 794621 -6

4- 794621 -4

4- 794621 -2

3- 794621 -8

3- 794621 -4

3- 794621 -2

2- 794621 -4

2- 794621 -2

2- 794621 -0

1- 794621 -8

1- 794621 -4

1- 794621 -2

1- 794621 -0

794621 -8

794621 -6

794621 -4

794621 -2

PART NUMBER

TE Connectivity

5- 794621 -0

4- 794621 -0

3- 794621 -6

10.10

5.48

10.10

SUPERSEDED BY 5-794621-4

SUPERSEDED BY 5-794621-2

SUPERSEDED BY 5-794621-0

SUPERSEDED BY 4-794621-8

SUPERSEDED BY 4-794621-6

SUPERSEDED BY 4-794621-4

SUPERSEDED BY 4-794621-2

SUPERSEDED BY 4-794621-0

SUPERSEDED BY 3-794621-8

SUPERSEDED BY 3-794621-6

SUPERSEDED BY 3-794621-4

SUPERSEDED BY 3-794621-2

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

36.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

DIM Y

S. HOOVER

C. JONES

3.86

33.86

25.70

22.70

19.70

13.70

10.70

7.70

4.70

DIM W

23-MAR-2005

16.70

1- 794621 -6

4.60

MIN

4.60

MIN

3.5

MIN

5.0

MIN

1.5

3.00

6.5

MIN

5.65

MIN

DIM Y

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

2.15

0.08

TYP

EDGE OF BOARD

APVD

NAME

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

4805 (3/13)

SEE TABLE

CUSTOMER DRAWING

00779

SIZE

ASSEMBLY, SURFACE MOUNT, R/A,

TIN HEADER, PLASTIC BOARDLOCK,

MICRO MATE-N-LOK(TM)

CAGE CODE

DRAWING NO

RESTRICTED TO

794621

SCALE

5:1

SHEET

REV
