30-6621-30

Description
IC u0026 Component Sockets INVERTER SOCKETS 30 PINS
CategoryThe connector    socket
File Size209KB,1 Pages
ManufacturerAries Electronics
Environmental Compliance
Download Datasheet Parametric Compare View All

30-6621-30 Online Shopping

Suppliers Part Number Price MOQ In stock
30-6621-30 - - View Buy Now

30-6621-30 Overview

IC u0026 Component Sockets INVERTER SOCKETS 30 PINS

30-6621-30 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAries Electronics
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARD: UL 94V-0
body width0.9 inch
subject depth0.375 inch
body length1.55 inch
Contact to complete cooperationMATTE TIN (200) OVER NICKEL
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact materialP-CUSN
Contact styleSQ PIN-SKT
Device slot typeIC SOCKET
Type of equipment usedDIP32
Shell materialNYLON46
JESD-609 codee3
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Number of contacts30
PCB contact patternRECTANGULAR
PCB contact row spacing0.9 mm
Terminal pitch2.54 mm
Termination typeSOLDER
Base Number Matches1
Series 6621
Inverter Sockets

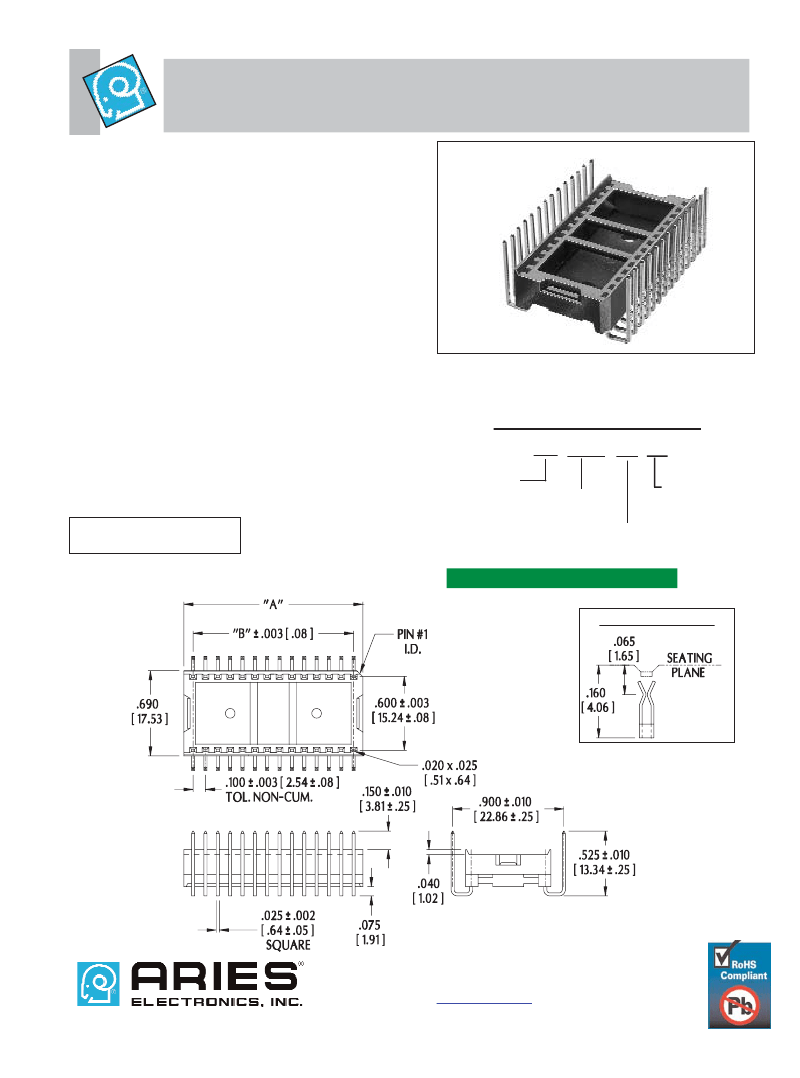

FEATURES:
• Inverted configuration allows the socket to be wave
soldered on the component side of the PCB and the
device socketed through a window on the solder side of
the PCB.
• Available on .600 [15.24] centers. Consult factory for
other sizes.
SPECIFICATIONS:
• Body material is Black UL 94 V-0 Glass-filled 4/6 Nylon.
• Bifurcated contacts are Grade A spring-tempered
Phosphor Bronze per QQ-B-750.
• Contact plating:
-30 = 200μ” min. Matte Tin per ASTM B545-97 over
50μ” min Nickel per SAE-AMS-QQ-N-290
-30TL = 200μ” min. Bright 90/10 Tin/Lead per MIL-T-
10727 Type 1 over 50μ” min. Nickel per SAE-AMS-QQ-
N-290.
• Current rating=1.5 Amp.
• Operating temperature= -67°F to 221°F [-55°C to105°C].
• Accepts flat leads up to .014 thk. x .020 wide [.36-.51],
round leads up to .020 [.51] in diameter .
• Accepts lead lengths from seating plane from .075-.160
[1.91-4.06].
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.044 ± .002 [1.15 ± .05].
All tolerances ± .005 [.13]
unless otherwise specified
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
A
LL DIMENSIONS
:
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-6621-30 XX
No. of pins:
8 to 40, 48
Series
Plating option:
TL = Tin/Lead
Tin over Nickel
plated wire wrap pin
INCHES
[
MILLIMETERS
]
CONTACT DETAIL
14007
REV. C
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM

30-6621-30 Related Products

30-6621-30 16-6621-30 10-6621-30 48-6621-30 26-6621-30 38-6621-30 22-6621-30 18-6621-30
Description IC u0026 Component Sockets INVERTER SOCKETS 30 PINS IC u0026 Component Sockets INVERTER SOCKETS 16 PINS IC u0026 Component Sockets INVERTER SOCKETS 10 PINS IC u0026 Component Sockets INVERTER SOCKETS 48 PINS IC u0026 Component Sockets INVERTER SOCKETS 26 PINS IC u0026 Component Sockets INVERTER SOCKETS 38 PINS IC u0026 Component Sockets INVERTER SOCKETS 22 PINS IC u0026 Component Sockets INVERTER SOCKETS 18 PINS
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features STANDARD: UL 94V-0 STANDARD: UL 94V-0 STANDARD: UL 94V-0 STANDARD: UL 94V-0 STANDARD: UL 94V-0 STANDARD: UL 94V-0 STANDARD: UL 94V-0 STANDARD: UL 94V-0
body width 0.9 inch 0.9 inch 0.9 inch 0.9 inch 0.9 inch 0.9 inch 0.9 inch 0.9 inch
subject depth 0.375 inch 0.375 inch 0.375 inch 0.375 inch 0.375 inch 0.375 inch 0.375 inch 0.375 inch
body length 1.55 inch 0.85 inch 0.55 inch 2.45 inch 1.35 inch 1.95 inch 1.15 inch 0.95 inch
Contact to complete cooperation MATTE TIN (200) OVER NICKEL MATTE TIN (200) OVER NICKEL MATTE TIN (200) OVER NICKEL MATTE TIN (200) OVER NICKEL MATTE TIN (200) OVER NICKEL MATTE TIN (200) OVER NICKEL MATTE TIN (200) OVER NICKEL MATTE TIN (200) OVER NICKEL
Contact completed and terminated Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material P-CUSN P-CUSN P-CUSN P-CUSN P-CUSN P-CUSN P-CUSN P-CUSN
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Device slot type IC SOCKET IC SOCKET IC SOCKET IC SOCKET IC SOCKET IC SOCKET IC SOCKET IC SOCKET
Type of equipment used DIP32 DIP16 DIP12 DIP48 DIP36 DIP38 DIP32 DIP18
Shell material NYLON46 NYLON46 NYLON46 NYLON46 NYLON46 NYLON46 NYLON46 NYLON46
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Number of contacts 30 16 10 48 26 38 22 18
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Base Number Matches 1 1 1 1 1 1 1 1
