22-26-7021 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-26-7021

22-26-7021: DescriptionHeaders u0026 Wire Housings KK 100 IDT FTh Std T IDT FTh Std Tin 2ckt; CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

22-26-7021 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	22-26-7021	-	-	View	Buy Now

22-26-7021 Overview

Headers u0026 Wire Housings KK 100 IDT FTh Std T IDT FTh Std Tin 2ckt

22-26-7021 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DOUBLE CANTILEVER CONTACTS, POLARIZED
body width	0.28 inch
subject depth	0.55 inch
body length	0.214 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	TIN (200) OVER COPPER (100)
Contact completed and terminated	TIN (200) OVER COPPER (100)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.502 N
Minimum insulation diameter	0.035 inch
Insulation resistance	500000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	7720
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED RIB(S)
Rated current (signal)	3.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	IDC
Total number of contacts	2
UL Flammability Code	94V-2
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.834 N

Preview

Download Datasheet

View All

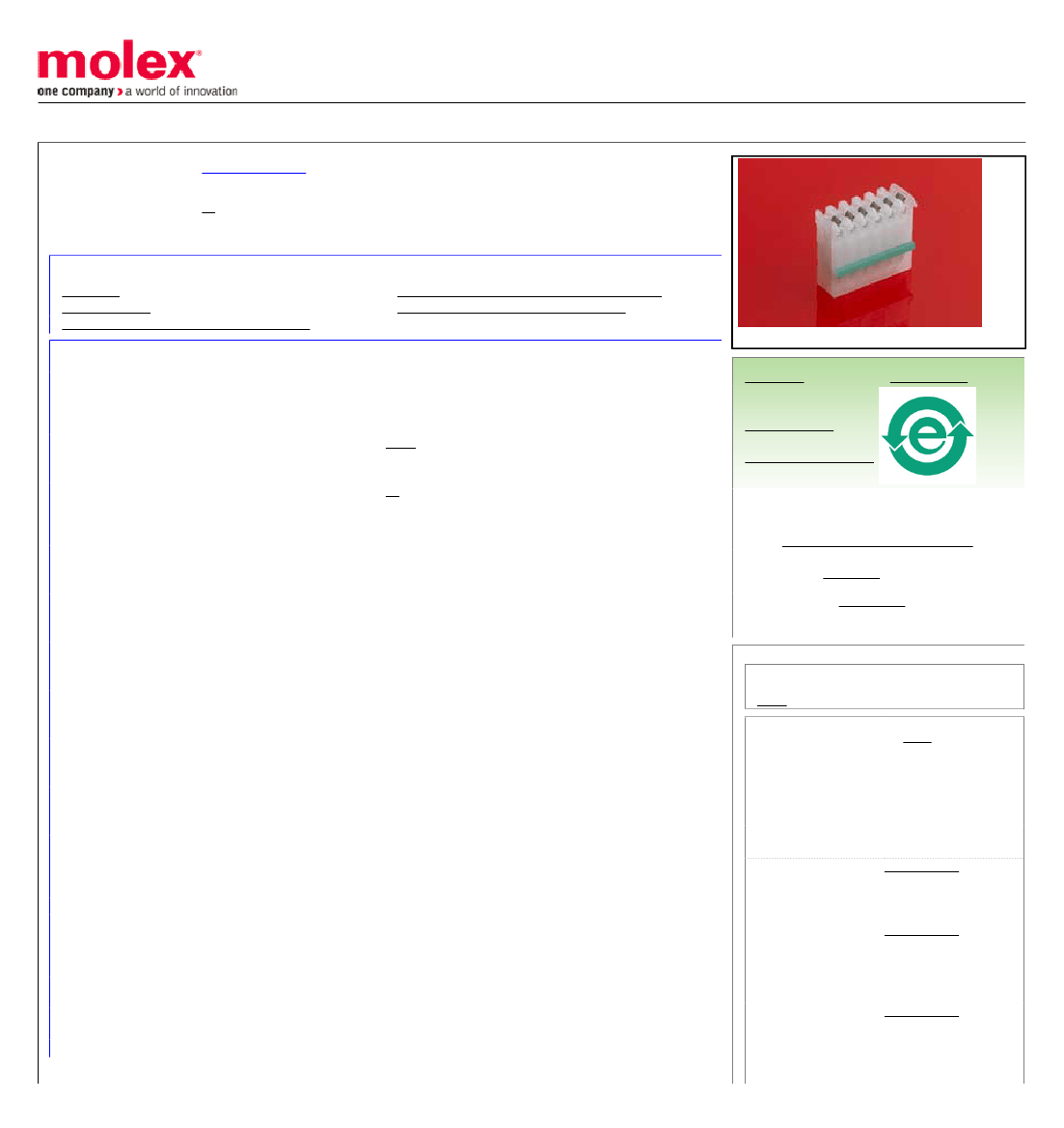

This document was generated on 09/19/2011

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0022267021

Active

2.54mm (.100") KK® IDT Double Cantilever Contact, 2 Circuits, Tin (Sn), Feed-

Through, 26 Stranded or Solid, and 28 Solid, Stranded, or Fused, Brown ID Stripe

Documents:

3D Model

Drawing (PDF)

Product Specification PS-7720-001 (PDF)

Packaging Specification PK-7720-100 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

E29179

General

Product Family

Series

Comments

Crimp Quality Equipment

Overview

Product Name

IDT and Solder Connectors

7720

Double Cantilever contact

Yes

KK®

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Low-Halogen

China RoHS

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Polarized to Mating Part

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Natural

94V-2

Female

None

Brass

Tin

Nylon

Bag

2.54mm (.100")

Yes

0°C to +75°C

IDT or Pierce

26 Solid, 26 Stranded, 28 Solid, 28 Stranded, 28

Stranded Topcoat

Search Parts in this Series

7720Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Insertion Tool for

0638133504

2.54mm (.100") Pitch

KK® IDT Crimp

Terminals

Changehead for

0690080225

7720 and 7720s

Connector Range,

Color Bar In, Feed-

To Only

Arbor Press Fixture 0690200320

for 7720 and

7720s Insulation

Displacement

Housings, 2-28

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Material Info

Old Part Number

A-7720-A02A154A

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-7720-100

PS-7720-001

SD-7720-001
