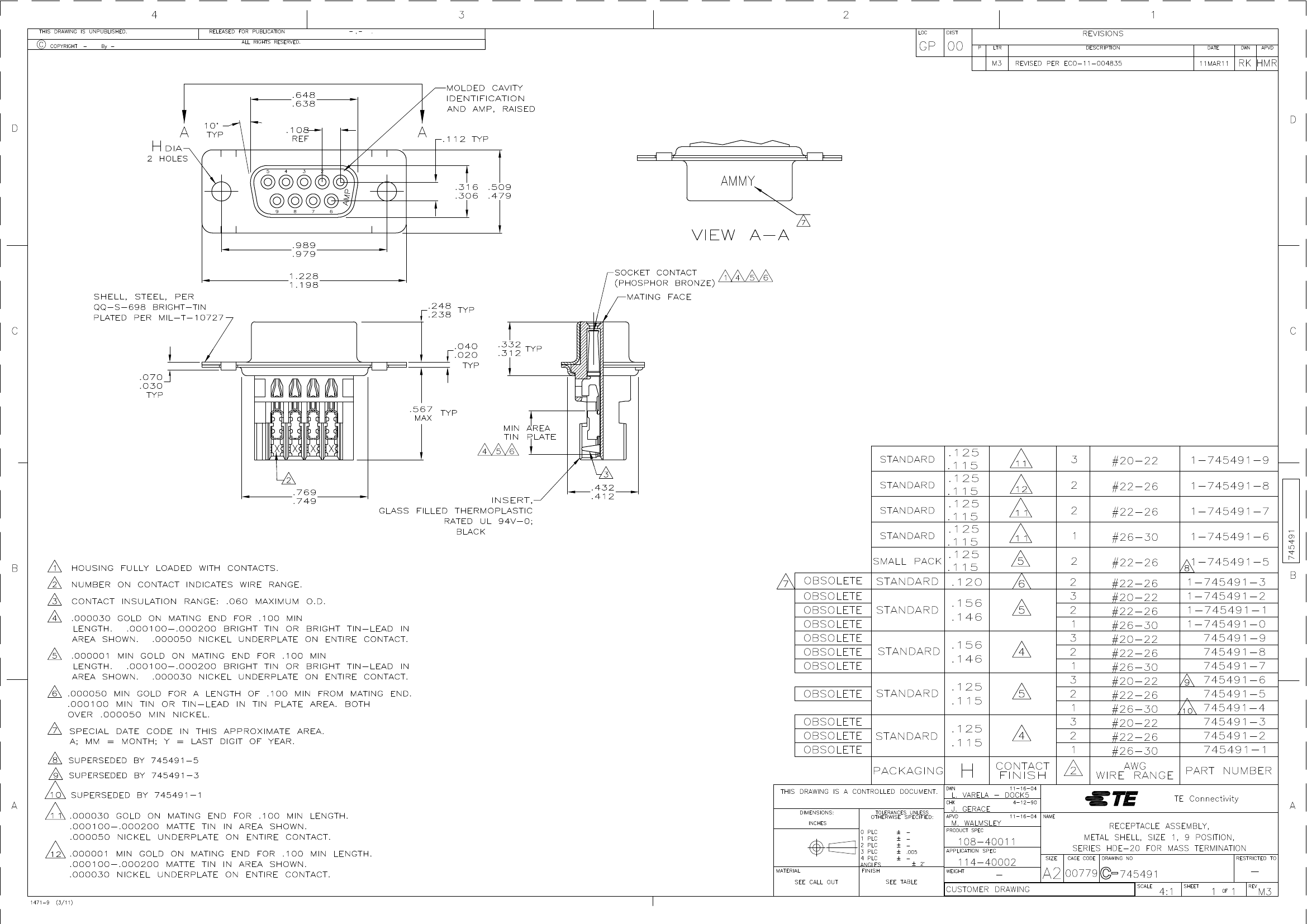

09 HDE MS RCPT,22-26,LEAD FREE
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Objectid | 1862752797 |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| Factory Lead Time | 11 weeks 3 days |
| Samacsys Description | Body Features: Insert Material Thermoplastic | Shell Plating Material Tin | Cable Exit Angle 180° | Configuration Features: Compatible With Wire & Cable Type Discrete Wire | Number of Positions 9 | Compatible With Wire & Cable Type Round Jacketed Cable | Number of Rows 2 | Contact Features: Contact Current Rating (Max) 2.4 AMP | Contact Size Size 20 | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Type Socket | Dimensions: Solid Wire Size 26 – 22 AWG | Wire Size .15 – .4 MMSQ | Wire |
| Samacsys Manufacturer | TE Connectivity |
| Samacsys Modified On | 2024-03-25 20:00:27 |
| YTEOL | 8.65 |
| Other features | AMPLIMITE |
| body width | 0.509 inch |
| subject depth | 0.567 inch |
| body length | 1.228 inch |
| Body/casing type | RECEPTACLE |
| Cable type | DISCRETE, ROUND |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contactor design | PREASSEM CONN |
| Contact to complete cooperation | NOT APPLICABLE |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | FEMALE |
| Contact material | NOT APPLICABLE |
| contact mode | STAGGERED |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Electromagnetic interference shielding | NO |
| empty shell | YES |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.112 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYETHYLENE |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Power Connector Ratings | 2.4A |
| Plug contact pitch | 0.108 inch |
| Match contact row spacing | 0.112 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | HOLE .115-.125 |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | CABLE |
| Number of connectors | ONE |
| Number of ports | 1 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Panel mounting | NO |
| Plating thickness | 30u inch |
| Rated current (signal) | 2.4 A |
| Guideline | UL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 1/E |
| Terminal pitch | 2.77 mm |
| Termination type | IDC |
| Total number of contacts | 9 |
| UL Flammability Code | 94V-0 |
| Maximum wire diameter | 22 AWG |
| Minimum wire diameter | 26 AWG |
| Evacuation force-minimum value | .1112 N |
