SLEEVES
SEE NOTE 4
B
1.00
0.27
B
ADAPTER
MOUNTING SCREWS
(2) PLACES
HOUSING
0.37
LC2 FIBER
OPTIC ADAPTER
SEE TABLE
1.22
0.929
TYP
REF
1.02
0.138 THRU
0.230 X 82°
(2) PLACES
0.083
REF
0.748
0.945
NOTES:
1. INSERTION LOSS: 0.75 dB MAX.
2. OPERATION TEMP: -20 C TO +70 C.
0.945
3. PRODUCT COMES WITH DUST CAPS. (NOT SHOWN)
4. MATERIALS:
SLEEVE: SINGLE-MODE - CERAMIC (ZIRCONIA)
MULTI-MODE - PHOSPHORUS BRONZE
HOUSING - DELRIN, BLACK
RECOMMENDED
ADAPTER - THERMOPLASTIC
SCREWS - STEEL, NICKEL PLATED
PANEL CUT-OUT
ADAPTER MOUNTING CLIPS - STAINLESS STEEL
5. FOR MOUNTING SCREWS TO BE SHIPPED WITH ASSEMBLY AND
INDIVIDUALING PACKAGING, ADD SUFFIX -PKG TO PART NUMBER.
6. WHEN MOUNTING ASSEMBLY, USE A SCREW TORQUE
OF 10 INCH-POUNDS MAXIMUM.
7. THIS PRODUCT IS RoHS COMPLIANT.
0.138
(2) PLACES
PART NUMBER
EHLC2
EHLC2M
LC2 ADAPTER
SINGLE-MODE
MULTI-MODE
ADAPTER
COLOR
BLUE
BEIGE
CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
B
A
REV
SIZE
FINISH
WIDTH
MULT
MATERIAL
SPEC No.
SCALE
LBS/M
TEMPER
0.02
0.005
SPEC No.
FIRST USED ON
DATE DRAWN
BY
CHKD
1:1
27239
26348
ECO NUMBER
1-3-14
2/27/09
DATE
TO
RS
BY
TJK
TJK
APVD
5/12/08
JGK
RS
5/21/09
TJK
7/16/09
PART No.
APVD
SHEET
1
OF
REVISIONS
DO NOT SCALE DRAWING
NAME

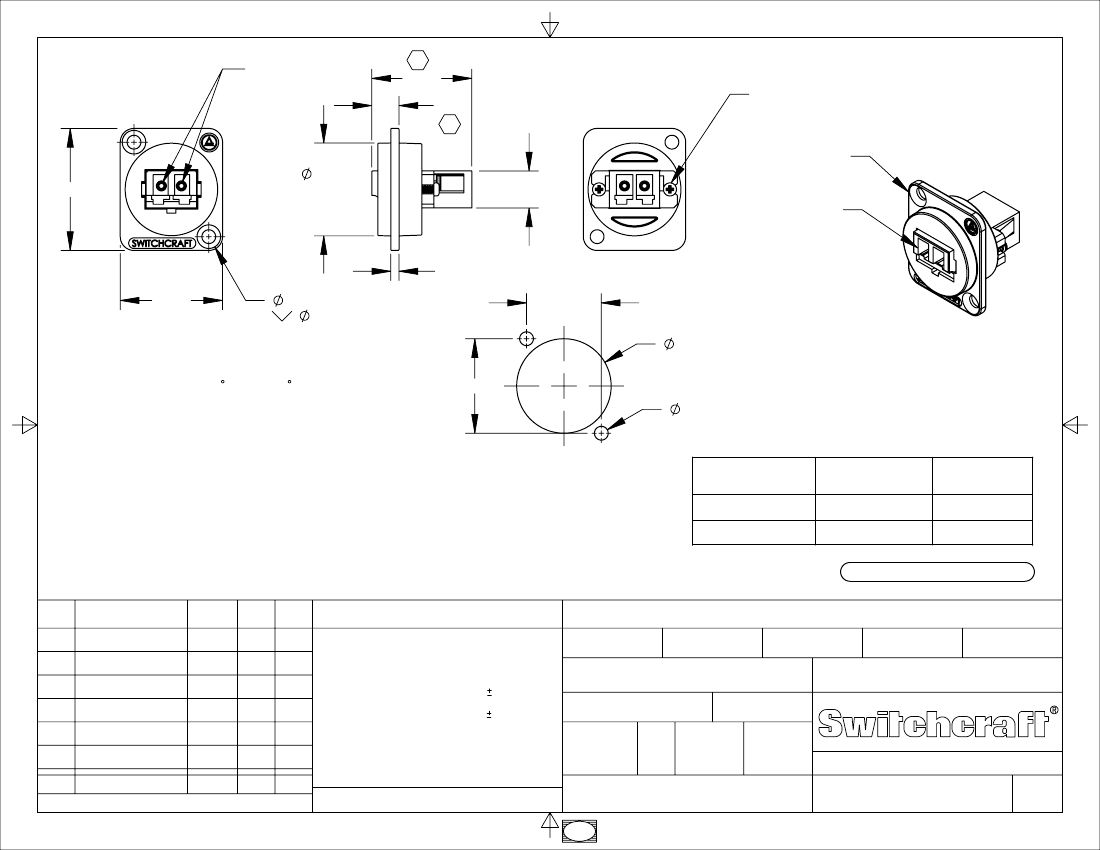

E SERIES LC TO LC
FIBER OPTIC ADAPTER, RoHS
A
1
REV
EHLC2 SERIES
SolidWorks CAD File
B
