380HS103NF1716M3 datasheet, PDF

Datasheet> All Categories > The connector> 380HS103NF1716M3

380HS103NF1716M3: DescriptionCircular MIL Spec Backshells NON ENV STRN RLF RC LOW STRT MED DUTY; CategoryThe connector; File Size141KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

380HS103NF1716M3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380HS103NF1716M3	-	-	View	Buy Now

380HS103NF1716M3 Overview

Circular MIL Spec Backshells NON ENV STRN RLF RC LOW STRT MED DUTY

380HS103NF1716M3 Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
RoHS	No
MIL Type	MIL-DTL-38999 III, IV
Factory Pack Quantity	1

Preview

Download Datasheet

View All

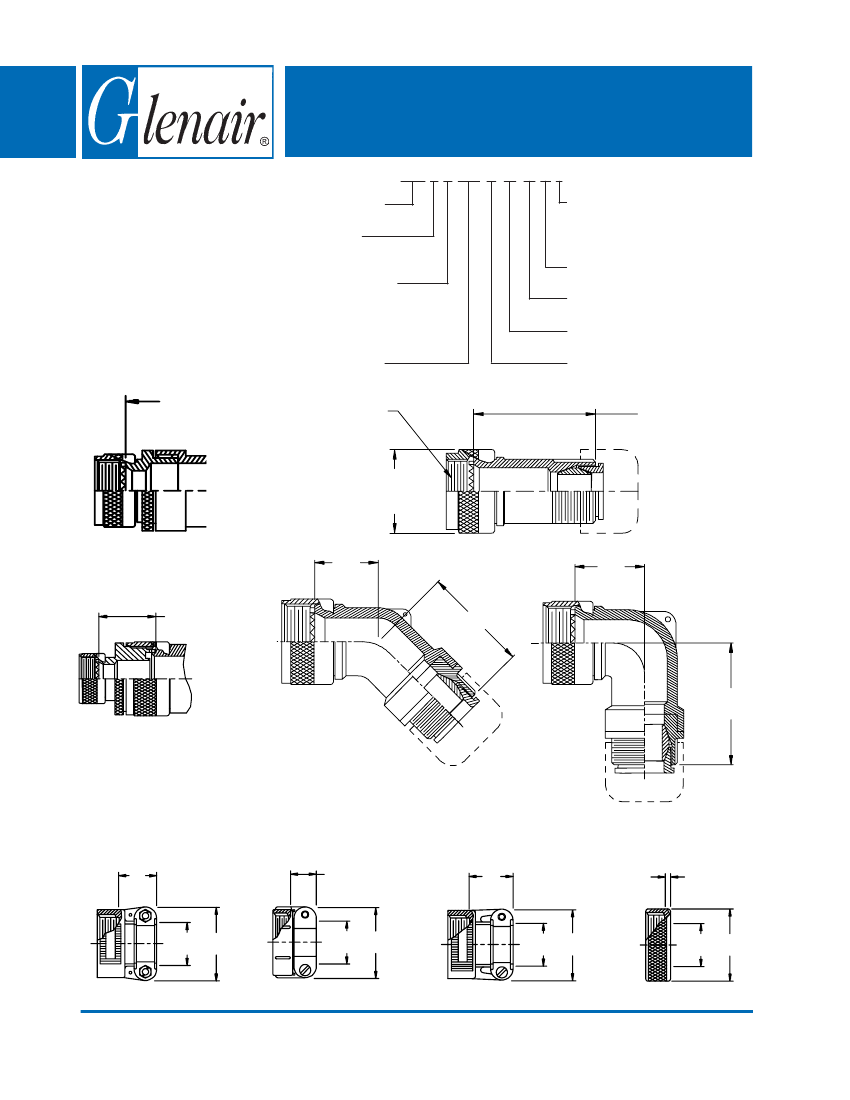

380-103

EMI/RFI Non-Environmental Backshell

with Strain Relief

Type F - Rotatable Coupling - Low Profile

CONNECTOR

DESIGNATORS

380 F S 103 M 16 08 A 6

Product Series

Connector

Designator

Angular Function

A = 90°

B = 45°

S = Straight

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style (H, A, M, D)

Dash No. (Table X, XI)

Shell Size (Table I)

Finish (Table II)

A-F-H-L-S

ROTATABLE

COUPLING

TYPE F INDIVIDUAL

AND/OR OVERALL

Basic Part No.

SHIELD TERMINATION

Length ± .060 (1.52)

Minimum Order Length 2.0 Inch

(See Note 4)

A Thread

(Table I)

Length ± .060 (1.52)

Minimum Order

Length 1.5 Inch

(See Note 4)

C Typ.

(Table I)

STYLE 2

(STRAIGHT

See Note 1)

.88 (22.4)

Max

(Table III)

F (Table III)

(Table III)

H (Table III)

STYLE 2

(45° & 90°

See Note 1)

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Entry

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 38 - Page 104
