LWD-15-1224 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> LWD-15-1224

Preview

LWD-15-1224: DescriptionSwitching Power Supplies 14.4W 12V 0.6A 24V 0.3A; CategoryPower/power management; File Size280KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

LWD-15-1224 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LWD-15-1224	-	-	View	Buy Now

LWD-15-1224 Overview

Switching Power Supplies 14.4W 12V 0.6A 24V 0.3A

LWD-15-1224 Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	TDK Corporation
RoHS	Details
Product	Switching Supplies
Output Voltage-Channel 1	12 VDC
Output Voltage-Channel 2	24 VDC
Number of Outputs	2 Output
Output Power	14.4 W
Input Voltage	85 VAC to 265 VAC
Output Current-Channel 1	0.6 A
Mounting Style	Chassis
Length	1.1 in
Width	3.23 in
Height	6.3 in
Factory Pack Quantity	1
Unit Weight	1 lb

Preview

Download Datasheet

View All

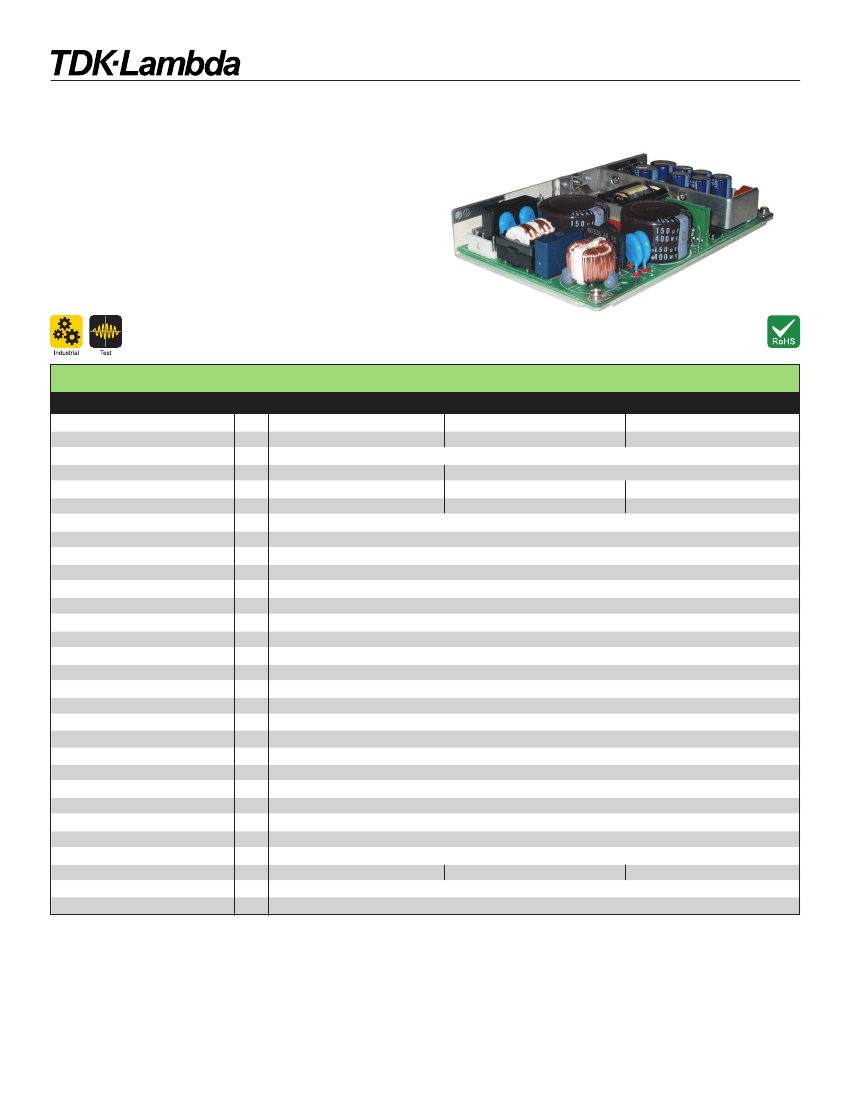

LW Series

Low Proﬁle Triple Output

Features

u

26mm height

Outputs 2 and 3 isolated from output 1

Universal Input (85 - 265VAC)

Low Proﬁle

Wattbox design on LWT

Key Market Segments & Applications

Speciﬁcations

Model

Max Output Power (typ)

W

Efﬁciency (Typ)

%

AC Input Voltage range

-

DC Input Voltage range

-

Input Current Typ (100/200VAC) A

Inrush Current (110/200VAC)

A

Output 1 Voltage Adjustment

-

Output Voltage Accuracy

-

Temperature Coefﬁcient

-

Line Regulation

-

Load Regulation

-

Ripple & Noise

-

Overcurrent Protection

-

Overvoltage Protection

V

Hold Up Time (Typ at 100VAC) ms

Series Operation

-

Operating Temperature

-

Storage Temperature

°C

Operating Humidity

-

Storage Humidity

-

Cooling

-

Withstand Voltage

-

Isolation Resistance

-

Vibration (non operating)

-

Shock

-

Safety Agency Approvals

-

Conducted EMI

-

Weight (Typ)

g

Size (WxHxD)

mm

Warranty

-

LWT30H

LWT50H

30

50

73

72

85 - 265VAC (47 - 440Hz)

110 - 350VDC

110 - 330VDC

0.4/0.22

0.7/0.42

1.2/0/7

14/28

16/32

5V: 5 to 5.25V, 12V: 12 to 12.6V, 15V: 15V to 15.75V

Output 2 & 3 ±5%

Output 1 < 1%, Output 2 or 3, <2% at 0 - 60°C

1%

2%

Output 1: 100mV, Outputs 2 & 3: 150mV

>105%

Main output only: 5.75 - 6.75V, manual reset

20

Possible

LWT: 0°C to +60°C, derate as follows: 40°C: 100%, 50°C: 80%, 60°C: 60%

-30 to +85°C

30 - 90% RH (Non condensing)

10 - 95% RH (Non condensing)

Convection

Input to Gnd 2kVAC Input to Output 3kVAC (20mA)

>100M at 25C & 70%RH, Output to Ground 500VDC

10-55Hz(1 min) <19.6m/s

2

(1 hr)

196.1m/s

2

UL60950-1, CSA60950-1, EN60950-1, CE LVD

VDE Class B, FCC Class B

220

300

400

Please refer to outline drawings

One Year

LWT15H

17

72

Note: See Installation Manual for full details, test methods of parameters and application notes

1-800-526-2324 • www.us.tdk-lambda.com/lp/

92

Disclaimer: us.tdk-lambda.com/lp/legal.htm

LWD-15-1224 Related Products

	LWD-15-1224	LWD-30-0512	LWD-50-1224
Description	Switching Power Supplies 14.4W 12V 0.6A 24V 0.3A	Switching Power Supplies 29.4W 5V 3A 12V 1.2A	Switching Power Supplies 12V@2A, 24V@1A
Product Category	Switching Power Supplies	Switching Power Supplies	Switching Power Supplies
Manufacturer	TDK Corporation	TDK Corporation	TDK Corporation
Product	Switching Supplies	Switching Supplies	Switching Supplies
Output Voltage-Channel 1	12 VDC	5 VDC	12 VDC
Output Voltage-Channel 2	24 VDC	12 VDC	24 VDC
Number of Outputs	2 Output	2 Output	2 Output
Output Power	14.4 W	29.4 W	48 W
Input Voltage	85 VAC to 265 VAC	85 VAC to 265 VAC	85 VAC to 265 VAC
Output Current-Channel 1	0.6 A	3 A	2 A
Mounting Style	Chassis	Chassis	Chassis
Unit Weight	1 lb	1 oz	3 oz
RoHS	Details	Details	-
Length	1.1 in	2 in	-
Width	3.23 in	1 in	-
Height	6.3 in	0.4 in	-
Factory Pack Quantity	1	1	-
