SSQE48T15033-NABNG datasheet, PDF

Datasheet> All Categories > semiconductor> Power management> SSQE48T15033-NABNG

SSQE48T15033-NABNG: DescriptionIsolated DC/DC Converters DC DC CONVERTER; Categorysemiconductor Power management; File Size1MB，13 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric Compare View All

SSQE48T15033-NABNG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SSQE48T15033-NABNG	-	-	View	Buy Now

SSQE48T15033-NABNG Overview

Isolated DC/DC Converters DC DC CONVERTER

SSQE48T15033-NABNG Parametric

Parameter Name	Attribute value
Product Category	Isolated DC/DC Converters
Manufacturer	Bel
RoHS	Details
Number of Outputs	1 Output
Output Power	50 W
Input Voltage	36 V to 75 V
Output Voltage-Channel 1	3.3 V
Output Current-Channel 1	15 A
Isolation Voltage	2250 VDC
Mounting Style	Through Hole
Length	33.02 mm
Width	22.86 mm
Height	9.5 mm
Dimensions	33.02 mm x 22.86 mm x 9.5 mm
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Product	Isolated
Factory Pack Quantity	100

Preview

Download Datasheet

View All

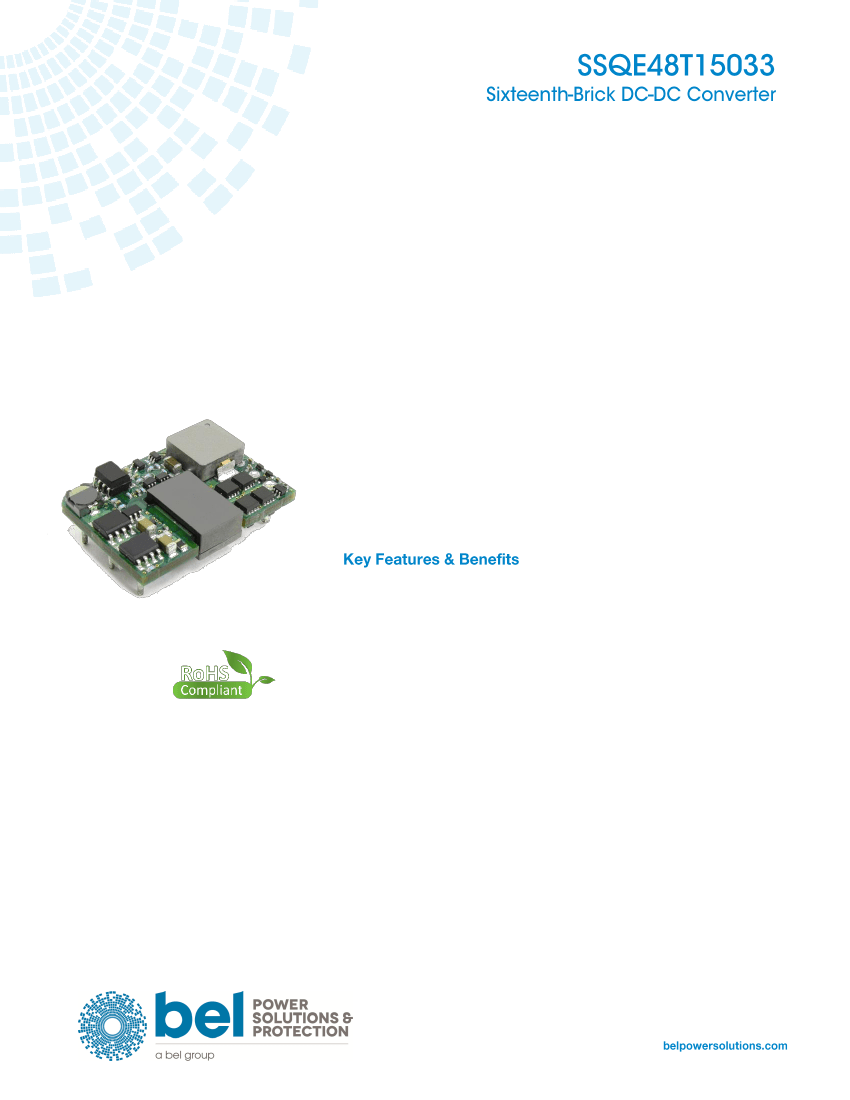

The new SSQE48T15033 DC-DC converter is an open frame

sixteenth-brick DC-DC converter that conforms to the Distributed

Open Standards Architecture (DOSA) specifications. The converter

operates over an input voltage range of 36 to 75 VDC, and provides a

tightly regulated output voltage with an output current up to 15 A. The

output is fully isolated from the input and the converter meets Basic

Insulation requirements permitting a positive or negative output

configuration.

The converter is constructed using a single-board approach with both

planar and discrete magnetics. The standard feature set includes

remote On/Off (positive or negative logic), input undervoltage lockout,

output overvoltage, overcurrent, and short circuit protections, output

voltage trim, and overtemperature shutdown with hysteresis.

With standard pinout and trim equations and excellent thermal

performance, the SSQE48T15033 converters can replace in most

cases existing eighth-brick converters. Inclusion of this converter in a

new design can result in significant board space and cost savings.



36-75 VDC Input; 3.3 VDC @ 15 A, 50 W Output

Industry-standard DOSA pinout

On-board input differential LC-filter

Start-up into pre-biased load

No minimum load required

Withstands 100 V input transient for 100 ms

Fixed-frequency operation

Hiccup overcurrent protection

Fully protected (OTP, OCP, OVP, UVLO)

Remote sense

Remote ON/OFF positive or negative logic option

Output voltage trim range: +10%/−20% with industry-standard trim

equations

Designed to meet Class B conducted emissions per FCC and EN55022

when used with external filter

All materials meet UL94, V-0 flammability rating

Approved to the latest edition and amendment of ITE Safety standards,

UL/CSA 60950-1 and IEC60950-1

RoHS lead free solder and lead-solder-exempted products are

available

Asia-Pacific

+86 755 298 85888

Europe, Middle East

+353 61 225 977

North America

+1 866 513 2839

BCD.00777_AA

These power converters have been designed to be stable with no external capacitors when used in low inductance input

and output circuits.

However, in some applications, the inductance associated with the distribution from the power source to the input of the

converter can affect the stability of the converter. A 33 µF electrolytic capacitor with an ESR < 1Ω across the input is

recommended to ensure stability of the converter over the wide range of input source impedance.

In many applications, the user has to use decoupling capacitance at the load. The power converter will exhibit stable

operation with external load capacitance up to 20,000 µF.

The ON/OFF pin is used to turn the power converter on or off remotely via a system signal. There are two remote control

options available, positive and negative logic, both referenced to Vin(-). A typical connection is shown in Fig. A.

Vin (+)

SSQE48 Converter

(Top View)

Vout (+)

SENSE (+)

TRIM

SENSE (-)

Rload

Vin

ON/OFF

Vin (-)

CONTROL

INPUT

Vout (-)

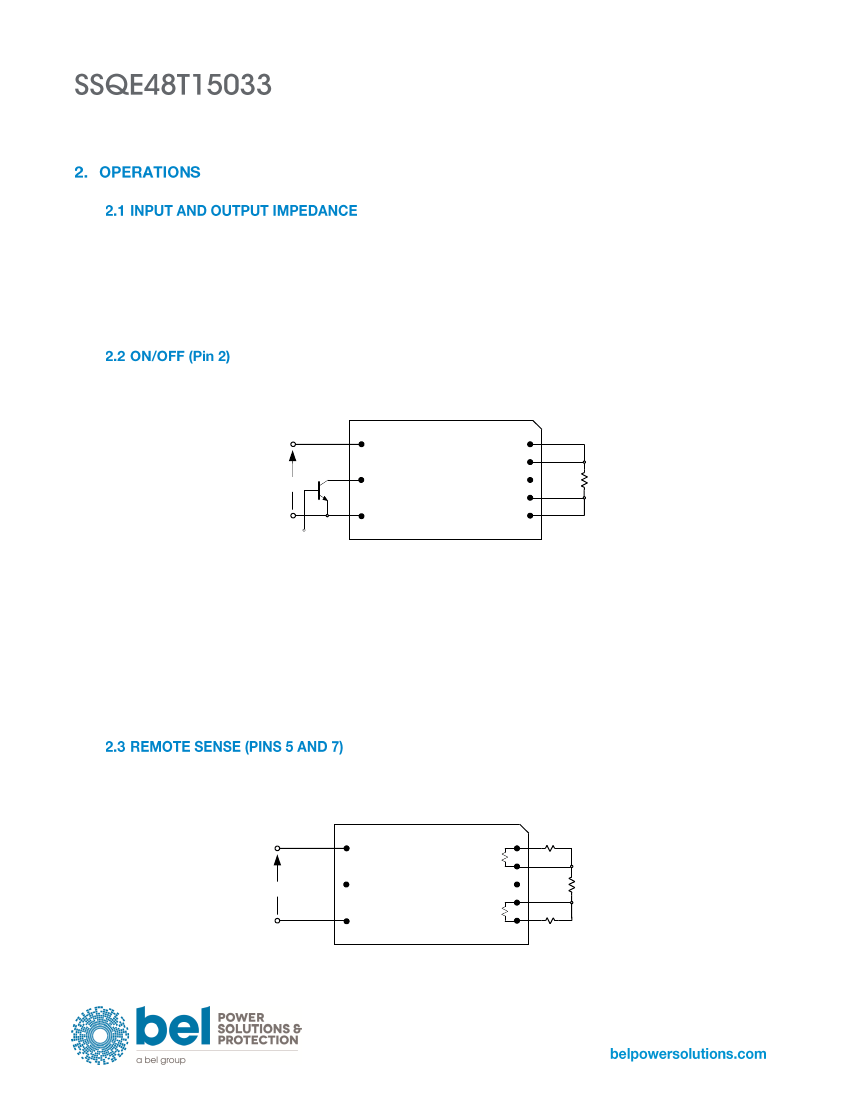

Figure A. Circuit configuration for ON/OFF function.

The positive logic version turns on when the ON/OFF pin is at a logic high and turns off when the pin is at a logic low. The

converter is on when the ON/OFF pin is left open. See the Electrical Specifications for logic high/low definitions.

The negative logic version turns on when the pin is at a logic low and turns off when the pin is at a logic high. The ON/OFF

pin can be hard wired directly to Vin(-) to enable automatic power up of the converter without the need of an external control

signal.

The ON/OFF pin is internally pulled up to 5 V through a resistor. A properly de-bounced mechanical switch, open-collector

transistor, or FET can be used to drive the input of the ON/OFF pin. The device must be capable of sinking up to 0.2 mA at a

low level voltage of



0.8 V. An external voltage source (±20 V maximum) may be connected directly to the ON/OFF input, in

which case it must be capable of sourcing or sinking up to 1 mA depending on the signal polarity. See the Startup Information

section for system timing waveforms associated with use of the ON/OFF pin.

The remote sense feature of the converter compensates for voltage drops occurring between the output pins of the converter

and the load. The SENSE(-) (Pin 5) and SENSE(+) (Pin 7) pins should be connected at the load or at the point where regulation

is required (see Fig. B).

SSQE48 Converter

Vin (+)

(Top View)

ON/OFF

Vout (+)

100

SENSE (+)

Vin

TRIM

SENSE (-)

Rload

Vin (-)

Vout (-)

Figure B. Remote sense circuit configuration.

tech.support@psbel.com
