Keeper
®
LTC-3PN
The LTC-3PN series is a perfect match for applications
which have little space but need a reliable, high energy
source. This cell is available in three (3) printed circuit
board (PCB) mounting configurations, with the
flexibility to be designed for any mounting geometry.
With 350 mAh packed into 0.0975 in
2
, these small
power sources will provide the solution for your
electronic packaging requirements.
LTC-3PN PRODUCT FEATURES
• Compliant with lead-free RoHS and WEEE
EC directives.
• Low profile, prismatic design.
• Stainless steel construction provides corrosion
resistance, hermetic seal and structural integrity.
• Years of low rate continuous use.
• Stand-by use with 80% capacity retention after
15 years at room temperature.
• Highly efficient utilization of valuable board space.
• Wave solderable (limit solder bath exposure to
a maximum of 5 seconds).
• High energy density compared to other chemistries.
• No charging circuits required.
• Higher cell voltage allows for fewer cells and
high reliability.
• Flat discharge characteristics provide optimum
voltage regulation.
• Non-pressurized system allow for
high temperature usage.
• Ship unrestricted. IATA No. UN3090.
• Underwriters Laboratories recognized component.

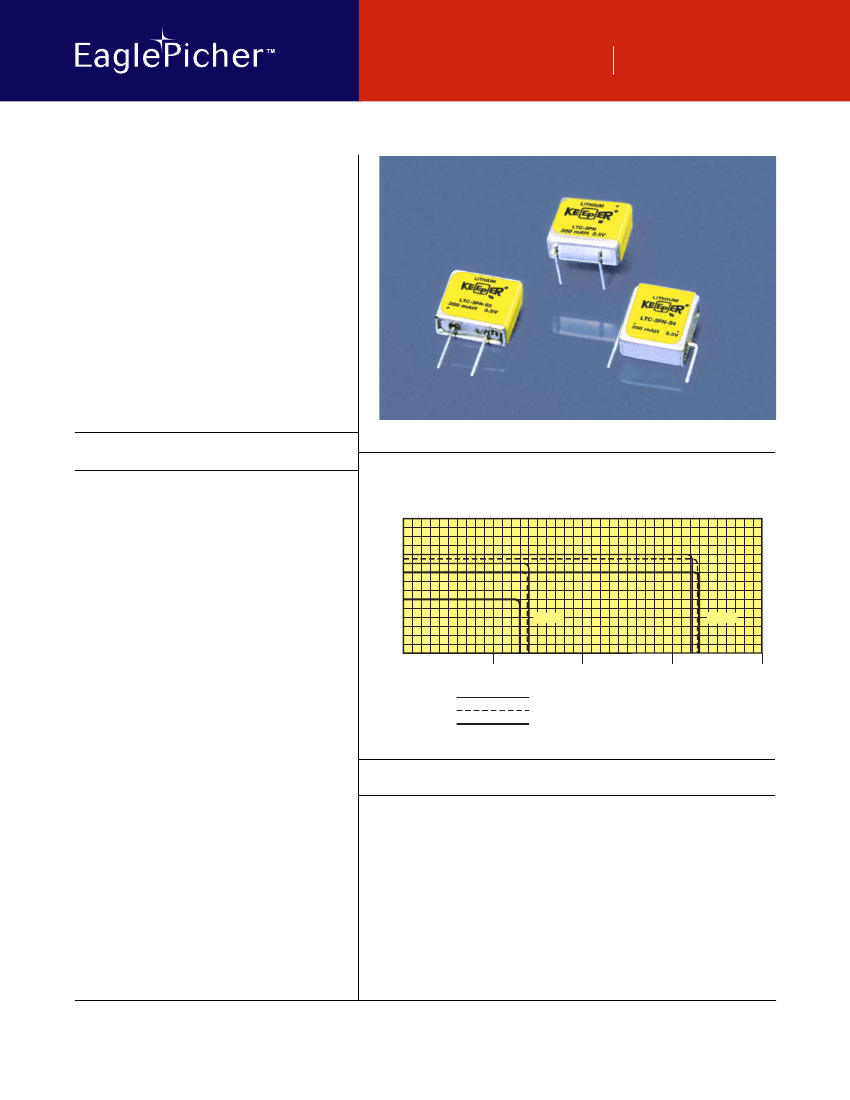

TYPICAL LTC-3PN DISCHARGE CHARACTERISTICS AT VARIED TEMPERATURES
3.9
3.8
3.7
3.6
3.5
3.4
3.3
3.2
3.1
3.0
2.9
2.8
2.7
2.6
2.5
1 mA
10 uA
2
4 6
x 10
8
2
4 6 8
2 4 6 8
2 4 6 8
x 100
x 1,000
x 10,000
DISCHARGE TIME (HOURS)
HIGH TEMPERATURE OPERATION AT 75°C
TEMPERATURE OPERATION AT 20°C
COLD TEMPERATURE OPERATION AT -20°C
DO YOU HAVE QUESTIONS
CONCERNING:
• What size battery you need?
• What is passivation and its effects?
• What is the maximum rate of this cell?
• Any other technical question?
If so, call our Engineers at
1-800-201-0215 or 1-417-625-1116
for detailed technical information.
LITHIUM-THIONYL CHLORIDE BATTERIES
Keeper
®
LTC-3PN
Part Number
LTC-3PN
LTC-3PN-S2
LTC-3PN-S4
Voltage
3.5
3.5
3.5
Capacity (mAh)
350
350
350
Length (in.)
0.60
0.65
0.60
Width (in.)
0.65
0.265
0.265
Thickness (in.)
0.265
0.60
0.65
Weight (g)
4.6
4.6
4.6

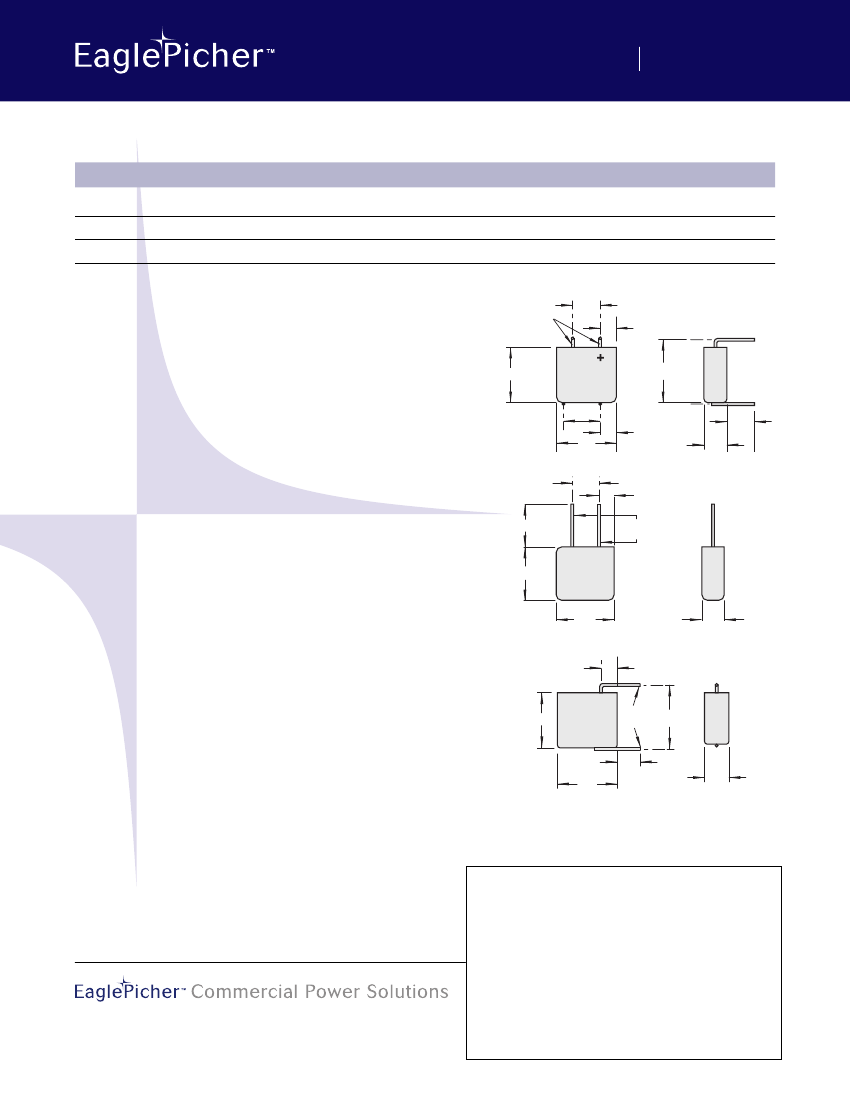

SPECIFICATIONS LTC-3PN
Nominal Open Circuit Voltage, 25°C .................................. 3.67 volts
Nominal Working Voltage, 25°C .......................................... 3.5 volts
Nominal Capacity (350 hr. rate), 25°C .............................. 350 mAH
Volume.......................................................................... 0.103 cu. in.
Weight ................................................................................ 4.6 GMS
Operating Temperature ............................................ -40°C to +95°C
Case Material: 304 Stainless Steel, Hermetically Sealed (case negative polarity)
Terminal and Support Pins are .030" dia. (solder tinned)
.30
POWER LEADS
.175
-
.60
.70
.40
.17
.65
.265
.30
SPECIFICATIONS LTC-3PN-S2
Nominal Open Circuit Voltage, 25°C .................................. 3.67 volts
Nominal Working Voltage, 25°C .......................................... 3.5 volts
Nominal Capacity (350 hr. rate), 25°C .............................. 350 mAH
Volume.......................................................................... 0.103 cu. in.
Weight ................................................................................ 4.6 GMS
Operating Temperature ............................................ -40°C to +95°C
Case Material: 304 Stainless Steel, Hermetically Sealed (case negative polarity)
Terminal and Support Pins are .030" dia. (solder tinned)
.48
.30
.17
POWER
LEADS
+
.60
.65
.265
SPECIFICATIONS LTC-3PN-S4
Nominal Open Circuit Voltage, 25°C .................................. 3.67 volts
Nominal Working Voltage, 25°C .......................................... 3.5 volts
Nominal Capacity (350 hr. rate), 25°C .............................. 350 mAH
Volume.......................................................................... 0.103 cu. in.
Weight ................................................................................ 4.6 GMS
Operating Temperature ............................................ -40°C to +95°C
Case Material: 304 Stainless Steel, Hermetically Sealed (case negative polarity)
Terminal and Support Pins are .030" dia. (solder tinned)
.175
+
.60
POWER
LEADS
.70
.65
The specifications on this sheet may be changed by EaglePicher without notice.
EaglePicher™ is a trademark of and Keeper®
is
a registered trademark of EaglePicher Corporation.
-
.25
.265
WE CAN DESIGN TO FIT ANY APPLICATION.
Our team of engineers can design any pin configuration required
to fit your specialized application. If you don't see a battery
configuration you need here, call us and we will begin working
on a EPT part number just for you.
DISTRIBUTED LOCALLY BY:
Keeper
®
3220 Industrial Drive
•
Joplin, MO 64801
Tel: 1-800-201-0215
•
Fax: 417-626-2078
E-mail: solutions@eaglepicher.com
•
Web site: www.epcompower.com
Copyright ©2006 EaglePicher Corporation
