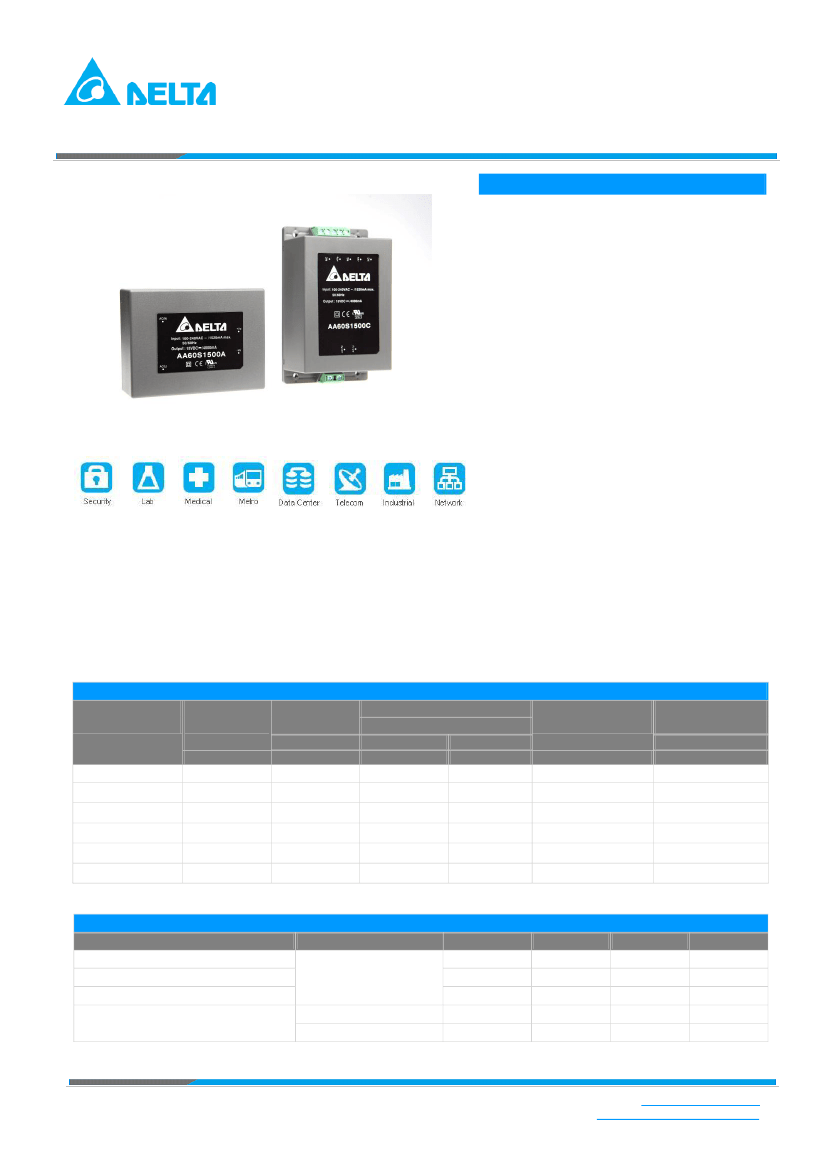

AA60S Series
60W Single AC/DC Power Module
FEATURES
Encapsulated compact AC-DC power supply
Over Load and Over Voltage Protection
3 Mounting Package Versoin:
- Solder pins for direct PCB mount
- Screw terminal block for chassis mount
- DIN-Rail Mount
Universal Input voltage range 85-264 VAC,
47-440 Hz
3kVAC Isolatoin, Protection Class ll level
UL/IEC/EN 60950-1 Certified , CE Marked
UL508 Approval
Lead free, RoHs Compliant
3 Year Product Warranty
The AA60S series , isolated fully encapsulated 60W AC/DC power module with 3,000VAC isolation. With Universal input voltage
85-264VAC and International safety approvals, these power modules are ideal for applications in commercial and industrial electronic
equipment. These isolated AC/DC converters are the latest offering from a world leader in power systems technology and
manufacturing ― Delta Electronics, Inc. With creative design technology and optimization of component placement, these converters
possess outstanding electrical and thermal performance, as well as extremely high reliability under highly stressful operating
conditions. industrial electronic equipment.
Model List
Model Number
Output
Voltage
VDC
5.1
12
15
24
36
48
Output Current
Max.
mA
10,000
5000
4000
2500
1666
1250
Input Current
115VAC, 60Hz
@Max. Load
@No Load
mA(typ.)
mA(typ.)
936
50
1060
1047
1035
1035
1035
50
50
50
50
50
Max. capacitive
Load
μF
8000
3900
3300
1500
1000
680
Efficiency
(typ.)
@Max. Load
%
79
82
83
84
84
84
AA60S0500A
AA60S1200A
AA60S1500A
AA60S2400A
AA60S3600A
AA60S4800A
Input Characteristics
Parameter
Input Voltage Range
Input Frequency Range
Input Voltage Range
Inrush Current (Cold Start at 25℃)
115VAC
230VAC
All Models
Model
Min.
85
47
120
---
---
Typ.
---
---
---
---
---
Max.
264
63
370
30
50
Unit
VAC
Hz
VDC
A
A
DS_AA60S_04082014
E-mail: DCDC@delta.com.tw
http://www.deltaww.com/dcdc
P1
Output Characteristics
Parameter
Output Voltage Accuracy
Line Regulation
Load Regulation
Conditions
Vin=Min. to Max.
Iout=Min. to Max.
5.1VDC Output Models
Ripple & Noise (20MHz)
Other Output Models
Minimum Load
Over Voltage Protection
Transient Response Deviation
Temperature Coefficient
Overshoot
Current Limitation
Short Circuit Protection
---
---
---
---
---
1.0
10
120
±3
±0.02
---
1.3
---
---
±6
---
5
---
%Inom.
% of Vo
%
%/℃
% Vout
%Inom.
Min.
---
---
---
---
Typ.
±1.0
±0.2
±0.5
2.0
Max.
±2.0
±1.0
±1.0
3.0
%V
PP
of
V
o
Unit
%
%
%
%V
PP
of
V
o
Zener diode clamp
(Iout=100% to Iout=50%)
Foldback, auto-recovery
105
---
(long term overload condition may cause damage)
Hiccup mode, indefinite (automatic recovery)
General Characteristics
Parameter
I/O Isolation Voltage
I/O Isolation Resistance
Switching Frequency
Hold-up Time
MTBF (calculated)
EMC Emission
Min.
Typ.
Max.
Unit
3000
---
---
VACrms
100
---
---
MΩ
---
100
---
KHz
---
20
---
ms
MIL-HDBK-217F@25℃, Ground Benign
125,000
---
---
Hours
Conducted and radiated
EN 55011 class B, EN 55022 class B, FCC part 15 class B
Performance
Standard
Specification Requirement
Criteria
B
EN61000-4-2
Air ±8KV Cont. ±4KV
A
EN61000-4-3
80~1000MHz, 10V/m 80% AM, 1KHz modulation
AC port ±2KV DC, SL, TL ±2KV not less than 1
B
EN61000-4-4
min.
B
EN61000-4-5
1.2/50μS(8/20μS) AC dif. ±1KV DC ±0.5KV
0.15~80MHz, 10Vrms (functional earth ports
included)
EN61000-4-6
B
80% AM, 1KHz modulation
EN61000-4-8
A
50Hz/60Hz, 30A/m
B
30%, 10ms
EN61000-4-11
C
60%, 100ms, 95%, 5000ms
According IEC/EN 60536
cUL/UL 60950-1,IEC/EN 60950-1
UL508 approval
Conditions
Input to Output, 60 Seconds
500 VDC
EMC Immunity according
EN61000-6-1
Protection Class II
Safety Approvals
Input Fuse
All Models
Built-in Fuse
External Fuse (Recommended)
6A / 250VAC
3A Slow – Blow Type
DS_AA60S_04082014
E-mail: DCDC@delta.com.tw
http://www.deltaww.com/dcdc
P2
Environmental Specifications
Parameter
Temperature Range (operational)
Power Derating (5.1Vout)
Storage Temperature Range
Over Temperature Protection
Cooling
Humidity (non condensing)
Ambient
+40℃ to +70℃
Conditions
-10℃
-40℃
at 90℃ (automatic recovery at 67℃)
Free-Air convection
---
+70℃
2.25W /
℃
+85℃
95 % rel. H
Power Derating Curve
Notes
1
2
3
4.
5
6
All specifications typical at Ta=+25℃, resistive load, 115VAC, 60Hz input voltage and after warm-up time rated output current unless
otherwise noted.
Ripple & Noise measurement bandwidth is 0~20 MHz
These power modules require a minimum output loading to maintain specified regulation, operation under no-load conditions will not
damage the power supplies however they may not meet all listed specifications.
Other input and output voltage may be available, please contact us for custom solution.
Long term short circuit operation may cause damage to the unit.
Specifications are subject to change without notice
DS_AA60S_04082014
E-mail: DCDC@delta.com.tw
http://www.deltaww.com/dcdc
P3
Mechancial Drawing PCB Mounting
Mechanical Dimensions
25.4 [1.00]
Pin Connections
Pin
1
1.0 [ 0.04]
Function
AC(N) – AC Neutral
AC(L) – AC Line
+Vout
-Vout
6
4
2
4
6
28.75
[1.13]
81.3 [3.20]
1
Mounting M4.0 Thread
Bottom View
2
31.45 [1.24]
27.5 [1.08]
88.9 [3.50]
►
All
dimensions in mm (inches)
±0.5 (±0.02)
diameter
1.0 ±0.1 (0.04±0.004)
55.88 [2.20]
67.5 [2.66]
6.0 [0.24]
0.7 [0.03]
34.2 [1.35]
►
Tolerance:
►
Pin
Physical Outline
Case Size
Case Material
Pin Material
Weight
:
:
:
:
88.9x67.5x34.2mm (3.50x2.66x1.35 inches)
Plastic resin + Fiberglass (flammability to UL 94V-0 rated)
Copper Alloy with Gold Plate Over Nickel Subplate
345g
Mechancial Drawing Chassis Mounting
Mechanical Dimensions
4x 3.5
Connections
Terminal
1
7
Function
AC(N) – AC Neutral
AC(L) – AC Line
NC
+Vout
NC
-Vout
NC
NC: No Connection
2
50.0 [1.97]
2
5
4
Top View
67.8 [2.67]
6
3
4
5
6
7
1
Indication LED
DC-
ON
3
POWER
"
GOOD
"
INDICATOR
100.0 [3.94]
112.0 [4.41]
90.0 [3.54]
11.0 [0.43]
38.0 [1.50]
►
All
dimensions in mm (inches)
±0.5 (±0.02)
5.0[0.20]
16.8 [0.66]
►
Tolerance:
DS_AA60S_04082014
E-mail: DCDC@delta.com.tw
http://www.deltaww.com/dcdc
P4
Physical Outline
Case Size
Case Material
Weight
:
:
:
112.0x67.8x38.0mm (4.41x2.67x1.50 inches)
Plastic resin + Fiberglass (flammability to UL 94V-0 rated)
357g

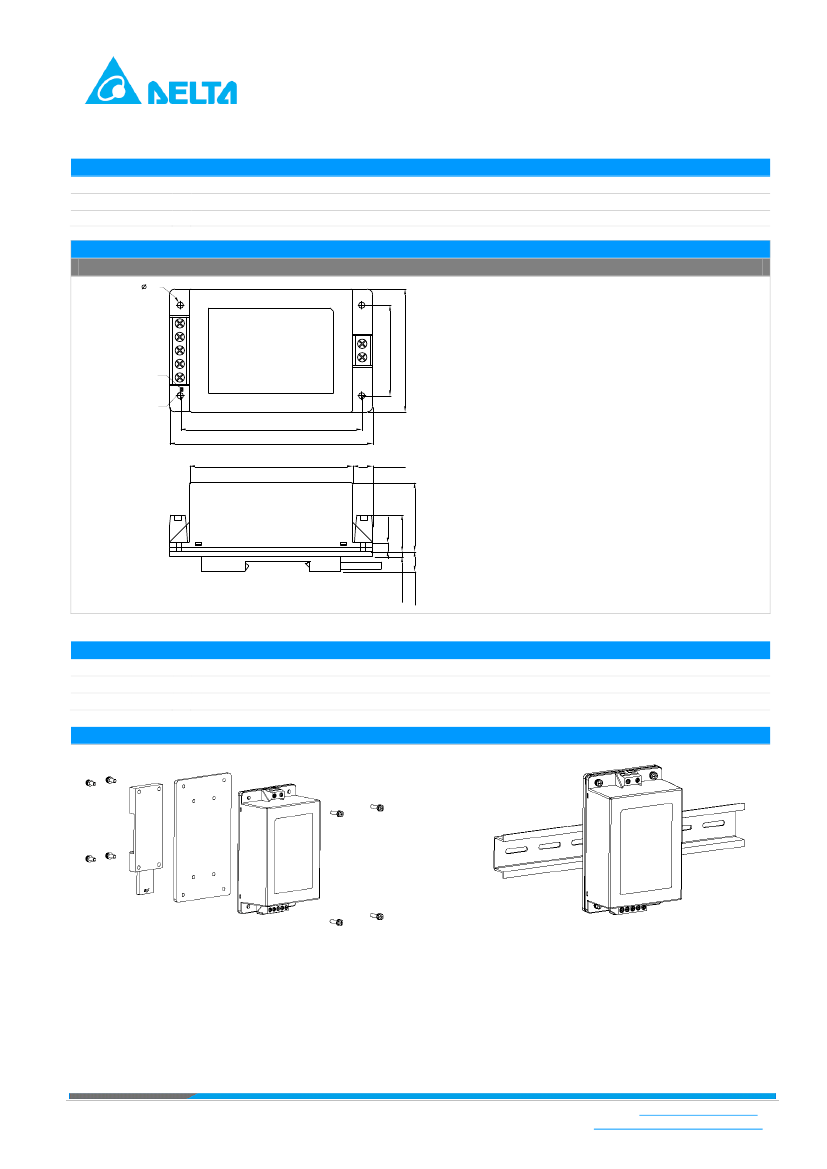

Mechancial Drawing Chassis Mounting with DIN Rail Kit
Mechanical Dimensions
4x
3.5
7
50.0 [1.97]
5
4
Indication LED
DC-
ON
2
Top View
1
3
POWER
"
GOOD
"
INDICATOR
100.0 [3.94]
112.0 [4.41]
90.0 [3.54]
11.0 [0.43]
67.8 [2.67]
16.8 [0.66]
3.0 [0.12]
11.0 [0.43]
38.0 [1.50]
6
Physical Outline
Case Size
Case Material
Weight
:
:
:
112.0x67.8x38.0mm (4.41x2.67x1.50 inches)
Plastic resin + Fiberglass (flammability to UL 94V-0 rated)
410g
DIN-Rail Mounting Kit
5.0[0.20]
DS_AA60S_04082014
E-mail: DCDC@delta.com.tw
http://www.deltaww.com/dcdc
P5
