DU-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> DU-10

DU-10: DescriptionPower Transformers Power Isolation Transformer; CategoryPower/power management; File Size176KB，2 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric Compare View All

DU-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DU-10	-	-	View	Buy Now

DU-10 Overview

Power Transformers Power Isolation Transformer

DU-10 Parametric

Parameter Name	Attribute value
Product Category	Power Transformers
Manufacturer	Bel
RoHS	Details
Product	Power Transformers
Primary Voltage Rating	208 V, 220 V, 230 V, 240 V/104 V, 110 V, 120 V
Secondary Voltage Rating	0 V, 208 V, 220 V, 240 V/0 V, 104 V, 110 V, 120 V
Power Rating	10 kVA
Secondary Current Rating	41 A/82 A
Mounting Style	Chassis
Primary Winding	Dual Primary Winding
Secondary Winding	Dual Secondary Winding
Length	228.6 mm
Width	330.2 mm
Height	203.2 mm
Operating Frequency	50 Hz to 500 Hz
Factory Pack Quantity	1
Termination Style	Screw
Type	Power Isolation Transformer
Unit Weight	150.003 lbs

Preview

Download Datasheet

View All

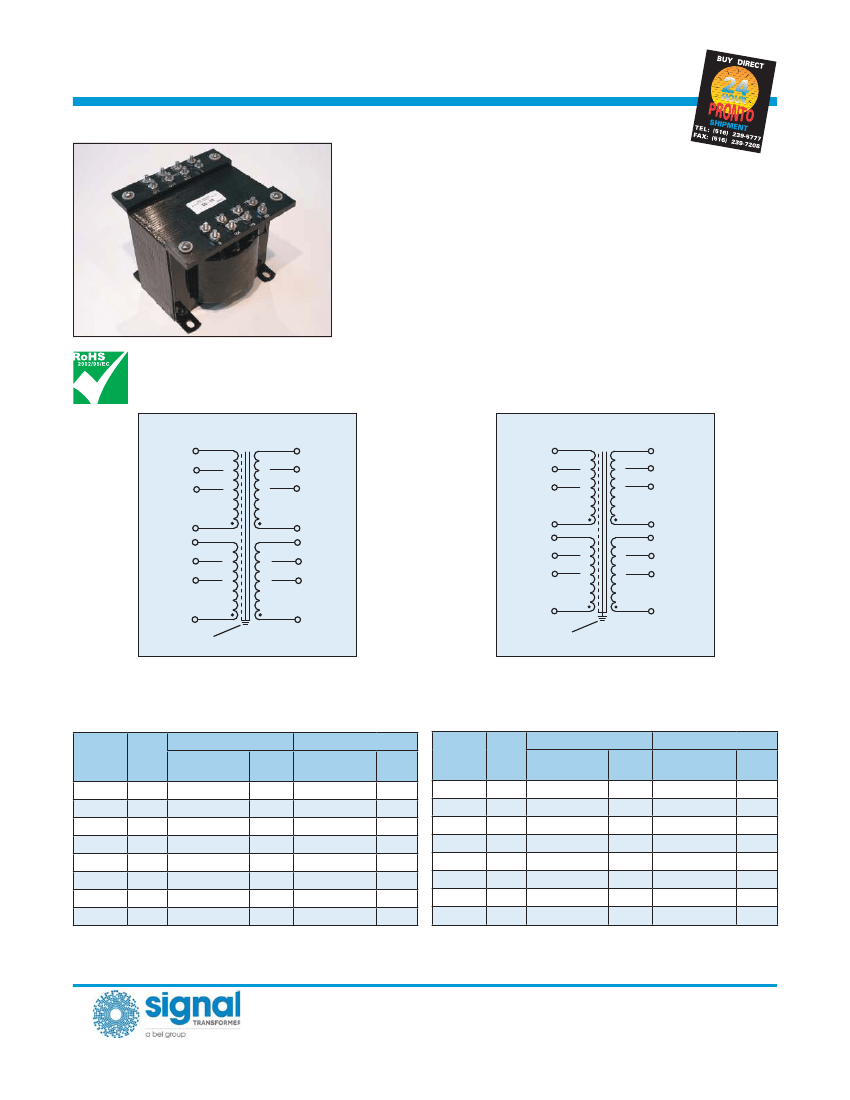

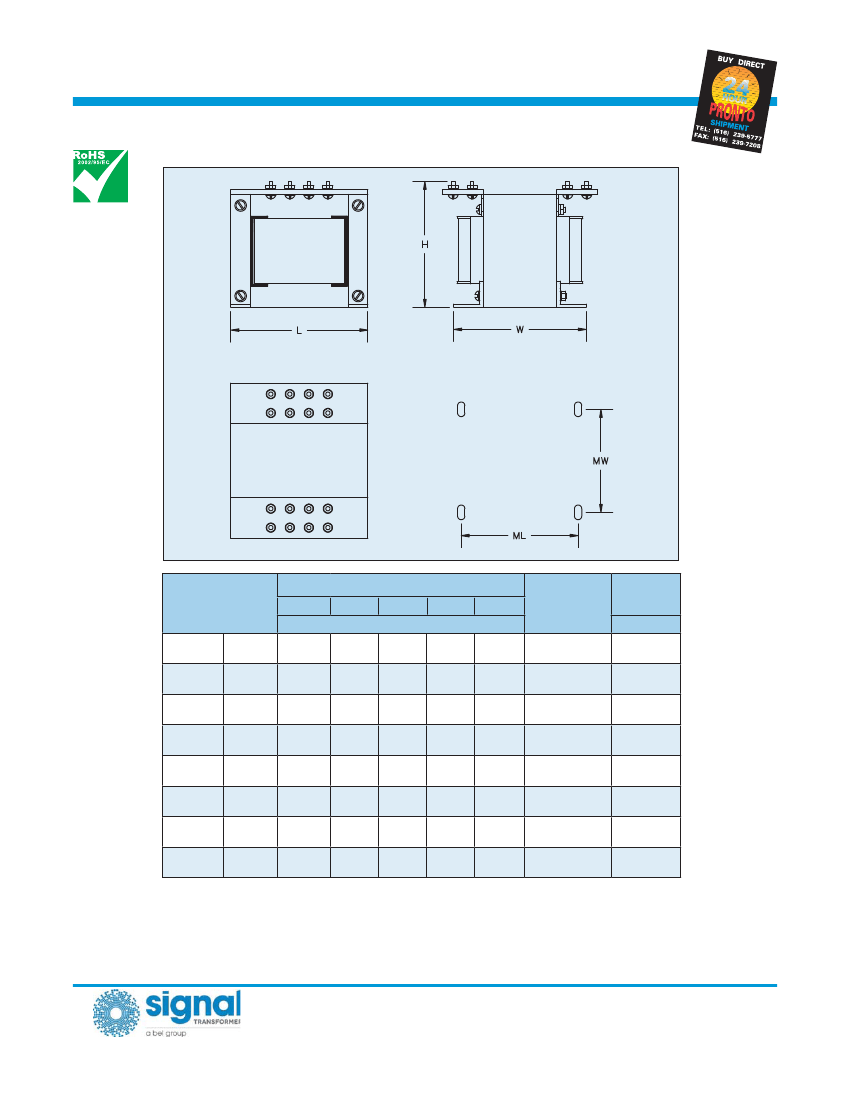

Industrial Grade Step-Up or Step-Down Transformers

SU Transformer

120

110

104

Primaries

DU Transformer

240

220

208

Secondaries

120

110

104

Primaries

120

110

104

Secondaries

120

110

104

240

220

208

120

110

104

120

110

104

Electrostatic Shield

1.1

2.3

DU-1

DU-2

DU-3

DU-5

DU-7.5

DU-10

7.5

2.2

SU-1

SU-2

SU-3

SU-5

SU-7.5

SU-10

7.5

0.55

1.15

1.1

2.3

2.25

11.5

15.5

20.5
