1-Phase Line Filters
https://www.schurter.com /PG84
FMBB NEO

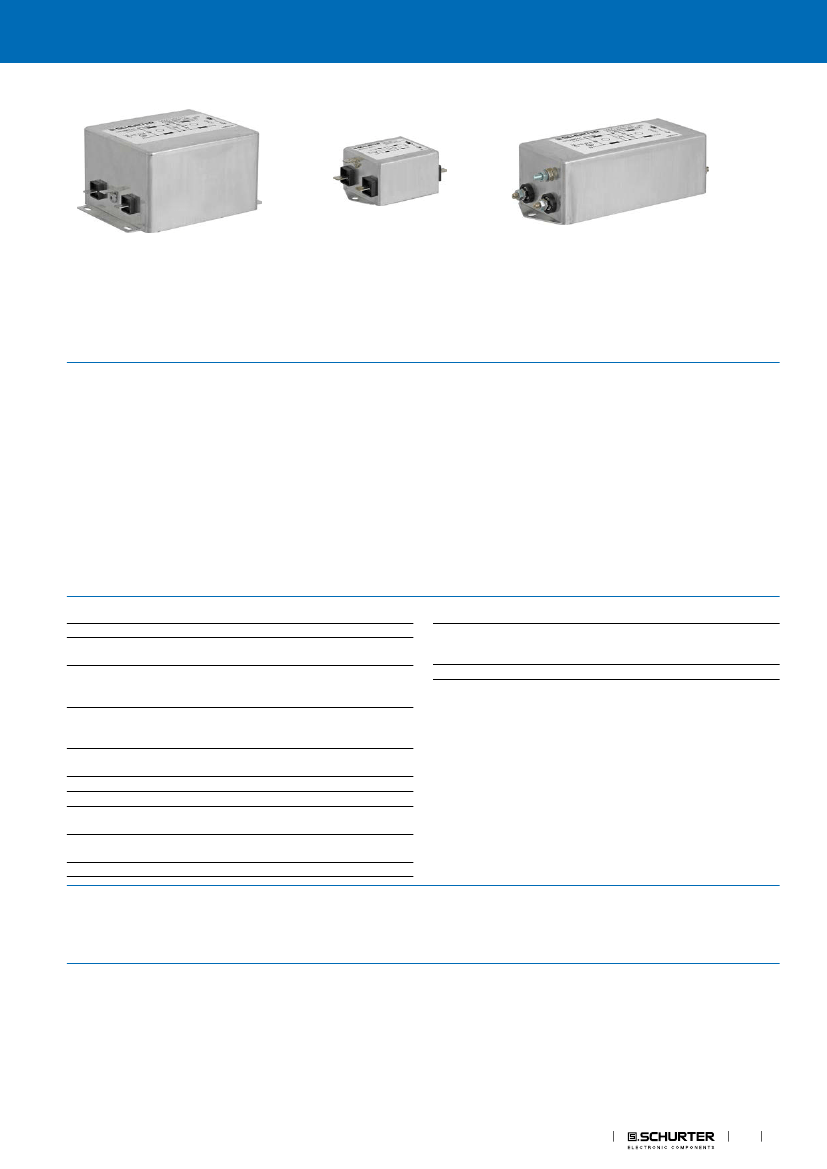

AC Filter 2-Stage, Broad Band Attenuation
Quick connect terminals 6.3x0.8 mm
Case MF
Quick connect terminals 6.3x0.8 mm
Case 09
Bolt and nut M4
Case MB
Approvals and Compliances
Description
- Line filter in standard and medical version
- 2 stages
- 3 Designs:
C) high symmetrical and asymmetrical noise
attenuation
D) Excellent high frequency noise attenuation
F) Excellent low frequency noise attenuation
Characteristics
Unique Selling Proposition
-
-
-
-
Broad band attenuation
3 Filter designs for various applications
Compact and fully potted
Optional wire leads
- Designed for current applications of 1 - 36 A
- Protection against interference voltage from the mains
Possible interferences generated in the equipment are strongly attenu-
ated
- Especially designed for industrial applications such as: Frequency Con-
verters, Stepper Motor Drives, UPS-Systems, Inverters
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
- Version with wire connection
References
Weblinks
Alternative: Standard version
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
1 - 36 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 30 A @ Ta 40 °C / 125/250 VAC;
60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical (M5) < 5 µA resp. (M80) < 80
µA (250 V / 60 Hz)
1.7 kVDC between L-N
2.75 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
from rear-side IP 20 IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminal 6.3 x 0.8 mm
Bolt and nut M4
Aluminum
Line Filter
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Dielectric Strength
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
EMC Products
1
FMBB NEO
Approvals
https://www.schurter.com /PG84
1-Phase Line Filters
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMBB NEO
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40030410
UL File Number: E72928
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 60127-6
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Medical Equipment
SCHURTER AG
2
EMC Products
1-Phase Line Filters
https://www.schurter.com /PG84
FMBB NEO

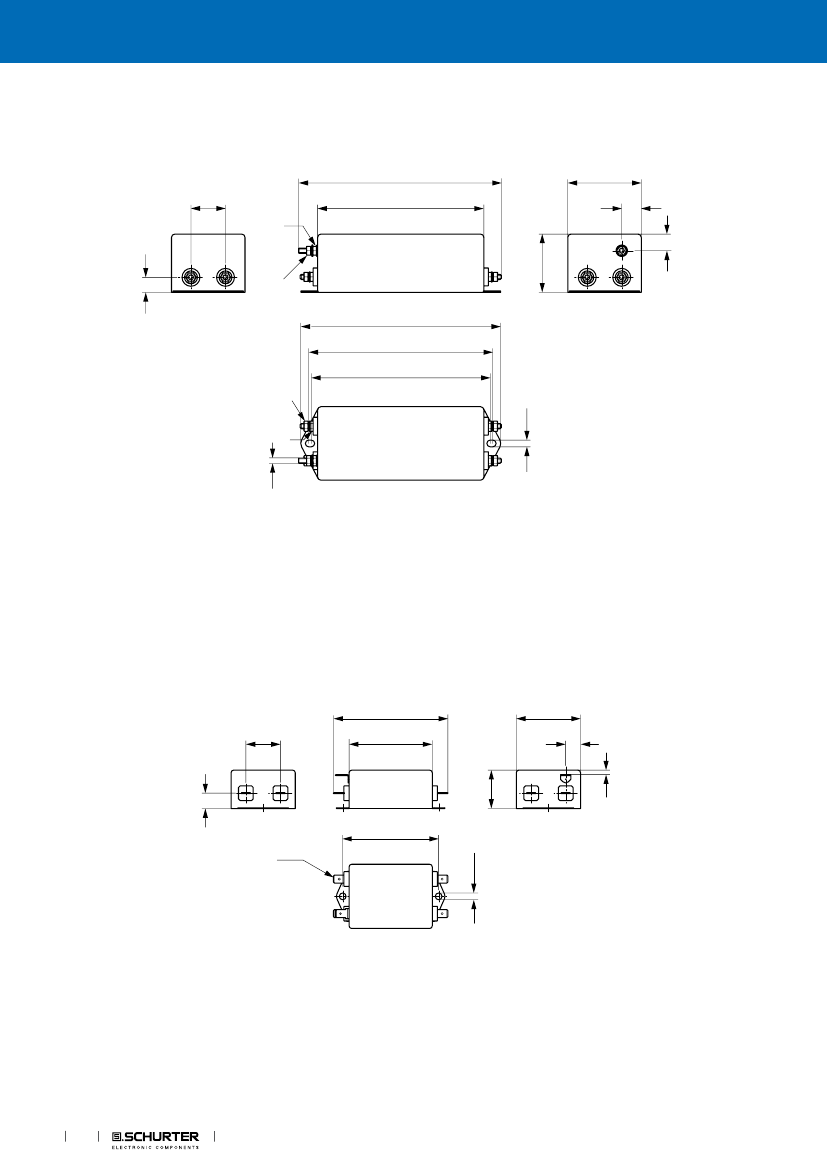

Dimension [mm]
Case 09 with quick connect terminals
max. 77
27
max. 52
max. 31
max. 46
17.5
12
60.4
±0.5
4.8
±0.3
(2x)
6.3x0.8
(5x)
1)
2)
1) Line
2) Load
Case MB with quick connect terminals
max. 155
27
max. 131
max. 58
15.2
max. 46
3.5
12
max. 156
144
140
6.3x0.8
(5x)
1)
2)
±0.5
±0.5
5.3
±0.3
1) Line
2) Load
EMC Products
(2x)
7.7
3
FMBB NEO
https://www.schurter.com /PG84
1-Phase Line Filters
Case MB with bolt and nut M4
max. 160
27
4)
max. 46
max. 131
max. 58
15.2
12
5)
max. 156
144
±0.5
140
±0.5
4)
M4
(4x)
1)
2)
1) Line
2) Load
3) Nut torque 0.8...1 Nm, keep lock-nut fastened
4) Lock-nut do not unscrew
5) PE; M4x16; 1.2...1.5 Nm, keep lock-nut fastened
Case MC with quick connect terminals
max. 90
27
max. 66
max. 31
5.3
±0.3
(2x)
3)
max. 51
11.6
12
75
±0.5
(5x)
1)
2)
5.3
±0.3
(2x)
6.3x0.8
1) Line
2) Load
4
EMC Products
3.5
13
1-Phase Line Filters
https://www.schurter.com /PG84
FMBB NEO
Case MD with quick connect terminals
max. 90
27
max. 66
max. 51
11.6
max.41
12
75
±0.5
(5x)
1)
2)
5.3
±0.3
(2x)
6.3x0.8
1) Line
2) Load
Case ME with quick connect terminals
max. 112
27
max. 87
max. 52
12
max. 46
3.5
12
max. 115
104.5
±0.5
97.5
±0.5
5.3
±0.3
(2x)
6.3x0.8
(5x)
1)
2)
1) Line
2) Load
EMC Products
3.5
5
