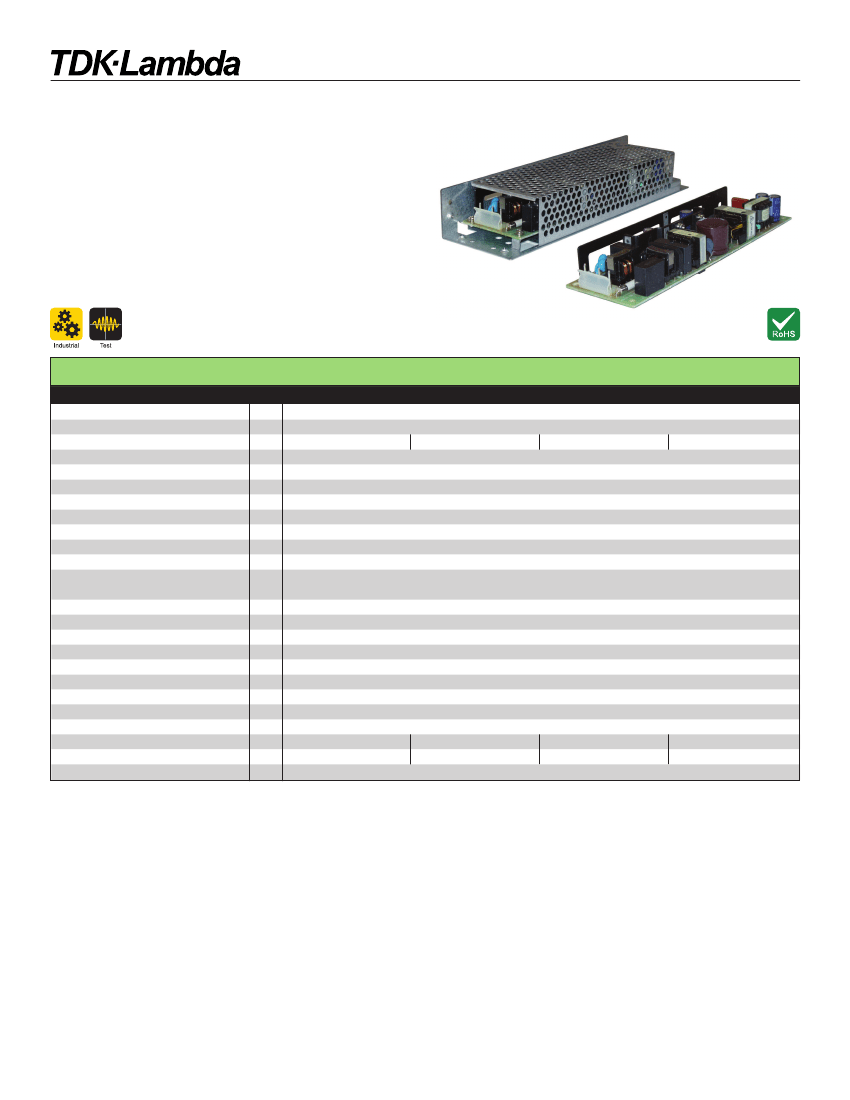

ZWS-AF Series
50W to 150W Single Output Low Cost, Worldwide Use
Features
u
Universal Input (85 - 265VAC)
u
Power factor Corrected
u
Input transient protected
u
2 year warranty
u
High quality design
u
Peak Power capability
Key Market Segments & Applications
Specifications
Model
AC Input Voltage range
DC Input Voltage range
Input Current (Typ) (1)
Inrush Current
Power Factor (1)
Maximum Ripple and Noise
Temperature Coefficient
Overcurrent Protection (4)
Hold Up Time (Typ) (1)
Leakage Current
Remote On / Off
Operating Temperature
Storage Temperature
Humidity (non condensing)
Withstand Voltage
Isolation Resistance
Vibration (non operating)
Shock
Safety Agency Approvals
Conducted & Radiated EMI
Immunity
Weight (Typ)
Size (W x H x D)
Warranty
VAC
VDC
A
A
-
mV
-
-
ms
-
-
-
-
-
-
-
-
-
-
-
-
g
mm
yrs
ZWS75AF
ZWS100AF
ZWS150AF
85-265VAC (47-63Hz)
120-370VDC
0.8/0.4
1.2/0.6
1.4/0.7
2.0/1.0
14/28 25°C Ambient, Cold Start
Meets EN61000-3-2 (0.99/0.95)
3.3 & 5V: 120mV; 12 to 24V: 150mV; 36 & 48V: 200mV
<0.02%/°C
>105% of Peak Current Capability
20ms
0.5mA max 0.1mA (Typ) at 100VAC 0.16mA (Typ) at 230VAC
See installation manual (Not available with /A cover option)
Convection cooling - See table on page 2
0.7m/s air -10°C to +70°C, derate linearly to 70% load from 60°C to 70°C (2)
-30° to +85°C
Operating: 30 - 90% RH, storage 10-95% RH
I/P~Grnd 2kVAC (20mA), I/P~O/P 3kVAC (20mA), O/P~Grnd 500VAC (100mA) for 1 min.
>100M at 25C & 70%RH, Output to Ground 500VDC
10 - 55Hz (1 minute sweep), 19.6m/s
2
constant X, Y, Z 1 hour
< 196.1 m/s
2
UL60950-1, CSA60950-1, EN60950-1, EN50178, CE Mark
designed to meet EN55011, EN55022-B, FCC Class B, VCCI-B
designed to meet EN61000-4-2,-3,-4,-5,-6,-8,-11
210
290
380
500
55 x 26 x 195
55 x 32 x 222
62 x 35 x 222
75 x 40 x 222
Two Years
ZWS50AF
Notes:
(1) 100/200VAC
(2) ZWS150AF -10 to 60°C, derate linearly to 70% load from 50°C to 60°C
(3) The peak current draw must not exceed a 10 second duration with a duty cycle of 35%
(4) Constant current limit with automatic recovery. Do not operate in a over-load or shorted output condition for more than 30 seconds.
(5) An overvoltage condition on the output will shut down the power supply. The power supply must be re-set by cycling the AC input.
For New Designs, See ZWSBAF Series
1-800-526-2324 • www.us.tdk-lambda.com/lp/
1
Disclaimer: us.tdk-lambda.com/lp/legal.htm
ZWS-AF Series
Model Selector
Output
Max
Max
Adjust
Curr.
Peak
Model
Voltage Range (V) (A) Curr. (A)
3
ZWS75AF3
3.3V
2.85-3.63 15.0
-
ZWS100AF3
3.3V
2.85-3.63 20.0
-
ZWS150AF3
3.3V
2.97-3.63 30.0
-
ZWS50AF5
5V
4.5-5.5
10.0
-
ZWS75AF5
5V
4.5-5.5
15.0
-
ZWS100AF5
5V
4.5-5.5
20.0
-
ZWS150AF5
5V
4.5-5.5
30.0
-
ZWS50AF12
12V
10.8-13.2
4.3
5.2
ZWS75AF12
12V
10.8-13.2
6.3
7.5
ZWS100AF12 12V
10.8-13.2
8.5
10.0
ZWS150AF12 12V
10.8-13.2 12.5
15.0
ZWS50AF15
15V
13.5-16.5
3.5
4.2
ZWS75AF15
15V
13.5-16.5
5.0
6.0
ZWS100AF15 15V
13.5-16.5
6.7
8.0
ZWS150AF15 15V
13.5-16.5 10.0
12.0
ZWS50AF24
24V
21.6-26.4
2.1
2.6
ZWS75AF24
24V
21.6-26.4
3.2
3.8
ZWS100AF24 24V
21.6-26.4
4.3
5.0
ZWS150AF24 24V
21.6-26.4
6.3
7.5
ZWS75AF36
36V
32.4-39.6
2.1
2.5
ZWS100AF36 36V
32.4-39.6
2.8
3.4
ZWS150AF36 36V
32.4-39.6
4.2
5.0
ZWS75AF48
48V
43.2-52.8
1.6
1.9
ZWS100AF48 48V
43.2-52.8
2.1
2.5
ZWS150AF48 48V
43.2-52.8
3.2
3.8
Max
Output
Power (W)
49.5
66.0
99.0
50.0
75.0
100.0
150.0
51.6
75.6
102.0
150.0
52.5
75.0
100.5
150.0
50.4
76.8
103.2
151.2
75.6
100.8
151.2
76.8
100.8
153.6
Peak
Output
Power
3
(W)
-
-
-
-
-
-
-
62.4
90.0
120.0
180.0
63.0
90.0
120.0
180.0
62.4
91.2
120.0
180.0
90.0
122.4
180.0
91.2
120.0
182.4
Eff.
(%)
67
69
74
75
75
75
77
78
78
79
79
79
79
79
81
81
82
81
82
82
82
82
82
82
82
Max
Load
Reg.(mV)
40
40
40
40
40
40
40
96
96
96
96
120
120
120
120
150
150
150
150
200
200
200
240
240
240
Max
Line
Reg.(mV)
20
20
20
20
20
20
20
48
48
48
48
60
60
60
60
96
96
96
96
144
144
144
192
192
192
OVP
(V)
5
3.79-4.95
3.79-4.95
3.79-4.95
5.75-7.0
5.75-7.0
5.75-7.0
5.75-7.0
13.8-16.2
13.8-16.2
13.8-16.2
13.8-16.2
17.3-20.3
17.3-20.3
17.3-20.3
17.3-20.3
27.6-32.4
27.6-32.4
27.6-32.4
27.6-32.4
41.4-48.6
41.4-48.6
41.4-48.6
55.2-64.8
55.2-64.8
55.2-64.8
Other Industrial Products
VSB/VSC
SC
HWS
ZWSPAF
ZWD, ZWQ
5W-150W Single output 115VAC input
30W-120W Single, dual & triple output
15W-1500W Single output
150W-480W Peak power, single output
100W-440W Dual and quad output
Options
Suffix Description
-
Molex Input & Output Connectors
/A
With cover & L Bracket
/J
JST Input & Output Connectors*
/JA
JST Connectors & Cover
* Recommended for new designs
Derating - Convection Cooling
Model
ZWS50AF
ZWS75AF
ZWS100AF
ZWS150AF
40°C
100%
100%
100%
100%
45°C
100%
100%
100%
87%
50°C
100%
100%
100%
75%
55°C
85%
85%
80%
62%
60°C
70%
70%
60%
50%
For Additional Information, please visit
us.tdk-lambda.com/lp/products/zws-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
2
Revision A4: May 2012
