DATASHEET

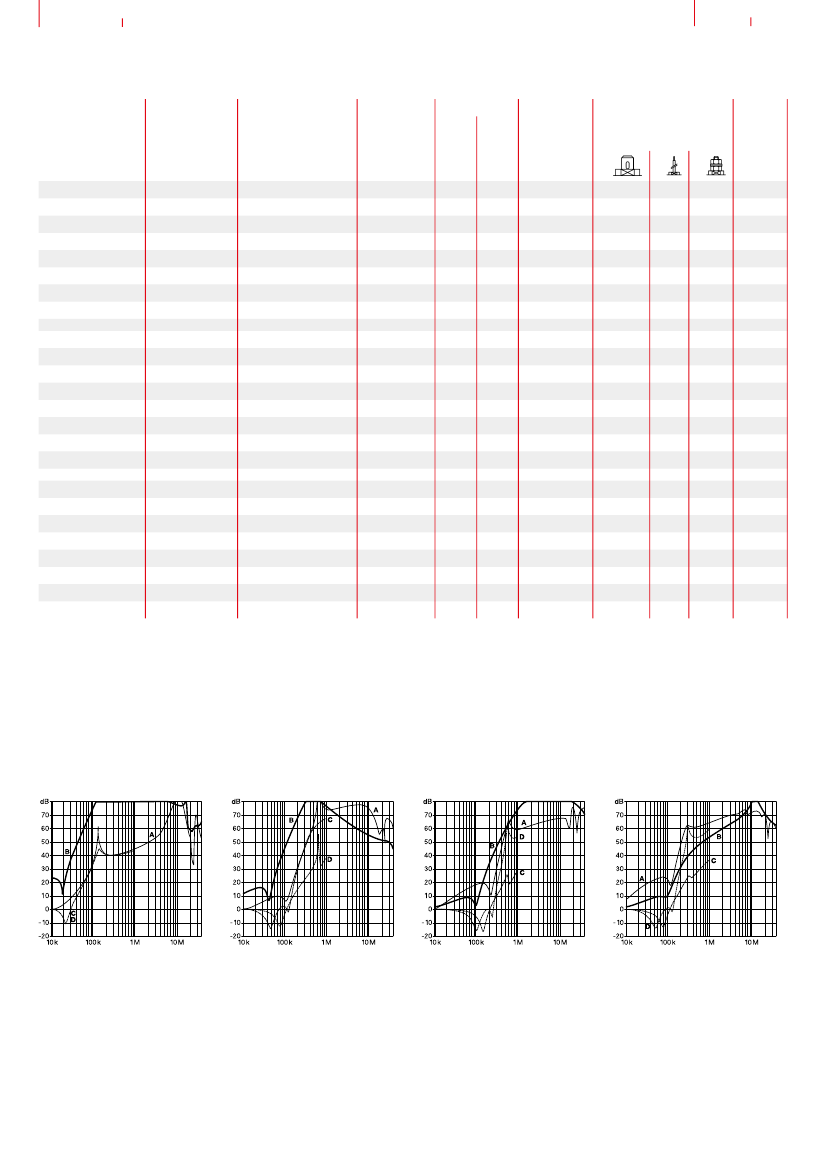

Two-Stage Filters FN 2060

Multi-stage General Purpose AC/DC EMI Filter

Rated currents from 1 to 30 A

High differential and common-mode

attenuation

Optional medical versions (B type)

Optional safety versions (A type)

Approvals

Features and benefits

Performance indicators

FN 2060 two-stage filters are designed for easy and

fast chassis mounting

FN 2060 filters are also available as B versions

without Y-capacitors for medical applications as well

as A version with low capacitance for safety critical

applications with necessity for low leakage currents

All filters provide a high conducted attenuation

performance, based on chokes with high saturation

resistance and excellent thermal behavior

FN 2060 two-stage filters are designed for noisy

applications requiering good differential and

common-mode attenuation

Technical specifications

Rated voltage*

Operating frequency

Rated currents

High potential test voltage

250 VAC, 50/60 Hz; 250 VDC

DC to 400 Hz

1 to 30 A @ 40°C max.

P –> PE 2000 VAC for 2 sec

P –> PE 2500 VAC for 2 sec (B types)

P –> N 1100 VDC for 2 sec

-25°C to +100°C (25/100/21)

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to

AC and DC applications)

UL 94 V-2 or better

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

1,650,000 hours (B types)

950,000 hours

FN 2060 filters are also available as single-stage

filters (FN 2010 series)

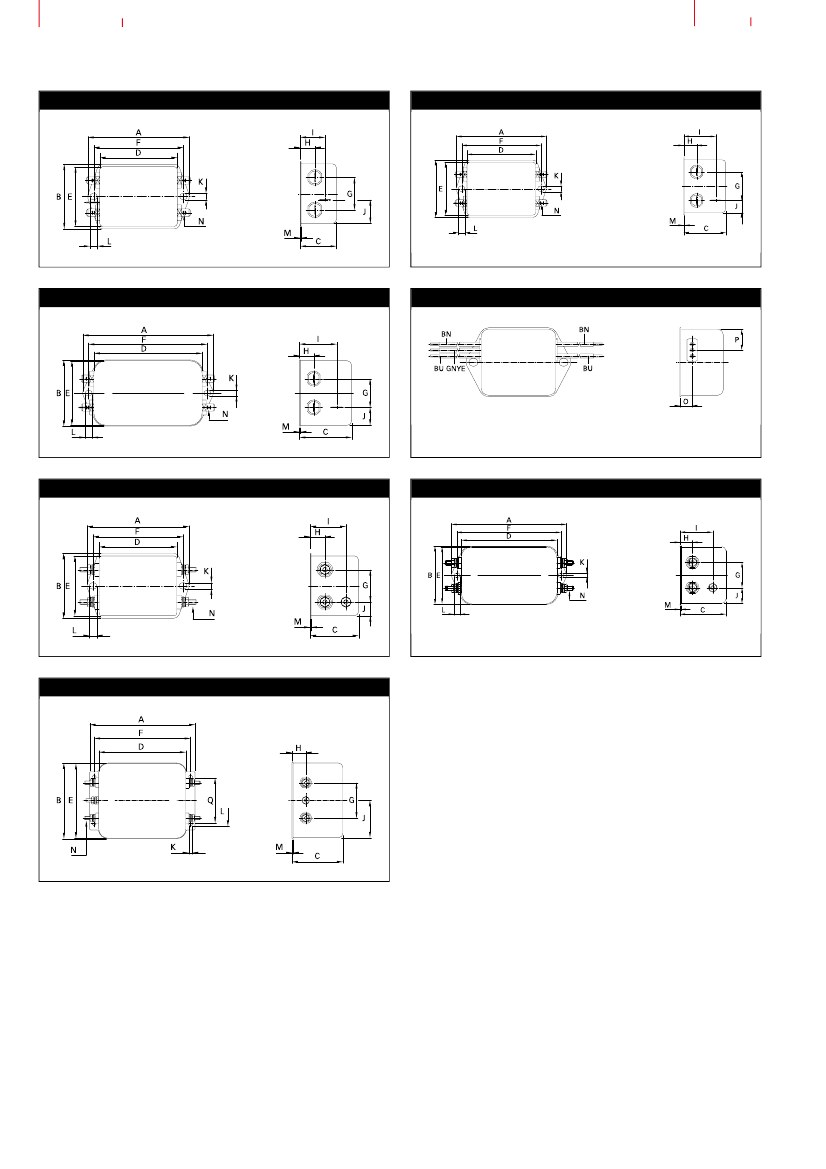

Various terminal options allow you to select the

desired connection style

Typical applications

Electrical and electronic equipment

Consumer goods

Household equipment

Building automation

Industrial applications

Machinery

Medical equipment

Electronic data processing equipment

Office automation and datacom equipment

Various noisy applications requiering good filter

performance

Temperature range (operation and storage)

Certified to

Flammability corresponding to

Design corresponding to

MTBF @ 40°C/230 V (Mil-HB-217F)

*maximum RMS operating voltage at rated frequency or the maximum DC operating voltage

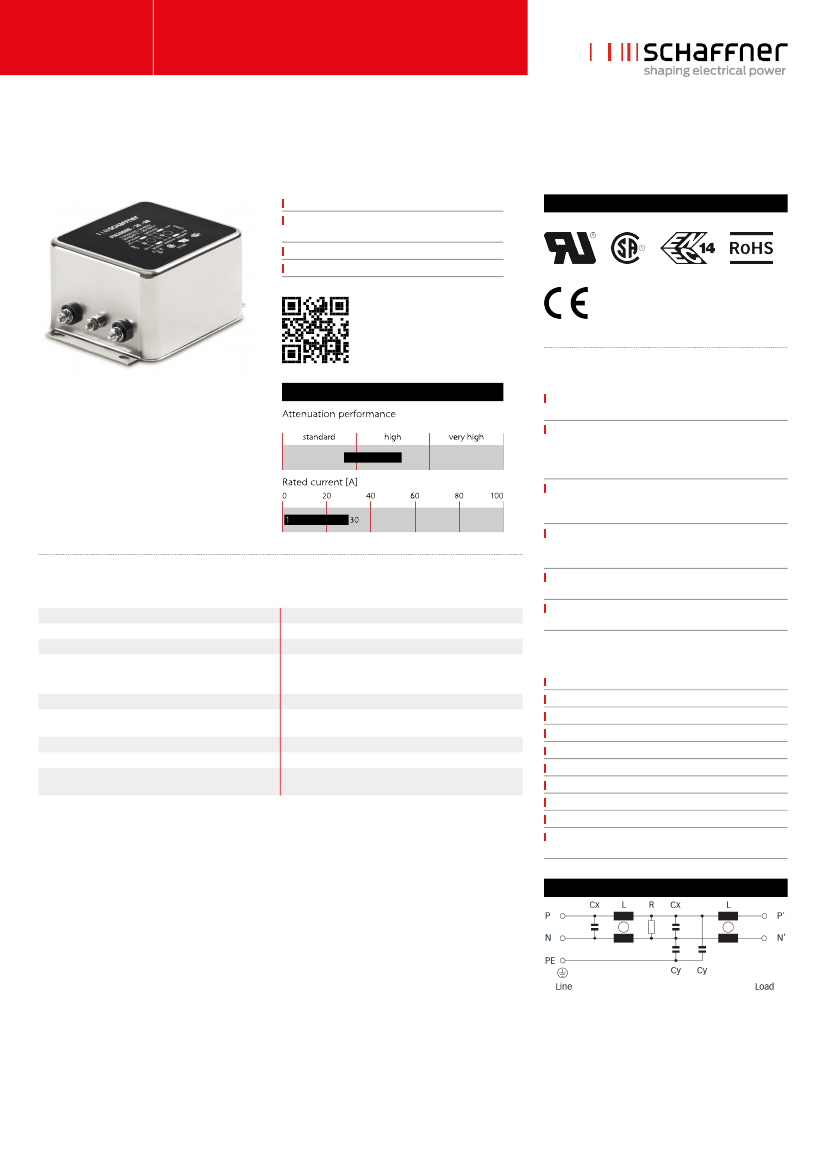

Typical electrical schematic

FN2060-1-06 Related Products

	FN2060-1-06	FN2060B-3-06	FN2060A-12-06	FN2060B-30-08	FN2060-1-07	FN2060B-12-06	FN2060B-20-06	FN2060A-3-06
Description	RF Transceiver 2 receive by 2 transmit intgrtd frq	General Purpose Relays DPST-NO PNL MT 12VDC	Headers u0026 Wire Housings FEMALE CONTACT TIN 24-28AWG REEL	Varistors 420V 300pF		Power Line Filters 12A MEDICAL FASTON GENERAL PURPOSE FLTR	AC Power Plugs u0026 Receptacles CABLE TYPE GRAY	Power Line Filters 1A FAST ON LOW CAPACITANCE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	INDUCTANCE 12 MILLIHENRY	MEDICAL VERSION; INDUCTANCE 2.5 MILLIHENRY	SAFETY VERSION; INDUCTANCE 0.58 MILLIHENRY	MEDICAL VERSION; INDUCTANCE 0.6 MILLIHENRY	INDUCTANCE 12 MILLIHENRY	MEDICAL VERSION; INDUCTANCE 0.58 MILLIHENRY	MEDICAL VERSION; INDUCTANCE 0.6 MILLIHENRY	SAFETY VERSION; INDUCTANCE 2.5 MILLIHENRY
Certification	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; ENEC-14
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	29.3 mm	29.3 mm	30.3 mm	57.6 mm	29.3 mm	30.3 mm	45.4 mm	29.3 mm
high potential	1100 V	1100 V	1100 V	1100 V	1100 V	1100 V	1100 V	1100 V
Maximum leakage current	0.734 mA	0.002 mA	0.074 mA	0.002 mA	0.734 mA	0.002 mA	0.002 mA	0.074 mA
length	50.5 mm	50.5 mm	64.8 mm	98.5 mm	50.5 mm	64.8 mm	94 mm	50.5 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
physical size	L50.5XB44.5XH29.3 (mm)/L1.988XB1.752XH1.154 (inch)	L50.5XB44.5XH29.3 (mm)/L1.988XB1.752XH1.154 (inch)	L64.8XB49.8XH30.3 (mm)/L2.551XB1.961XH1.193 (inch)	L98.5XB84.5XH57.6 (mm)/L3.878XB3.327XH2.268 (inch)	L50.5XB44.5XH29.3 (mm)/L1.988XB1.752XH1.154 (inch)	L64.8XB49.8XH30.3 (mm)/L2.551XB1.961XH1.193 (inch)	L94.0XB56.0XH45.4 (mm)/L3.701XB2.205XH1.787 (inch)	L50.5XB44.5XH29.3 (mm)/L1.988XB1.752XH1.154 (inch)
Rated current	1.2 A	3.5 A	13.8 A	34.5 A	1.2 A	13.8 A	23 A	3.5 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
width	44.5 mm	44.5 mm	49.8 mm	84.5 mm	44.5 mm	49.8 mm	56 mm	44.5 mm
Base Number Matches	1	1	1	1	1	1	1	1
