LZS-1000-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> LZS-1000-1

LZS-1000-1: DescriptionSwitching Power Supplies 1000W 5V 200A; CategoryPower/power management; File Size582KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

LZS-1000-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LZS-1000-1	-	-	View	Buy Now

LZS-1000-1 Overview

Switching Power Supplies 1000W 5V 200A

LZS-1000-1 Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	TDK Corporation
RoHS	Details
Product	Switching Supplies
Output Voltage-Channel 1	5 VDC
Number of Outputs	1 Output
Output Power	1000 W
Input Voltage	85 VAC to 265 VAC
Output Current-Channel 1	200 A
Mounting Style	Chassis
Length	2 in
Width	0.5 in
Height	0.37 in
Factory Pack Quantity	1

Preview

Download Datasheet

View All

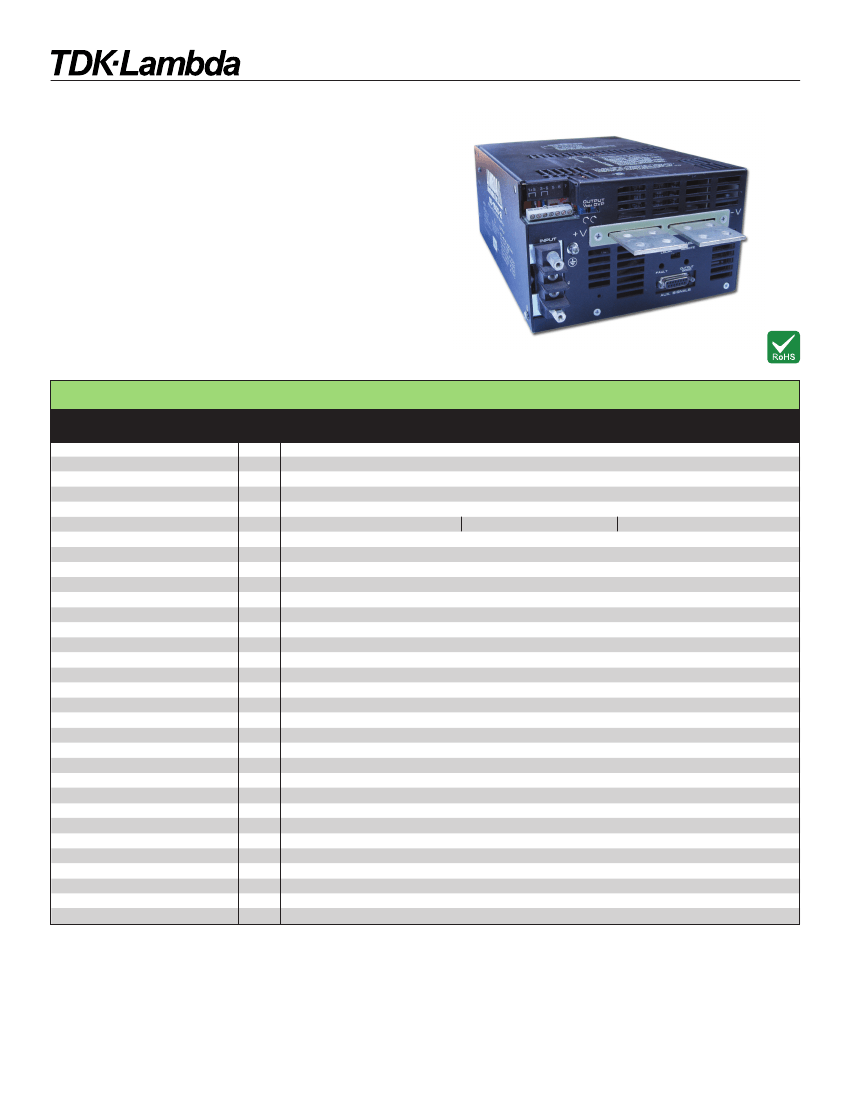

LZS/SE Series

Single Output Industrial Power Supplies

Features

-40ºC to +71ºC operation

MIL-STD-810E Vibration / Shock

Input transient protected

Wide range output adjustment

Single wire current share

Conducted EMI Class B

5 Year Warranty

Rugged mechanical design

Superior thermal design

Key Market Segments & Applications

Factory Automation

Speciﬁcations

AAC Input Voltage

AC Input Frequency

DC Input Voltage Range

Inrush Current (110 / 220VAC)

Efﬁciency (typical)

Ripple & Noise

Line Regulation

Load Regulation

Transient Response

Overcurrent Protection

Overvoltage Protection

Thermal Protection

Hold Up Time (Typical)

Remote Sense

Remote Adjust

Remote On / Off

Signals

Indicators

Parallel Connection

Operating Temperature

Storage Temperature

Temperature Coefﬁcient

Humidity (non condensing)

Cooling

Withstand Voltage

Vibration

Shock

Safety Agency Approvals

Conducted & Radiated EMI

Weight (Net / Shipping)

Size (WxHxD)

Warranty

5V Output Models

12V Output Models

24V Output Models

(-1)

(-2)

(-3)

LZS: 85-132 / 170-265VAC Auto select, SE: 105-140VAC (170VAC for 1min.)

LZS: 47 - 440Hz, SE: 47 - 63Hz

LZS: 220 - 380VDC

250W & 500W: 20 / 40A. 750W, 1000W & 1500W: 40 / 80A

75%, (72% on 250W models)

10mV RMS, 35mV Pk-Pk 10mV RMS, 50mV Pk-Pk 10mV RMS, 100mV Pk-Pk

0.1% from low AC line to high AC line

0.1% from no load to full load

Recovers to within 50ms, max deviation 7.5% -1 models, 5% -2 & -3 models

~ 110% of rated current, auto recovery

User adjustable from front panel

Internal thermostat. Recycle AC to reset

26ms (at 115VAC)

Compenstates for a total of 1.0V cable drop

Using front panel potentiometer, Resistance (1k/V), or Voltage (1V/V)

TTL compatible, active high

Optocoupled transistor for AC Fail, DC Good, Inverter OK

Green LED indicates output good, red LED indicates overvoltage or over temperature

Single wire current share

ºC -40~+71ºC, derate as shown in model selector, 20 minute warm up period needed for <-30ºC

ºC

-55 to +85ºC

0.025%/ºC

%RH

5 - 95%RH

Internal fan

Input - Ground 1.5kVAC, Input - Output 3kVAC, Output - Ground 500VAC

MIL-STD-810E, Method 516.4 Proc. I, II, IV, VI

MIL-STD-810E, Method 514.4, Category 1, 9

UL60950, CSA60950, EN60950, & CE Mark (LVD)

VDE0871 Curve B, FCC Part 15, subpart J, Class B, MIL-STD-461D, CE102

lbs

250: 7/9; 500: 10/12; 750: 11/14; 1000: 15.5/19.5; 1500: 22/26

See outline drawings

5 years

Notes: (Consult Installation Manual for detailed speciﬁcations, test methods and application notes)

1-800-526-2324 • www.us.tdk-lambda.com/lp/

OBSOLETE

Disclaimer: us.tdk-lambda.com/lp/legal.htm

LZS-1000-1 Related Products

	LZS-1000-1	LZS-1500-3	SE-1500-3
Description	Switching Power Supplies 1000W 5V 200A	Switching Power Supplies 1500W 24V 28V 75A	Switching Power Supplies 1500W 24V 28V 75A
Product Category	Switching Power Supplies	Switching Power Supplies	Switching Power Supplies
Manufacturer	TDK Corporation	TDK Corporation	TDK Corporation
RoHS	Details	Details	Details
Product	Switching Supplies	Switching Supplies	Switching Supplies
Output Voltage-Channel 1	5 VDC	24 VDC	24 VDC
Number of Outputs	1 Output	2 Output	2 Output
Output Power	1000 W	1500 W	1500 W
Output Current-Channel 1	200 A	75 A	75 A
Length	2 in	4.75 in	4.75 in
Width	0.5 in	5.6 in	4.25 in
Height	0.37 in	10.5 in	10.25 in
Input Voltage	85 VAC to 265 VAC	85 VAC to 265 VAC	-
Mounting Style	Chassis	Chassis	-
Factory Pack Quantity	1	-	1
Output Voltage-Channel 2	-	28 VDC	28 VDC
Unit Weight	-	8.102 lbs	6.614 lbs
