2-line filters
for PCB mounting
B84110A
Power line filters for 1-phase systems
Rated voltage V
R
: 250 V AC/DC
Rated current I
R
: 0.5 A to 6 A
Construction
2-line filters
Plastic case
Features
High insertion loss
For PCB mounting
Cost-effective EMC solution
ENEC, UL and cUL approval (0.5 A to 4 A)
Typical applications
Low and medium switch-mode power supplies
Data systems, gambling machines, small-size equipment,
industrial electronics
DC applications
Terminals
Pins fitting standard grid
Marking
Marking on component:
Manufacturer's logo, ordering code, rated voltage, rated
current, date code, approvals
Minimum data on packaging:
Manufacturer's logo, ordering code, quantity, date code
Circuit diagram
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 11
2-line filters
for PCB mounting
B84110A
Technical data and measuring conditions
Rated voltage V
R
Rated current I
R
Test voltage V
test
Leakage current l
LK
Climatic category (IEC 60068-1)
Weight
Approvals
Characteristics and ordering codes
I
R
A
C
R
X2
µF
C
R
Y2
pF
L
R
mH
2
×
39
2
×
10
2
×
5.6
2
×
2.7
2
×
1.9
I
LK
mA
0.369
0.369
0.369
0.369
0.369
B84110A0000A005
B84110A0000A010
B84110A0000A020
B84110A0000A040
B84110A0000A060
×
×
×
×
×
×
×
×
×
×
×
×
×
Ordering code
Approvals
250 V AC (50/60 Hz) / 250 V DC
Referred to 40
°C
rated temperature
1414 V DC, 2 s (line/line)
2700 V DC, 2 s (lines/case)
At V
R
and 50 Hz
25/100/21 ( 25
°C/+100 °C/21
days damp heat test)
Approx. 53 g
IEC 60939, UL 1283, CSA C22.2 No.8 (0.5 A to 4 A)
V
R
= 250 V AC/DC
0.5
0.22
2
×
4700
1
0.22
2
×
4700
2
0.22
2
×
4700
4
0.22
2
×
4700
6
0.22
2
×
4700
×
= Approval granted
Dimensional drawing
General tolerances according to ISO 2768 cL
Dimensions in mm
Pin layout
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 11
2-line filters
for PCB mounting

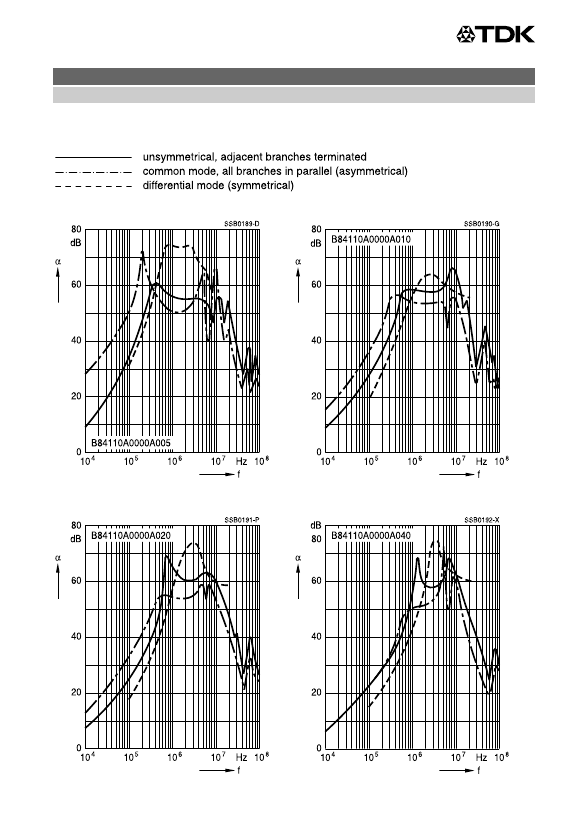

Insertion loss
(typical values at Z = 50
Ω)
B84110A
Filters for 0.5 A
Filters for 1 A
Filters for 2 A
Filters for 4 A
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 11
2-line filters
for PCB mounting
Insertion loss
(typical values at Z = 50
Ω)
B84110A
Filters for 6 A
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 11
