FN3270H-10-29: DescriptionPower Line Filters 3-PH EMC/RFI 10A FILTER COMPACT; CategoryAnalog mixed-signal IC filter; File Size349KB，4 Pages; ManufacturerSchaffner; Environmental Compliance

Download Datasheet Parametric Compare View All

FN3270H-10-29 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FN3270H-10-29	-	-	View	Buy Now

FN3270H-10-29 Overview

Power Line Filters 3-PH EMC/RFI 10A FILTER COMPACT

FN3270H-10-29 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Schaffner
Reach Compliance Code	compliant
Certification	UL; CSA; ENEC-14
filter type	THREE PHASE EMI FILTER
high potential	2750 V
Maximum leakage current	26.4 mA
Manufacturer's serial number	FN3270
Installation type	PANEL MOUNT
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
Rated current	10 A
Rated voltage	480 V

Preview

Download Datasheet

View All

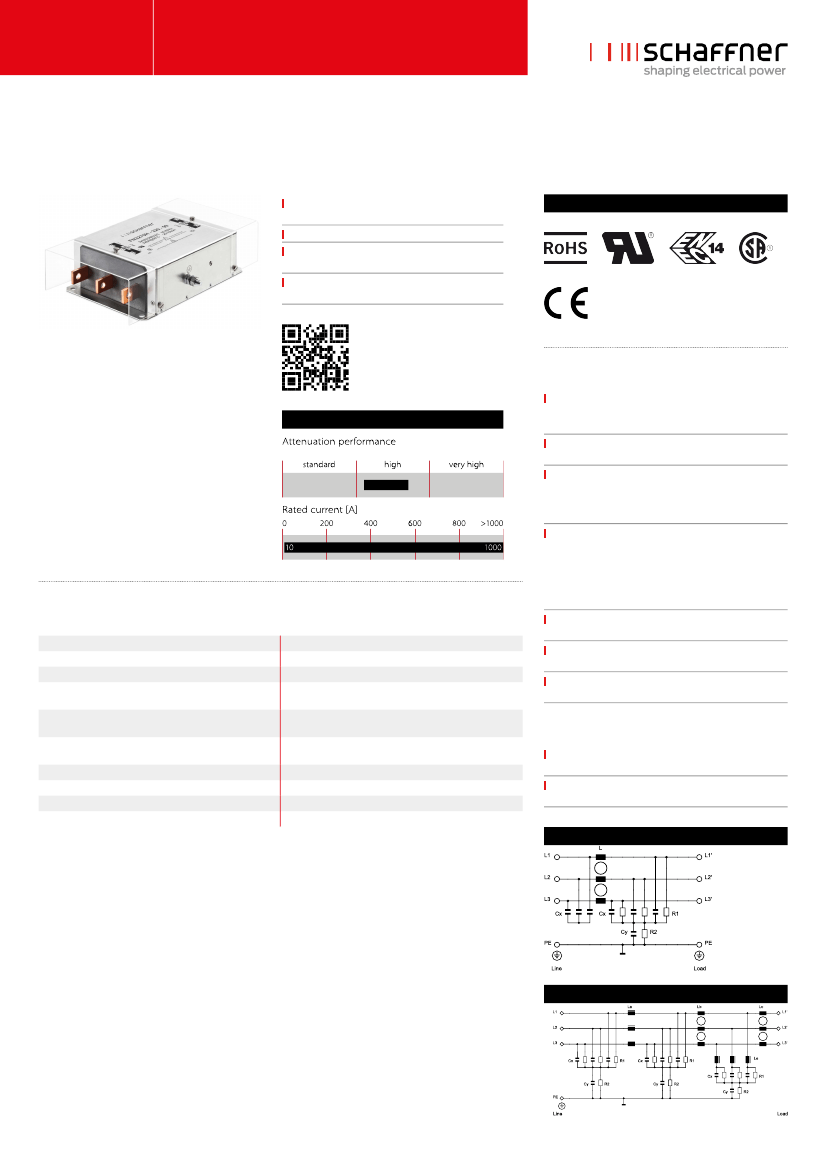

DATASHEET

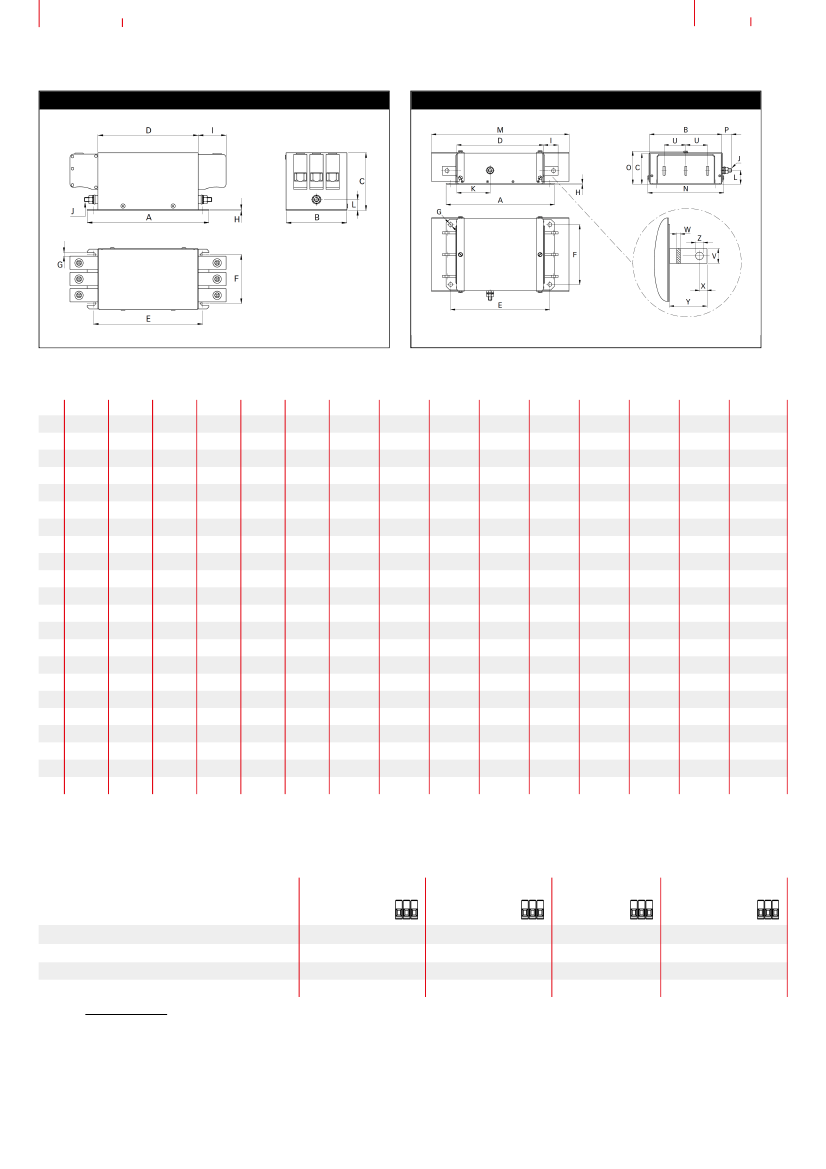

3-Phase Filters FN 3270

Compact EMC/RFI Filter for Industrial Motor Drive Applications

Very compact and light weight design

requiring minimum space

Easy, time-saving installation and contacting

Protective covers as optional accessory

available

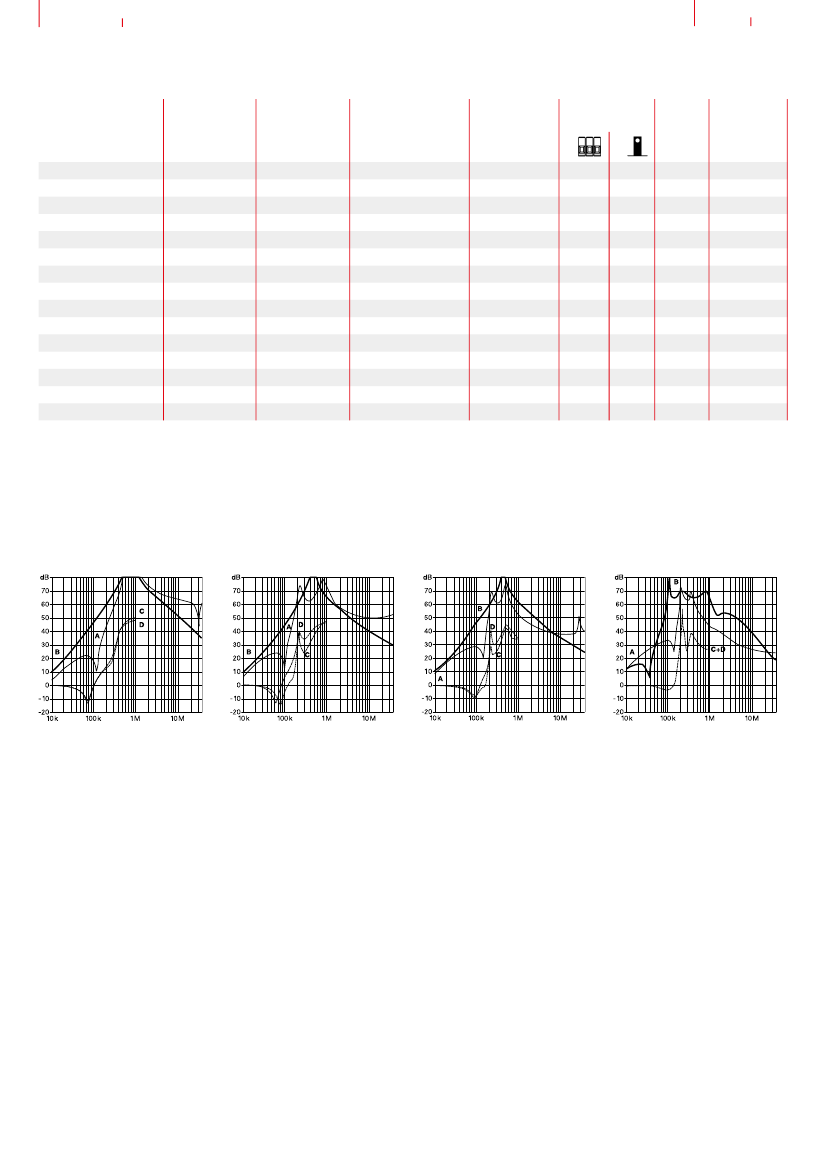

Attenuation performance according to EN

61800-3/A11

Approvals

Features and benefits

Performance indicators

An extremely compact and light weight filter design

requiring minimum mounting space in installations

and cabinets

Simple and time-saving installation with good

accessibility for automatic and hand tools

Solid, touch-safe terminal blocks, for all filters from

10 to 100 A, offering sufficient contacting cross

section according to the EN 60204-1 installation

standard

Optionally available transparent protective covers

for all filters with busbars from 150 to 1000 A, to

protect the installer, operator or inspector from

accidental touching of live conductors. They can

easily be retrofitted even if the filter is already

installed and connected

These EMC filters provide the attenuation

performance needed to fulfill EN 61800-3/A11

Guaranteed filter performance under fullload

operating conditions

15 different filter models allow the specific choice

and deployment for most industrial applications

Technical specifications

Maximum continuous operating voltage

Operating frequency

Rated currents

High potential test voltage

Protection category

Overload capability

Temperature range (operation and storage)

Flammability corresponding to

Design corresponding to

MTBF @ 50°C/400 V (Mil-HB-217F)

3x 520/300 VAC (480 VAC +10% possible)

dc to 60 Hz

10 to 1000 A @ 50°C

P –> E 2750 VDC for 2 sec

P –> P 2250 VDC for 2 sec

IP 20 (10 to 100 A)

IP 00 (150 to 1000 A)

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

-25°C to +100°C (25/100/21)

UL 94 V-2 or better

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

>320,000 hours

Typical applications

Variable speed electrical power drive systems/motor

drives for mainly industrial purpose

Various industrial applications comprising frequency

inverters, motor drives and servo drives

Typical electrical schematic (up to 100 A)

Typical electrical schematic (>100 A)
