F3-36: DescriptionPower Transformers Chassis Mount, 2.4VA 36VDCout, 115VACin; CategoryPower management transformer; File Size36KB，1 Pages; ManufacturerTriad Magnetics; Websitehttps://www.triadmagnetics.com/; Environmental Compliance

Download Datasheet Parametric View All

F3-36 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F3-36	-	-	View	Buy Now

F3-36 Overview

Power Transformers Chassis Mount, 2.4VA 36VDCout, 115VACin

F3-36 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Triad Magnetics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
application	POWER
Certification	UL
Center click function 1	YES
Center click function 2	NO
high	30.15 mm
Nominal input voltage	115 V
Insulation voltage	2500 V
length	52.37 mm
Manufacturer's serial number	F3-36
Installation features	CHASSIS MOUNT
Number of primary windings	1
Number of secondary windings	1
Output current 1	0.065 A
Output voltage 1	36 V
physical size	L52.37XB30.15XH30.15 (mm)
main rating	SINGLE 115V
surface mount	NO
Transformer type	SPLIT BOBBIN POWER TRANSFORMER
VA rating	2.4 VA
width	30.15 mm

Preview

Download Datasheet

View All

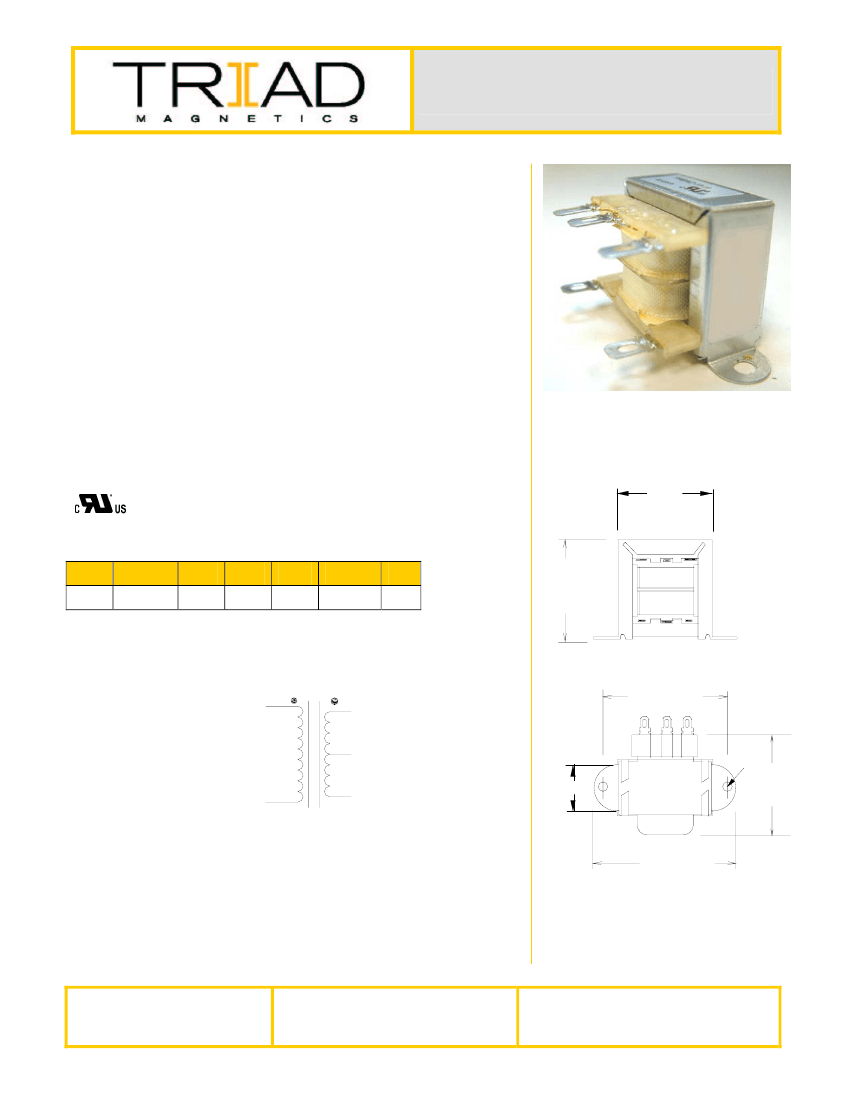

Power Transformer

Chassis Mount: Quick Pack

F3-36

Description:

The F3-36 Quick Pack small power transformer offers a significant reduction

in size and weight over a standard transformer. This transformer can be used

for a wide variety of applications. It is bobbin wound for reduced size and small

operating space.

Electrical Specifications (@25C);

Maximum Power:

2.4VA

Input Voltage:

115VAC@50/60Hz

Output Voltage:

36VCT@0.065A

Hipot:

2500VAC primary to secondary; 1500VAC windings to core.

Construction:

Split bobbin non concentric winding eliminates costly electrostatic shielding.

Termination is suitable for quick connects or soldering.

Built with UL Class B Insulation System.

Safety:

UL: File E53148, UL 5085-1 and 2 (formerly UL 506), General Purpose.

E

6

4

Dimensions:

A

1.187

B

1.75±.03

C

2.062

D

1.187

E

1.625

F

.187 Dia

G

.562

A

Notes:

1. Units: inches.

2. Terminal size: .187” X 0.021”.

3. Weight: .25 lbs

Schematic:

B

1

4

5

3

6

G

Input:

1 to 3

Output:

4 to 6

C

RoHS Compliance:

As of manufacturing date February 2005, all standard products

meet the requirements of 2011/65/EU, known as the RoHS initiative.

* Upon printing, this document is considered “uncontrolled”. Please contact Triad

Magnetics’ website for the most current version.

Web: www.TriadMagnetics.com

Phone 951-277-0757

Fax 951-277-2757

460 Harley Knox Blvd.

Perris, California 92571

Publish Date: December 4, 2013

1

2

3

F
