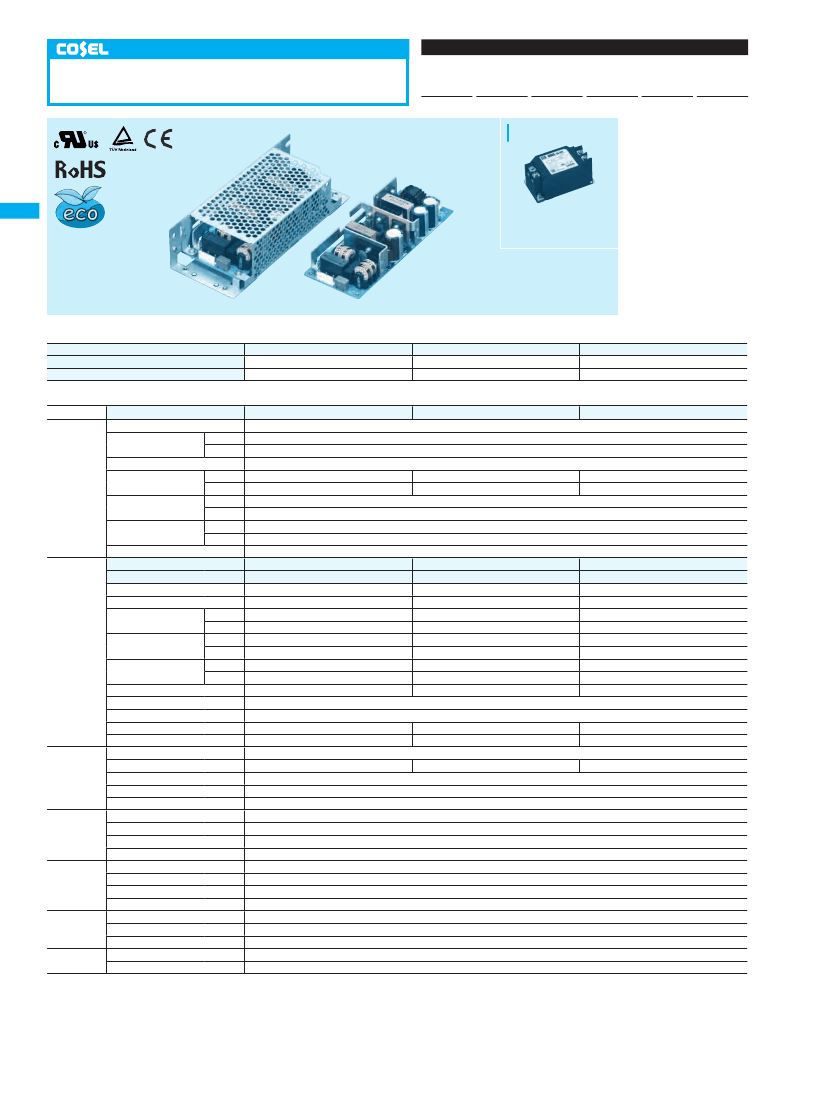

AC-DC Power Supplies Open Frame/ Enclosed Type
Ordering information
LFP100F
LF
1
2
P
3
100
4
F
5
-O
6
-O
R
Recommended EMI/EMC Filter
NAC-04-472
LFP
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
*
The EMI/EMC Filter is recommended
to connect with several devices.
1
Series name
2
Single output
3
Output wattage
4
Universal input
5
Output voltage
6
Optional
*1
C : with Coating
G : Low leakage current
J1 : VH(J.S.T.)connector type
R : with Remote ON/OFF
R2 : with Remote ON/OFF
S : with Chassis
SN: with Chassis & cover
Please refer to Instruction
manual 6.
This power supply is manufactured by SMD technology. The stress to P.C.B like twisting or bending causes the defect of the unit,
so handle the unit with care.
MODEL
MAX OUTPUT WATTAGE[W]
DC OUTPUT
*2
*2
LFP100F-24-Y
103.2 (206.4)
24V 4.3A (8.6A)
LFP100F-36-Y
100.8 (201.6)
36V 2.8A (5.6A)
LFP100F-48-Y
100.8 (201.6)
48V 2.1A (4.2A)
SPECIFICATIONS
MODEL
VOLTAGE[V]
CURRENT[A]
FREQUENCY[Hz]
INPUT
ACIN 100V
ACIN 200V
ACIN 100V
POWER FACTOR
ACIN 200V
ACIN 100V
INRUSH CURRENT[A]
ACIN 200V
LEAKAGE CURRENT[mA]
VOLTAGE[V]
*2
CURRENT[A]
LINE REGULATION[mV]
*7
LOAD REGULATION[mV]
*7
0 to +50C
RIPPLE[mVp-p]
*3
-10 - 0C
0 to +50C
RIPPLE NOISE[mVp-p]
*3
-10 - 0C
0 to +50C
TEMPERATURE REGULATION[mV]
-10 to +50C
*4
DRIFT[mV]
START-UP TIME[ms]
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
OVERCURRENT PROTECTION
OVERVOLTAGE PROTECTION[V]
OPERATING INDICATION
REMOTE SENSING
REMOTE ON/OFF
*6
INPUT-OUTPUT.RC
INPUT-FG
*6
OUTPUT.RC-FG
*6
OUTPUT-RC
OPERATING TEMP.,HUMID.AND ALTITUDE
*5
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS (AT ONIY AC input)
CONDUCTED NOISE
HARMONIC ATTENUATOR
CASE SIZE/WEIGHT
COOLING METHOD
EFFICIENCY[%]
ACIN 100V
ACIN 200V
LFP100F-24-Y
LFP100F-36-Y
LFP100F-48-Y
AC85 - 264 1f
(Refer to Instruction Manual 1.1 and 3.2)
*5
1.3typ (Io=100%)
0.7typ (Io=100%)
50 / 60 (47 - 63)
84.0typ (Io=100%)
84.0typ (Io=100%)
84.0typ (Io=100%)
87.0typ (Io=100%)
87.0typ (Io=100%)
87.0typ (Io=100%)
0.99typ (Io=100%)
0.95typ (Io=100%)
15typ (Io=100%) (At cold start) (Ta=25C)
30typ (Io=100%) (At cold start) (Ta=25C)
0.40 / 0.75max (ACIN 100V / 240V 60Hz, Io=100%, According to IEC60950-1 and DEN-AN)
24
36
48
4.3 (Peak 8.6)
2.8 (Peak 5.6)
2.1 (Peak 4.2)
96max
144max
192max
150max
240max
240max
120max
150max
150max
160max
200max
200max
150max
250max
250max
180max
300max
300max
240max
360max
480max
290max
450max
600max
96max
144max
192max
350typ (ACIN 100V, Io=100%)
20typ (ACIN 100V, Io=100%)
21.60 to 27.50
32.40 to 39.60
39.60 to 52.80
24.00 to 24.96
36.00 to 37.44
48.00 to 49.92
Works over 101% of rating and recovers automatically
27.60 to 33.60
41.40 to 50.40
55.20 to 67.20
Not provided
Not provided
Option (Refer to Instruction Manual 6)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC500V 1minute, Cutoff current = 25mA, DC500V 50MW min (At Room Temperature)
AC100V 1minute, Cutoff current = 25mA, DC100V 10MW min (At Room Temperature)
-10 to +70C, 20 - 90%RH (Non condensing) (Refer to Instruction Manual 3.2), 3,000m (10,000feet) max
-20 to +75C, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s
2
(20G), 11ms, once each X, Y and Z axis
UL60950-1, C-UL (CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
Complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Complies with IEC61000-3-2 (Class A)
*8
62X33X155mm
[2.44X1.30X6.10 inches]
(WXHXD) / 290g max (with chassis & cover : 480g max)
Convection
(Refer to Instruction Manual 3.1 and 3.2)
*5
Measured by 20MHz oscilloscope or Ripple-Noise meter
(Equivalent to KEISOKU-GIKEN: RM103).
Drift is the change in DC output for an eight hour period
after a half-hour warm-up at 25C, with the input voltage
held constant at the rated input/output.
Derating is required.
Applicable when remote control (optional) is added.
*7
*8
*
*
*
*
Please contact us about dynamic load and input response.
Please contact us about another class.
To meet the specifications. Do not operate over-loaded condition.
Parallel operation is not possible.
Derating is required when operated with chassis and cover.
Sound noise may be generated by power supply in case of pulse load.
OUTPUT
PROTECTION
CIRCUIT AND
OTHERS
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
OTHERS
*1
*2
*3
Specification is changed at option, refer to Instruction Manual.
Peak loading for 10sec. And Duty 40% max, refer to Instruction
Manual 5. In detail.
( ) means peak current. There is a possibility that an internal
device is damaged when the specification is exceeded.
This is the value that measured on measur ing board with
capacitor of 22mF at 150mm from output terminal.
*4
*5
*6
LFP-2
LFP100F

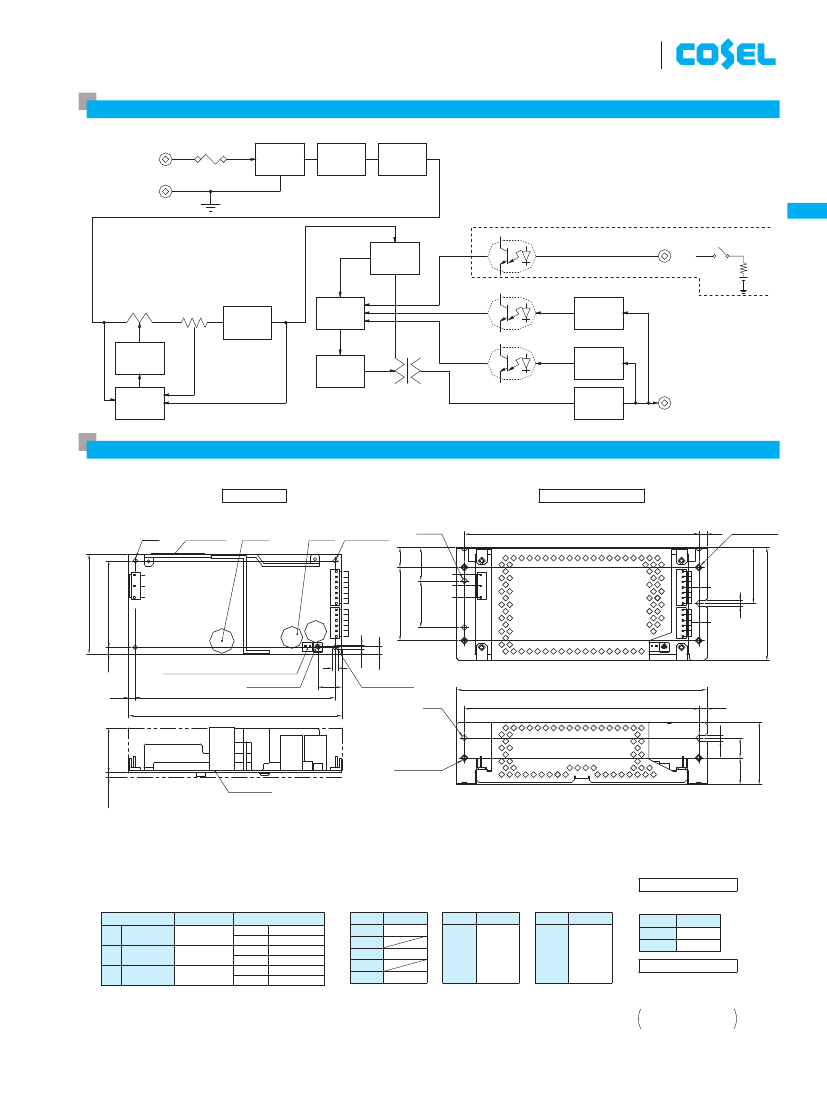

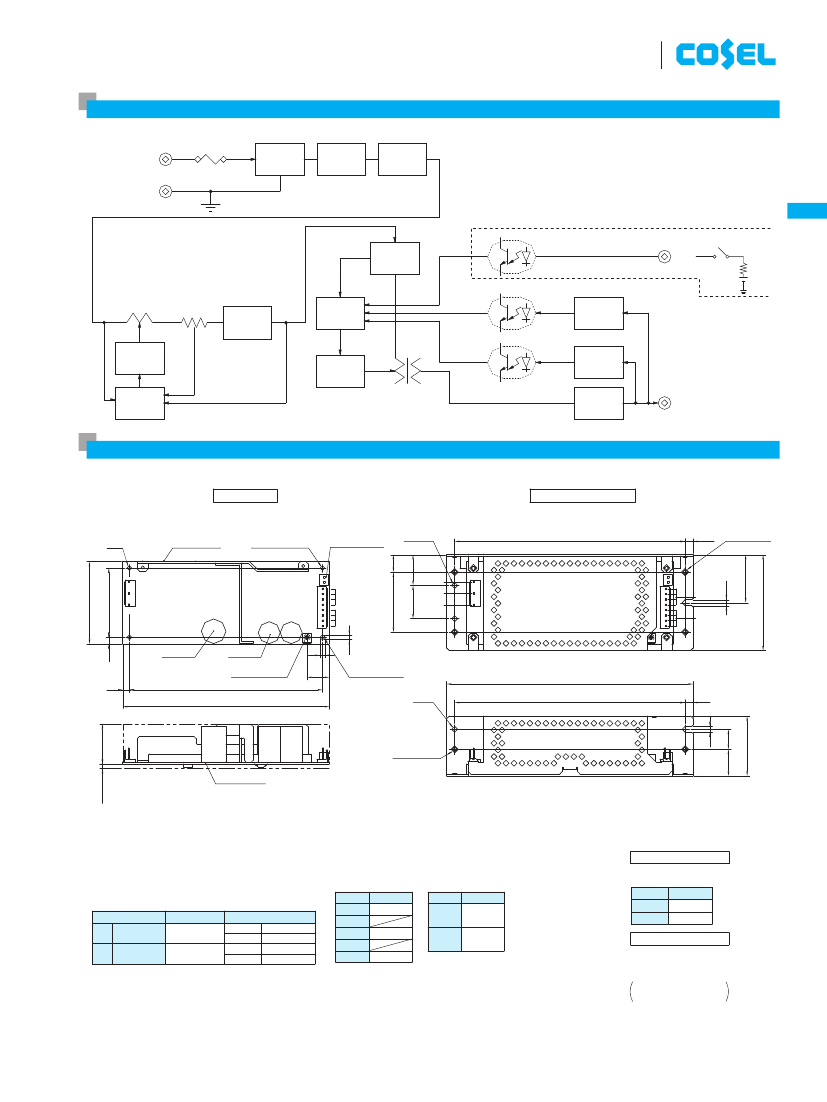

Block diagram
FUSE
250V3.15A
AC IN 85
-
264V
NOISE
FILTER
RECTIFIER
INRUSH
CURRENT
LIMIT
FG
LFP
Photocoupler
OPTION
CURRENT
SENSING
Photocoupler
RECTIFIER
AND
FILTER
INVERTER
INVERTER
TRANSFORMER
CONTROL
CONTROL
Photocoupler
OVER VOLTAGE
PROTECTION
RECTIFIER
AND
FILTER
CONTROL
RC
EXTERNAL
SOURCE
E
BOOSTER
INDUCTOR
CURRENT
SENSING
DC OUT
External view
¶
External size of option is different from standard model.
Standard type
Connector for
Remote ON/OFF
(Optional)
[0.51]
Chassis and cover type
FG
Name plate
[0.91]
3-f3.5
Mounting Hole
1
2
1
4
5
2-f4.5
13
23
173
±0.5
[6.81]
6
[0.24]
4-M4
Mounting Hole
[1.42]
45
±0.5
25
±0.5
52
±0.5
[2.44]
[0.98]
[2.05]
[1.77]
1
Input(L)
Input(L)
1
CN1
Output(+)
8
CN1
4
5
Output(+)
8
[0.2]
Point A
Point B
Voltage adjust
5
4
[0.16]
16.5
[0.65]
[0.14]
3.5
Mounting Hole
f4.5
5
[0.2]
145
±0.5
[5.71]
155
[6.1]
185
[7.28]
173
±0.5
[6.81]
6
[0.24]
[0.79] [0.59]
[0.18]
[1.18]
4.5
15
2-M4
Mounting Hole
¶1
¶1
Surface mount device
PCB t=1.6
¶
4 Mounting holes are existing.
¶
The back side of P.C.B. of the power supply is assembled some
SMDs.
Be attention not to bump against the attached area by vibration.
¶
Use the spacer of 8mm length or more regarding insulation.
And do not use press-fitting bush.
¶
Point A, Point B are thermometry points. Please refer to
Instruction Manual 3.
I/O Connector
CN1
1-1123724-3
CN2
1-1123723-8
Mating connector
Terminal
1123721-1
Chain
Loose
1318912-1
Chain
1123721-1
Loose
1318912-1
(Mfr:Tyco
Electronics)
3max
[0.12]
Connector type
<PIN CONNECTION>
CN1
Pin No.
1
2
3
4
5
Input
AC(L)
AC(N)
FG
CN2
Pin No.
1 to 4
5 to 8
Output
-V
+V
CN4 Option (Mfr:J.S.T)
PIN No.
1
2
Contents
RC(+)
RC(-)
1-1123722-5
1-1123722-8
Barrier strip type
Model B2B-XH-A
Mating Connector (Terminal)
XHP-2
BXH-001T-P0.6
or SXH-001T-P0.6
¶
Keep drawing current per pin below 5A for CN2.
¶
Tolerance :
±1
[±0.04]
¶
Weight : 290g max (with chassis & cover : 480g max)
¶
PCB material : CEM3
¶
Optional chassis and cover material : Electric galvanizing steel board.
¶
Dimensions in mm, [ ]=inches
¶
Mounting torque (Mounting hole of chassis) :1.5N
-
m (16kgf
-
cm) max
¶
I/O Connector is Mfr. Tyco Electronics
¶
Option:-J1:VH(J.S.T) connector type.
20
LFP-3
[1.77]
30
45
[2.83]
3
Input(N)
3
62
72
CN2
Output(-)
4.5
5
5
[0.18]
FG
CN4
CN2
Output(-)
FG
Input(N)
1
2
1
36

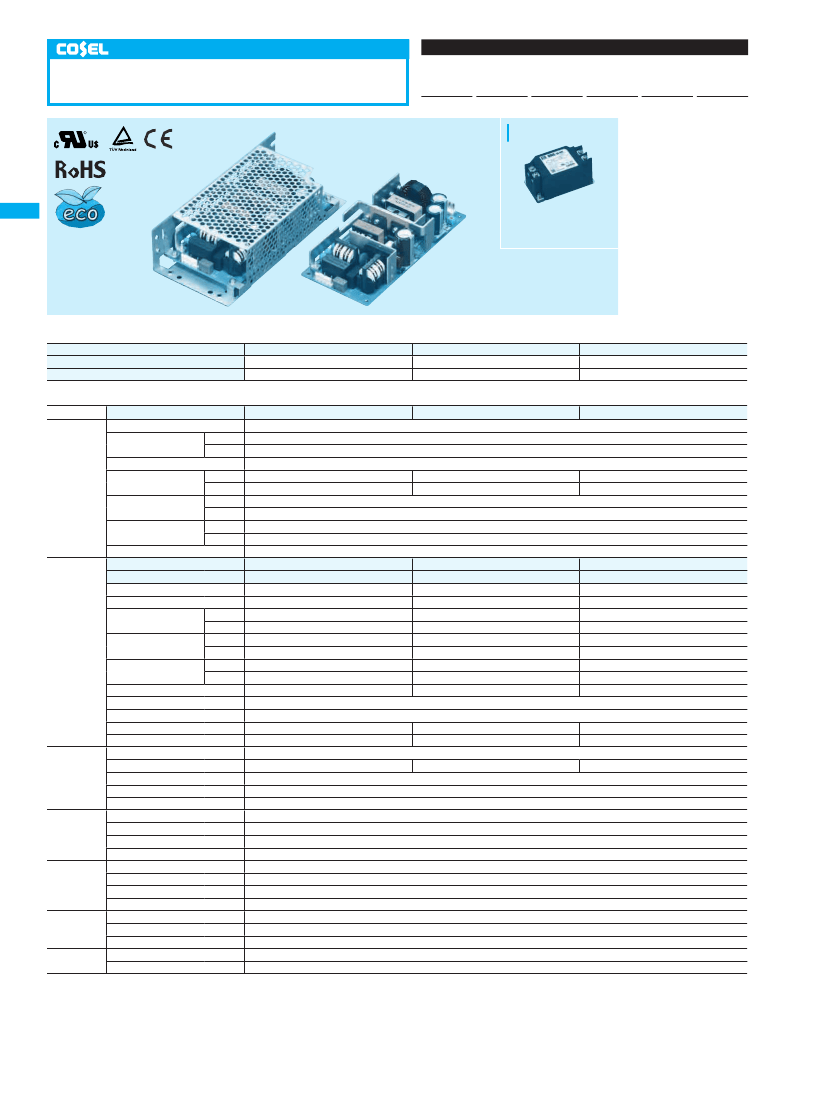

AC-DC Power Supplies Open Frame/ Enclosed Type
Ordering information
LFP150F
LF
1
2
P
3
150
4
F
5
-O
6
-O
R
Recommended EMI/EMC Filter
NAC-04-472
LFP
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
*
The EMI/EMC Filter is recommended
to connect with several devices.
1
Series name
2
Single output
3
Output wattage
4
Universal input
5
Output voltage
6
Optional
*1
C : with Coating
G : Low leakage current
J1 : VH(J.S.T.)connector type
R : with Remote ON/OFF
R2 : with Remote ON/OFF
S : with Chassis
SN: with Chassis & cover
Please refer to Instruction
manual 6.
This power supply is manufactured by SMD technology. The stress to P.C.B like twisting or bending causes the defect of the unit,
so handle the unit with care.
MODEL
MAX OUTPUT WATTAGE[W]
DC OUTPUT
*2
*2
LFP150F-24-Y
151.2 (302.4)
24V 6.3A (12.6A)
LFP150F-36-Y
151.2 (302.4)
36V 4.2A (8.4A)
LFP150F-48-Y
153.6 (307.2)
48V 3.2A (6.4A)
SPECIFICATIONS
MODEL
VOLTAGE[V]
CURRENT[A]
FREQUENCY[Hz]
INPUT
ACIN 100V
ACIN 200V
ACIN 100V
POWER FACTOR
ACIN 200V
ACIN 100V
INRUSH CURRENT[A]
ACIN 200V
LEAKAGE CURRENT[mA]
VOLTAGE[V]
*2
CURRENT[A]
LINE REGULATION[mV]
*7
LOAD REGULATION[mV]
*7
0 to +50C
RIPPLE[mVp-p]
*3
-10 - 0C
0 to +50C
RIPPLE NOISE[mVp-p]
*3
-10 - 0C
0 to +50C
TEMPERATURE REGULATION[mV]
-10 to +50C
*4
DRIFT[mV]
START-UP TIME[ms]
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
OVERCURRENT PROTECTION
OVERVOLTAGE PROTECTION[V]
OPERATING INDICATION
REMOTE SENSING
REMOTE ON/OFF
*6
INPUT-OUTPUT.RC
INPUT-FG
*6
OUTPUT.RC-FG
*6
OUTPUT-RC
OPERATING TEMP.,HUMID.AND ALTITUDE
*5
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS (AT ONIY AC input)
CONDUCTED NOISE
HARMONIC ATTENUATOR
CASE SIZE/WEIGHT
COOLING METHOD
EFFICIENCY[%]
ACIN 100V
ACIN 200V
LFP150F-24-Y
LFP150F-36-Y
LFP150F-48-Y
AC85 - 264 1f
(Refer to Instruction Manual 1.1 and 3.2)
*5
2.0typ (Io=100%)
1.0typ (Io=100%)
50 / 60 (47 - 63)
85.5typ (Io=100%)
85.5typ (Io=100%)
85.5typ (Io=100%)
88.0typ (Io=100%)
88.0typ (Io=100%)
88.0typ (Io=100%)
0.99typ (Io=100%)
0.95typ (Io=100%)
15typ (Io=100%) (At cold start) (Ta=25C)
30typ (Io=100%) (At cold start) (Ta=25C)
0.40 / 0.75max (ACIN 100V / 240V 60Hz, Io=100%, According to IEC60950-1 and DEN-AN)
24
36
48
6.3 (Peak 12.6)
4.2 (Peak 8.4)
3.2 (Peak 6.4)
96max
144max
192max
150max
240max
240max
120max
150max
150max
160max
200max
200max
150max
250max
250max
180max
300max
300max
240max
360max
480max
290max
450max
600max
96max
144max
192max
350typ (ACIN 100V, Io=100%)
20typ (ACIN 100V, Io=100%)
21.60 to 27.50
32.40 to 39.60
39.60 to 52.80
24.00 to 24.96
36.00 to 37.44
48.00 to 49.92
Works over 101% of rating and recovers automatically
27.60 to 33.60
41.40 to 50.40
55.20 to 67.20
Not provided
Not provided
Option (Refer to Instruction Manual 6)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC500V 1minute, Cutoff current = 25mA, DC500V 50MW min (At Room Temperature)
AC100V 1minute, Cutoff current = 25mA, DC100V 10MW min (At Room Temperature)
-10 to +70C, 20 - 90%RH (Non condensing) (Refer to Instruction Manual 3.2), 3,000m (10,000feet) max
-20 to +75C, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s
2
(20G), 11ms, once each X, Y and Z axis
UL60950-1, C-UL (CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
Complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Complies with IEC61000-3-2 (Class A)
*8
75X36.5X160mm
[2.95X1.44X6.30 inches]
(WXHXD) / 380g max (with chassis & cover : 610g max)
Convection
(Refer to Instruction Manual 3.1 and 3.2)
*5
*4
Measured by 20MHz oscilloscope or Ripple-Noise meter
(Equivalent to KEISOKU-GIKEN: RM103).
Drift is the change in DC output for an eight hour period
after a half-hour warm-up at 25C, with the input voltage
held constant at the rated input/output.
Derating is required.
Applicable when remote control (optional) is added.
*7
*8
*
*
*
*
Please contact us about dynamic load and input response.
Please contact us about another class.
To meet the specifications. Do not operate over-loaded condition.
Parallel operation is not possible.
Derating is required when operated with chassis and cover.
Sound noise may be generated by power supply in case of pulse load.
OUTPUT
PROTECTION
CIRCUIT AND
OTHERS
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
OTHERS
*1
*2
*3
Specification is changed at option, refer to Instruction Manual.
Peak loading for 10sec. And Duty 40% max, refer to Instruction
Manual 5. In detail.
( ) means peak current. There is a possibility that an internal
device is damaged when the specification is exceeded.
This is the value that measured on measur ing board with
capacitor of 22mF at 150mm from output terminal.
*5
*6
LFP-4
LFP150F
Block diagram
FUSE
250V5A
AC IN 85
-
264V
NOISE
FILTER
RECTIFIER
INRUSH
CURRENT
LIMIT
FG
LFP
Photocoupler
OPTION
CURRENT
SENSING
Photocoupler
RECTIFIER
AND
FILTER
INVERTER
INVERTER
TRANSFORMER
CONTROL
CONTROL
Photocoupler
OVER VOLTAGE
PROTECTION
RECTIFIER
AND
FILTER
CONTROL
RC
EXTERNAL
SOURCE
E
BOOSTER
INDUCTOR
CURRENT
SENSING
DC OUT
External view
¶
External size of option is different from standard model.
Standard type
Chassis and cover type
6
[0.24]
FG
Name plate
Point A
Point B
25
[0.98]
[0.59]
3-f3.5
Mounting Hole
15
2-f4.5
176
±0.5
[6.93]
4-M4
Mounting Hole
5
3
5
3
1
Input(N)
7
1
CN3
Output(-)
CN3
Output(-)
7
65
±0.5
[2.95]
35
±0.5
[2.17]
[1.38]
[2.6]
4.5
1
CN2
Output(+)
6
CN2
Output(+)
6
2 1
CN4
2 1
[0.14]
5
[0.2]
Connector for RemoteON/OFF (optional)
Voltage adjust
150
±0.5
[5.91]
160
[6.3]
4
[0.16]
18
[0.71]
Mounting Hole
f4.5
[0.22]
3.5
[0.2]
5.5
5
188
[7.4]
176
±0.5
[6.93]
6
[0.24]
[0.79] [0.59]
[1.32]
33.5
[0.18]
15
2-M4
Mounting Hole
3max
[0.12]
¶1
¶1
Surface mount device
PCB t=1.6
¶
4 Mounting holes are existing.
¶
The back side of P.C.B. of the power supply is assembled some
SMDs.
Be attention not to bump against the attached area by vibration.
¶
Use the spacer of 8mm length or more regarding insulation.
And do not use press-fitting bush.
¶
Point A, Point B are thermometry points. Please refer to
Instruction Manual 3.
I/O Connector
CN1
1-1123724-3
CN2
1-1123723-6
CN3
1-1123723-7
Mating connector
Terminal
Chain
1123721-1
1318912-1
Loose
1123721-1
Chain
1318912-1
Loose
Chain
1123721-1
1318912-1
Loose
(Mfr:Tyco
Electronics)
<PIN CONNECTION>
CN1
Pin No.
1
2
3
4
5
Input
AC(L)
AC(N)
FG
Connector type
CN3
Output
Pin No.
Output
CN4 Option (Mfr:J.S.T)
PIN No.
1
2
Contents
RC(+)
RC(-)
CN2
Pin No.
1-1123722-5
1-1123722-6
1-1123722-7
1 to 6
+V
1 to 7
-V
Barrier strip type
Model B2B-XH-A
Mating Connector (Terminal)
XHP-2
BXH-001T-P0.6
or SXH-001T-P0.6
¶
Keep drawing current per pin below 5A for CN2,CN3.
¶
Tolerance :
±1
[±0.04]
¶
Weight : 380g max (with chassis & cover : 610g max)
¶
PCB material : CEM3
¶
Optional chassis and cover material : Electric galvanizing steel board.
¶
Dimensions in mm, [ ]=inches
¶
Mounting torque (Mounting hole of chassis) :1.5N
-
m (16kgf
-
cm) max
¶
I/O Connector is Mfr. Tyco Electronics
¶
Option:-J1:VH(J.S.T) connector type.
20
LFP-5
47
[1.85]
4.5
[0.18]
CN1
[3.35]
1
Input(L)
CN1
55
±0.5
75
42
FG
1
85
FG
Input(N)
Input(L)
1
[1.65]

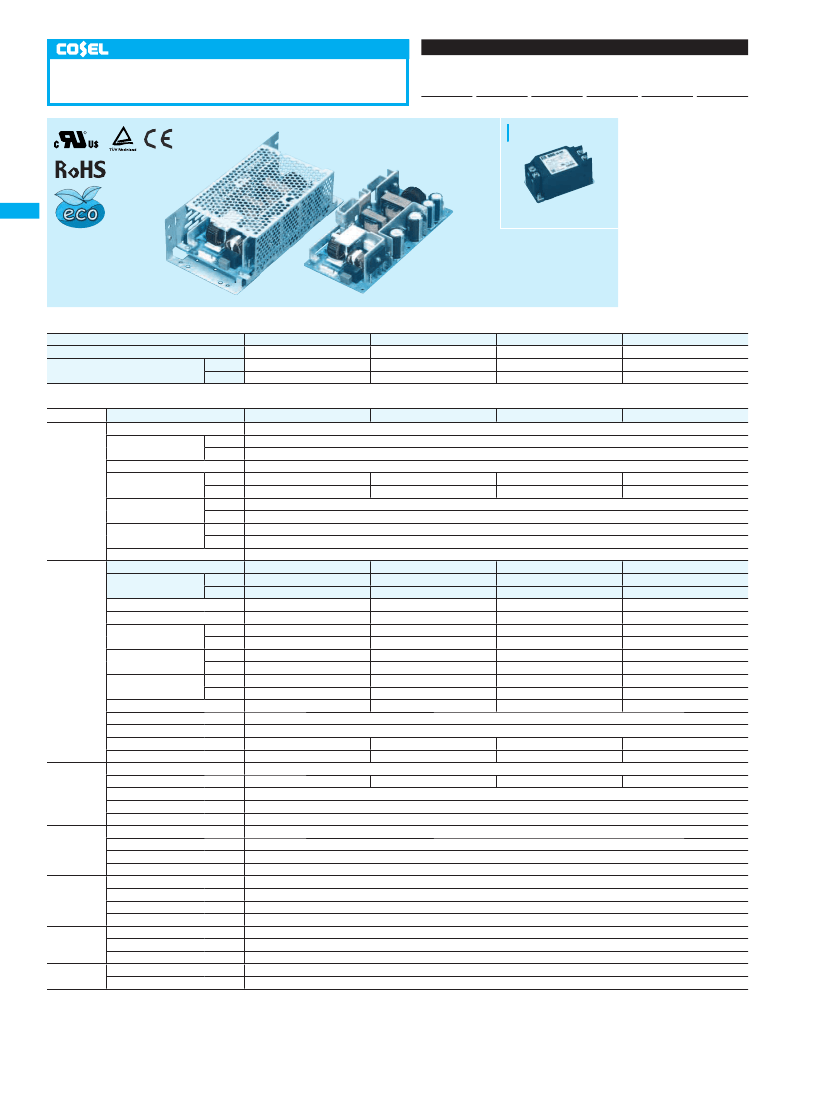

AC-DC Power Supplies Open Frame/ Enclosed Type
Ordering information
LFP240F
LF
1
2
P
3
240
4
F
5
-O
6
-O
R
Recommended EMI/EMC Filter
NAC-06-472
LFP
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
1
Series name
2
Single output
3
Output wattage
4
Universal input
5
Output voltage
6
Optional
*1
C : with Coating
G : Low leakage current
J1 : VH(J.S.T.)connector type
R : with Remote ON/OFF
R2 : with Remote ON/OFF
S : with Chassis
SN: with Chassis & cover
T : Vertical terminal block
U1: Can be attached the external
capacitor unit
Please refer to Instruction
manual 6.
This power supply is manufactured by SMD technology. The stress to P.C.B like twisting or bending causes the defect of the unit,
so handle the unit with care.
MODEL
MAX OUTPUT WATTAGE[W]
DC OUTPUT
*2
LFP240F-24-Y
300 (480)
Convection 24V 10A (20A)
Forced air 24V 12.5A (20A)
*2
LFP240F-30-Y
300 (480)
30V 8A (16A)
30V 10A (16A)
LFP240F-36-Y
302.4 (482.4)
36V 6.7A (13.4A)
36V 8.4A (13.4A)
LFP240F-48-Y
302.4 (480)
48V 5A (10A)
48V 6.3A (10A)
SPECIFICATIONS
MODEL
VOLTAGE[V]
CURRENT[A]
FREQUENCY[Hz]
INPUT
ACIN 100V
ACIN 200V
ACIN 100V
POWER FACTOR
ACIN 200V
ACIN 100V
INRUSH CURRENT[A]
ACIN 200V
LEAKAGE CURRENT[mA]
VOLTAGE[V]
Convection
*2
CURRENT[A]
Forced air
*2
LINE REGULATION[mV]
*7
LOAD REGULATION[mV]
*7
0 to +50C
RIPPLE[mVp-p]
*3
-10 - 0C
0 to +50C
RIPPLE NOISE[mVp-p]
*3
-10 - 0C
0 to +50C
TEMPERATURE REGULATION[mV]
-10 to +50C
*4
DRIFT[mV]
START-UP TIME[ms]
*9
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
OVERCURRENT PROTECTION
OVERVOLTAGE PROTECTION[V]
OPERATING INDICATION
REMOTE SENSING
REMOTE ON/OFF
*6
INPUT-OUTPUT.RC
INPUT-FG
*6
OUTPUT.RC-FG
*6
OUTPUT-RC
OPERATING TEMP.,HUMID.AND ALTITUDE
*5
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS (AT ONIY AC input)
CONDUCTED NOISE
HARMONIC ATTENUATOR
CASE SIZE/WEIGHT
COOLING METHOD
EFFICIENCY[%]
ACIN 100V
ACIN 200V
LFP240F-24-Y
LFP240F-30-Y
LFP240F-36-Y
LFP240F-48-Y
*5
AC85 - 264 1f
(Refer to Instruction Manual 1.1 and 3.2)
3.6typ (Io=100%)
1.8typ (Io=100%)
50 / 60 (47 - 63)
86.0typ (Io=100%)
86.0typ (Io=100%)
86.0typ (Io=100%)
86.0typ (Io=100%)
88.5typ (Io=100%)
88.5typ (Io=100%)
89.0typ (Io=100%)
89.0typ (Io=100%)
0.99typ (Io=100%)
0.95typ (Io=100%)
15 / 30typ (Io=100%)
(Primary inrush current /Secondary inrush current) (More than 3 sec. to re-start)
30 / 30typ (Io=100%)
(Primary inrush current /Secondary inrush current) (More than 3 sec. to re-start)
0.40 / 0.75max (ACIN 100V / 240V 60Hz, Io=100%, According to IEC60950-1 and DEN-AN)
24
30
36
48
10 (Peak 20)
8 (Peak 16)
6.7 (Peak 13.4)
5 (Peak 10)
12.5 (Peak 20)
10 (Peak 16)
8.4 (Peak 13.4)
6.3 (Peak 10)
96max
144max
144max
192max
150max
240max
240max
240max
120max
150max
150max
150max
160max
200max
200max
200max
150max
250max
250max
250max
180max
300max
300max
300max
240max
360max
360max
480max
290max
450max
450max
600max
96max
144max
144max
192max
350typ (ACIN 100V, Io=100%)
20typ (ACIN 100V, Io=100%)
21.60 to 27.50
27.00 to 33.00
32.40 to 39.60
39.60 to 52.80
24.00 to 24.96
30.00 to 31.20
36.00 to 37.44
48.00 to 49.92
Works over 101% of rating and recovers automatically
27.60 to 33.60
34.50 to 42.00
41.40 to 50.40
55.20 to 67.20
Not provided
Not provided
Option (Refer to Instruction Manual 6)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC500V 1minute, Cutoff current = 25mA, DC500V 50MW min (At Room Temperature)
AC100V 1minute, Cutoff current = 25mA, DC100V 10MW min (At Room Temperature)
-10 to +70C, 20 - 90%RH (Non condensing) (Refer to Instruction Manual 3.2), 3,000m (10,000feet) max
-20 to +75C, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s
2
(20G), 11ms, once each X, Y and Z axis
UL60950-1, C-UL (CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
Complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Complies with IEC61000-3-2 (Class A)
*8
84X46X180mm [3.31X1.81X7.09 inches] (WXHXD) / 540g max (with chassis & cover : 860g max)
Convection / Forced air
(Refer to Instruction Manual 3.1 and 3.2)
*5
*4
Measured by 20MHz oscilloscope or Ripple-Noise meter
(Equivalent to KEISOKU-GIKEN: RM103).
Drift is the change in DC output for an eight hour period
after a half-hour warm-up at 25C, with the input voltage
held constant at the rated input/output.
Derating is required.
Applicable when remote control (optional) is added.
*7
*8
*9
*
*
*
*
Please contact us about dynamic load and input response.
Please contact us about another class.
By attaching an external capacitor unit, it is possible to extend the hold-up time.
To meet the specifications. Do not operate over-loaded condition.
Parallel operation is not possible.
Derating is required when operated with chassis and cover.
Sound noise may be generated by power supply in case of pulse load.
OUTPUT
PROTECTION
CIRCUIT AND
OTHERS
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
OTHERS
*1
*2
*3
Specification is changed at option, refer to Instruction Manual.
Peak loading for 10sec. And Duty 40% max, refer to Instruction
Manual 5. In detail.
( ) means peak current. There is a possibility that an internal
device is damaged when the specification is exceeded.
This is the value that measured on measur ing board with
capacitor of 22mF at 150mm from output terminal.
*5
*6
LFP-6
51mcu
京公网安备 11010802033920号
EEWORLD
