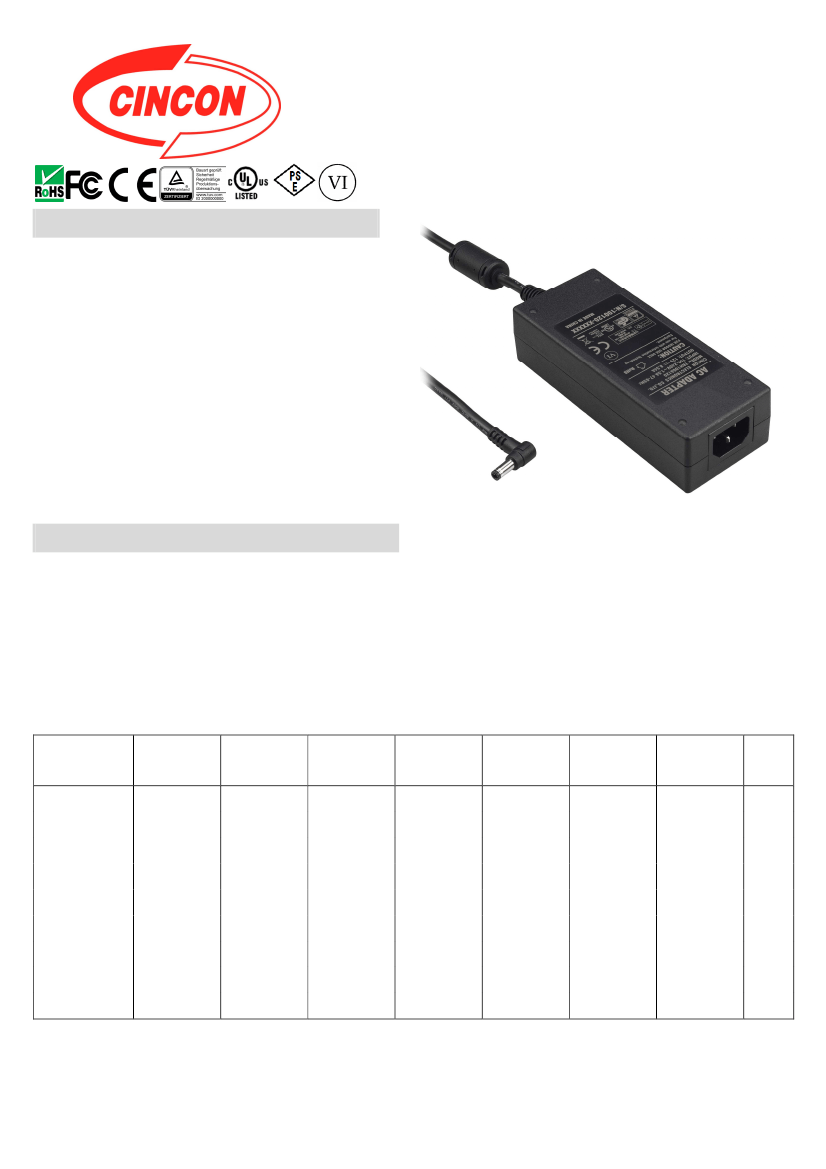

V11
TRH100A SERIES
100W SWITCHING
ADAPTER WITH PFC
Features
* Universal Input Range: 90-264VAC
* Active PFC Meets EN61000-3-2
* Conductive EMI Meets CISPR/FCC Class B
* No Load power consumption< 150mW
* Continuous Short Circuit Protection
* Over Voltage Protection
Meet CoC Tier 2 & DoE Level VI
(Output Cable Length
≦
1800mm)
(TRH100A120~150: Output Cable Length≦1220mm)
(TRH100A180~480: Output Cable Length≦1800mm)
Ordering information
TRH100AXXX- XX
Model No.
DC Plug Type
X
OVP
E: WITH OVP
XX
DC Cable Length and Type
11: 720mm with Ferrite Core
12: 1220mm with Ferrite Core
13: 1800mm with Ferrite Core
14: 1000mm with Ferrite Core
21: 720mm with two Ferrite Core
22: 1220mm with two Ferrite Core
23: 1800mm with two Ferrite Core
*UL2464 for all Model
MODEL
TRH100A120
TRH100A135
TRH100A150
TRH100A180
TRH100A190
TRH100A240
TRH100A280
TRH100A360
TRH100A480
OUTPUT
VOLTAGE
12V
13.5V
15V
18V
19V
24V
28V
36V
48V
MIN.
LOAD
0A
0A
0A
0A
0A
0A
0A
0A
0A
OUTPUT
CURRENT
8.34A
7.33A
6.67A
5.56A
5.26A
4.17A
3.54A
2.78A
2.1A
RIPPLE &
NOISE
1%
1%
1%
1%
1%
1%
1%
1%
1%
VOLTAGE
SETPOINT
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
LINE
REGULATION
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
LOAD
REGULATION
±4%
±4%
±4%
±2%
±2%
±2%
±2%
±2%
±2%
%
EFF..
(Typ.)
89%
89%
89%
89%
89%
89%
89%
89%
89%
1
V11
Specifications
INPUT SPECIFICATIONS:
Voltage …...………........….................................................... 90~264Vac
Frequency ………………………………………….……………..... 47 to 63Hz
Inrush Current ………………….………….................... 120A max. @240Vac
Conducted EMI ………………………….………………CISPR/FCC Class B
Leakage Current …………………………………………….…… 3.5mA max.

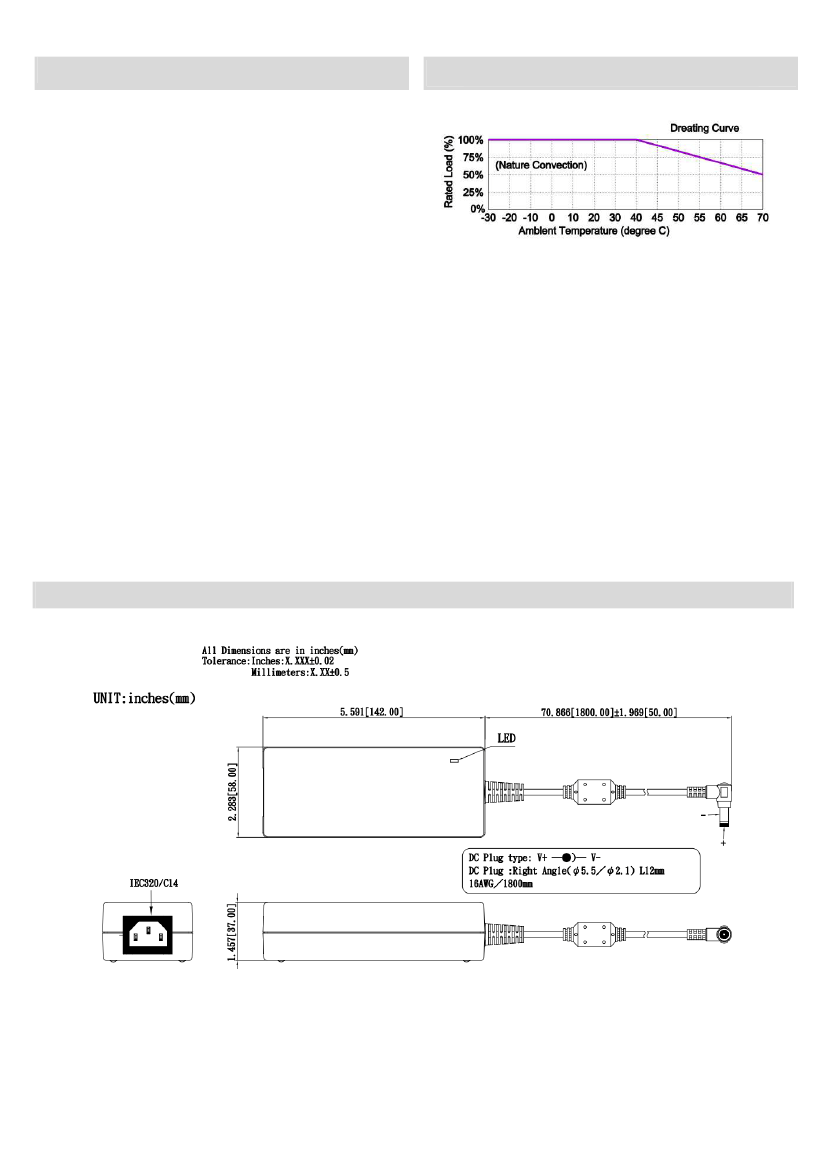

TRH100A Series Derating Curve
OUTPUT SPECIFICATIONS:
Holdup Time ……………………………………………… 16ms typ. @115Vac
Short Circuit Protection ………………………….……………… Continuous
Over Voltage Protection ……………...….............................................…
Yes
GENERAL SPECIFICATIONS:
Isolation ………………………………………… Input to output = 4,242VDC
Operating Temperature .................. -30℃ ~ 70℃,40℃~70℃ with -1.67%/℃
Storage Temperature ……………………………...….......….... -40~85℃
Operating Humidity………...…...…………….93%RH max. no condensing
Cooling …………………………………..……………….. Natural Convection
Switching Frequency …………………………………………… 65KHz Typical
Operating Altitude…………………………………….Sea Level to 5000m
AC Inlet ……………….…………………………………... IEC320/C14,C6
MTBF,MIL-HDBK-217F(25℃ Ta) . . . . . . ............... . . . . . ...... 160K hrs min.
Dimensions …. 5.591x2.283x1.457 inches (142.00x58.00x37.00 mm)
Weight ……………………………………………..…………………….. 485g
NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measurement @20MHz BW.
2. Voltage setpoint at 60% full load
3. Line regulation measured from 100Vac to 240Vac with full load.
4. Load regulation measured from 60% to 100% full load and from 60% to
20% full load (60% +/- 40% full load)
5. Average Efficiency measured at 25%,50%,75%,100% load and input
voltage is 115Vac / 230Vac.
SAFETY AND EMC:
Emission and lmmunity ……… EN55022 Class B, FCC Part 15 Class B
EN61000-3-2,EN61000-3-3, EN55024
EN61204-3
Safety ……………………….. IEC60950-1, EN60950-1, UL60950-1
Mechanical Specification
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
