MENB1040A1503N01 datasheet, PDF

Datasheet> All Categories > Power/power management> MENB1040A1503N01

MENB1040A1503N01: DescriptionDC Power Connectors DC plug adptor 2.1mm; CategoryPower/power management; File Size207KB，2 Pages; ManufacturerSL Power

Download Datasheet Parametric Compare View All

MENB1040A1503N01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MENB1040A1503N01	-	-	View	Buy Now

MENB1040A1503N01 Overview

DC Power Connectors DC plug adptor 2.1mm

MENB1040A1503N01 Parametric

Parameter Name	Attribute value
Product Category	Desktop AC Adapters
Manufacturer	SL Power
RoHS	Details
Region	Universal
Input Voltage	100 VAC to 240 VAC
Number of Outputs	1 Output
Output Power	40.5 W
Output Voltage-Channel 1	15 V
Output Current-Channel 1	2.76 A
Industry	Medical
DC Output Connector	2.5 mm Barrel Plug
DC Output Cord Length	1.45 m
Efficiency	Level V
AC Plug included/required	Required
Load Regulation	Regulated
Mounting Style	Desktop
Packaging	Bulk
Factory Pack Quantity	250

Preview

Download Datasheet

View All

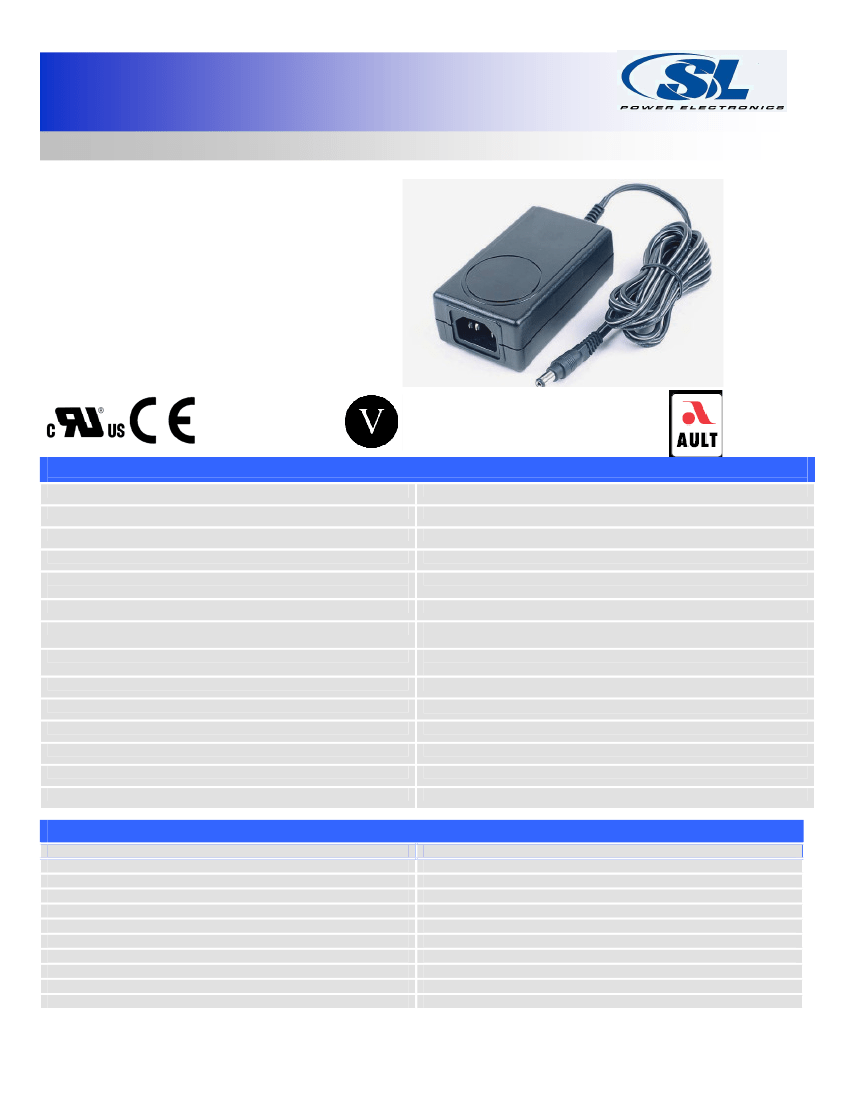

MENB1040

Universal 40 Watt Series

Medical Switch-Mode Power Supply

•

100-240VAC Universal Input

•

Meets EISA2007, CEC Efficiency Level V,

3 Year Warranty

EU (EC) No 278/2009 Phase II

•

Desktop Style

•

Certified to UL/EN60601-1

•

5V to 24V Single Output Models, up to 40W

•

Modified and Custom Designs Available

•

Regulated Output with Low Ripple

•

Impact-Resistant Polycarbonate Enclosure

•

No load Power Consumption <0.3W

RoHS

Specifications

AC Input

Input Current

Inrush Current

Input Fuse

Efficiency

Output Voltage

Output Power

Ripple and Noise

Line & Load Voltage Regulation

Transient Response

Minimum Load

Case Material

Case Dimensions

Weight

All Specifications are typical at nominal input, full load at 25

C unless otherwise stated.

100-240VAC, -/-10%, 47-63 Hz, 1∅

100VAC: 1.1A

60 A peak, 264 V, cold start

3.15A, 250V Internal Primary Current Fuse is provided

Meets EISA2007, CEC Efficiency Level V,

EU (EC) No 278/2009 Phase II

See chart

1% pk-pk max., 20MHz BW

Line: +/- 1%, Load: +/-5%

500µs max., 50% load step, typical

Not required

Black 94V0 Polycarbonate

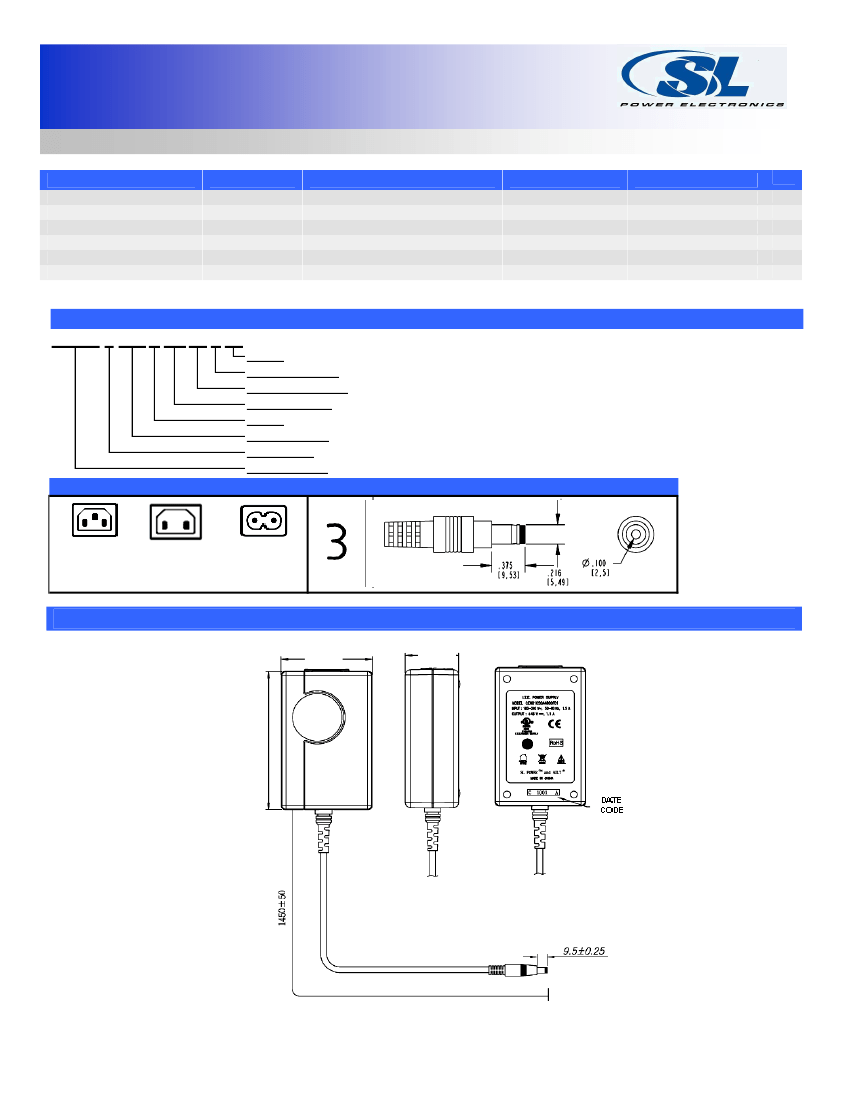

102 x 60 x 32mm. See outline drawing

250g

MTBF

Hold-up Time

Overload Protection

Short Circuit Protection

Topology

Safety Standards

EMC

Dielectric Withstand

Operating Temperature

Storage Temperature

Relative Humidity

Altitude

Output Cable

Output Connector

>100,000 hours (calculated)

18 ms min. @ 115Vac, 60 ms @ 230 Vac

Hiccup Mode

Switching – Fixed Frequency Flyback

EN/IEC/CSA/UL60601-1

See chart below

Input-Output: 5,656Vdc

Input-GND: 1,500 Vac, Output-GND: 500Vdc

0° to 40°C, no derating

-30 to +85°C

5% to 95%, non-condensing

0 to 10,000 ft

#18AWG

(UL1185), 1,500mm, 2 conductor

2.5mm barrel type (Ault #3), center positive (+)

EMC Specifications

Conducted Emissions

Radiated Emissions

Line Frequency Harmonics

Voltage Fluctuations/Flicker

Static Discharge Immunity

Radiated RF Immunity

EFT/Burst Immunity

Line Surge Immunity

Conducted RF Immunity

Power Frequency Magnetic Field Immunity

Voltage Dip Immunity

EN55011 Class B, FCC Part 15, Class B.

EN61000-3-2, Class A

EN61000-3-3

EN61000-4-2, 6kV Contact Discharge, 8kV air discharge

EN61000-4-3, 3V/m.

EN61000-4-4, 2kV/5kHz.

EN61000-4-5, 1kV differential, 2kV common-mode

EN61000-4-6, 3Vrms

EN61000-4-8, 3A/m

EN61000-4-11, Criteria A

______________________________________________________________________________________________________________________________

1 of 2

SL Power Electronics Corp

•

6050 King Drive Ventura, CA 93003

•

Phone 805.486.4565

•

Fax 858.712.2040

•

Email: info@slpower.com

•

www.slpower.com

MENB1040A1503N01 Related Products

	MENB1040A1503N01	MENB1040A0503F01	MENB1040A1503F01	MENB1040A1203F01	MENB1040A0903F01	MENB1040A1203N01	MENB1040A2403N01
Description	DC Power Connectors DC plug adptor 2.1mm	DC Power Connectors DC plug adptor 2.1mm	DC Power Connectors DC plug adptor 2.1mm	DC Power Connectors DC plug adptor 2.1mm	DC Power Connectors DC plug adptor 2.1mm	DC Power Connectors DC plug adptor 2.1mm	DC Power Connectors DC plug adptor 2.1mm
Product Category	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters
Manufacturer	SL Power	SL Power	SL Power	SL Power	SL Power	SL Power	SL Power
RoHS	Details	Details	Details	Details	Details	Details	Details
Region	Universal	Universal	Universal	Universal	Universal	Universal	Universal
Input Voltage	100 VAC to 240 VAC	100 VAC to 240 VAC	100 VAC to 240 VAC	100 VAC to 240 VAC	100 VAC to 240 VAC	100 VAC to 240 VAC	100 VAC to 240 VAC
Number of Outputs	1 Output	1 Output	1 Output	1 Output	1 Output	1 Output	1 Output
Output Power	40.5 W	25 W	40.5 W	40.8 W	36 W	40.8 W	40.8 W
Output Voltage-Channel 1	15 V	5 V	15 V	12 V	9 V	12 V	24 V
Output Current-Channel 1	2.76 A	5 A	2.76 A	3.4 A	4 A	3.4 A	1.7 A
DC Output Connector	2.5 mm Barrel Plug	2.5 mm Barrel Plug	2.5 mm Barrel Plug	2.5 mm Barrel Plug	2.5 mm Barrel Plug	2.5 mm Barrel Plug	2.5 mm Barrel Plug
DC Output Cord Length	1.45 m	1.45 m	1.45 m	1.45 m	1.45 m	1.45 m	1.45 m
Efficiency	Level V	Level V	Level V	Level V	Level V	Level V	Level V
AC Plug included/required	Required	Required	Required	Required	Required	Required	Required
Load Regulation	Regulated	Regulated	Regulated	Regulated	Regulated	Regulated	Regulated
Mounting Style	Desktop	Desktop	Desktop	Desktop	Desktop	Desktop	Desktop
Factory Pack Quantity	250	1	250	1	1	250	250
Packaging	Bulk	Bulk	-	Bulk	Bulk	-	-
Commercial/Medical	-	Medical	Medical	Medical	Medical	Medical	-
