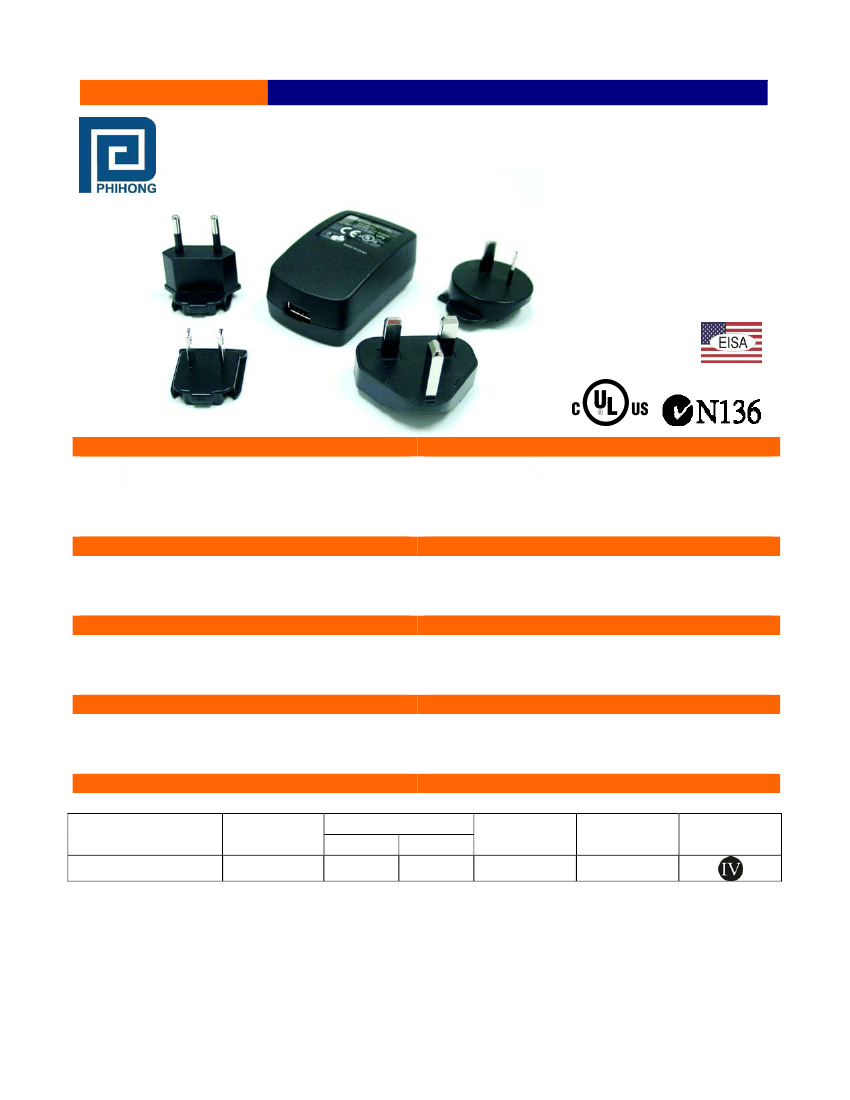

2.5W USB Adapter with Interchangeable Plugs
PSC03R Adapter Meets CEC and EISA Requirements
Features
USB Socket
Field Changeable AC Plugs
ECOC Compliance
Applications
Wireless Communications
Peripherals
Safety Approvals
cUL/UL
SAA
Mechanical Characteristics
Length: 75.32mm (2.97in)
Width: 45.96mm (1.81in)
Output Specifications
Model
(1)
Low Leakage Current
UL 94 Vo Flammability
Efficiency Level IV Compliance
Portable Equipment
Networking
C-Tick
Height: 31.67mm (1.25in)
Weight: 61.1g (2.16oz)
PSC03R-050
DC Output
Voltage
5V
Load
Min.
0A
Max.
0.5A
Ripple
(2)
P-P (max.)
55mV
Regulation
Line & Load
±5%
Efficiency
Level
(3)
(1) Minimum order quantity of 4000 pieces
(2) Measured after 10 minutes warm up at 25°C with 12-inch twisted pair terminated with a 10uF capacitor and 0.1uF ceramic in
parallel.
(3) Level IV efficient products do not qualify for CE marking and therefore cannot be sold to countries in the EU
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the
most up-to-date specifications and contact information.
Revised 11/8/2013
PSC03R Characteristics
Input:
AC Input Voltage Rating
100 to 240V AC
WWW.PHIHONG.COM
Over-Voltage Protection
8V DC maximum
Over-Current Protection
AC Input Voltage Range
90 to 264V AC
0.75A maximum
Short-Circuit Protection
AC Input Frequency
47 to 63Hz
Output can be shorted permanently without damage
Input Current
0.15A (RMS) 115V AC at maximum load
0.08A (RMS) 230V AC at maximum load
Environmental:
Temperature
Operation
Non-operation
Humidity
0 to +45°C
-40 to +85°C
10 to 95% Non condensing
Leakage Current
0.02mA maximum at 254V AC, 50Hz
Emissions
FCC Part 15 Class B
EN55022 Class B
Inrush Current
30A for 120V AC at maximum load
50A for 240V AC at maximum load
(Cold start at ambient 25°C)
Immunity
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
Input Power Saving
0.3W maximum, no load
Output:
Efficiency
63% average; meets CEC level IV
Dielectric Withstand (Hi-pot) Test
Primary to Secondary: 3000V AC for 1 min., 10mA
Hold-up Time
10mS minimum, at maximum load at 120V AC
DC Output Connector
USB Type A, receptacle, single.

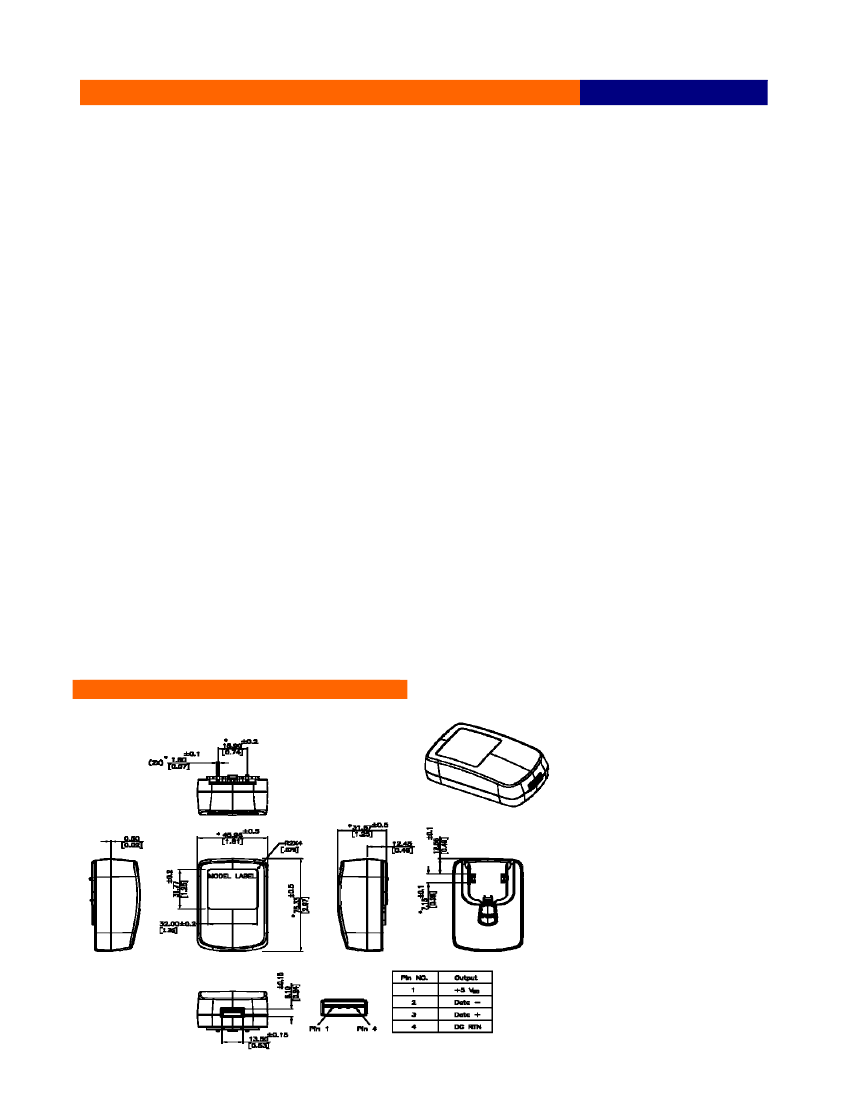

Dimension Diagram Unit: mm (inch)
