PSS1R5-5-12-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> PSS1R5-5-12-S

PSS1R5-5-12-S: DescriptionIsolated DC/DC Converters 1.5W 12V 0.125A; Categorysemiconductor Power management; File Size436KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

PSS1R5-5-12-S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PSS1R5-5-12-S	-	-	View	Buy Now

PSS1R5-5-12-S Overview

Isolated DC/DC Converters 1.5W 12V 0.125A

PSS1R5-5-12-S Parametric

Parameter Name	Attribute value
Product Category	Isolated DC/DC Converters
Manufacturer	TDK Corporation
RoHS	Details
Number of Outputs	1 Output
Output Power	1.5 W
Input Voltage	4.5 V to 9 V
Output Voltage-Channel 1	12 V
Output Current-Channel 1	0.125 A
Mounting Style	SMD/SMT
Length	0.79 in
Width	0.63 in
Height	0.31 in
Product	Isolated
Factory Pack Quantity	40
Unit Weight	0.141096 oz

Preview

Download Datasheet

View All

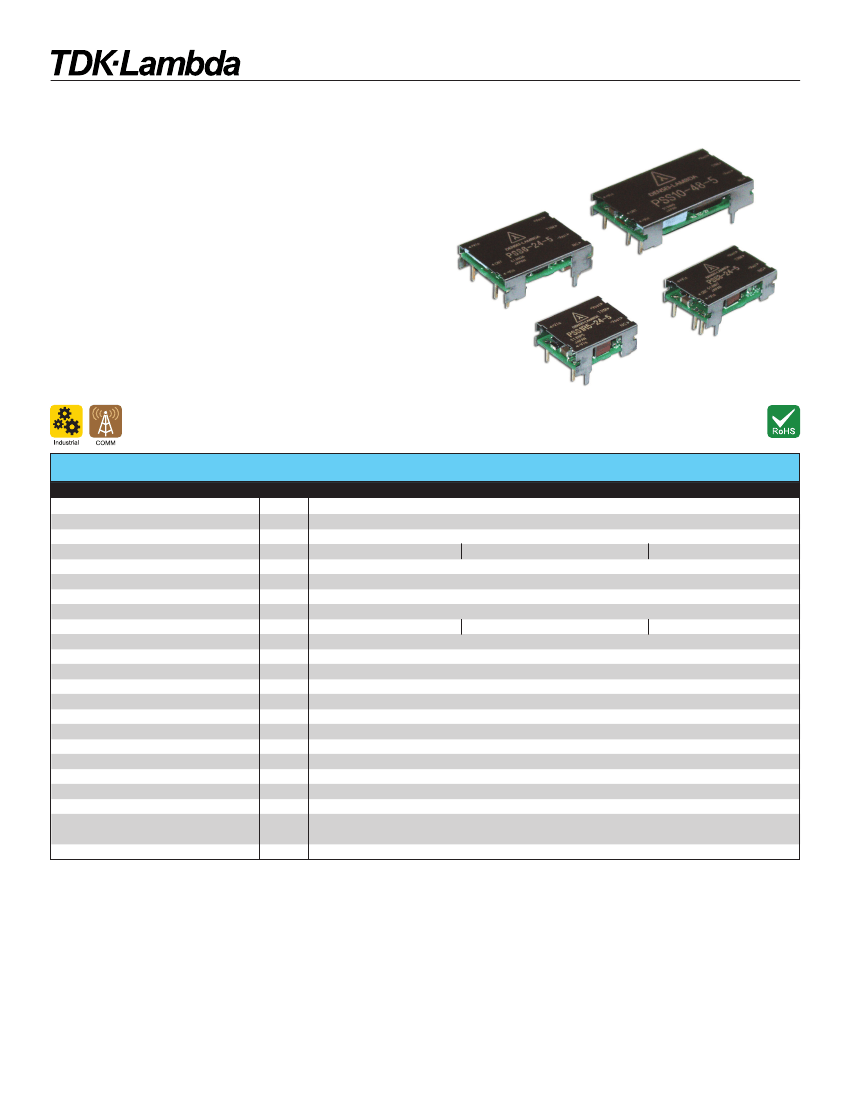

PSS/PSD Series

Ultra Compact, 1.5W to 12W Single and Dual DC-DC Converters

Features

Compact Footprint / Low Proﬁle

Through Hole or SMT Versions

5V, 12V, 24V & 48V Inputs

3.3 to 30V* Single, ±12 to 15V Dual Outputs

Output Voltage Adjustment

Input - Output Isolation

RoHS Compliant Design

5 Year Warranty

Self contained

Multiple Input Voltage conﬁgurations

Open frame (no potting)

Key Market Segments & Applications

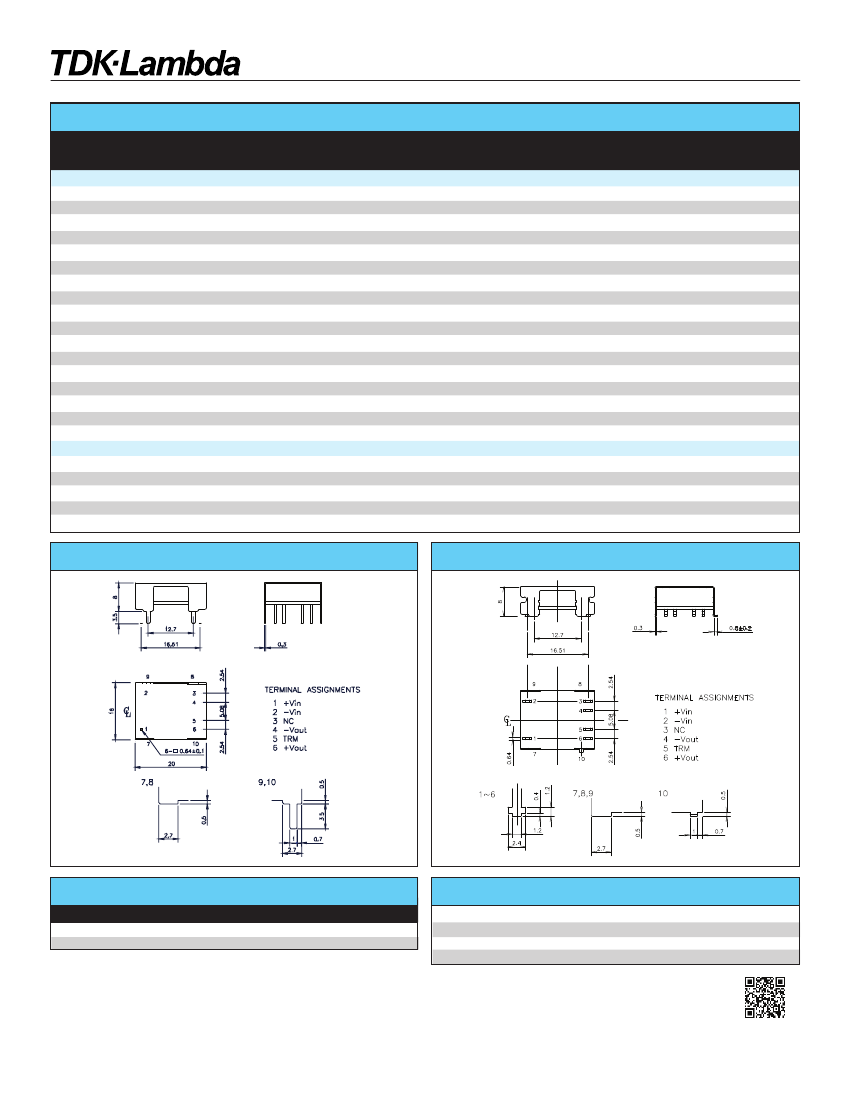

Speciﬁcations

Model

DC Input

Efﬁciency

Output Voltage Accuracy

Output Adjustment

Line Regulation

Load Regulation

Temperature Coefﬁcient

Preload

Output Ripple

Overcurrent Protection

Overvoltage protection

Remote On/Off

(1)

Operating Temp. - Convection

Operating Temp. - Forced Air

Storage Temperature

Humidity (Non condensing)

Isolation Voltage

Isolation Resistance

Shock

Vibration (non operating)

Weight

Size (L”x W”x H”)

(Through hole and SMT package)

Warranty

%/ °C

°C

m/s

yrs

12/15V (24/30V)*

5V: 4.5-9.0V, 12V: 9-18V, 24V: 18-36V, 48V: 36-76V

73 to 84% model dependant

±5%

2.84V-3.67V

4.3V-6V

12V-15V (24-30V)*

PSS: 20mV, PSD: 40mV

PSS: 40mV, PSD: 600mV

<0.02%/°C

No preload required

100

120

Output current limiting with automatic recovery.

Logic low (open to shutdown)

-40 to 85°C, derates linearly to 40% load from 50 to 85°C

-40 to 85°C with 1m/s air full load

-40°C to 85°C

5 - 95% RH

500VAC 1 min. Input-Output, Input-Chassis

>100M at 25°C and 70%RH, 500VDC Output-Chassis

196.1m/s

10-55-10Hz (sweep for 1 min.) 0.825mm constant (Max 147m/s

) 1 hour X, Y, Z

PS1R5: 4g, PS3: 5g, PS6: 8g, PS10:14g

PSS/PSD1R5: 0.79 x 0.63 x 0.31; PSS/PSD3: 1.02 x 0.63 x 0.31

PSS/PSD6: 1.12 x 0.8 x 0.31, PSS10: 1.59 x 0.866 x 0.31

Five Years

3.3V

Note: See Installation Manual for full speciﬁcations, test methods of parameters and application notes

* For 24/30V output use PSD models - connect across +Vout & -Vout and leave “common” pin not connected

(1) Not available on PS1R5

Not Recomended For New Designs

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm
