V15
︳
Features
* 70W Single Output
* Universal Input Range 90~264VAC
* 2 pole AC Inlet IEC320-C8
* Class II Insulation
* Continuous Short Circuit Protection
* Meets EN55022 Class B and
CISPR/FCC Class B, Conducted
* Meet CEC & ErP Level V
(Output Cable Length
≦
1800mm)
(TRG70E120:
Output Cable Length
≦
720mm 16AWG)
(TRG70E150: Output Cable Length
≦
1220mm 16AWG)

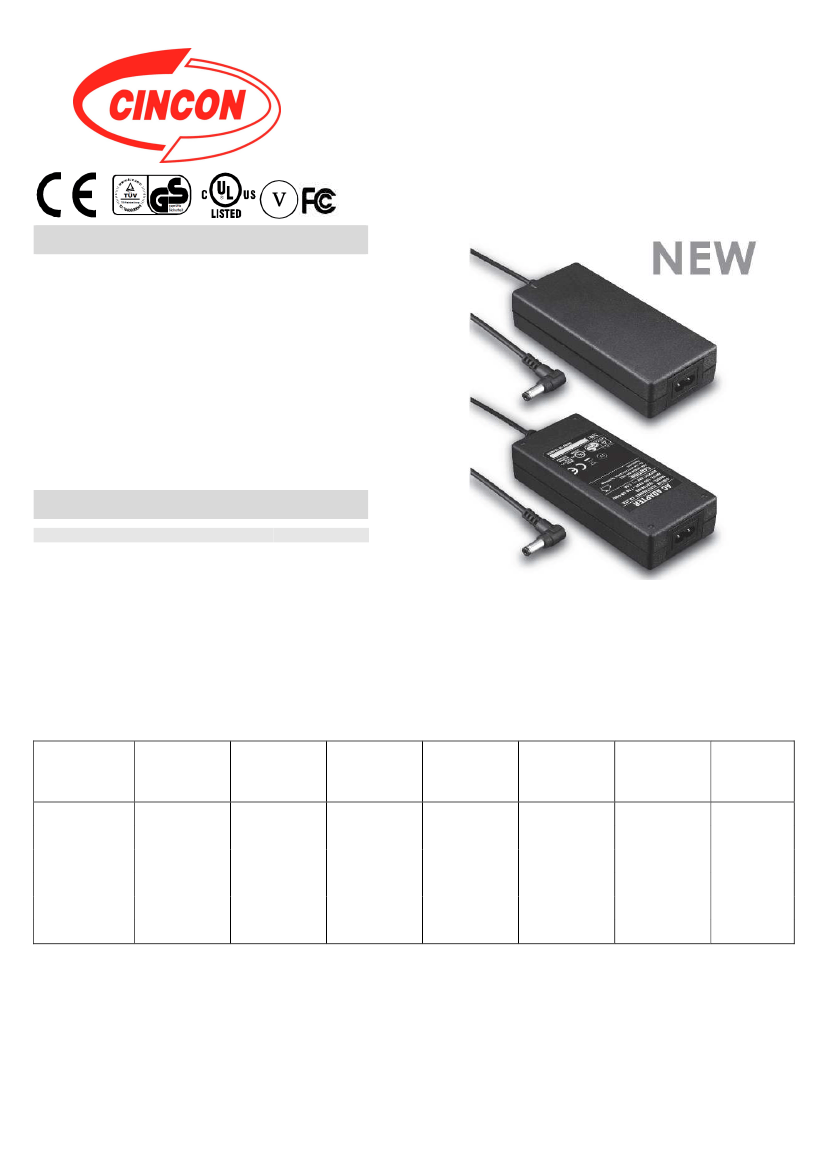

TRG70E SERIES
70W SWITCHING
ADAPTER
Ordering information
TRG70EXXX- XX
Model No.
DC Plug Type
X
OVP
E: With OVP
XX
DC Cable Length and Type
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
12:1220mm with Ferrite Core
13:1800mm with Ferrite Core
*18AWG/UL1185
MODEL
TRG70E120
TRG70E150
TRG70E180
TRG70E190
TRG70E240
TRG70E480
OUTPUT
VOLTAGE
12V
15V
18V
19V
24V
48V
OUTPUT
CURRENT
5.5A
4.6A
3.9A
3.7A
3.0A
1.5A
RIPPLE &
NOISE
NOTE 2
1%
1%
1%
1%
1%
1%
VOLTAGE
ACCURACY
NOTE 1
±2%
±2%
±2%
±2%
±2%
±2%
LINE
REGULATION
NOTE 3
±1%
±1%
±1%
±1%
±1%
±1%
LOAD
REGULATION
NOTE 4
±5%
±3%
±2%
±2%
±2%
±2%
% EFF. (Typ.)
NOTE 5
86%
88%
87%
88%
89%
90%
Specifications are subject to change without notice.
1
V15
Specifications
INPUT SPECIFICATIONS:
Rated Load(%)
Voltage …....………........….................................................. 90~264Vac
Frequency ……………………………………….....…..…………..... 47 to 63Hz
Inrush Current ……………….......... Cold Start @25℃ 80A max. @240Vac
Conducted EMI …………………………….…………… CISPR/FCC Class B
Leakage Current ………………………………………….…… 0.25mA max.
TRG70E Series Derating Curve
100%
80%
60%
40%
20%
0%
0
10
20
30
40
50
o
Ambient Temperature( C)
60
70
20LFM(Natural Conv ection)
OUTPUT SPECIFICATIONS:
Holdup Time ……………………………………………… 8ms typ. @115Vac
Short Circuit Protection ………………………….…..…....…....… Continuous
Over Voltage Protection ………………..........................................…..… Yes
Temperature Coefficient ……………..………............................… ±0.05%/℃
GENERAL SPECIFICATIONS:
Isolation ………………………………………… Input to output = 4,242VDC
Operating Temperature .............................. 0 ~ 70℃ (see derating curve)
Storage Temperature ……………………………...….......……........ -20~85℃
Humidity …………………...….......……........ 93% RH max. Non condensing
Cooling………………………………………………………. Natural Convection
Switching Frequency …………………………………………… 60KHz Typical
MTBF ……… MIL-HDBK-217F, GB, at 25℃/115VAC ………. 200K hrs min.
Altitude …………………………………………………………………… 2000m
Dimensions ………. 5.197x2.283x1.201 inches (132.00x58.00x30.50 mm)
Weight ……………………………………..……………… 345g(0.76 Pounds)
AC Inlet …………………………………………..…………………. IEC320/C8
NOTE:
1. Voltage accuracy at 60% full load
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measurement @20MHz BW.
3. Line regulation measured from 100Vac to 240Vac, full load.
4. Load regulation measured from 60% to 100% full load and from 60% to
20% full load (60% +/- 40% full load).
5. Typical efficiency at 230VAC and full load at 25
℃
.
SAFETY AND EMC:
Emission and lmmunity ………… EN55022 Class B, FCC Part 15 Class B
EN61000-6-3,EN61000-3-2,EN61000-3-3
EN55024, EN61204-3, EN61000-6-1
Safety ………………………………… IEC60950-1, EN60950-1, UL60950-1
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
5.197[132.00]
70.866[1800.00]±1.969[50.00]
2.283[58.00]
LED
IEC320/C8
1.201[30.50]
DC Plug type: V+ ─●)─ V-
DC Plug :Right Angle(ψ5.5／ψ2.1) L12mm
18AWG／1800mm
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
