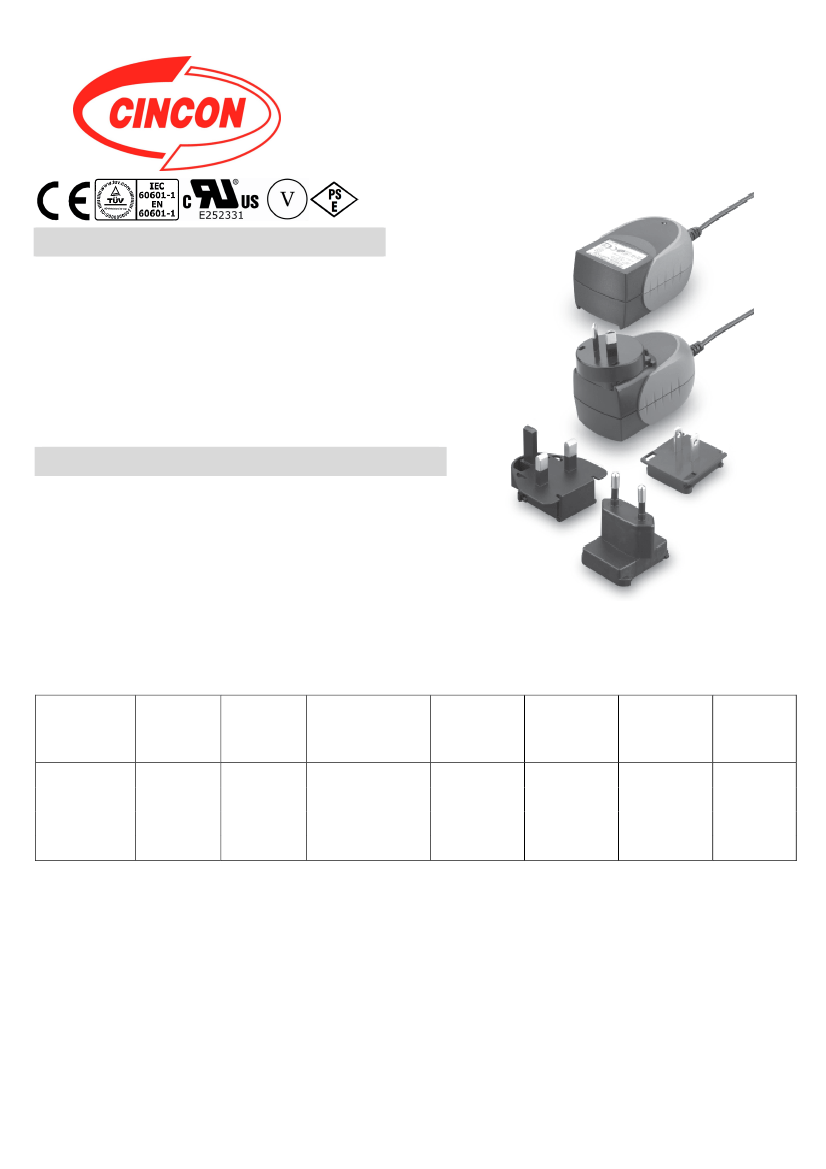

V16
︳
Features
* Universal Input Range 90~264VAC
* Meets EN60601-1 and EN55011 Class “B”
* Continuous Short Circuit Protection
* Interchangeable AC Plugs
* Over Voltage Protection
* Efficiency & Standby Power Meet Level V
(Output Cable Length
≦
1800mm)
* Meets 2MOPP
TR15RAM SERIES
15W Medical SWITCHING
ADAPTER
Ordering information
TR15RAMXXX
Model No.
- XX
DC Plug Type
E XX
-
XX
-BK
DC Cable Length and Type Color of Overmold Case
01: 720mm
02: 1220mm
03: 1800mm
11: 7200mm with Ferrite Core
12: 1220mm with Ferrite Core
13: 1800mm with Ferrite Core
* 18AWG / UL1185
BE: Blue
GY: Gray
RD: Red
PE: Purple
OR: Orange
MODEL
OUTPUT
VOLTAGE
5V
12V
15V
24V
OUTPUT
CURRENT
2.0A
1.1A
1.0A
625mA
RIPPLE & NOISE
NOTE 1
1%
1%
1%
1%
VOLTAGE
ACCURACY
NOTE 2
±3%
±2%
±2%
±2%
LINE
REGULATION
NOTE 3
±1%
±1%
±1%
±1%
LOAD
REGULATION
NOTE 4
±4%
±2%
±2%
±2%
% EFF. (Typ.)
NOTE 5
73%
82%
81%
82%
TR15RAM050
TR15RAM120
TR15RAM150
TR15RAM240
Specifications are subject to change without notice.
1
V16

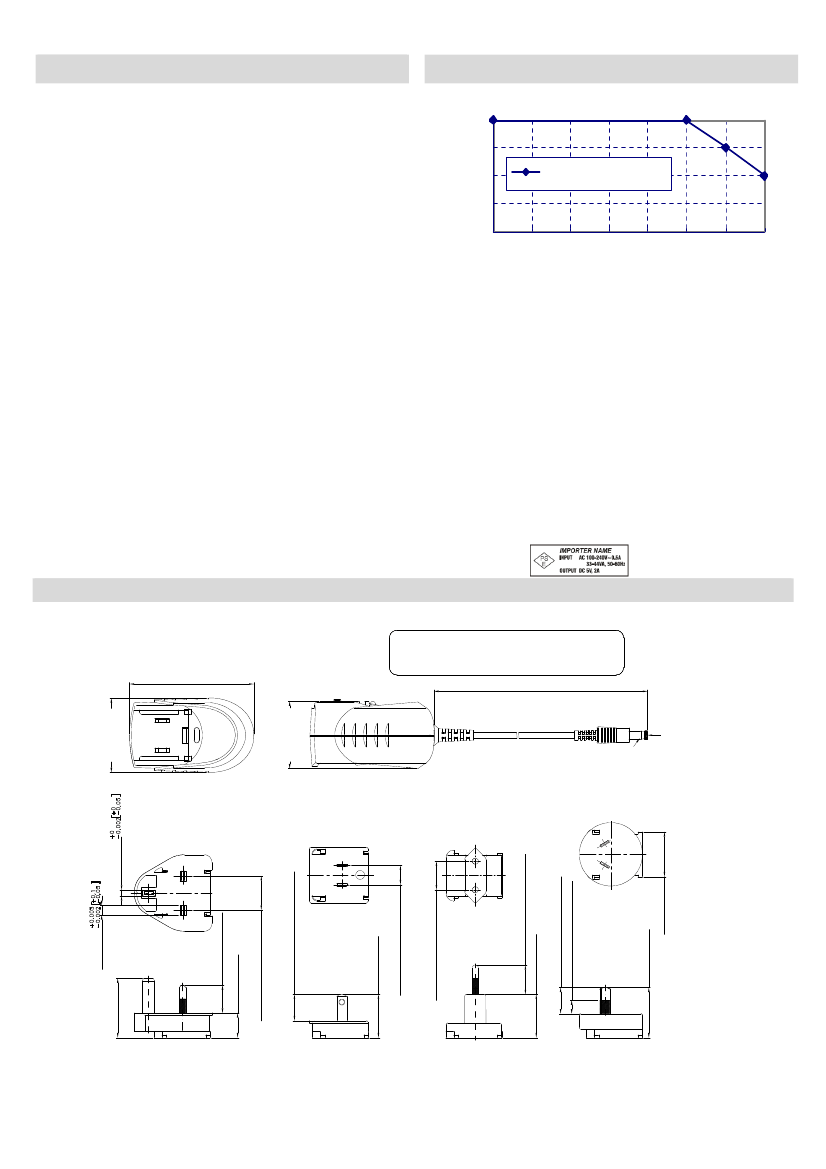

Specifications
INPUT SPECIFICATIONS:
Voltage …....………........…........................................... 90~264Vac
Frequency ………………………………………….……………..... 47 to 63Hz
Inrush Current ………………….…………..................... 50A max. @ 240Vac
Leakage Current …………………………………………….…… 0.1mA max.
TR15RAM Series Derating Curve
100%
Rated Load(%)
75%
50%
25%
0%
0
10
20
30
40
50
Ambient Temperature(
o
C)
60
70
20LFM(Natural Convection)
OUTPUT SPECIFICATIONS:
Hold-up Time …………………………………………… 10ms typ. @115Vac
Temperature Coefficient ...................……….....….......….....
±0.05%/°C
Short Circuit Protection …………….…………… Continuous (Auto Recovery)
Over Voltage Protection …………………………..TVS Component to Clamp
GENERAL CHARACTERISTICS:
Isolation ……………………..……………..……. Input to output = 5,656VDC
Switching Frequency ………………………………….………… 95KHz typical
Operating Temperature .................................. 0 - 70℃(see derating curve)
Storage Temperature …………………………...….......……........ -20 - 85℃
Cooling ………………………………….………………… Natural Convection
MTBF ….……… MIL-HDBK-217F, GB, at 25℃/115VAC …… 200K hrs min.
Humidity .................................................... 93% RH max. Non condensing
Altitude …………………..……………………………...….…………… 3000m
Dimensions …..…….. 3.173x1.885x1.704Inches (80.60x47.90x43.30mm)
Weight …………………………………………………… 130g(0.29 Pounds)
NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measuring @20MHz BW.
2. Voltage setpoint at 60% full load.
3. Line regulation measured from 100Vac to 240Vac, full load.
4. Load regulation measured from 60% to full load and from 60% to 20%
load (60% +/- 40% load).
5. Typical efficiency at 230VAC and full load at 25℃.
6. ”Various TR Series adapters are PSE certified. PSE certification alone
is not sufficient for importation into Japan. A valid PSE mark must
contain the name of the importer as shown in the example below. If PSE
mark is required, the name of the registered importer must be supplied
to Cincon on order placement. Product labels will not contain PSE
mark if importer name is not supplied. Consult factory or local represent
tative for details”.
SAFETY AND EMC:
Emission and Immunity ……….… EN55011 Class B, FCC Part 15 Class B
EN60601-1-2, EN61000-3-2, EN61000-3-3
Safety ...… IEC60601-1:2005, EN60601-1:2006, ANSI/AAMEI ES60601-1:2005
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
DC Plug type: V+ ─●)─ V-
DC Plug :Straight(ψ5.5／ψ2.1) L12mm
18AWG／1800mm
70.866[1800.00]±1.969[50.00]
1.704[43.30]
3.173[80.60]
1.885[47.90]
+
-
0.157[4.00]
TR30RAM/TR15RA-A
0.748[19.00]±0.019[0.50]
1.102[28.00]
0.669[17.00]±0.031[0.70]
0.665[16.90]±0.011[0.30]
0.343[8.70]±0.019[0.50]
0.492[12.50]±0.002[0.05]
0.874[22.20]±0.005[0.13]
0.727[18.47]±0.002[0.05]
0.712[18.10]Max
0.248[6.30]
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
1.515[38.50]
0.629[16.00]
1.102[28.00]
2
1.275[32.40]
1.137[28.90]
