UWQ-12/20-T48 Series

Wide Input, Isolated DOSA Quarter Brick DC/DC Converters

PRODUCT OVERVIEW

The UWQ series offers high output current (up to

20 Amps) in an industry standard “quarter brick”

package requiring no heat sink for most applica-

tions. The UWQ series delivers ﬁxed DC output

voltages up to 240 Watts (12V @20A) for printed

circuit board mounting. Wide range inputs of 18

to 60 Volts DC (48 Volts nominal) are ideal for

datacom and telecom systems.

The UWQ-12/20-T48NS/PS offers a load shar-

ing option for paralleling up to three modules in

the most demanding, power hungry applications.

Advanced automated surface mount assembly and

planar magnetics deliver galvanic isolation rated at

2250 Vdc for basic insulation. To power digital sys-

tems, the outputs offer fast settling to current steps

and tolerance of higher capacitive loads. Excellent

ripple and noise speciﬁcations assure compatibility

to CPUs, ASICs, programmable logic and FPGAs.

No minimum load is required. For systems needing

controlled startup/shutdown, an external remote

On/Off control may use either positive or negative

logic.

A wealth of self-protection features include

input undervoltage lockout and overtemperature

shutdown using an on-board temperature sensor;

overcurrent protection using the “hiccup” auto-

restart technique, provides indeﬁnite short-circuit

protection, along with output OVP. The synchronous

rectiﬁer topology offers high efﬁciency for minimal

heat generation and “no heat sink” operation. The

UWQ series is certiﬁed to safety standards UL/

IEC/CSA 60950-1, 2nd edition. It meets class B

EMI conducted emission compliance to EN55022,

CISPR22 with an external ﬁlter.

Typical unit

FEATURES



DC outputs, 12V @20A

Fixed



Industry standard quarter brick 2.3” x 1.45” x

0.46” open frame package



range 18 to 60 Vdc input voltages with

Wide

2250 Volt Basic isolation



Remote ON/Off enable control



DOSA-compatible pinouts and form factor



efﬁciency synchronous rectiﬁer topology

High



Multiple-unit parallel operation for increased

current



Stable no-load operation



Monotonic startup into pre-bias output condition



ed to UL/60950-1, CSA-C22.2 No. 60950-

Certiﬁ

1, 2nd edition safety approvals



Extensive self-protection, OVP, input undervolt-

age, current limiting and thermal shutdown

APPLICATIONS



Embedded systems, datacom and telecom

installations, wireless base stations



farms, data centers and cellular repeater sites

Disk



Remote sensor systems, dedicated controllers



Instrumentation systems, R&D platforms, auto-

mated test ﬁxtures



concentrators, voice forwarding and

Data

speech processing systems

+Vin (1)

Barrier

+Vout (8)

External

Power

Source

On/Off

Control

(2)

Controller

and Power

Open = On

Reference and

Error Ampliﬁer

logic)

-Vin (3)

-Vout (4)

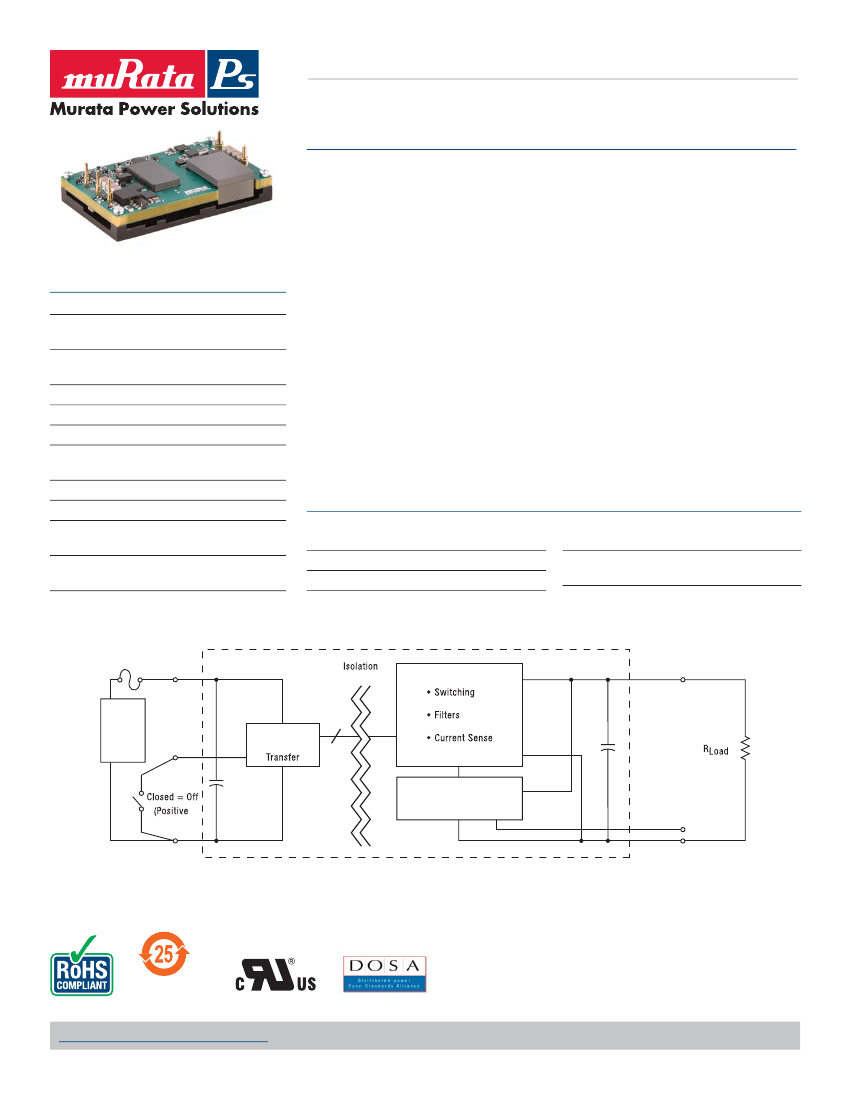

Figure 1. Connection Diagram

Typical topology is shown. Murata Power Solutions recommends an external fuse.

For full details go to

www.murata-ps.com/rohs

www.murata-ps.com/support

MDC_UWQ-12/20-T48 Series.C01.D4

Page 1 of 23
