2. Calculated using MIL-HDBK-217 FN2 and Telcordia SR-332 calculation model with nominal input voltage at full load.
All specifications typical at T
A
=25°C, nominal input voltage and rated output current unless otherwise specified.
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
KDC_CRV1.B01
Page 1 of 7
MTTF
2
Units
V
Units
W
%/%
Units
VDC
GΩ
Units
kHz
Units
°C
CRV1 Series

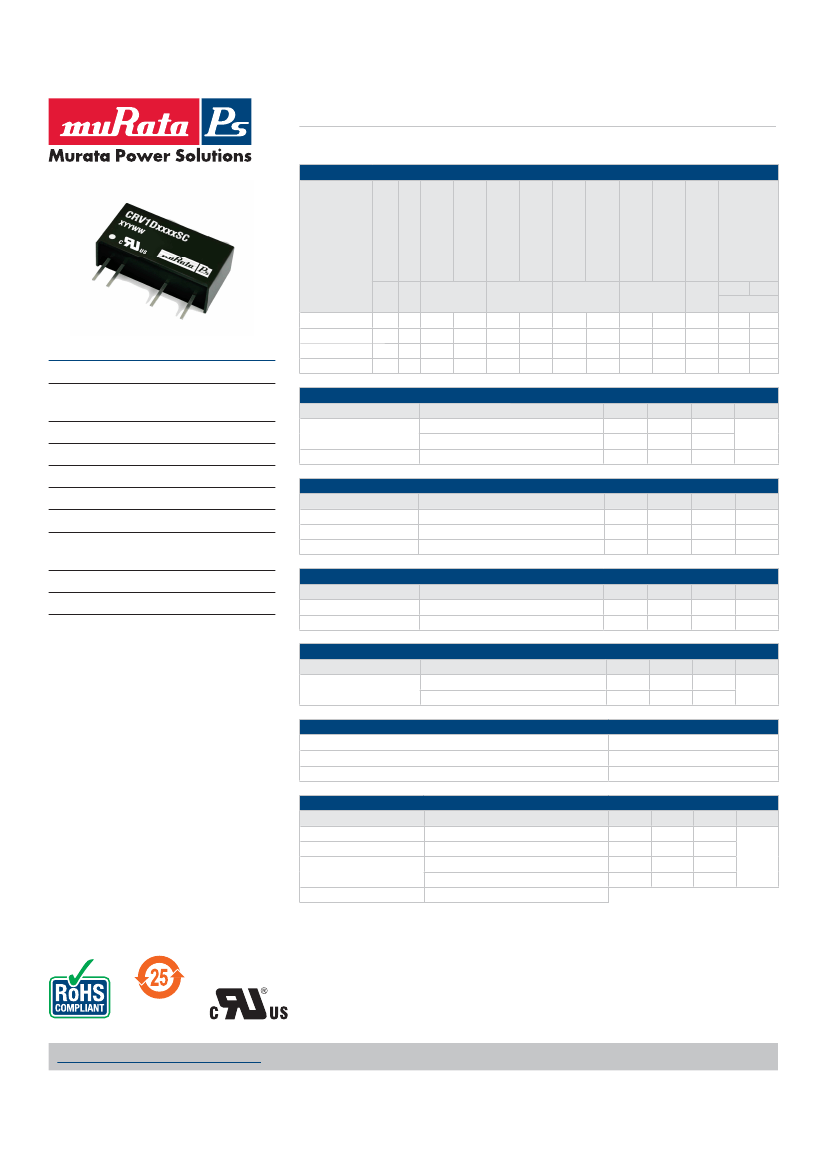

3kVDC Isolated 1W Single & Dual Output DC/DC Converters
TECHNICAL NOTES
ISOLATION VOLTAGE
‘Hi Pot Test’, ‘Flash Tested’, ‘Withstand Voltage’, ‘Proof Voltage’, ‘Dielectric Withstand Voltage’ & ‘Isolation Test Voltage’ are all terms that relate to the same thing, a test voltage,
applied for a specified time, across a component designed to provide electrical isolation, to verify the integrity of that isolation.
Murata Power Solutions CRV1 series of DC/DC converters are all 100% production tested at their stated isolation voltage. This is 3kVDC for 1 minute.
A question commonly asked is, “What is the continuous voltage that can be applied across the part in normal operation?”
The CRV1 has been recognised by Underwriters Laboratory for functional insulation, both input and output should normally be maintained within SELV limits i.e. less than 42.4V
peak, or 60VDC. The isolation test voltage represents a measure of immunity to transient voltages and the part should never be used as an element of a safety isolation system.
The part could be expected to function correctly with several hundred volts offset applied continuously across the isolation barrier; but then the circuitry on both sides of the barrier
must be regarded as operating at an unsafe voltage and further isolation/insulation systems must form a barrier between these circuits and any user-accessible circuitry according
to safety standard requirements.
REPEATED HIGH-VOLTAGE ISOLATION TESTING
It is well known that repeated high-voltage isolation testing of a barrier component can actually degrade isolation capability, to a lesser or greater degree depending on materials,
construction and environment. The CRV1 series has toroidal isolation transformers, with no additional insulation between primary and secondary windings of enameled wire. While
parts can be expected to withstand several times the stated test voltage, the isolation capability does depend on the wire insulation. Any material, including this enamel (typically
polyurethane) is susceptible to eventual chemical degradation when subject to very high applied voltages thus implying that the number of tests should be strictly limited. We
therefore strongly advise against repeated high voltage isolation testing, but if it is absolutely required, that the voltage be reduced by 20% from specified test voltage.
This consideration equally applies to agency recognized parts rated for better than functional isolation where the wire enamel insulation is always supplemented by a further
insulation system of physical spacing or barriers.
SAFETY APPROVAL
The CRV1 series has been recognised by Underwriters Laboratory (UL) to UL 60950 for functional insulation.
The CRV1 Series of converters are not internally fused so to meet the requirements of UL 60950 an anti-surge input line fuse should always be used with ratings as defined below.
CRV1S05xxxxC: 0.5A
CRV1S12xxxxC: 0.2A
All fuses should be UL recognized and rated to at least the maximum allowable DC input voltage.
File number E151252 applies.
RoHS COMPLIANT INFORMATION
This series is compatible with RoHS soldering systems with a peak wave solder temperature of
260°C for 10 seconds. The pin termination finish on the SIP package type is Tin Plate, Hot Dipped
over Matte Tin with Nickel Preplate. Both types in this series is backward compatible with Sn/Pb
soldering systems.
For further information, please visit www.murata-ps.com/rohs
TEMPERATURE DERATING GRAPH
1.5
Output Power (W)
1.0
0.5
0
-40
85°C
Safe Operating Area
120°C
100
50
0
Ambient Temperature (°C)
150
www.murata-ps.com/support
KDC_CRV1.B01
Page 2 of 7
CRV1 Series
3kVDC Isolated 1W Single & Dual Output DC/DC Converters

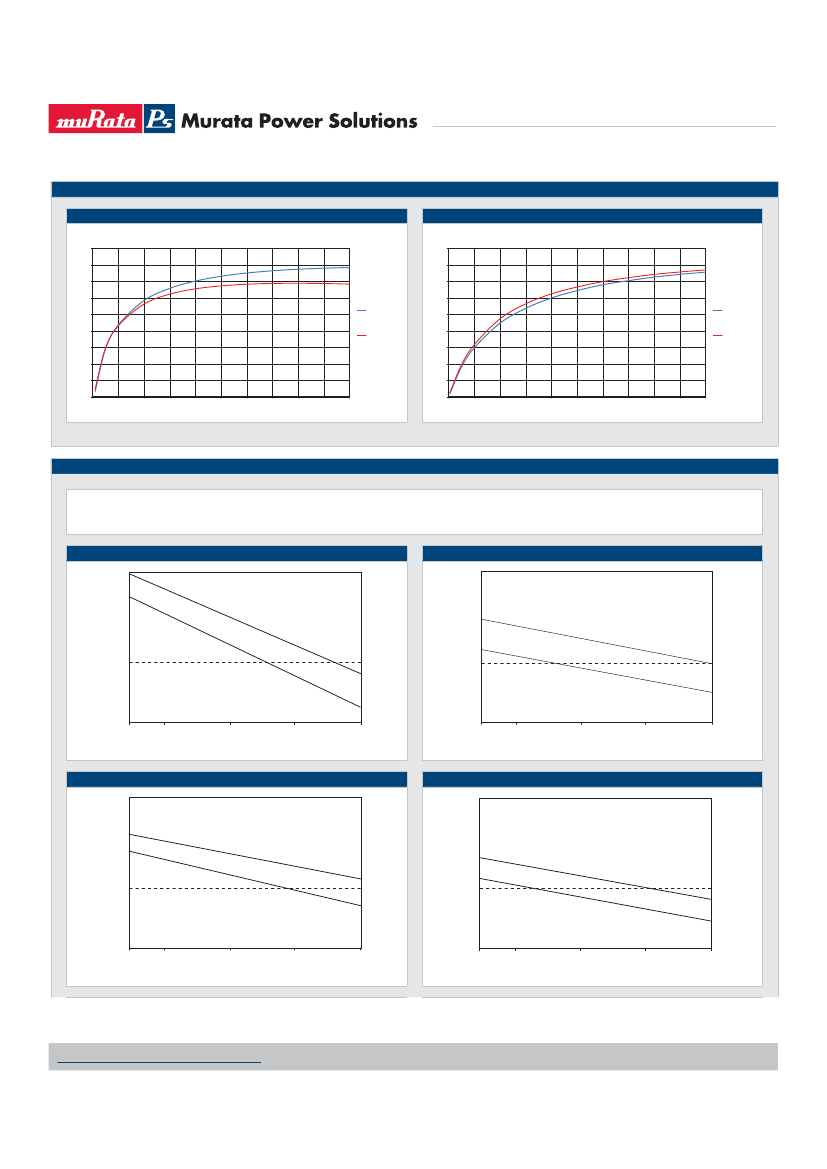

EFFICIENCY VS LOAD
5V Inputs
90
80
70
60
Efficiency (%)
50
40
30
20
10
0
0
10
20
30
40
50
Load (%)
60
70
80
90
100
CRV1D0512SC
12V Inputs
90
80
70
60
Efficiency (%)
50
40
30
20
10
0
0
10
20
30
40
50
Load (%)
60
70
80
90
100
CRV1D1212SC
CRV1S0505SC
CRV1S1215SC
TOLERANCE ENVELOPES
The voltage tolerance envelope shows typical load regulation characteristics for this product series. The tolerance envelope is the maximum output voltage variation due to
changes in output loading.
CRV1S0505SC
+10%
+7%
+3%
Output Voltage
Output Voltage
CRV1S1215SC
+1%
0%
-3%
-1%
-5%
10
25
50
Output Load Current (%)
75
100
10
25
50
Output Load Current (%)
75
100
CRV1D0512SC
CRV1D1212SC
+6%
+4%
Output Voltage
Output Voltage
+1%
-2%
+3%
+1%
-1%
-3%
10
25
50
Output Load Current (%)
75
100
10
25
50
Output Load Current (%)
75
100
www.murata-ps.com/support
KDC_CRV1.B01
Page 3 of 7
CRV1 Series
3kVDC Isolated 1W Single & Dual Output DC/DC Converters
APPLICATION NOTES
Minimum load
The minimum load to meet datasheet specification is 10% of the full rated load across the specified input voltage range. Lower than 10% minimum loading will result in
an increase in output voltage, which may rise to typically double the specified output voltage if the output load falls to less than 5%.
Capacitive loading and start up
Typical start up times for this series, with a typical input voltage rise time of 2.2μs and output capacitance of 10μF, are shown in the table below. The product
series will start into a capacitance of 47μF with an increased start time, however, the maximum recommended output capacitance is 10μF.
Typical Start-Up Wave Form
Start-up time
μs
1966
11180
8650
11171
CRV1S0505SC
CRV1D0512SC
CRV1D1212SC
CRV1S1215SC
Ripple & Noise Characterisation Method
Ripple and noise measurements are performed with the following test configuration.
C1
1μF X7R multilayer ceramic capacitor, voltage rating to be a minimum of 3 times the output voltage of the DC/DC converter
10μF tantalum capacitor, voltage rating to be a minimum of 1.5 times the output voltage of the DC/DC converter with an ESR of less
C2
than 100mΩ at 100 kHz
C3
100nF multilayer ceramic capacitor, general purpose
R1
450Ω resistor, carbon film, ±1% tolerance
R2
50Ω BNC termination
T1
3T of the coax cable through a ferrite toroid
RLOAD
Resistive load to the maximum power rating of the DC/DC converter. Connections should be made via twisted wires
Measured values are multiplied by 10 to obtain the specified values.
Differential Mode Noise Test Schematic
DC/DC Converter
OSCILLOSCOPE
C1 C2 C3
+
SUPPLY
Input
R1
T1
R2
Y INPUT
+
Output
-
-
R LOAD
www.murata-ps.com/support
KDC_CRV1.B01
Page 4 of 7
CRV1 Series
3kVDC Isolated 1W Single & Dual Output DC/DC Converters
APPLICATION NOTES (continued)
Output Ripple Reduction
By using the values of inductance and capacitance stated, the output ripple at the rated load is lowered to 5mV p-p max.
Component selection
Capacitor: It is required that the ESR (Equivalent Series Resistance) should be as low as possible, ceramic types are recommended.
The voltage rating should be at least twice (except for 15V output), the rated output voltage of the DC/DC converter.
Inductor: The rated current of the inductor should not be less than that of the output of the DC/DC converter. At the rated current, the DC resistance of the inductor
should be such that the voltage drop across the inductor is <2% of the rated voltage of the DC/DC converter. The SRF (Self Resonant Frequency) should be
