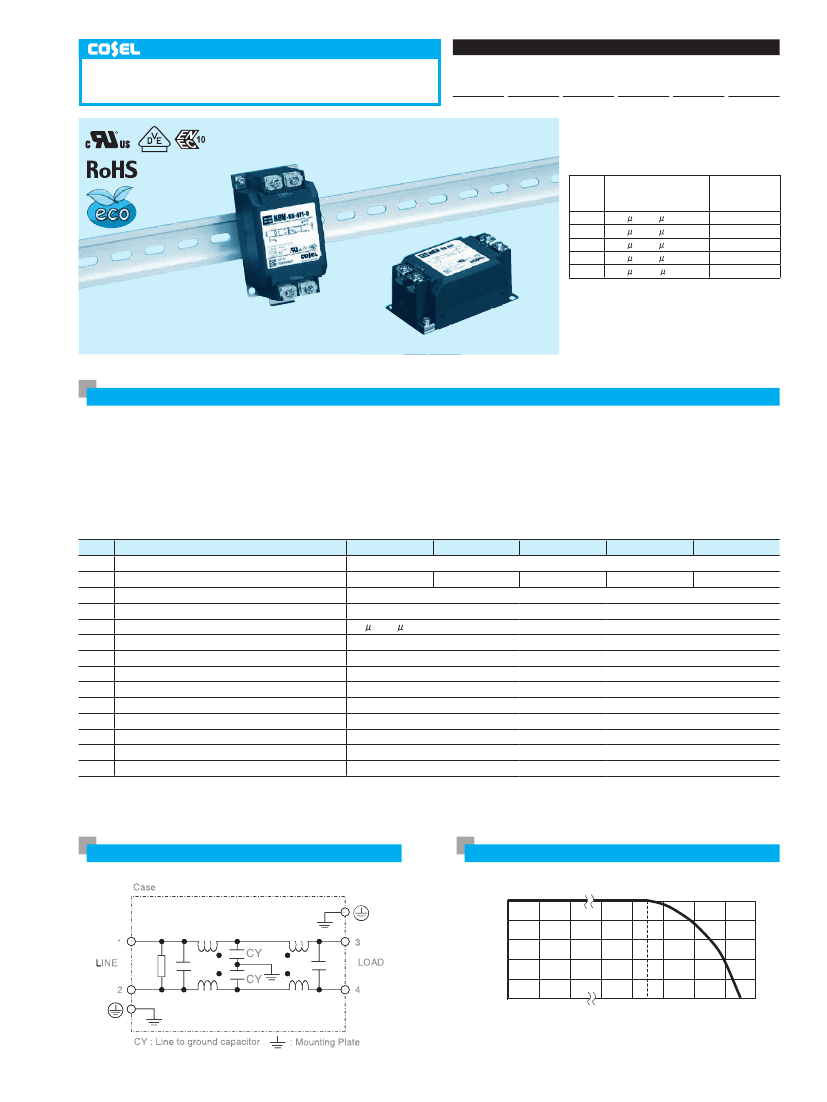

Low leakage current type, Withstand voltage 4,000VAC (2-stage filter)
Ordering information
NBM series
NBM -10 -471
1
2
3
4
-O
R
1
Model Name
2
Rated Current
3
Line to ground capacitor code:See table 1.1.
table1.1 Line to ground capacitor code
Code
000
101
221
331
471
Line to ground
Leakage Current
capacitor
(Input 125/250V 60Hz)
(nominal value)
A/ 10 A max
Not Provided
5
100pF
12.5 A/ 25 A max
A/ 50 A max
220pF
25
330pF
37.5 A/ 75 A max
A/100 A max
470pF
50
*
When the line to ground capacitor code is
different, the attenuation characteristic is
different.
4
Options
D :DIN rail installation type
DIN rail installation type is option
The terminal cover is retracted inside the unit
*
The dimensions change when the option is set.
Refer to External view.
Features of NBM series
Low leakage current type, Withstand voltage 4,000VAC (2-stage filter)
-
Single Phase 250 VAC
-
Push down type terminal block
Specifications
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Items
Rated Voltage[V]
Rated Current[A]
Test Voltage (Terminal-Mounting Plate)
Isolation Resistance (Terminal-Mounting Plate)
Leakage current 125/250V 60Hz
Voltage drop
Safety agency approval temperatures
Operating temperature
Operating humidity
Storage temperature/humidity
Vibration
Impact
Safety agency approvals
Case size (without projection) /Weight
NBM-06-471
6
NBM-10-471
10
NBM-16-471
16
NBM-20-471
20
NBM-30-471
30
AC 1f 250 / DC250
4,000 VAC (Cutoff Current = 20mA), 1minute at room temperature and humidity
500 VDC 100MW min at room temperature and humidity
50 A/100 A max
1.0V max
-25 to +85C (Refer to Derating Curve)
-40 to +85C (Refer to Derating Curve)
20 to 95%RH (Non condensing)
-40 to +85C/20 to 95%RH (Non condensing)
10 to 55Hz, 19.6m/s
2
(2G), 3min. Period, 1hour each X, Y and Z axis
196.1m/s
2
(20G), 11ms Once each X, Y and Z axis
UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC (At only AC input)
53X41X92 mm [2.09X1.61X3.62 inches] (WXHXD) /270g max (Option : -D refer to external view)
Circuit Diagram
Case
Derating Curve
100
Load Factor [%]
80
60
40
20
0
-40
-30
-20
40
50 55 60
70
80
90
1
LINE
LINE
I
2
CY
CY
CY
CY
3
LOAD
LOAD
4
Ambient Temperature [C]
C
Y
CY : Line to ground capacitor
: Mounting Plate
NF-49
NBC,NBM series

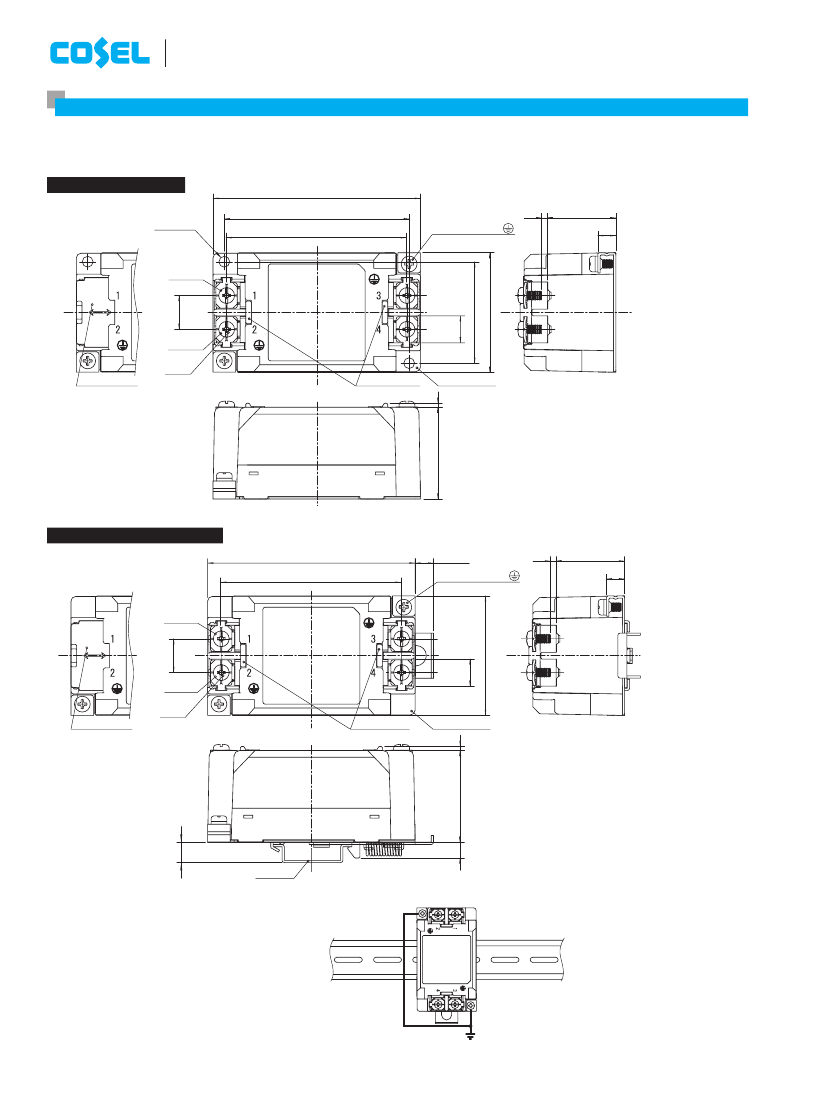

External view
As this product is adopted push-down type terminal block, this appearance is as follows.
1The
terminal cover is retracted inside the unit.
2The
screws for connecting the terminals are held in the up right position.
Standard Type
[3.62]
92
82
±
0.5
80
[3.23]
2-f4.8
Mounting Hole
Input
Terminal
[0.19]
2-Protection Earth
[0.1]
2.5
30.5
[1.2]
[0.31]
8
[3.15]
[0.59]
Input
Terminal
6-M4
Terminal cover
¶
Closed the terminal cover
Terminal cover
Output
Terminal
Mounting Plate
[0.08]
2
¶
Tolerance :
±1
[±0.04]
¶
Weight : 270g max
[1.61]
41
¶
Mounting Plate : Iron (surface finishing:nickel plating) t=1.0 [0.04]
¶
Case : PBT
¶
Dimensions in mm, [
]=inches
¶
Terminal block screw tightening torque M4:1.6N-m (16.9kgf-cm) max
DIN rail installation Type
[3.62]
[3.15]
[0.47]
12
[2.09]
15
53
Name Plate
Output
Terminal
45
±
0.5
[1.77]
92
8.2
±
1.5
2-Protection Earth
[0.32]
2.5
[0.1]
30.5
[1.2]
80
8
[0.31]
Input
Terminal
Name Plate
Output
Terminal
Output
Terminal
[0.47]
[0.59]
Input
Terminal
6-M4
Terminal cover
Terminal cover
Mounting Plate
[0.08]
¶
Closed the terminal cover
2
12
[1.61]
¶
Tolerance :
±1
[±0.04]
41
¶
Weight : 270g max
¶
Mounting Plate : Iron (surface finishing:nickel plating) t=1.0 [0.04]
¶
Case : PBT
¶
Dimensions in mm, [
[0.35]
[2.09]
15
53
]=inches
¶
Terminal block screw tightening torque M4:1.6N-m (16.9kgf-cm) max
DIN rail
[0.28]
(9)
¡
Note when installing the EMI/EMC
Filter on a DIN rail.
When the EMI/EMC Filter is grounded through
the DIN rail, the proper noise attenuation may not
be achieved.
Be sure to connect the protection earth (PE) of
the EMI/EMC Filter body to the earth.
It can connect the ground to either one only.
Name Plate
7
DIN rail
NF-50
