120W Constant Voltage + Constant Current LED Driver
NPF-120
series
F
110
M
M
SELV
IP67
Type HL
■
Features
Constant Voltage + Constant Current mode output
Plastic housing with Class II design
Built-in active PFC function
■
Applications
LED panel lighting
LED downlight
LED decorative lighting
LED tunnel lighting
Moving sign
Type HL for use in Class I, Division 2
hazardous (Classified) location
No load power consumption <0.15W
IP67 rating for indoor or outdoor installations
Typical lifetime>50000 hours
5 years warranty
■
Description
NPF-120 series is a 120W AC/DC LED driver featuring the dual modes constant voltage and
constant current output. NPF-120 operates from 90
½
305VAC and offers models with different
rated voltage ranging between 12V and 54V. Thanks to the hign efficiency up to 90.5%, with
the fanless design, the entire series is able to operate for -40
℃
~ +90
℃
case temperature under
free air convection. The entire series is rated with IP67 ingress protection level and is suitable
to work for a variety of applications at dry, damp or wet locations.
■
Model Encoding
NPF - 120 - 20
Rated output
voltage(12V/15V/20V/24V/30V/36V/42V/48V/54V)
Rated
wattage
Series name
File Name:NPF-120-SPEC 2016-07-01
120W Constant Voltage + Constant Current LED Driver
SPECIFICATION
MODEL
DC VOLTAGE
NPF-120
36V
21.6 ~ 36V
3.4A
122.4W
200mVp-p
±2.0%
±0.5%
±0.5%
42V
25.2 ~ 42V
2.9A
121.8W
250mVp-p
±1.0%
±0.5%
±0.5%
48V
28.8 ~ 48V
2.5A
120W
250mVp-p
±1.0%
±0.5%
±0.5%
series
NPF-120-12 NPF-120-15 NPF-120-20 NPF-120-24 NPF-120-30 NPF-120-36 NPF-120-42 NPF-120-48 NPF-120-54
12V
15V
9 ~ 15V
8A
120W
150mVp-p
±4.0%
±0.5%
20V
12 ~ 20V
6A
120W
150mVp-p
±4.0%
±0.5%
24V
14.4 ~ 24V
5A
120W
150mVp-p
±4.0%
±0.5%
±0.5%
30V
18 ~ 30V
4A
120W
200mVp-p
±3.0%
±0.5%
±0.5%
54V
32.4 ~ 54V
2.3A
124.2W
350mVp-p
±1.0%
±0.5%
±0.5%
CONSTANT CURRENT REGION
Note.2
7.2 ~ 12V
10A
RATED CURRENT
RATED POWER
Note.5
120W
RIPPLE & NOISE (max.)
Note.3
150mVp-p
VOLTAGE TOLERANCE
Note.4
±4.0%
±0.5%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
Note.6
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR
Note.5
OUTPUT
±2.0%
±1.5%
±1.0%
500ms, 80ms 115VAC / 230VAC
16ms/230VAC
16ms/115VAC
90 ~ 305VAC
127 ~ 431VDC
(Please refer to "STATIC CHARACTERISTIC" section)
47 ~ 63Hz
PF
≧
0.97/115VAC, PF
≧
0.96/230VAC, PF
≧
0.94/277VAC@full load
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
THD< 20%(@load
≧
60%/115VC,230VAC; @load
≧
75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
89%
89%
90%
90.5%
89.5%
90%
90%
90%
90.5%
1.3A / 115VAC
0.65A / 230VAC
0.55A / 277VAC
COLD START 60A(twidth=520
μ
s measured at 50% Ipeak) at 230VAC
;
Per NEMA 410
4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
<0.25mA / 277VAC
95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
TOTAL HARMONIC DISTORTION
INPUT
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT(Typ.)
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
LEAKAGE CURRENT
NO LOAD POWER CONSUMPTION
<0.15W
OVER CURRENT
SHORT CIRCUIT
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
MAX. CASE TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
Note.8
SAFETY & WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC
EMC EMISSION
Note.8
EMC IMMUNITY
MTBF
OTHERS
NOTE
Hiccup mode, recovers automatically after fault condition is removed
15 ~ 17V
17.5 ~ 21V
23 ~ 27V
28 ~ 34V
34 ~ 40V
41 ~ 46V
46 ~ 54V
54 ~ 60V
59 ~ 66V
Shut down and latch off o/p voltage, re-power on to recover
Shut down o/p voltage, re-power on to recover
Tcase=-40 ~ +90
℃
(Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Tcase=+90℃
20 ~ 95% RH non-condensing
-40 ~ +80
℃
, 10 ~ 95% RH
±
0.03%/
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384,
IP67 approved; Design refer to EN60335-1
I/P-O/P:3.75KVAC
I/P-O/P:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55015,EN61000-3-2 Class C (@load
≧
60%) ; EN61000-3-3
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Line 2KV)
965.5K hrs min. Telcordia SR-332 (Bellcore) ; 295.1Khrs min. MIL-HDBK-217F (25
℃
)
191*63*37.5mm (L*W*H)
0.97Kg; 15pcs/15.6Kg/0.87CUFT
DIMENSION
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25
℃
of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to STATIC CHARACTERISTIC sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. The model certified for CCC(GB19510.14, GB19510.1, GB17743 and GB17625.1) is an optional model . Please contact MEAN WELL for details.
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75
℃
or less.
10. Please refer to the warranty statement on MEAN WELL's website at
http://www.meanwell.com
File Name:NPF-120-SPEC 2016-07-01
120W Constant Voltage + Constant Current LED Driver
BLOCK DIAGRAM
NPF-120
series
PFC fosc : 50~120KHz
PWM fosc : 60~130KHz
I/P
EMI FILTER
&
RECTIFIERS
PFC
CIRCUIT
POWER
SWITCHING
RECTIFIERS
&
FILTER
O.L.P.
Vo+
Vo-
O.T.P.
O.L.P.
PWM & PFC
CONTROL
DETECTION
CIRCUIT
O.V.P.
DRIVING METHODS OF LED MODULE
※
This series is able to work in either Constant Current mode (a direct drive way) or
Constant Voltage mode (usually through additional DC/DC driver) to drive the LEDs.
100
(A)
Constant
V
oltage
area
(B)
Constant
Current area
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
60
(min.)
(C)
Hiccup
Protection
50
100
Io(%)
Vo(%)
Typical output current normalized by rated current (%)
File Name:NPF-120-SPEC 2016-07-01
120W Constant Voltage + Constant Current LED Driver
NPF-120
series

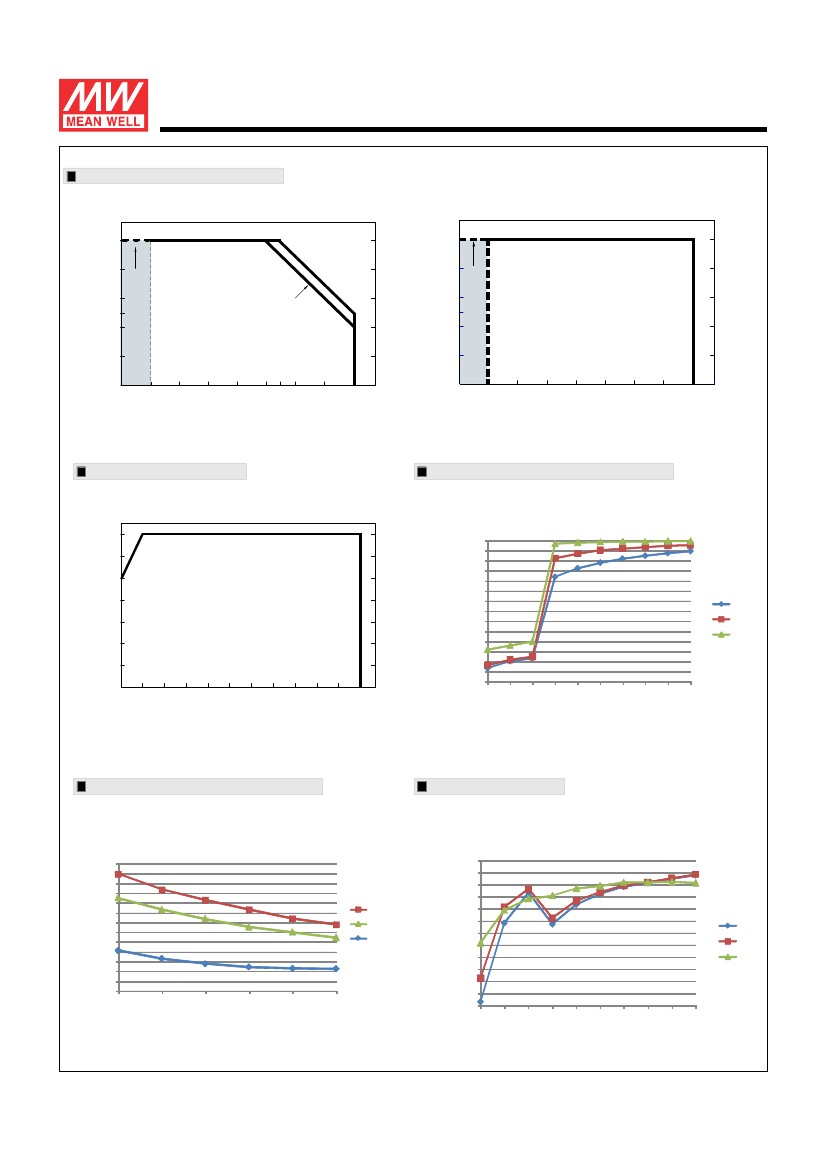

OUTPUT LOAD vs TEMPERATURE
100
100
80
80
230VAC
Input only
12,15V only
60
230VAC
Input only
60
LOAD (%)
LOAD (%)
50
40
40
20
20
-40
-25
0
15
30
40 45 50
60
70 (HORIZONTAL)
-40
-25
-15
0
15
30
50
60
90 (HORIZONTAL)
AMBIENT TEMPERATURE,Ta (
℃
)
Tcase (
℃
)
STATIC CHARACTERISTIC
POWER FACTOR (PF) CHARACTERISTIC
※
Tcase at 80℃
Constant Current Mode
100
90
80
LOAD (%)
PF
70
60
50
40
1.00
0.95
0.90
0.85
0.80
0.75
0.70
0.65
0.60
0.55
0.50
0.45
0.40
0.35
0.30
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
(120W)
277V
230V
115V
90
100
125
135
145
155 165
175
180
200
230
305
INPUT VOLTAGE (V) 60Hz
※
De-rating is needed under low input voltage.
LOAD
TOTAL HARMONIC DISTORTION (THD)
※
48V Model, Tcase at 80℃
26%
24%
22%
20%
18%
16%
14%
12%
10%
8%
6%
4%
2%
0%
50%
60%
70%
80%
90%
100%
EFFICIENCY vs LOAD
NPF-120 series possess superior working efficiency that up to 90% can
be reached in field applications.
※
48V Model, Tcase at 80℃
92
91
90
89
88
87
86
85
84
83
82
81
80
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
THD
277VAC
230VAC
115VAC
EFFICIENCY(%)
277V
230V
115V
LOAD
LOAD
File Name:NPF-120-SPEC 2016-07-01
