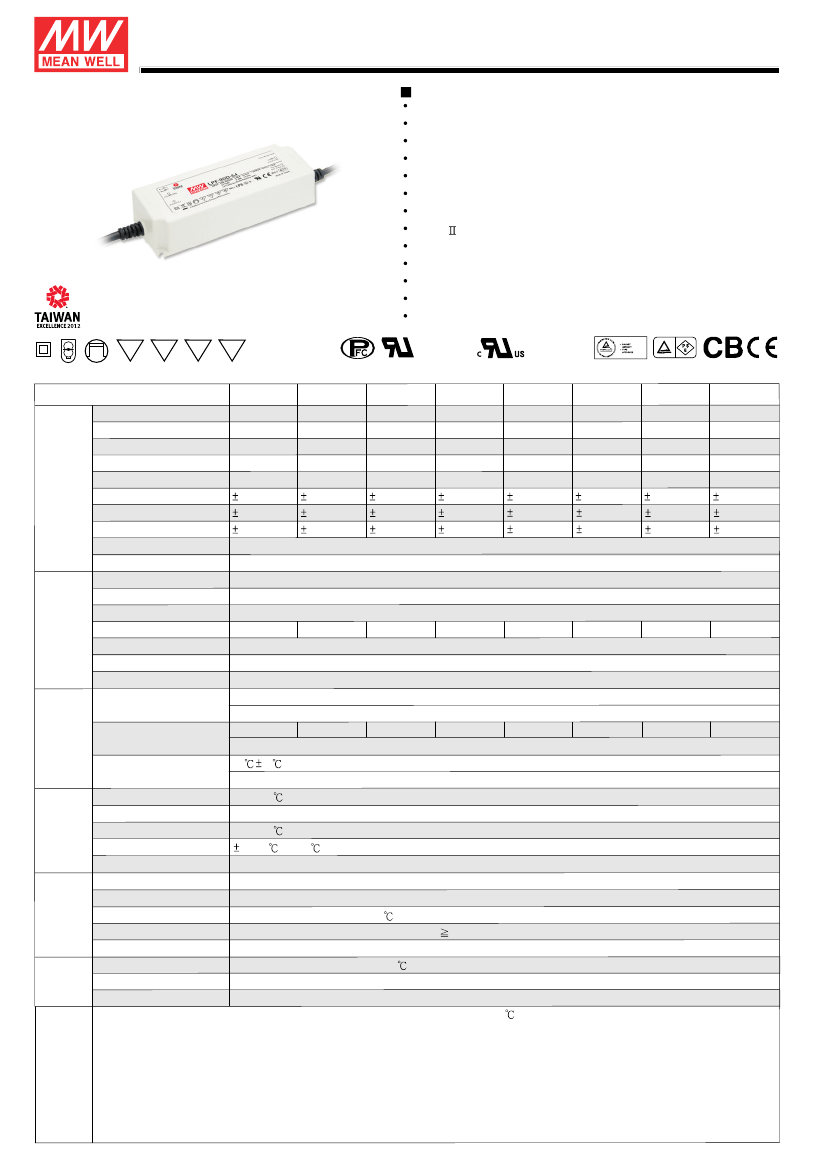

90W Single Output Switching Power Supply
Features :
LPF-90D
series
Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
High efficiency up to 90.5%
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
Fully isolated plastic case
Fully encapsulated with IP67 level (Note.6)
Class
power unit, no FG
Built-in 3 in 1 dimming function (1~10Vdc or PWM signal or resistance)
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp / wet locations
3 years warranty
F
110
M
M
SELV
IP67
LPF-90D-20
20V
12 ~ 20V
4.5A
90W
150mVp-p
4.0%
0.5%
1.0%
( for 48V,54V only)
( except for 48V,54V )
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
OUTPUT
VOLTAGE TOLERANCE
Note.3
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT(Typ.)
LEAKAGE CURRENT
OVER CURRENT
PROTECTION OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
SAFETY &
EMC
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
DIMENSION
PACKING
NOTE
Note.4
LPF-90D-15
15V
5A
75W
4.0%
0.5%
1.5%
16ms/230VAC
Note.5
90 ~ 305VAC
LPF-90D-24
24V
14.4 ~ 24V
3.75A
90W
150mVp-p
4.0%
0.5%
0.5%
230VAC / 115VAC
LPF-90D-30
30V
18 ~ 30V
3A
90W
200mVp-p
4.0%
0.5%
0.5%
LPF-90D-36
36V
21.6 ~ 36V
2.5A
90W
200mVp-p
4.0%
0.5%
0.5%
LPF-90D-42
42V
25.2 ~ 42V
2.15A
90.3W
200mVp-p
4.0%
0.5%
0.5%
LPF-90D-48
48V
28.8 ~ 48V
1.88A
90.24W
200mVp-p
4.0%
0.5%
0.5%
LPF-90D-54
54V
32.4 ~ 54V
1.67A
90.18W
200mVp-p
4.0%
0.5%
0.5%
CONSTANT CURRENT REGION
Note.4
9 ~ 15V
RIPPLE & NOISE (max.)
Note.2
150mVp-p
Note.7
2000ms, 200ms at 95% load
16ms/115VAC at full load
127 ~ 431VDC
47 ~ 63Hz

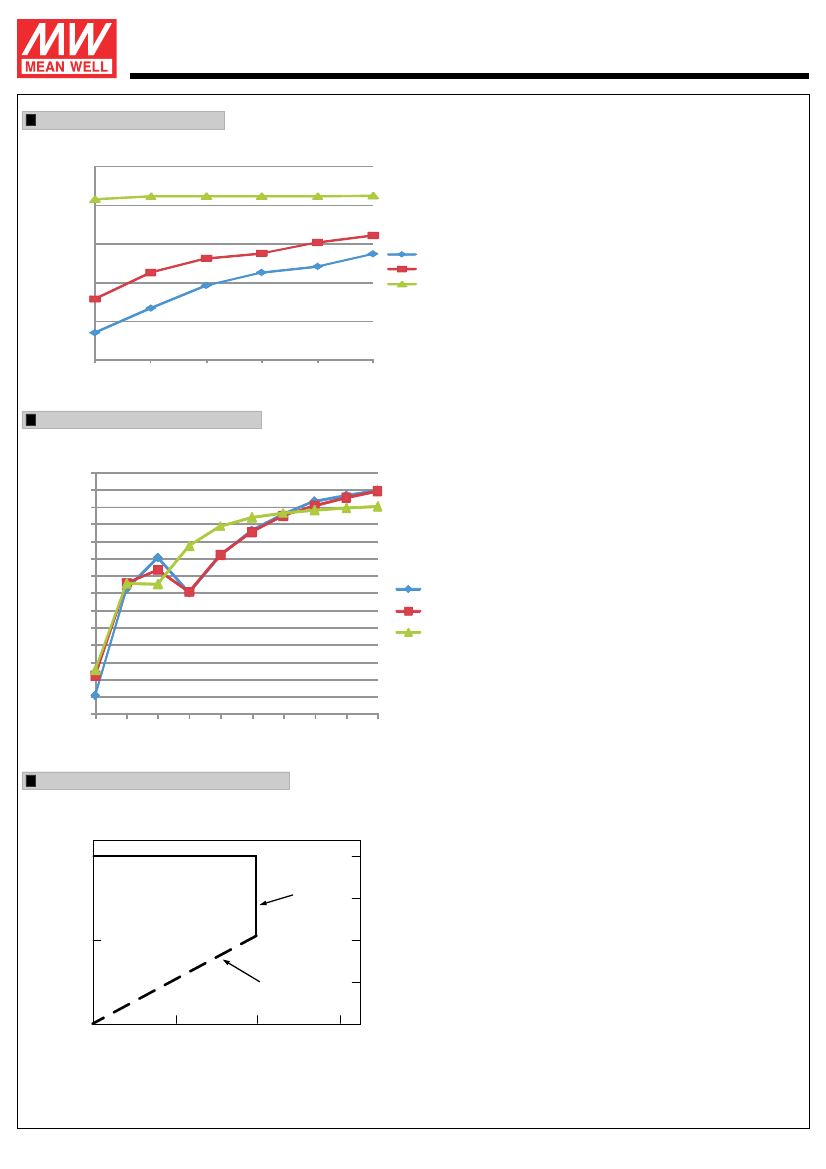

PF>0.97/115VAC, PF>0.96/230VAC, PF>0.95/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
89.5%
89%
90%
0.95A / 115VAC
0.5A / 230VAC
COLD START 70A/230VAC
<0.75mA / 277VAC
95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
47 ~ 53V
34 ~ 38V
18 ~ 21V
28 ~ 34V
41 ~ 46V
23 ~ 27V
Protection type : Shut down o/p voltage, re-power on to recover
90
10 (RTH2)
Protection type : Shut down o/p voltage, re-power on to recover
-40 ~ +70
-40 ~ +80
0.03%/
(Refer to "Derating Curve")
, 10 ~ 95% RH
(0 ~ 50
)
20 ~ 95% RH non-condensing
54 ~ 60V
59 ~ 65V
90.5%
0.4A / 277VAC
90.5%
90.5%
90.5%
90.5%
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
UL8750, EN61347-1, EN61347-2-13 independent
, J61347-1, J61347-2-13
, IP67 approved ; Design refer to UL60950-1, TUV EN60950-1
I/P-O/P:3.75KVAC
I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
Compliance to EN55015, EN61000-3-2 Class C ( 60% load) ; EN61000-3-3
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level(surge 2KV), criteria A
267.2Khrs min. MIL-HDBK-217F (25 )
161*61*36mm (L*W*H)
0.7Kg; 20pcs/15Kg/0.73CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Constant current operation region is within 60% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please
reconfirm special electrical requirements for some specific system design.
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minutes.
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
9. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
File Name:LPF-90D-SPEC 2011-12-27
90W Single Output Switching Power Supply
DIMMING OPERATION
LPF-90D
series
AC/L(Brown)
AC/N(Blue)
LPF-90D
+V(Red)
-V(Black)
DIM+(Blue)
DIM-(White)
Built-in 3 in 1 dimming function, IP67 rated. Output constant current level can be adjusted through output cable by connecting a resistance or
1 ~ 10Vdc or 10V PWM signal between DIM+ and DIM-.
Please DO NOT connect "DIM-" to "-V".
Reference resistance value for output current adjustment (Typical)
10K
30K
40K
50K
70K
80K
90K
Single driver
60K
100K
20K
Resistance
Multiple drivers
value
(N=driver quantity for synchronized
10K
/N 20K /N 30K /N 40K /N 50K /N 60K /N 70K /N 80K /N 90K /N 100K /N
dimming operation)
OPEN
-----
102%~108%
Percentage of rated current
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
1 ~ 10V dimming function for output current adjustment (Typical)
Dimming value
Percentage of rated current
1V
10%
2V
20%
3V
30%
4V
40%
5V
50%
6V
60%
7V
70%
8V
80%
9V
90%
10V
100%
OPEN
102%~108%
10V PWM signal for output current adjustment (Typical): Frequency range:100Hz ~ 3KHz
Duty value
Percentage of rated current
10%
10%
20%
20%
30%
30%
40%
40%
50%
50%
60%
60%
70%
70%
80%
80%
90%
90%
100%
100%
OPEN
102%~108%
Using the built-in dimming function on LPF-90D can't turn the lighting fixture totally dark. Please refer to the connection method below to
achieve 0% brightness of the lighting fixture connecting to the LED power supply unit.
Dimming connection diagram for turning the lighting fixture ON/OFF :
N
L
Relay
Switch
Adjuster
0~100K Ohms resistance
1~10V DC Voltage
10V PWM Signal
Brown
Blue
AC/L
LPF-90D
AC/N
DIM+
DIM-
V(-)
V(+)
Blue
White
Black
Red
LED Lighting Fixture
Using a switch and relay can turn ON/OFF the lighting fixture.
1.Output constant current level can be adjusted through output cable by connecting a resistance or 1~10Vdc or 10V PWM signal between DIM+ and DIM-.
2.The LED lighting fixture can be turned ON/OFF by the switch.
File Name:LPF-90D-SPEC 2011-12-27
