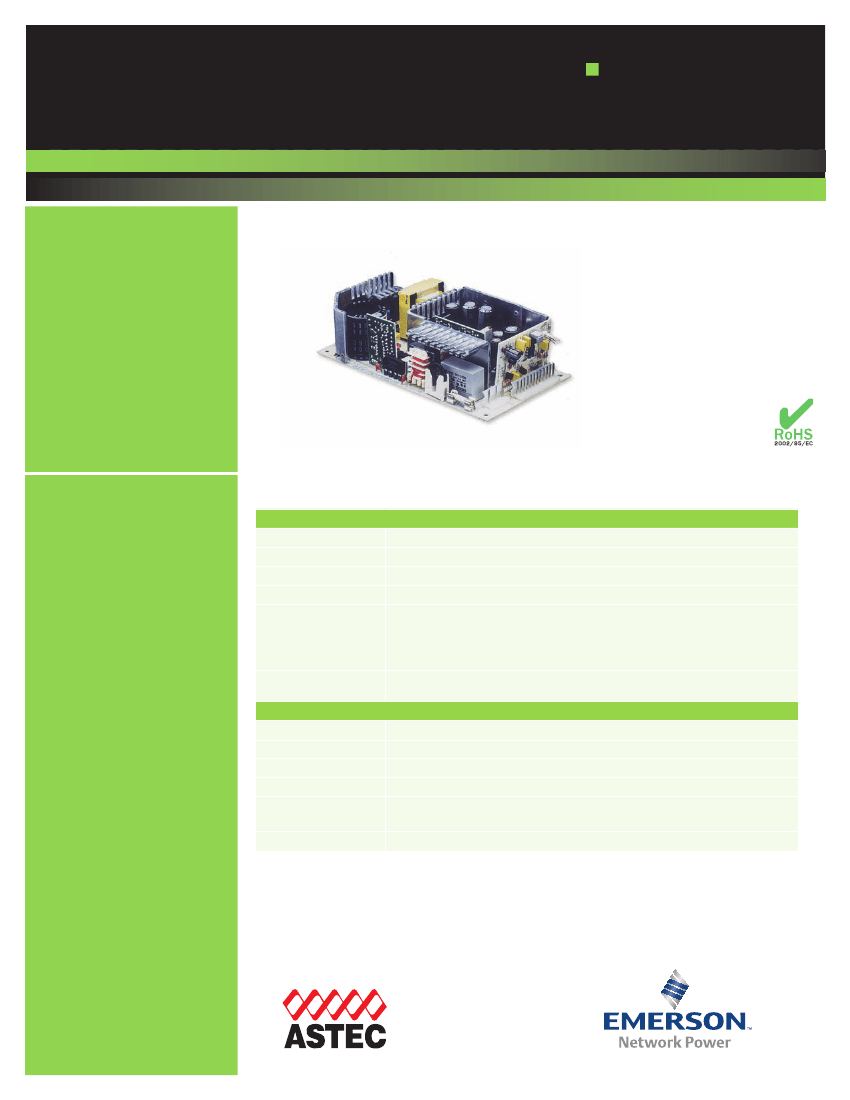

< 18 A peak @ 115 Vac; < 36 A peak @ 230 Vac, cold start @ 25 °C
70% typical at full load
Meets FCC Class B conducted
CISPR 22 Class B conducted
EN55022 Class B conducted
VDE 0878 PT3 Class B conducted
0.5 mA @ 50/60 Hz, 264 Vac input
Safety ground
leakage current
Output
Maximum power
Adjustment range
Cross regulation
Hold-up time
80 W convection 110 W with 30 CFM forced air
± 5% min. on main; 5 - 25 V on 4th output on LPQ112 and LPQ113
± 2% on output 1; ±3% on outputs 2, 3 & 4
20 ms @ 80 W load, 115 VAC nominal line
Short circuit protection on all outputs. Case overload protected @ 110-145%
above peak rating
Safety
VDE
0805/EN60950 (IEC950)
11774-3336-1245
(LC #84997)
UL
UL1950 E132002
CSA
CSA 22.2-234 Level 3
LR53982C
NEMKO
EN 60950/EMKO-TUE
P94102464 (74-sec) 203
BABT
EN60950/BS7002
PS/605823
CB
Certificate and report
1423, 1424, 1425
CE
Mark (LVD)
Overload protection
Overvoltage protection 5.7 - 6.7 VDC on main output. Latching type, recycle AC to reset
Embedded Power for
Business-Critical Continuity
Logic Control
Power failure
Remote sense
TTL logic signal goes high 50 - 150 msec after 5 V output. It goes
low at least 4 msec before loss of regulation
Compensates for 0.5 V lead drop min. Will operate without
remote sense connected. Reverse connection protected.
Rev. 08.13.07
LPQ110 Series
2 of 3
Environmental Specifications
Operating temperature: 0° to 50 °C ambient. Derate each output 2.5% per degree from
50° to 70 °C (except for -C version).
Storage temperature:
-40 °C to +85 °C
Temperature coefficient: ± 0.4% per °C
Electromagnetic
Designed to meet IEC 801, -2, -3, -4, -5, -6, Level 3
susceptibility:
Humidity:
Vibration:
MTBF demonstrated:
Operating; non-condensing 5% to 95%
Three orthogonal axes, sweep at 1 oct/min, 5 min. dwell at
four major resonances 0.75G peak 5Hz to 500Hz, operational
> 550,000 hours at full load and 25 °C ambient conditions
Pin Assignments
Connector
SK1-1
SK1-3
SK1-5
SK2-1
SK2-2
SK2-3
SK2-4
SK2-5
SK2-6
SK2-7
SK2-8
SK2-9
SK2-10
SK2-11
SK2-12
SK201-1
SK201-2
SK202-1
SK202-2
LPQ112
GND
Neutral
Line
+5 V
+5 V
+5 V
Common
Common
Common
Common
+12 V
+12 V
-12 V
+5-25 V
-5-25 V
+sense
-sense
POK
GND
LPQ113
GND
Neutral
Line
+5 V
+5 V
+5 V
Common
Common
Common
Common
+15 V
+15 V
-15 V
+5-25 V
-5-25 V
+sense
-sense
POK
GND
LPQ114
GND
Neutral
Line
+5 V
+5 V
+5 V
Common
Common
Common
Common
+12 V
+12 V
-12 V
+24 V
Common
+sense
-sense
POK
GND
Ordering Information
Maximum Load Maximum Load
Model
Output Minimum
Peak
with Convection with 30CFM
Regulation 2
Number Voltage
Load
Load 1
Cooling
Forced Air
LPQ112
5 V
12 V
-12 V
± 5 - 25 V
LPQ113
5 V
15 V
-15 V
± 5 - 25 V
LPQ114
5 V
12 V
-12 V
-12 V
2 A
0 A
0 A
0 A
2 A
0 A
0 A
0 A
2 A
0 A
0 A
0.5 A
9 A
4.5 A
0.7 A
2.5 A
9 A
4.5 A
0.7 A
2.5 A
9 A
4.5 A
0.7 A
3.5 A
11 A
5 A
1.0 A
3 A
11 A
5 A
1.0 A
3 A
11 A
5 A
1.0 A
4.5 A
15 A
9 A
1.5 A
3.5 A
15 A
9 A
1.5 A
3.5 A
15 A
9 A
1.5 A
5 A
± 2%
± 3%
± 5%
± 3%
± 2%
± 3%
± 5%
± 3%
± 2%
± 3%
± 5%
+10 / -5%
Ripple P/P
(PARD)3
50 mV
120 mV
120 mV
240mV, max
50 mV
150 mV
150 mV
240mV, max
50 mV
120 mV
120 mV
240mV
Mating Connectors
AC Input:
Molex 09-50-8051 (USA)
09-91-0500 (UK)
PINS: 08-58-0111
DC Outputs: Molex 09-50-8121 (USA)
09-91-1200 (UK)
PINS: 08-58-0111
Remote
Molex 22-01-1022 (USA)
Sense
22-01-1023 (UK)
Power Fail: PINS: 08-50-0114
Astec Connector Kit #70-841-006, includes all of
the above
1. Peak current lasting < 30 seconds with a maximum 10% duty cycle.
1. Specifications subject to change without notice.
2. At 25 °C including initial tolerance, line voltage, load currents and output voltages adjusted to factory
2. All dimensions in inches (mm), tolerance is
± 0.02” (± 0.5mm)
settings.
3. Peak-to-peak with 20 MHz bandwidth and 10 µF in parallel with a 0.1 µF capacitor at rated line voltage and 3. Specifications are for convection rating at
factory settings unless otherwise stated.
load ranges.
4. Mounting holes M1 and M2 should be grounded
4. 4th output adjustable 5 to 25 V, factory set at 5 V.
for EMI purposes.
5. Minimum loads are required.
5. Mounting hole M1 is safety ground connection.
Note: -B suffix added to the model number indicates L bracket option.
6. L bracket mounting (6-32) maximum insertion
depth is .20” (5).
7. Warranty: 2 year
8. Weight: 1.25 lb./0.57 kg
Embedded Power for
Business-Critical Continuity

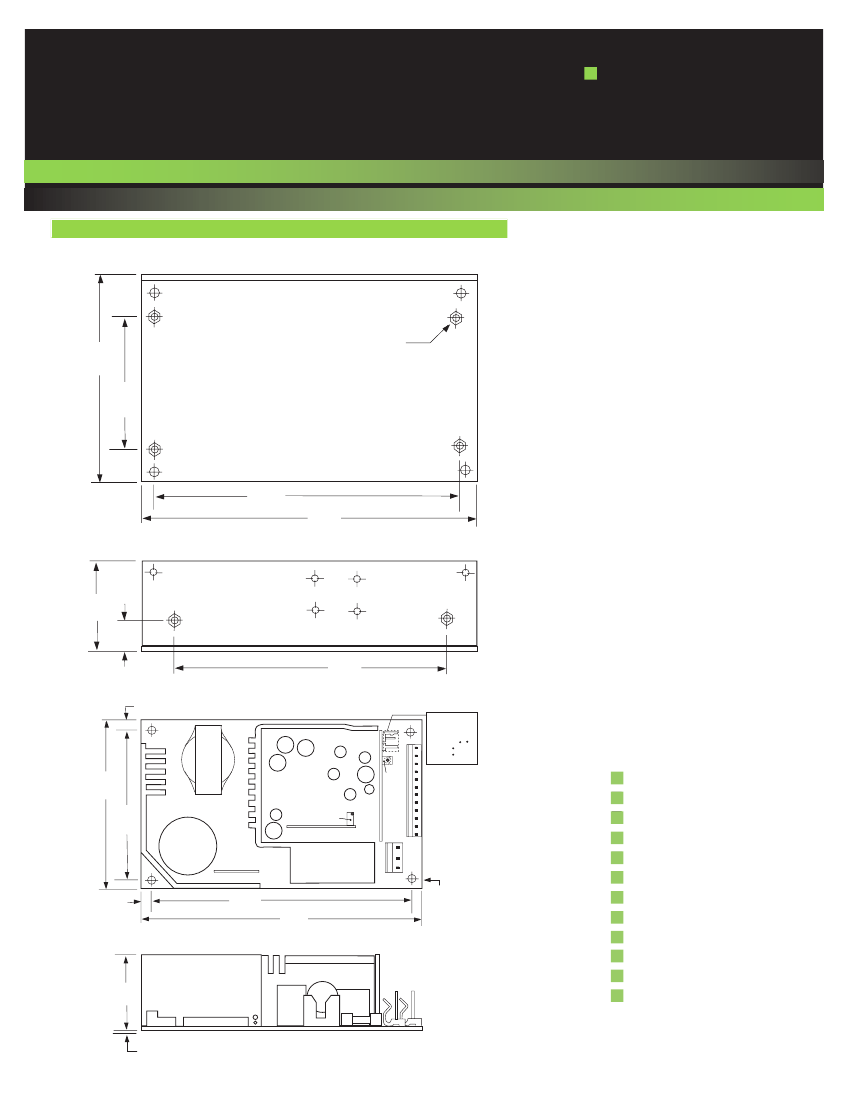

Mechanical Drawing
-B Bracket
Rev. 08.13.07
LPQ110 Series
3 of 3
Americas
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
4.28"
(108.6)
2.5"
(63.5)
#6-32 PEM
6 places
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Asia (HK)
6.4"
(162.6)
7.3"
(185.5)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
For global contact, visit:
2.2"
(56)
0.86"
(21.8)
5.9"
(150.0)
0.25"
(6.35)
M2
1
2
3
4
5
6
7
8
9
10
11
12
www.Emerson.com/EmbeddedPower
techsupport.embeddedpower
@emerson.com
