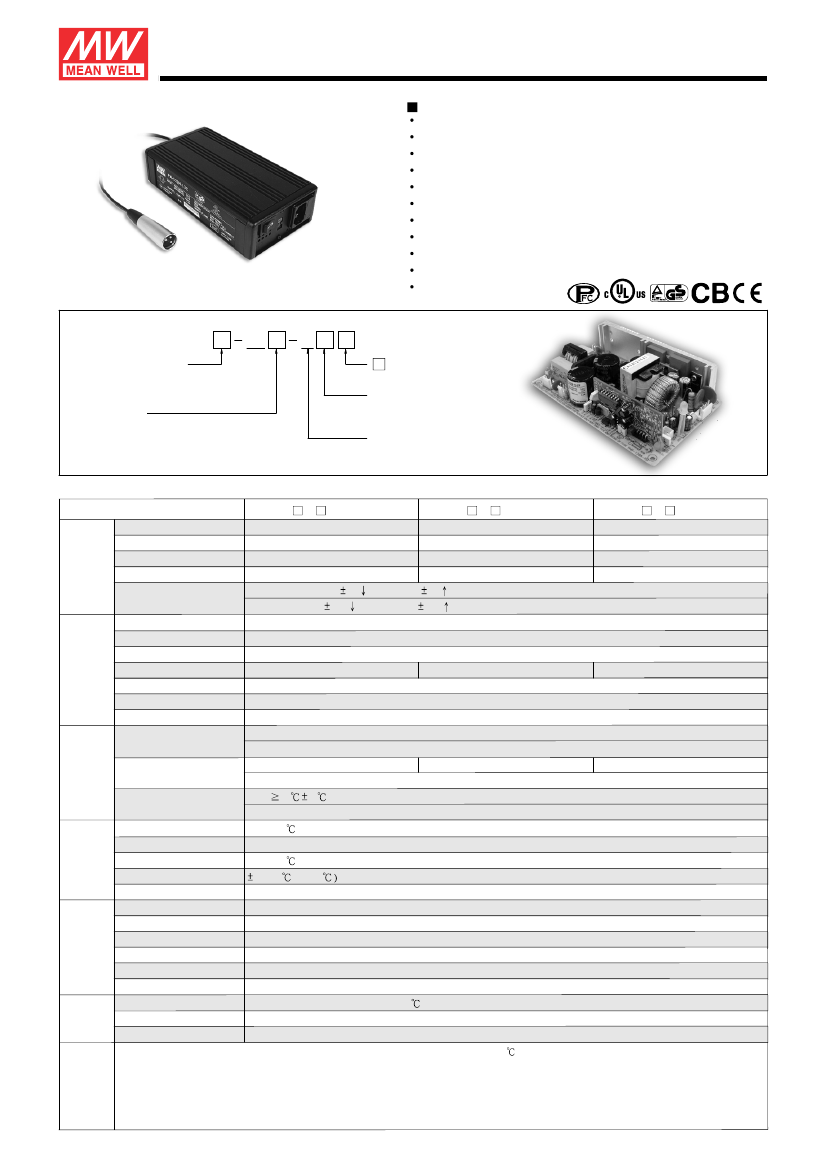

120W Single Output Power Supply or Battery Charger
Features :
PA / P B - 1 2 0
series
AC input range selected by switch
Built-in passive PFC function compliance to EN61000-3-2
With AC ON-OFF switch
3 poles AC inlet with fuse holder
Protections: Short circuit / Overload / Over voltage / Over temperature
Charger type can be selected (Optional)
Charger for lead-acid batteries
2 color LED loading indicator
Open frame models available (Without safety approval)
Low cost, High reliability
2 years warranty
TUV
Rheinland
Product Safety
geprUfre
Sicherheit
S:Power Supply
A:Voltage detector
B:Current detector
P:With PFC
N:None PFC
P A
120 P
13 C
:O.D.M. number
P:Open P.C.B.
C:With case
13:13.8V
27:27.6V
54:55.2V
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
OUTPUT
CURRENT RANGE
RATED POWER
LED INDICATED
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
PA/PB-120
13.8V
7.2A
0 ~ 7.2A
99.36W
PA series voltage 105% 1%
PB series load 46% 10%
47 ~ 63Hz
>0.65 (with PFC series)
73%
3A/115VAC
1.5A/230VAC
COLD START 25A/115VAC
<1.5mA / 240VAC
90 ~ 110% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
15 ~ 17V
30 ~ 35V
60 ~ 66V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
RTH2 70
10 detect on RTH2 thermistor
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
-10 ~ +45
(Refer to output load derating curve)
20 ~ 90% RH non-condensing
79%
50A/230VAC
79%
-13
PA/PB-120
27.6V
4.3A
0 ~ 4.3A
118.68W
: RED / 105% 1%
:GREEN
:RED
: GREEN / 46% 10%
-27
PA/PB-120
55.2V
2.2A
0 ~ 2.2A
121.44W
-54
88 ~ 132VAC / 176 ~ 264VAC selected by switch
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
-20 ~ +85 , 10 ~ 95% RH
TEMP. COEFFICIENT
0.05%/ (0 ~ 45
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS
WITHSTAND VOLTAGE
SAFETY &
EMC
(Note 4)
UL60950-1, TUV EN60950-1, EN60335, EN60335-1, EN60335-2-29 approved
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
HARMONIC CURRENT
EMS IMMUNITY
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION
Compliance to EN55022 (CISPR22) Class B
Compliance to EN61000-3-2,-3
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
149.6K hrs min.
MIL-HDBK-217F (25
)
PCB Type:144*90*33mm
External case type:180*96*49mm (L*W*H)
1.1Kg; 16pcs / 17.9Kg / 1.47CUFT(without PFC)
1.24Kg; 16pcs / 20.1Kg / 1.47CUFT(with PFC)
OTHERS
NOTE
MTBF
DIMENSION
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives.
5. With PFC I/P range: 95~132VAC/190~264VAC.
6. For open P.C.B. WITH 17.8CFM min. Forced air.
File Name:PA,PB-120-SPEC 2008-05-06

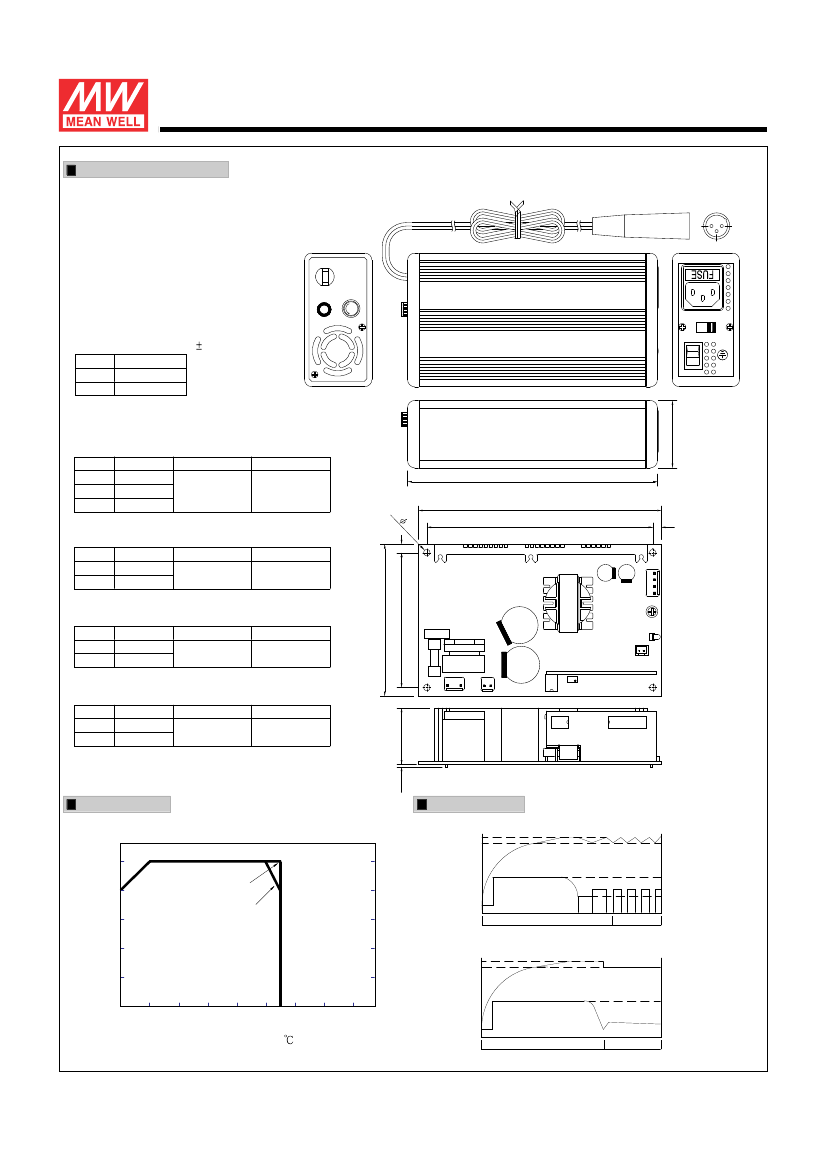

120W Single Output Power Supply or Battery Charger
Mechanical Specification
PA / P B - 1 2 0
Case No. PS-120A
series
Unit:mm
1
3
2
CASE:
Output cable length=183cm 5cm
Pin No.
1
2,3
Assignment
DC OUTPUT +V
DC OUTPUT -V
PCB:
AC Input Connector (CN1) : JST B3P-VH or equivalent
Pin No.
1
2
3
Assignment
AC/L
No Pin
AC/N
Mating Housing
JST VHR
or equivalent
Terminal
JST SVH-21T-P1.1
or equivalent
4-
180
144
134
5
DC Output Connector (CN3) : JST B4P-VH or equivalent
1 2 3 4
Pin No.
1,2
3,4
Assignment
-V
+V
Mating Housing
JST VHR
or equivalent
Terminal
JST SVH-21T-P1.1
or equivalent
5
CN3
+V
90
80
12VDC FAN Output Connector (CN4) : JST B2B-XH or equivalent
Pin No.
1
2
Assignment
+V
-V
Mating Housing
JST XHP
or equivalent
Terminal
JST SXH-001T-P0.6
or equivalent
ADJ.
CN4
F4 A/250V
12
+-
CN5
1 2 3
CN1
SHORT FOR 115V
OPEN FOR 230V
LED
115/230V selected by switch Connector (CN5) : JST B2P-VH or equivalent
Switch
115V
230V
Assignment
Short
Open
Mating Housing
JST VHR
or equivalent
Terminal
JST SVH-21T-P1.1
or equivalent
33
Derating Curve
2 max.
Charging Curve
Vout
105%
100%
Bat. Voltage
Iout
100
80
Open frame series
17.8CFM air cooling
(L=15cm face HS)
Other series
LED COLOR
Vout
105%
100%
Charging Current
100%
45%
60
Red
Green
T
LOAD (%)
Type A:Voltage detecter,pulse charger
40
Bat. Voltage
Iout
20
Charging Current
-10
0
10
20
30
40
50
60
(HORIZONTAL)
100%
AMBIENT TEMPERATURE ( )
LED COLOR
Red
Green
Type B:Current detecter,2 voltage section
T
File Name:PA,PB-120-SPEC 2008-05-06
-V
49
115
FUSE
3.
8
