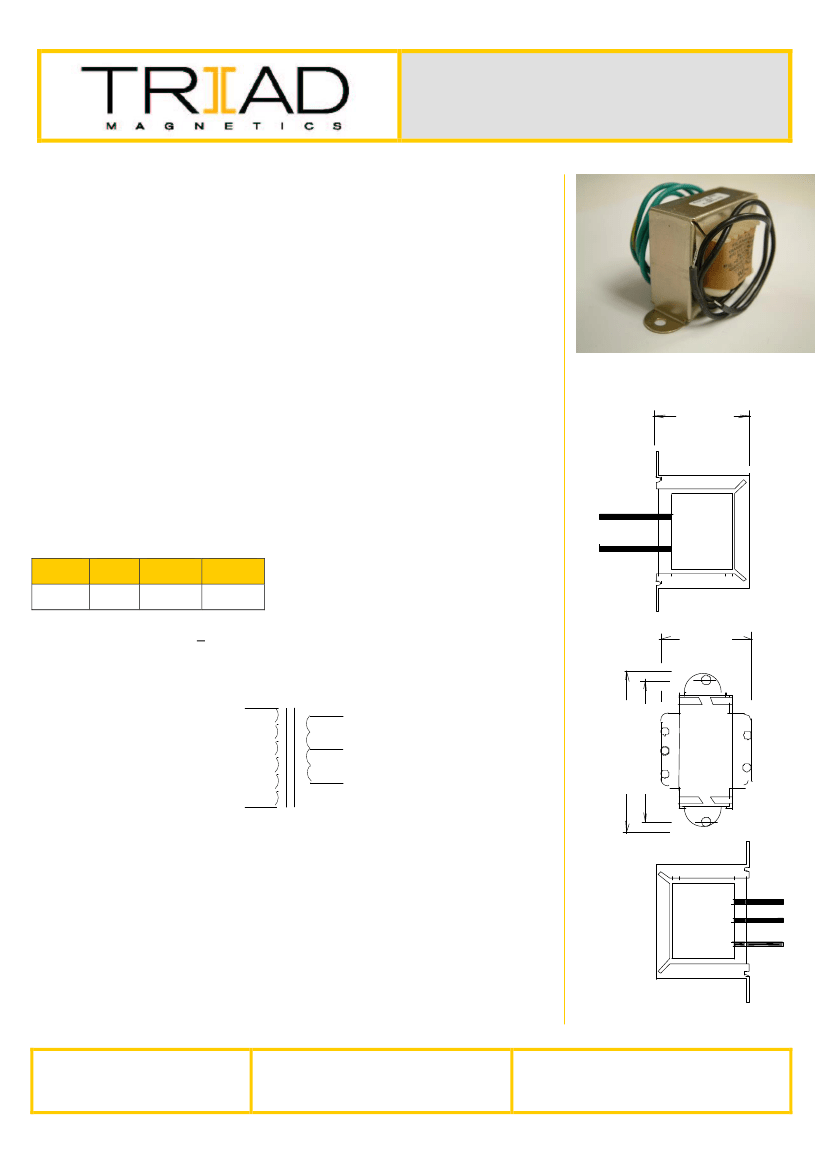

P
OWE R
T
RAN S FO R M E R
Chassis Mount: Single Secondary
F-225X
Electrical Specifications (@25C)
1. Maximum Power: 50.4 VA
2. Primary: 115V 60 Hz
3. Secondary: 12.6VCT @ 4.0 Amps
4. Voltage Regulation: 10 % TYP @ full load to no load
5. Temperature Rise: 35C TYP (45C MAX allowed)
Description:
The F-225X is part of a series which has a long history of reliable service in the
field, made from a proven design and constructed with UL recognized materials.
Construction:
Wound on a single channel nylon bobbin. Materials are UL recognized, Class B
(130º C) rated.
A
Safety:
These products are 100% hipot tested with an insulation of 1500V between
primary and secondary windings as well as between the primary / secondary
windings and the core.
BLK
BLK
Dimensions:
A
2.625
B
4.00
Units: In inches
C
2.062
D
3.562
Mounting Hole Diameter: .187 in
Lead length: 7.0 inches + 1 inch
Weight: 2.30 lbs
C
Schematic:
BLK
GRN
GRN/YEL
B
D
GRN
BLK
Primary:
Black to Black
Secondary: Green to Green
GRN
GRN/YEL
GRN
RoHS Compliance:
As of manufacturing date February 2005, all standard
products meet the requirements of 2002/95/EC, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad
Magnetics’ website for the most current version.
Web: www.TriadMagnetics.com
460 Harley Knox Blvd.
Phone 951-277-0757
Publish Date: May 11, 2015
Perris, California 92571
Fax 951-277-2757
