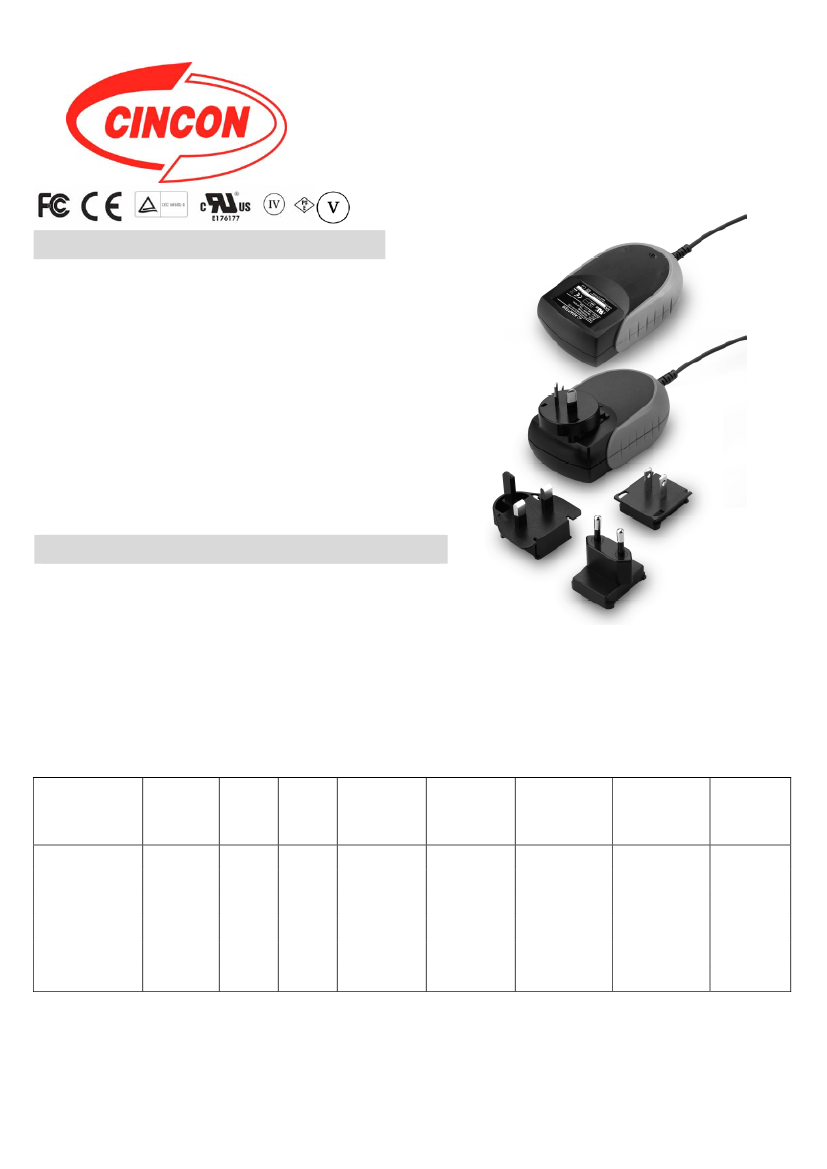

Features
TR30RAM SERIES
30W MEDICAL
SWITCHING ADAPTER
* Universal Input Range 90-264VAC
* Continuous Short Circuit Protection
* Over Voltage Protection
* Meets EN60601-1 and EN55011 Class B
* CEC Level IV Compliant
(Output Cable Length
≦
1800mm)
(TR30RAM050: Output Cable Length
≦
1500mm)
* Efficiency & Standby Power Meet Level V (Option)
(Output Cable Length
≦
1800mm)
(TR30RAM050
、
TR30RAM090
：
Output Cable
Length
≦
1220mm)
* Provide PSE Mark
Ordering information
TR30RAMXXX
Model No.
r
-
XX
DC Plug Type
E XX
-
XX
-BK
DC Cable Length and Type Color of Overmold Case
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
12: 1220mm with Ferrite Core
13: 1800mm with Ferrite Core
* 18AWG / UL1185
* 16AWG / UL1185 for 5V、9V
BE: Blue
GY: Gray
RD: Red
PE: Purple
OR: Orange
MODEL
OUTPUT
VOLTAGE
MAX.
LOAD
MIN.
LOAD
RIPPLE &
NOISE
VOLTAGE
ACCURACY
LINE
REGULATION
LOAD
REGULATION
% EFF.
(Typ.)
73%
76%
79%
81%
81%
83%
TR30RAM050
TR30RAM090
TR30RAM120
TR30RAM150
TR30RAM180
TR30RAM240
5V
9V
12V
15V
18V
24V
4.0A
3.0A
2.5A
2.0A
1.67A
1.25A
0A
0A
0A
0A
0A
0A
1%
1%
1%
1%
1%
1%
±2%
±2%
±2%
±2%
±2%
±2%
±1%
±1%
±1%
±1%
±1%
±1%
±6%
±3%
±2%
±2%
±2%
±2%
Specifications are subject to change without notice.
1
Specifications
INPUT SPECIFICATIONS:
Rated Load(%)
Voltage …....………........…........................................... 90~264Vac
Frequency ………………………………………….…………..…..... 47 to 63Hz
Input Current ………………….…………….............................. 0.4~0.8A max.
Inrush Current ………………….…Cold start@25℃ 100A max. @240Vac
Leakage Current …………………………………………………… 100μA max.
TR30RAM Series Derating Curve
100%
80%
60%
40%
20%
0%
0
10
20
30
40
50
o
Ambient Temperature( C)
60
20LFM(Natural Convection)
OUTPUT SPECIFICATIONS:
Holdup Time ……………………………………………… 10ms typ. @115Vac
Short Circuit Protection ……………….………… Continuous(Auto Recovery)
Over Voltage Protection ………………. ............... TVS Component to Clamp
Temperature Coefficient ……………………............................… ±0.05%/℃
NOTE:
1. Voltage setpoint at 60%l load
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measuring @20MHz BW.
3. Line regulation measured from 100Vac to 240Vac with full load.
4. Load regulation measured from 60% to full load and from 60% to
20% load (60% +/- 40% load)
5. ”Various TR Series adapters are PSE certified. PSE certification
alone is not sufficient for importation into Japan. A valid PSE mark
must contain the name of the importer as shown in the example below.
If PSE mark is required, the name of the registered importer must be
supplied to Cincon on order placement. Product labels will not contain
PSE mark if importer name is not supplied. Consult factory or local
representative for details”
GENERAL SPECIFICATIONS:
Isolation …………………………………………… Input to output = 5,656VDC
Operating Temperature .................................. 0 ~ 60℃(see Drating Curve)
Storage Temperature ……………………………...….......……........ -20~85℃
Humidity …………………...….......….......... 93% RH max. Non condensing
Cooling …………………………………………………….. Natural Convection
Switching Frequency ………………………………………….. 70KHz Typical
MTBF ……..…..… MIL-HDBK-217F, GB, 25℃/115VAC ….... 200K hrs min.
Altitude …………………………………………………………………… 3000m
Dimensions ……..….. 4.278x2.440x1.445Inches (108.67x61.98x36.70mm)
Weight ……………………………………………………… 300g(0.67 Pounds)
SAFETY AND EMC:
Emission and lmmunity ….…EN55011 Class B,EN61000-3-2, EN61000-3-3
EN60601-1-2, IEC61000-4-2,4,5,6,8,11
FCC CFR47 Part 18 Class B
Safety …………………………….……IEC60601-1, EN60601-1, UL60601-1

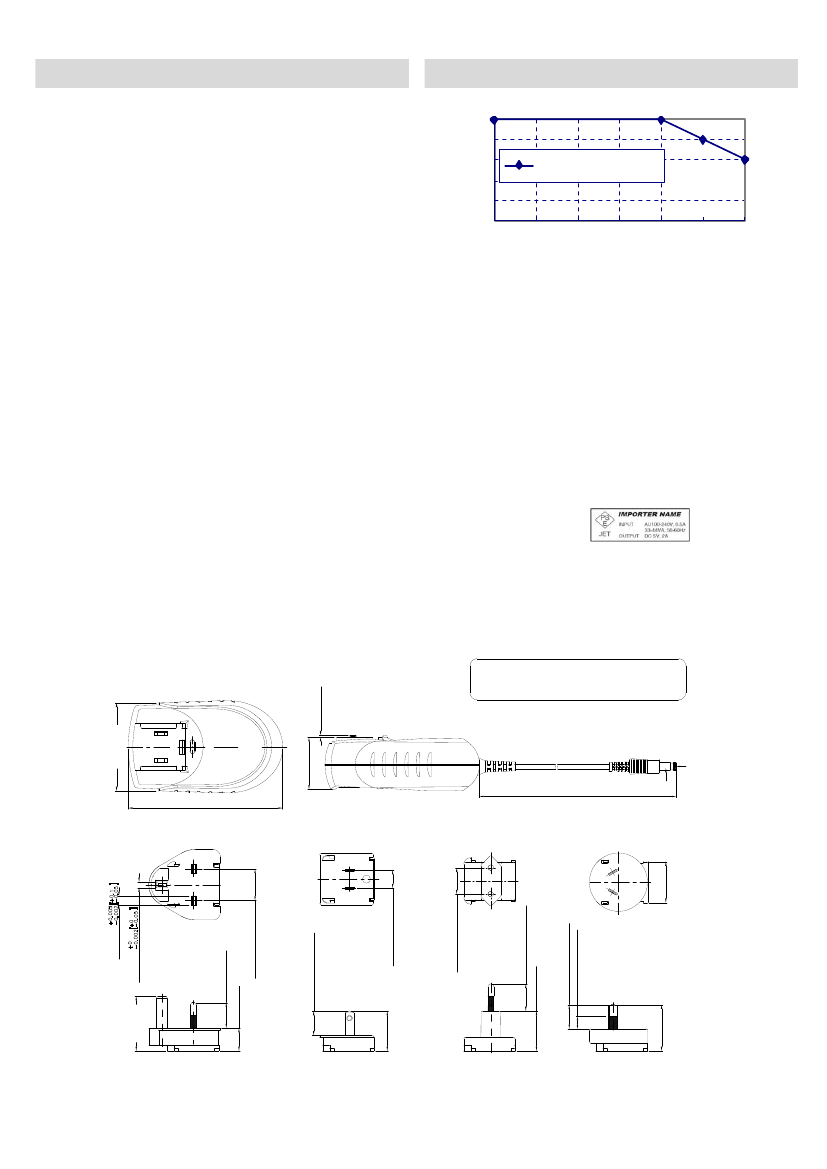

Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
0.055[1.40]
DC Plug type: V+ ─●)─ V-
DC Plug :Straight(ψ5.5／ψ2.1) L12mm
18AWG／1800mm
2.440[61.98]
1.445[36.70]
+
70.866[1800.00]±1.969[50.00]
-
4.278[108.67]
TR30RAM/TR15RA-A
0.492[12.50]±0.002[0.05]
0.874[22.20]±0.005[0.13]
0.727[18.47]±0.002[0.05]
0.748[19.00]±0.019[0.50]
0.669[17.00]±0.027[0.70]
1.515[38.50]
0.639[16.00]
1.102[28.00]
0.665[16.90]±0.0118[0.30]
0.343[8.70]±0.019[0.50]
0.248[6.30]
0.157[4.00]
0.712[18.10]Max
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
1.102[28.00]
2
1.275[32.40]
1.137[28.90]
