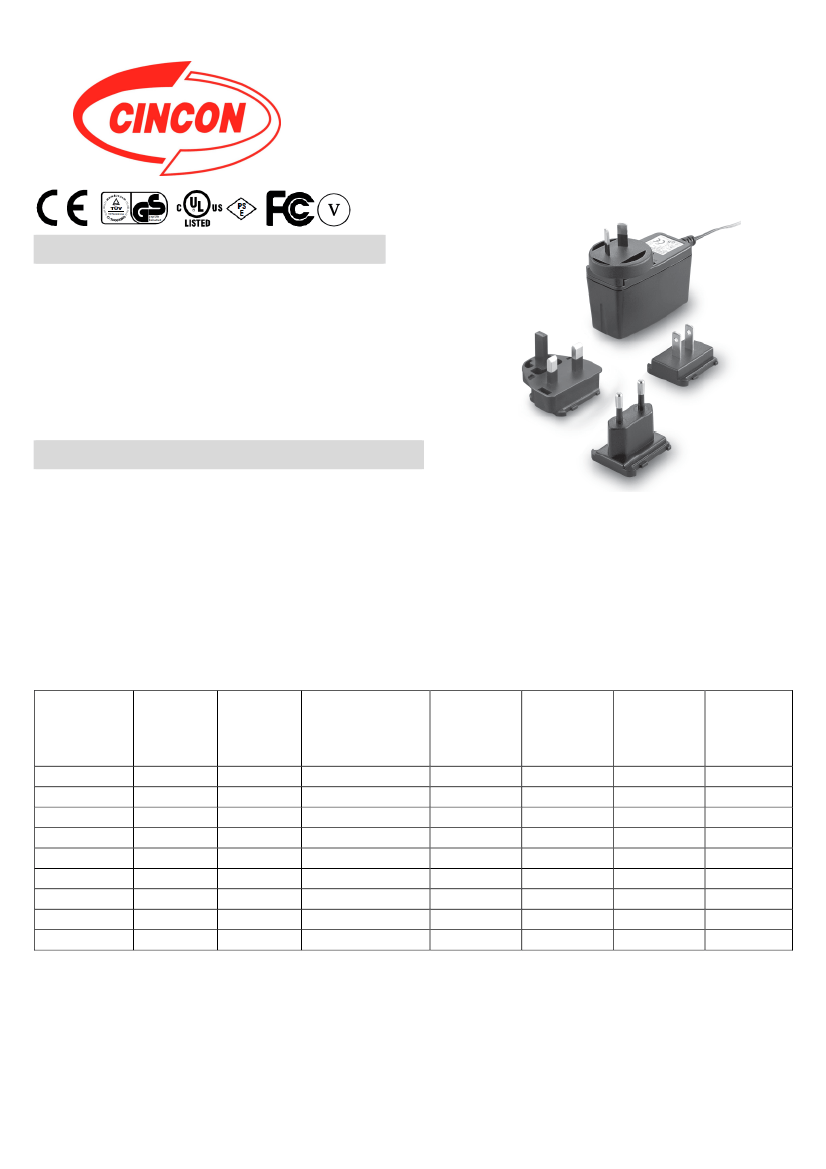

V16
︳
Features
* Meet CEC & ErP Level V
TRG10R SERIES
10W SWITCHING
ADAPTER
* Universal Input: 90~264Vac
* Continuous Short Circuit Protection
* Interchangeable AC Plugs
*
EMI Meets EN55022 Class “B” and CISPR/FCC Class B
(Output cable length
≦
1800mm)
* Over Voltage Protection
Ordering information
TRG10RXXX
Model No.
-
XX
DC Plug Type
X
OVP
E: With OVP Option
XX
DC Cable Length and Type
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
12: 1220mm with Ferrite Core
13: 1800mm with Ferrite Core
* 18AWG / UL1185
MODEL
TRG10R050
TRG10R060
TRG10R075
TRG10R090
TRG10R120
TRG10R136
TRG10R150
TRG10R180
TRG10R240
OUTPUT
VOLTAGE
5V
6V
7.5V
9V
12V
13.6V
15V
18V
24V
OUTPUT
CURRENT
1600mA
1500mA
1200mA
1100mA
850mA
750mA
700mA
550mA
400mA
RIPPLE & NOISE
NOTE 1
50mV
1%
1%
1%
1%
1%
1%
1%
1%
VOLTAGE
ACCURACY
NOTE 2
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
LINE
REGULATION
NOTE 3
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
LOAD
REGULATION
NOTE 4
±4%
±3%
±3%
±2%
±2%
±2%
±2%
±2%
±2%
(%) EFF.(Typ.)
NOTE 5
74%
72%
75%
78%
80%
79%
80%
80%
81%
Specifications are subject to change without notice.
1

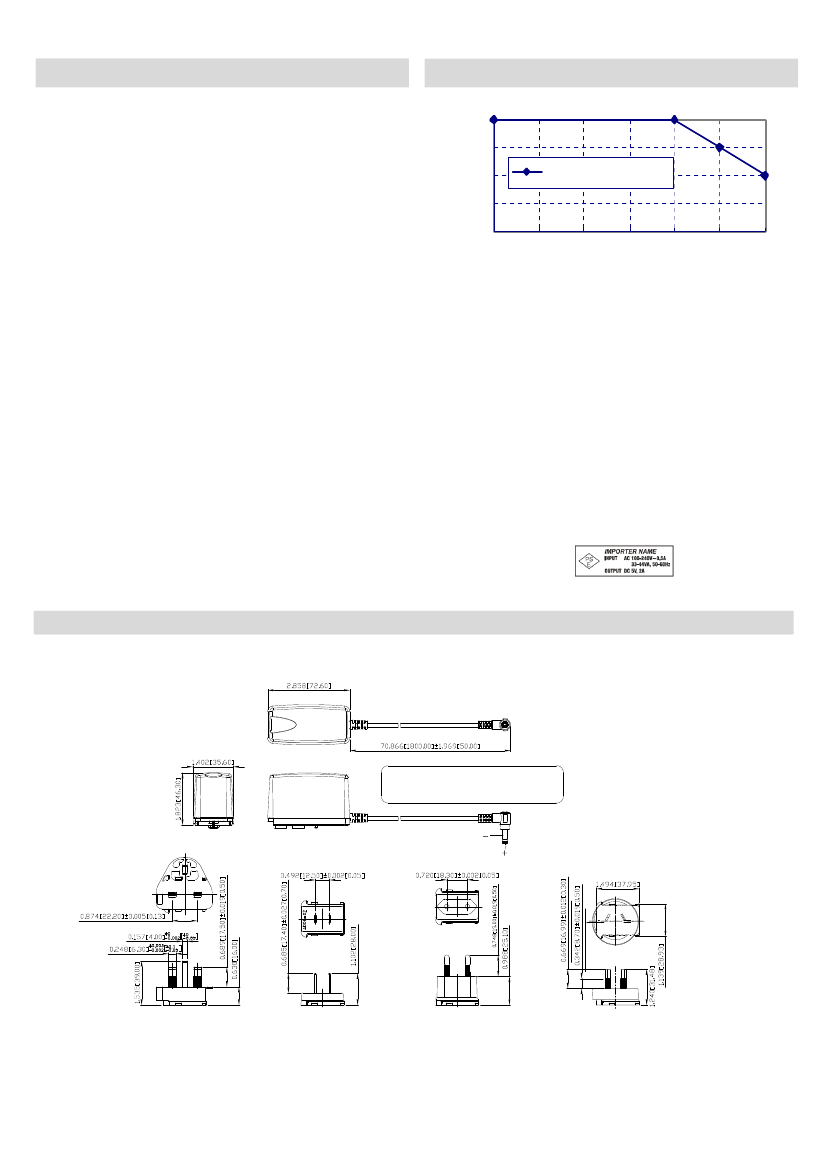

V16
Specifications
INPUT SPECIFICATIONS:
Voltage …....………........…........................................... 90~264Vac
Frequency ………………………………………….……………..... 47 to 63Hz
Input Current ………………….……………..................................... 0.4A max.
Inrush Current ………………….……………................... 40A max. @240Vac
Conducted EMI ……………………………………………. CISPR/FCC Class
B
Leakage Current …………………………………………….…… 0.25mA max.
TRG10R Series Derating Curve
100%
Rated Load(%)
75%
50%
25%
0%
0
10
20
30
40
Ambient Temperature(
o
C)
50
60
20LFM(Natural Convection)
OUTPUT SPECIFICATIONS:
Holdup Time ……………………………………………… 10mS typ. @115Vac
Short Circuit Protection …………….…………… Continuous(Auto Recovery)
Over Voltage Protection ………………................. TVS Component to Clamp
Temperature Coefficient ……………………..............................… ±0.05%/℃
NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measuring @20MHz BW.
2. Voltage setpoint at 60% full load.
3. Line regulation is measured from 100Vac to 240Vac with full load.
4. Load regulation is measured from 60% to full load and from 60% to
20% load (60% +/- 40% load).
5. Typical efficiency at 230VAC and full load at 25℃.
6. ”Various TR Series adapters are PSE certified. PSE certification
alone is not sufficient for importation into Japan. A valid PSE mark
must contain the name of the importer as shown in the example below.
If PSE mark is required, the name of the registered importer must be
supplied to Cincon on order placement. Product labels will not contain
PSE mark if importer name is not supplied. Consult factory or local
representative for details”.
GENERAL SPECIFICATIONS:
Isolation …………………………………………… Input to output = 4,242VDC
Operating Temperature ............................. 0 ~ 60℃(see Derating Curve)
Storage Temperature ………………………………..........……........ -20~85℃
Humidity …………………...….......……….... 93% RH max. Non condensing
Cooling …………………………………………………….. Natural Convection
Switching Frequency ………………………………………….. 66KHz Typical
MTBF ……….… MIL-HDBK-217F, GB, 25℃/115VAC ……. 200K hrs min.
Altitude …………………………………………………………………… 2000m
Dimensions ………..…….. 2.858x1.823x1.402lnches (72.6x46.3x35.6mm)
Weight ……………………………………………………… 130g(0.29 Pounds)
SAFETY AND EMC:
Emission and lmmunity ……….… EN55022 Class B, FCC Part 15 Class B
EN61000-6-3, EN61000-3-2, EN61000-3-3
EN55024, EN61204-3, EN61000-6-1
Safety …………………………….…… IEC60950-1, EN60950-1, UL60950-1
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
UNIT: inches(mm)
DC Plug type: V+ ─●)─ V-
DC Plug:Right Angle(ψ5.5/ψ2.1)L12mm
18AWG / 1800mm
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
