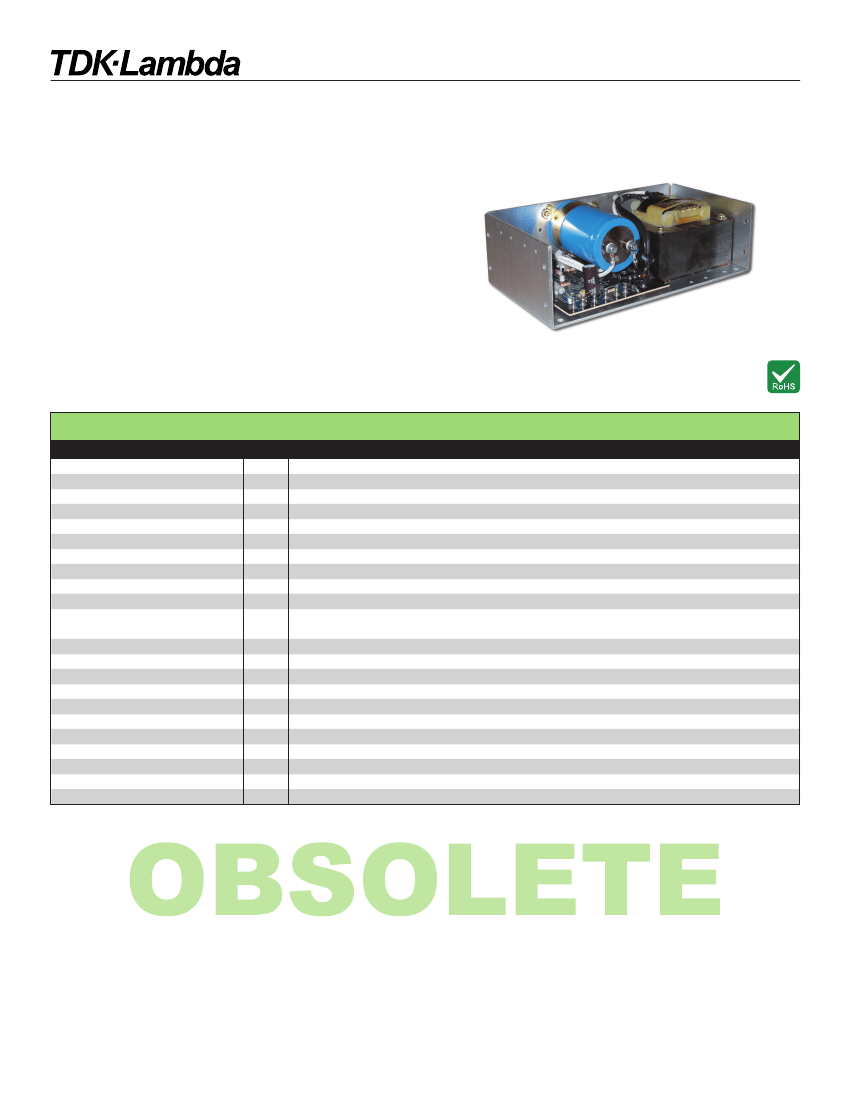

H Series
Low Cost Linear Power Supplies
Features
u
Low Output Ripple
u
Single and Multiple Outputs
u
Excellent Line & Load Regulation
u
Worldwide Voltage Taps
u
Industry standard footprint
u
Operation up to 70C Ambients
Key Market Segments & Applications
u
Test & Measurement
Burn-in & Test, Automated
Test, Instrumentation,
Measurement, Detection
u
Low noise applications
u
Light Industrial
Specifications
Model
AC Input
Efficiency
Transient Response
EMI
Output Adjustment
Remote Sense
Line Regulation
Load Regulation
Ripple and Noise
Overcurrent Protection
Overvoltage Protection
Cooling
Operating Temp. Range
Storage Temperature
Temperature coefficient
Humidity
Leakage Current
Vibration
Shock
Safety Agency Approval
Size
Warranty
n 50A
-
-
-
-
-
-
-
-
-
-
-
-
-
°C
-
-
uA
-
-
-
-
-
100/120/220/230/240VAC, 47-63Hz (derate by 10% for 50Hz operation)
5V: 45%, 12/15V: 55%, 24V: 60%
50us for 50% load change
FCC Class B, VDE0871 Level B
±5% for all outputs (except outputs 2 & 3 on triple output models)
On all single output models, HDC12 & HDC15, and output 1 of triple output models
±0.05% for 10% line change
±0.05% for 50% load change
<3mV peak to peak
Foldback with automatic recovery (Contact factory before adjusting)
Standard on 5V outputs set at 6.2V ±0.4V OVP12 module sold separately
for other outputs (see model selector)
Convection or forced air
0 to +70°C, derate 3%/°C above 50°C
-55 to +85°C
±0.01% per °C
5 - 95% RH (non condensing)
<50uA
MIL-STD-810C, Method 514
MIL-STD-810C, Method 516
UL60950-1, EN60950-1, CE Mark
Please see outline drawings
Two years
Note: See Installation Manual for full details, test methods of parameters and application notes
1-800-526-2324 • www.us.tdk-lambda.com/lp/
9
H Series
2 Output Module Codes
Model
Single Output
HSB5-3-OVP
HSC5-6-OVP
HSN5-9-OVP
HSD5-12-OVP
HSB12-1.7
HSC12-3.4
HSN12-5.1
HSB15-1.5
HSC15-3
HSN15-4.5
HSB24-1.2
HSC24-2.4
HSN24-3.6
HSD24-4.8
HSB28-1.0
HSC28-2.0
HSN28-3.0
HSD28-4.0
HDA12-15
Output
Output
(V)
Max
Current (A)
Power
(W)
C
G
A
F
C
G
H Outline Drawing
V1
5
3.0
15.0
V1
5
6.0
30.0
V1
5
9.0
45.0
V1
5
12.0
60.0
V1
12
1.7
20.4
V1
12
3.4
40.8
V1
12
5.1
61.2
V1
15
1.5
22.5
V1
15
3.0
45.0
V1
15
4.5
67.5
V1
24
1.2
28.8
V1
24
2.4
57.6
V1
24
3.6
86.4
V1
24
4.8
115.2
V1
28
1.0
28.0
V1
28
2.0
56.0
V1
28
3.0
84.0
V1
28
4.0
112.0
Dual Output
V1
+12/15
1.0/0.8
24.0
V2
-12/15
1.0/0.8
HDB12-15
V1
+12/15 1.8/1.5
40.0
V2
-12/15
1.8/1.5
HDC12
V1
12*
3.4
80.0
V2
12*
3.4
HDC15
V1
15*
3.0
80.0
V2
15*
3.0
Triple Output
HTC1
V1
5*
3.0
40.0
V2
+12/15
1.0/0.8
V3
-12/15
1.0/0.8
HTD1
V1
5*
6.0
70.0
V2
+12/15
1.7/1.5
V3
-12/15
1.7/1.5
Accessories
OVP12 Adjustable 6.2-34V, 8A continuous, 12A peak
* Isolated Outputs
SEE NOTE 2
E
B
SEE NOTE 2
SEE NOTE 2
SEE NOTE 2
G C
D
DIMENSIONS:
MODEL
HSB
HSC
HSN
HSD
HDA
HDB
HDC
HTC
HTD
A
B
C
I
H
D
I
F
G
A
4.881
(124.0)
4.881
(124.0)
4.881
(124.0)
4.881
(124.0)
4.015
(102.0)
4.881
(124.0)
4.881
(124.0)
4.015
(102.0)
4.881
(124.0)
B
3.976
(101.0)
5.629
(143.0)
7.007
(178.0)
8.818
(224.0)
6.496
(165.0)
7.007
(178.0)
8.818
(224.0)
10.236
(260.0)
11.023
(280.0)
C
1.614
(41.0)
2.480
(63.0)
2.755
(70.0)
2.755
(70.0)
1.653
(42.0)
2.755
(70.0)
2.755
(70.0)
2.519
(64.0)
2.755
(70.0)
D
.314
(8.0)
.472
(12.0)
.472
(12.0)
.590
(15.0)
.314
(8.0)
.472
(12.0)
.590
(15.0)
.314
(8.0)
.590
(15.0)
E
3.385
(86.0)
4.881
(124.0)
6.259
(159.0)
7.992
(203.0)
5.748
(146.0)
6.259
(159.0)
7.992
(203.0)
9.251
(235.0)
7.480
(190.0)
F
4.13
(105.0)
4.13
(105.0)
4.13
(105.0)
4.13
(105.0)
3.38
(86.0)
4.13
(105.0)
4.13
(105.0)
3.38
(86.0)
4.13
(105.0)
G
-
1.28
(32.5)
1.259
(32.0)
1.259
(32.0)
-
1.259
(32.0)
1.259
(32.0)
1.259
(32.0)
1.259
(32.0)
WEIGHT:
MODEL
LBS
HSB
HSC
HSN
HSD
HDA
HDB
HDC
HTC
HTD
1.98
3.96
5.94
7.48
1.98
3.96
7.48
5.06
7.92
NOTE:
1. DIMENSIONS ARE IN INCHES EXCEPT DIMENSIONS ( ) ARE IN MM.
2. .188 (4.8) HOLES FOR CUSTOMER MTG.
Other Industrial Products
HWS
NNS
ZWS
VSB & VSC
15 to 1800W single output (switching)
15 to 90W high reliability (linear)
5 to 150W single output, universal input (switching)
10 to 150W single output, 115VAC input (switching)
For Additional Information, please visit
us.tdk-lambda.com/lp/products/h-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
10
Revision A5: Nov 2011
