F-147XP: DescriptionAluminum Electrolytic Capacitors - Leaded 100uF 63V 20%; CategoryPower management transformer; File Size69KB，1 Pages; ManufacturerTriad Magnetics; Websitehttps://www.triadmagnetics.com/; Environmental Compliance

Download Datasheet Parametric View All

F-147XP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F-147XP	-	-	View	Buy Now

F-147XP Overview

Aluminum Electrolytic Capacitors - Leaded 100uF 63V 20%

F-147XP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Triad Magnetics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
application	POWER
Certification	UL
Center click function 1	NO
Center click function 2	NO
high	36.5 mm
Maximum input voltage	115 V
Insulation voltage	1500 V
length	60.32 mm
Installation features	CHASSIS MOUNT
Number of primary windings	1
Number of secondary windings	2
Output current 1	0.224 A
Output current 2	0.224 A
Output voltage 1	20 V
Output voltage 2	20 V
physical size	L60.32XB31.75XH36.5 (mm)
main rating	SINGLE 115V
surface mount	NO
Transformer type	SPLIT BOBBIN POWER TRANSFORMER
VA rating	4.5 VA
width	31.75 mm

Preview

Download Datasheet

View All

P

OWE R

T

RAN S FO R M E R

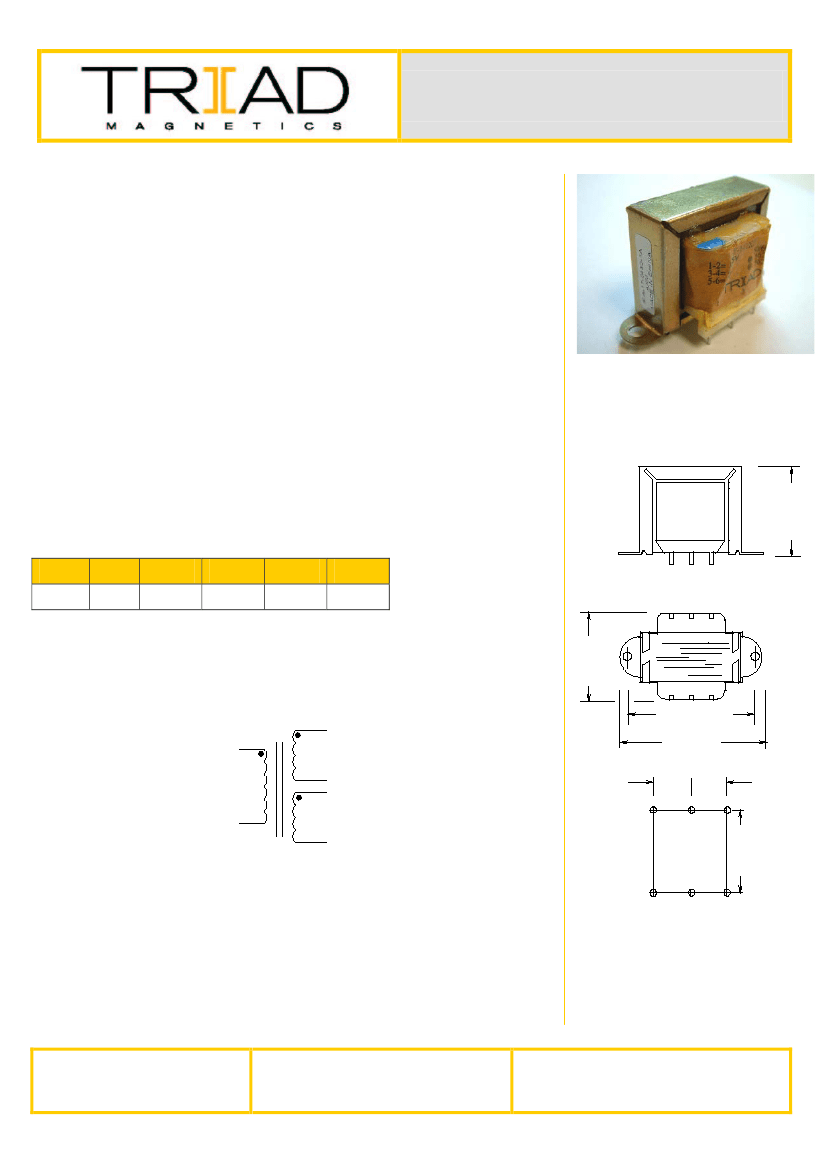

PC Mount: Single Primary

F-147XP

Electrical Specifications (@25C)

1. Maximum Power: 4.5 VA

2. Primary: 115V 50/60 Hz

3. Secondary: Series: 40.0V CT @ 0.112 Amps

Parallel: 20.0V CT @ 0.224 Amps

Description:

The F-147XP is part of a wide selection of plug-in types that meet the needs of PC

boards and solid state power supply design. This transformer can satisfy power as

well as control and instrumentation applications.

Construction:

Wound on a single channel nylon bobbin. Materials are UL recognized, Class B

(130º C) rated.

Safety:

These products are 100% hipot tested with an insulation of 1500V between

primary and secondary windings.

A

1

3

4

Dimensions:

A

1.437

B

2.375

C

1.250

D

2.00

Units: In inches

E

0.406

F

1.093

Mounting hole: 0.187 in.

Pin length: 0.187 in.

Pin size: 0.20 x .041 in.

Weight: 7.5 oz

C

Schematic:

1

D

3

B

4

5

E

2

5

E

6

2

6

F

Primary:

Secondary:

1 to 2

Series - 3 to 6, Jumper 4 to 5

Parallel - 3 to 6, Jumper 3 to 5 and 4 to 6

1

3

4

RoHS Compliance:

As of manufacturing date February 2005, all standard products meet

the requirements of 2011/65/EU, known as the RoHS initiative.

*Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics

website for the most current version.

For soldering and washing information please see

http://www.triadmagnetics.com/faq.html

Web: www.TriadMagnetics.com

Phone 951-277-0757

Fax 951-277-2757

460 Harley Knox Blvd.

Perris, California 92571

Publish Date: June 7, 2016
