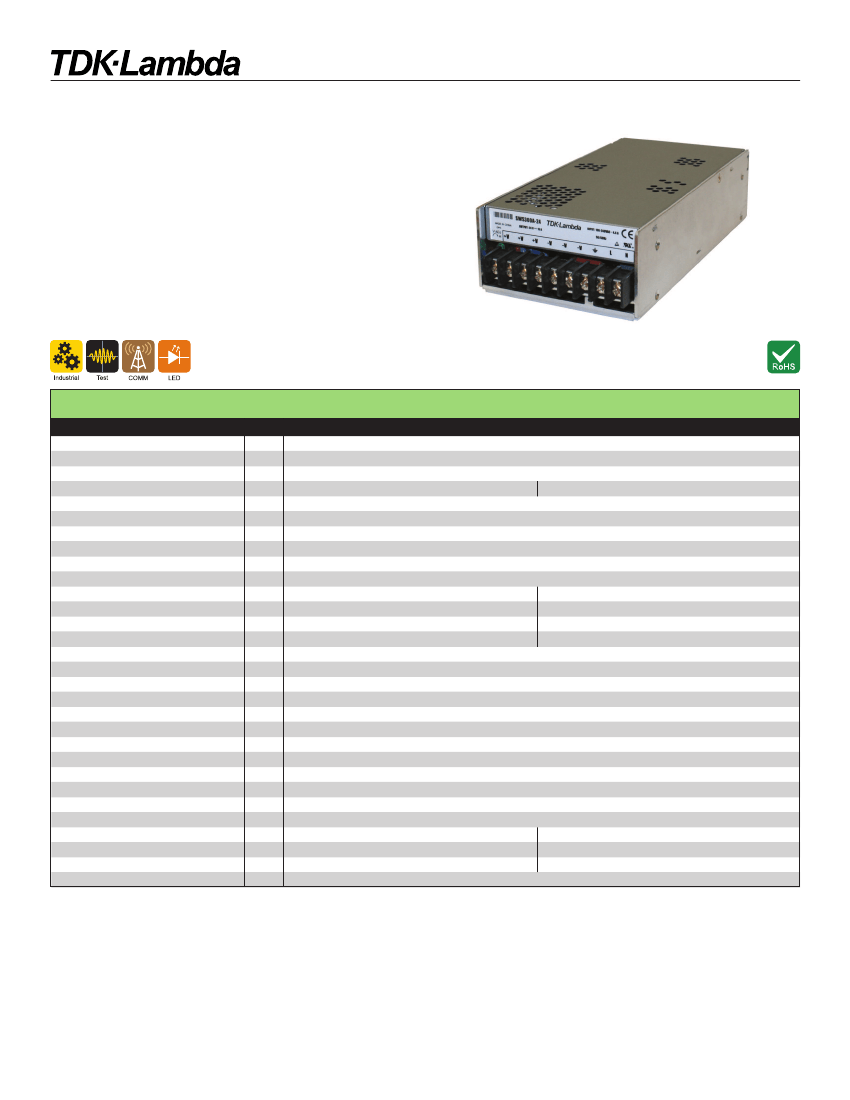

SWS300A-600 Series
Single Output General Purpose Power Supplies
Features
u
Lower Cost
u
Active Power Factor Correction
u
Universal Input (85 - 265VAC)
u
Input Transient Protected IEC61000-4
u
Enclosed
u
Global safety Approvals
u
Level B EMI
Key Market Segments & Applications
Specifications
Model
Input Voltage range
(1)
Inrush Current (115 / 230VAC)
Power Factor
Input Current (100/200VAC)
Temperature Coefficient
Overcurrent Protection
Overvoltage Protection
Overtemperature Protection
Hold Up Time (Typ)
Leakage Current (max)
Remote Sense
Parallel Connection
Remote On/Off
AC Fail Signal
LED Indicator
Operating Temperature
Storage Temperature
Humidity (non condensing)
Storage Humidity (non condensing)
Cooling
Withstand Voltage
Isolation Resistance
Vibration (non operating)
Immunity
Safety Agency Approvals
Conducted & Radiated EMI
Recommended EMI Filter
Weight (Typ)
Size (WxHxD)
Warranty
-
A
-
A
-
-
V
-
ms
mA
-
-
-
-
-
°C
°C
-
-
-
-
-
-
-
-
-
-
g
in
yrs
SWS300A
SWS600
85 - 265VAC (47 - 63Hz) or 120 - 370VDC
20 / 40
Meets EN61000-3-2
3.6 / 1.8A
7.2 / 3.6A
<0.02%/°C
>105%, Constant current style
Yes, cycle AC to reset
Yes, cycle AC to reset
20ms at 115/230VAC
SWS300: 0.75mA , SWS600: 1.5mA
None
Yes
None
Yes
None
Yes
None
Yes, open collector output
Green LED = On
-10 to +65°C (See table for derating - model specific)
-30 to +85°C
30 - 90% RH operating, 10 - 95%RH non operating
10 - 95% RH
Internal fan
I/P to Grnd 2kVAC, I/P to O/P 3kVAC, O/P to Grnd 500VAC, O/P to CNT 100VAC for 1 min
>100M at 25°C & 70%RH, Output to Ground 500VDC
10 - 55Hz (sweep for 1 min)19.6m/s
2
constant X, Y, Z 1 hour each plane)
EN61000-4-2, -3, -4, -5, -6, -8, -11
UL60950, CSA60950, EN60950, EN50178, CE Mark
EN55011 / EN55022-B, FCC Class B
RSAL2006
RSAN2010
950
2000
2.05 x 4.01 x 7.8”
3.62 x 4.72 x 7.48”
Two Years
(1) Derate linearly to 85% load from 115VAC to 85VAC input (derate to 90% load for SWS600-3 & -5)
1-800-526-2324 • www.us.tdk-lambda.com/lp/
97
Disclaimer: us.tdk-lambda.com/lp/legal.htm
SWS300A-600 Series
Model Selector
Model
SWS300A-3
SWS300A-4
SWS300A-5
SWS300A-7R5
SWS300A-12
SWS300A-15
SWS300A-24
SWS300A-28
SWS300A-36
SWS300A-48
SWS600-3
SWS600-5
SWS600-12
SWS600-15
SWS600-24
SWS600-36
SWS600-48
Voltage
3.3V
4V
5V
7.5V
12V
15
24V
28V
36V
48V
3.3V
5V
12V
15V
24V
36V
48V
Adjust
Range
2.97 - 3.96V
3.6 - 4.8V
4.5 - 6V
6 - 9V
9.6 - 13.2V
13.2 - 18.6V
20 - 28.8V
22.4 - 33.6V
28.8 - 40V
40 - 57.6
2.97-3.96V
4.5-6V
9.6-13.2
13.2-18V
20-28.8
28.8-40V
40-57.6
Max
Curr. (A)
55A
55A
55A
40A
26A
21A
13A
11A
8.8A
6.7A
100 (2)
100 (2)
50
40
25
16.7
12.5
Load
Reg (mV)
40
40
40
60
96
120
120
140
180
240
40
40
96
120
120
180
240
Line
Reg (mV)
20
20
20
30
48
48
48
56
72
96
20
20
48
48
48
72
96
Ripple
Noise (mV)
120
120
120
120
120
120
150
150
200
240
100
100
120
120
150
200
240
Eff.
(typ)%(1)
69 / 72
72 / 75
75 / 78
77 / 80
79 / 83
80 / 84
82 / 85
83 / 86
83 / 87
83 / 86
69/71
74/77
78/81
80/83
81/84
81/85
82/85
(2) Peak rating of 120A for 10s
(3) 115/230VAC

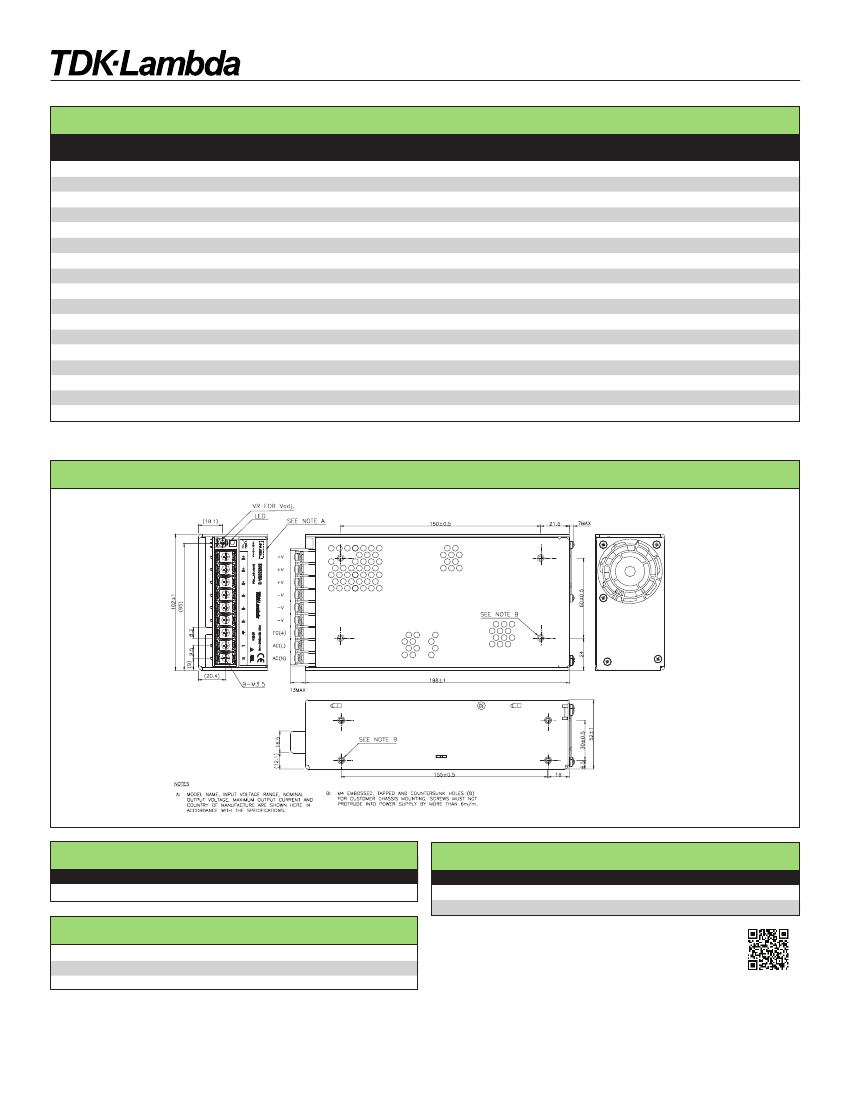

Outline Drawing (SWS300A)
Options
Suffix
/CO2
Descriptor
Double sided conformal coating
Derating
Model
SWS300A
SWS600
50°C
100%
100%
55°C
91.6%
85%
60°C
83.3%
70%
65°C
50%
55%
Other Industrial Products
HWS
SWS
ZWS
15W to 1500W Single output, high reliability
50 - 1000W Single Output
5 - 240W pcb style single, output
For Additional Information, please visit
us.tdk-lambda.com/lp/products/sws-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
98
Revision A3: Feb 2012
