1-Phase Line Filters
https://www.schurter.com /PG84
FSW
AC Filter 2-Stage, Very High Symmetrical and Asymmetrical Attenuation
Approvals and Compliances
Description
- Line-filter in standard version
- 2 positions
- high attenuation
Characteristics
- Designed for increased requirements
- 2-stage line filter with increased attenuation
Protection against interference voltage from the mains
- Especially designed for industrial applications such as: Frequency Con-
verters, Stepper Motor Drives, UPS-Systems, Inverters
Especially suitable for use in switching power supplies
- Suitable for use in equipment according to IEC/UL 60950
References
Weblinks
Alternative: Standard version
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
3 - 36 A @ Ta 40 °C / 250 VAC; 50 Hz
3 - 36 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
or screw terminals
Current >24 A requires screw terminals
Alu. anodised / Stainless Steel
Line Filter
Standard and Industrial Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FSW
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40019274
UL File Number: E72928
EMC Products
1
FSW
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
https://www.schurter.com /PG84
1-Phase Line Filters
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

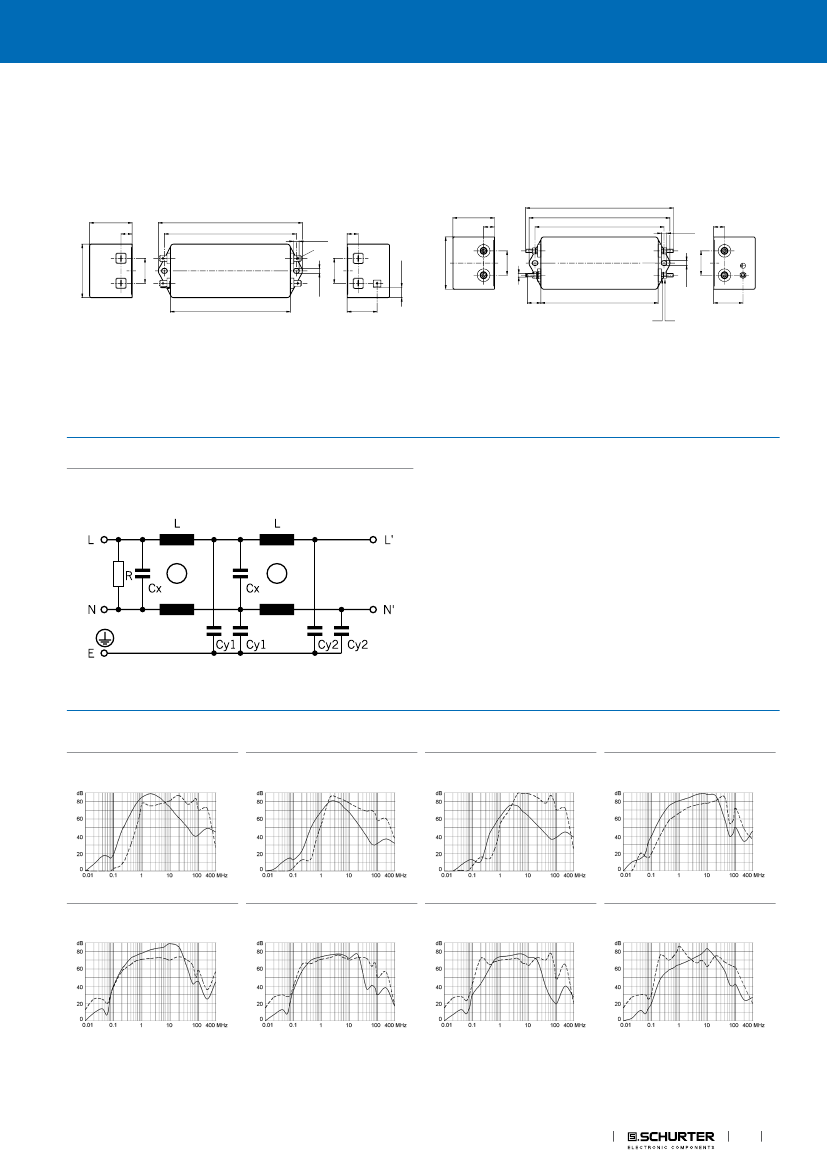

Dimension [mm]
Case 48
Case 49
91 max.
66 max.
6.3x0.8
43 max.
(3.5)
(20)
91 max.
66 max.
6.3x0.8
32 max.
(3.5)
51 max.
(27)
5.3
75
±0.3
(12)
5.3
(27)
1)
2)
51 max.
1)
2)
75
±0.3
(12)
1) Line
2) Load
1) Line
2) Load
2
EMC Products
(20)
1-Phase Line Filters
https://www.schurter.com /PG84
FSW
Case FF with quick connect terminals
Case FF with screw terminals
48 max.
(12)
(157)
143
±0.3
(12)
6.1
±0.3
58 max.
6.3x0.8
48 max.
(12)
164 max.
(156)
143
±0.3
6.1
±0.3
(12)
58 max.
(27)
(27)
(27)
(15.5)
5.3
±0.2
(15)
(32.5)
(130)
3)
4)
5.3
±0.2
M4
1)
2)
(27)
1)
2)
(32.5)
(130)
1) Line
2) Load
1) Line
2) Load
3) Lock-nut do not unscrew
4) Nut torque 0.85...1 Nm, keep lock-nut fastened
Diagrams
Standard version
1)
2)
1) Line
2) Load
Attenuation Loss
Standard version
- - - - 50Ω differential mode _____ 50Ω common mode
3A
6A
10 A
16 A
20 A
24 A
25 A
36 A
EMC Products
3
FSW
Industrial version
https://www.schurter.com /PG84
1-Phase Line Filters
3A
6A
10 A
All Variants
Rated Cur-
rent [A]
3
6
10
16
20
24
25
36
3
6
10
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Industrial Version
Industrial Version
Industrial Version
Leakage Cur- Terminal
rent [mA]
0.25
0.25
0.25
0.5
0.5
0.5
0.5
0.5
2.5
2.5
2.5
Quick connect terminals
Quick connect terminals
Quick connect terminals
Quick connect terminals
Quick connect terminals
Quick connect terminals
Bolts and nuts M4
Bolts and nuts M4
Quick connect terminals
Quick connect terminals
Quick connect terminals
L [mH]
2x2
2 x 0.8
2 x 0.4
2 x 1.3
2 x 2.4
2x2
2x2
2 x 1.23
2x2
2 x 0.8
2 x 0.4
Cx [µF]
0.1
0.1
0.1
1
2.2
2.2
2.2
2.2
0.1
0.1
0.1
Cy1
[nF]
1.5
1.5
1.5
4.7
4.7
4.7
4.7
4.7
22
22
22
Cy2
[nF]
1
1
1
-
-
-
-
-
1
1
1
R
[MΩ]
1
1
1
1
1
1
1
1
1
1
1
Weight
[g]
157 g
159 g
159 g
200 g
840 g
910 g
910 g
910 g
157 g
159 g
159 g
Housings
49
49
49
48
FF
FF
FF
FF
49
49
49
Packaging Order Number
[PCS]
10
10
10
10
4
4
4
4
10
10
10
5500.2058
5500.2060
5500.2062
5500.2218
5500.2219
5500.2220
5500.2221
5500.2222
5500.2059
5500.2061
5500.2063
█
█
█
█
█
█
█
█
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
4
EMC Products
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
14.12.2017
