ROHS COMPLIANT

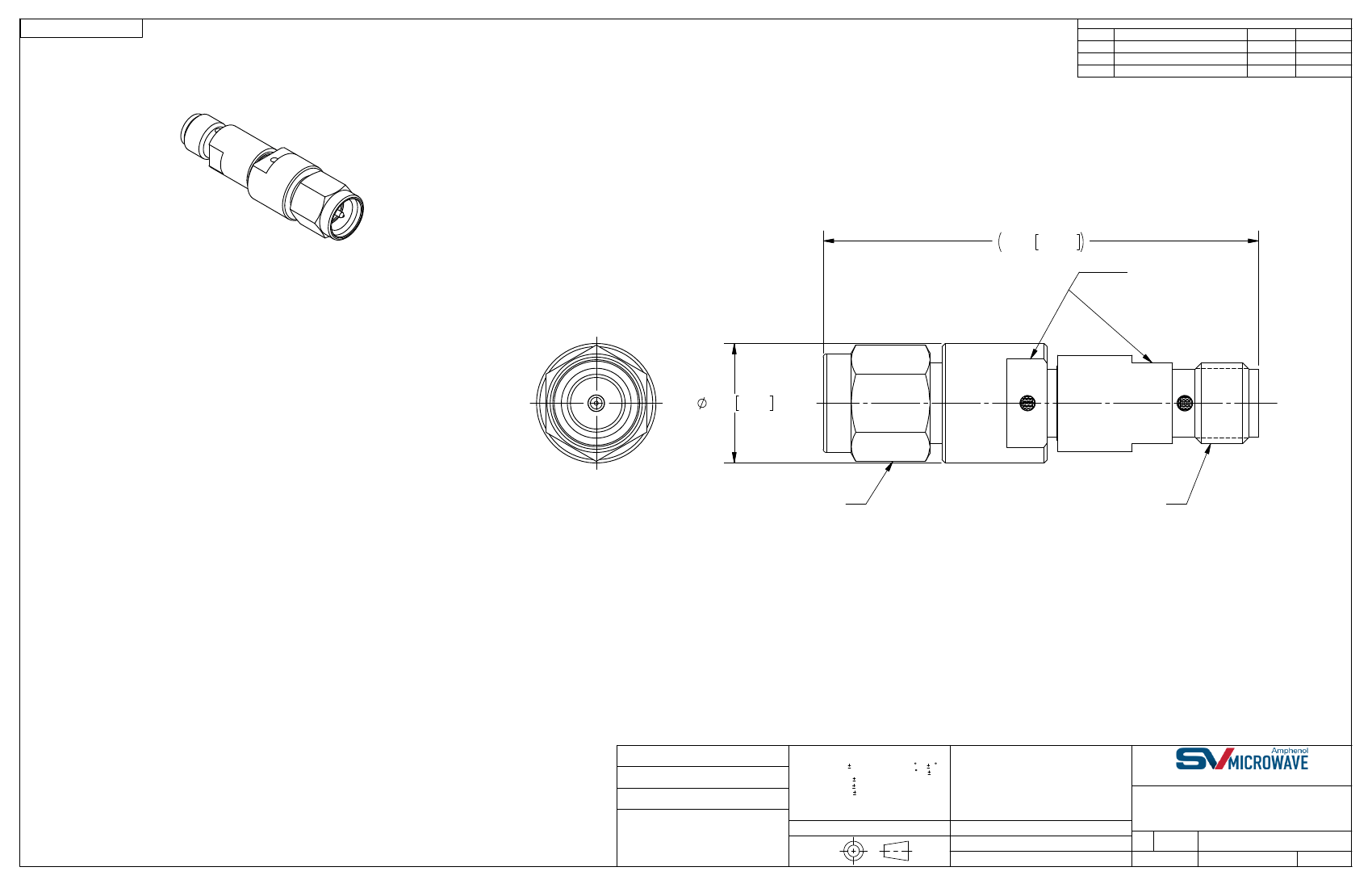

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
E
DCN 41727
10/15
DAL
1.349 34.26
2X .250
ACROSS FLATS
MATERIAL:
BODY &
COUPLING NUT:
LOCK RING &
CONTACTS
SLEEVE:
BELLOWS SPRING:
INSULATORS:
GASKET:
RESISTOR ELEMENT:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
BRASS PER ASTM B16, ALLOY UNS No. C36000
ELECTRO DEPOSITED NICKEL: GOLD PLATED
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
SILICONE RUBBER PER A-A-59588,
CLASS 2B, GRADE 50/60
ALUMINA SUBSTRATE WITH
NICHROME RESISTOR
.312 HEX.
1/4-36 UNS-2A
.370 9.40
FINISH:
BODY &
COUPLING NUT:
CONTACTS
& SLEEVE:
NOTES:
PASSIVATED PER AMS-2700
1. REPLACE "XX" IN PART NUMBER WITH DESIRED dB VALUE.
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.52, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
50 OHMS
DC TO 18.0 GHz
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
GPF 10/02/15
DAL 10/02/15
JM 03/18/96
SMA PLUG TO JACK 21 dB
ATTENUATOR DC TO 18 GHz
95077
SIZE CAGE CODE DWG. NO.
B
SF0930-6200-XX
SHEET 1 OF 1
SCALE: 4:1
