D2840-42 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> D2840-42

D2840-42: DescriptionSwitching Voltage Regulators 3A High Eff Buck Con Integrated Inductor; CategoryThe connector socket; File Size171KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D2840-42 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D2840-42	-	-	View	Buy Now

D2840-42 Overview

Switching Voltage Regulators 3A High Eff Buck Con Integrated Inductor

D2840-42 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.694 inch
subject depth	0.165 inch
body length	2 inch
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP40
Dielectric withstand voltage	1400VAC V
Shell material	PLASTIC
Insulation resistance	10000000000 Ω
JESD-609 code	e3
Installation method	STRAIGHT
Number of contacts	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Termination type	SOLDER
Base Number Matches	1

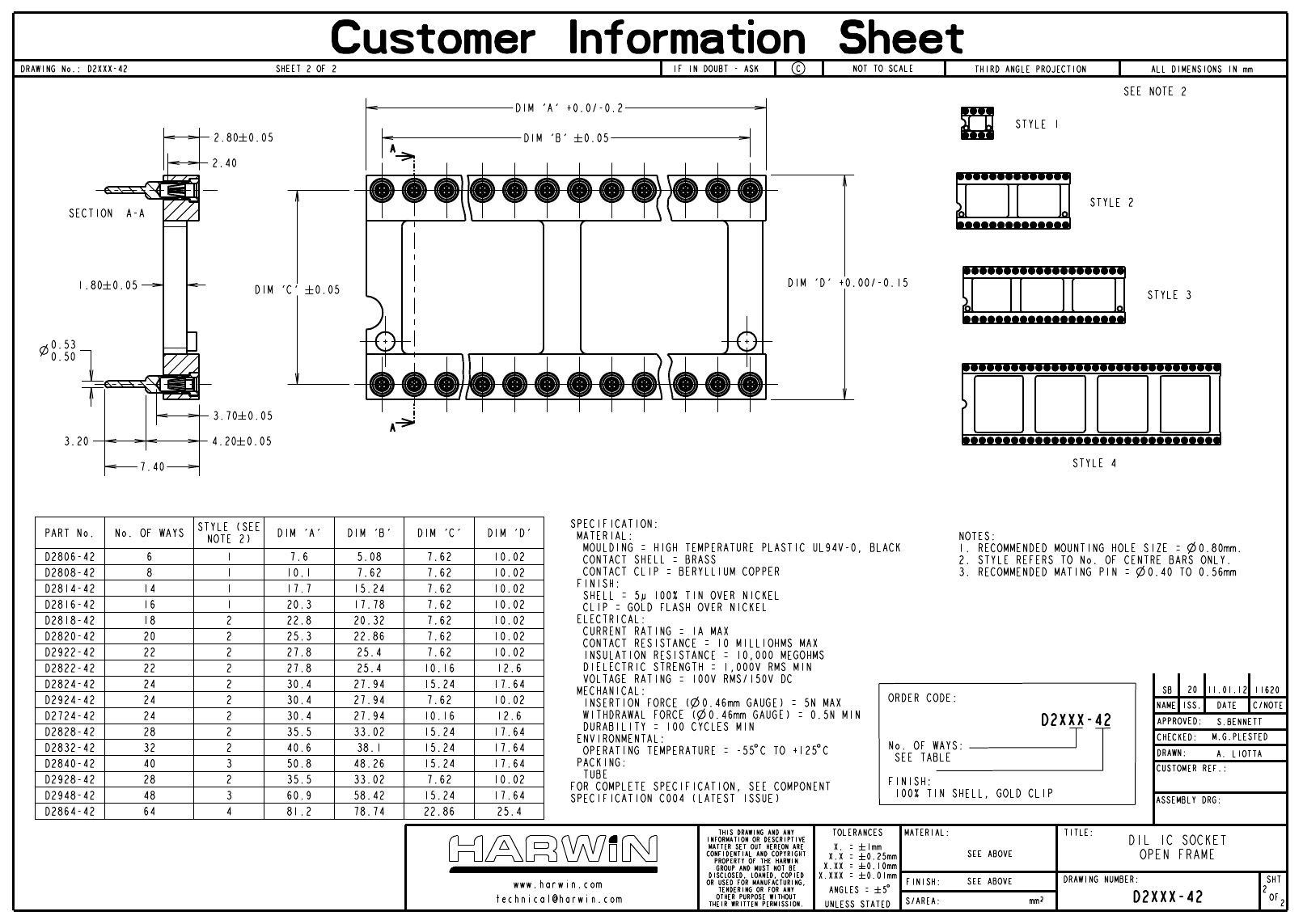

Preview

Download Datasheet

View All

D2840-42 Related Products

	D2840-42	D2848-42	D2948-42	D2828-42	D2808-42	D2924-42
Description	Switching Voltage Regulators 3A High Eff Buck Con Integrated Inductor	IC u0026 Component Sockets 48 WAY IC SKT ASSY DUAL ROW VERTICAL	IC u0026 Component Sockets 48 WAY IC SKT ASSY DUAL ROW VERTICAL	Multilayer Ceramic Capacitors MLCC - SMD/SMT 10uF 20% 10Volts	Operational Amplifiers - Op Amps JFET Input Low Noise	IC u0026 Component Sockets 24P DR IC SCKT ASSY 2.54MM PITCH
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to
package instruction	LEAD FREE	-	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	-	compliant	not_compliant	not_compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0	-	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0
body width	0.694 inch	-	0.694 inch	0.694 inch	0.394 inch	0.394 inch
subject depth	0.165 inch	-	0.165 inch	0.165 inch	0.165 inch	0.165 inch
body length	2 inch	-	2.398 inch	1.398 inch	0.398 inch	1.197 inch
Contact to complete cooperation	GOLD	-	GOLD FLASH OVER NICKEL	NOT SPECIFIED	GOLD FLASH OVER NICKEL	TIN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	-	Matte Tin (Sn)	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn)
Contact material	BERYLLIUM COPPER	-	BERYLLIUM COPPER	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact style	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	1 A	-	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	-	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP40	-	DIP48	DIP28	DIP8	DIP24
Dielectric withstand voltage	1400VAC V	-	1400VAC V	1400VAC V	1400VAC V	1400VAC V
Shell material	PLASTIC	-	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Insulation resistance	10000000000 Ω	-	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
JESD-609 code	e3	-	e3	e3	e3	e3
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	40	-	48	28	8	24
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	-	1	-	1	1
