Headers u0026 Wire Housings 18 PIN SIL HORIZONTL GOLD PIN HEADER

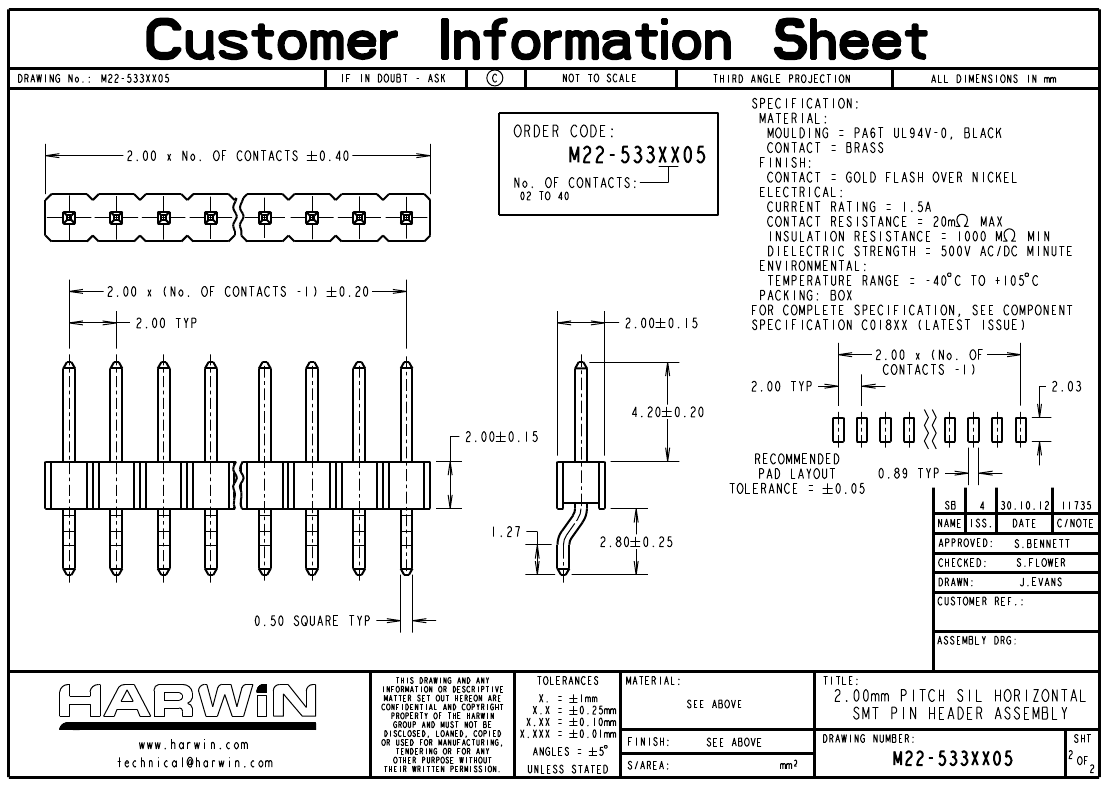

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Harwin |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Other features | ROHS COMPLIANT |
| body width | 0.079 inch |
| subject depth | 0.079 inch |
| body length | 1.417 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD |
| Contact completed and terminated | Gold (Au) |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | NYLON |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | M22-5 |
| Plug contact pitch | 0.079 inch |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 2 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 18 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| M22-5331805 | M22-5332105 | M22-5332305 | |
|---|---|---|---|
| Description | Headers u0026 Wire Housings 18 PIN SIL HORIZONTL GOLD PIN HEADER | Headers u0026 Wire Housings 21 PIN SIL HORIZONTL GOLD PIN HEADER | Board Connector, 23 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, LEAD FREE |
| Is it lead-free? | Lead free | - | Lead free |
| Is it Rohs certified? | conform to | - | conform to |
| package instruction | LEAD FREE | - | LEAD FREE |
| Reach Compliance Code | compliant | - | compliant |
| ECCN code | EAR99 | - | EAR99 |
| Other features | ROHS COMPLIANT | - | ROHS COMPLIANT |
| body width | 0.079 inch | - | 0.079 inch |
| subject depth | 0.079 inch | - | 0.079 inch |
| body length | 1.417 inch | - | 1.811 inch |
| Body/casing type | RECEPTACLE | - | RECEPTACLE |
| Connector type | BOARD CONNECTOR | - | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD | - | GOLD |
| Contact completed and terminated | Gold (Au) | - | GOLD |
| Contact point gender | MALE | - | MALE |
| Contact material | BRASS | - | BRASS |
| contact mode | RECTANGULAR | - | RECTANGULAR |
| Contact resistance | 20 mΩ | - | 20 mΩ |
| Contact style | SQ PIN-SKT | - | SQ PIN-SKT |
| DIN compliance | NO | - | NO |
| Dielectric withstand voltage | 500VAC V | - | 500VAC V |
| Filter function | NO | - | NO |
| IEC compliance | NO | - | NO |
| Insulation resistance | 5000000000 Ω | - | 5000000000 Ω |
| Insulator color | BLACK | - | BLACK |
| insulator material | NYLON | - | POLYAMIDE |
| JESD-609 code | e4 | - | e4 |
| MIL compliance | NO | - | NO |
| Plug contact pitch | 0.079 inch | - | 0.079 inch |
| Mixed contacts | NO | - | NO |
| Installation method | RIGHT ANGLE | - | RIGHT ANGLE |
| Installation type | BOARD | - | BOARD |
| Number of connectors | ONE | - | ONE |
| PCB row number | 1 | - | 1 |
| Number of rows loaded | 1 | - | 1 |
| Maximum operating temperature | 105 °C | - | 105 °C |
| Minimum operating temperature | -40 °C | - | -40 °C |
| Options | GENERAL PURPOSE | - | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | - | RECTANGULAR |
| Rated current (signal) | 1 A | - | 1 A |
| Guideline | UL | - | UL |
| Terminal pitch | 2 mm | - | 2 mm |
| Termination type | SURFACE MOUNT | - | SURFACE MOUNT |
| Total number of contacts | 18 | - | 23 |
| UL Flammability Code | 94V-0 | - | 94V-0 |
