43202-8816: DescriptionAluminum Organic Polymer Capacitors 35v 180uf 125degC 8x 10.2mm SMD; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

43202-8816 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	43202-8816	-	-	View	Buy Now

43202-8816 Overview

Aluminum Organic Polymer Capacitors 35v 180uf 125degC 8x 10.2mm SMD

43202-8816 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE, SHIELDED
Board mount options	SPLIT BOARD LOCK
body width	0.465 inch
subject depth	0.734 inch
body length	0.624 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

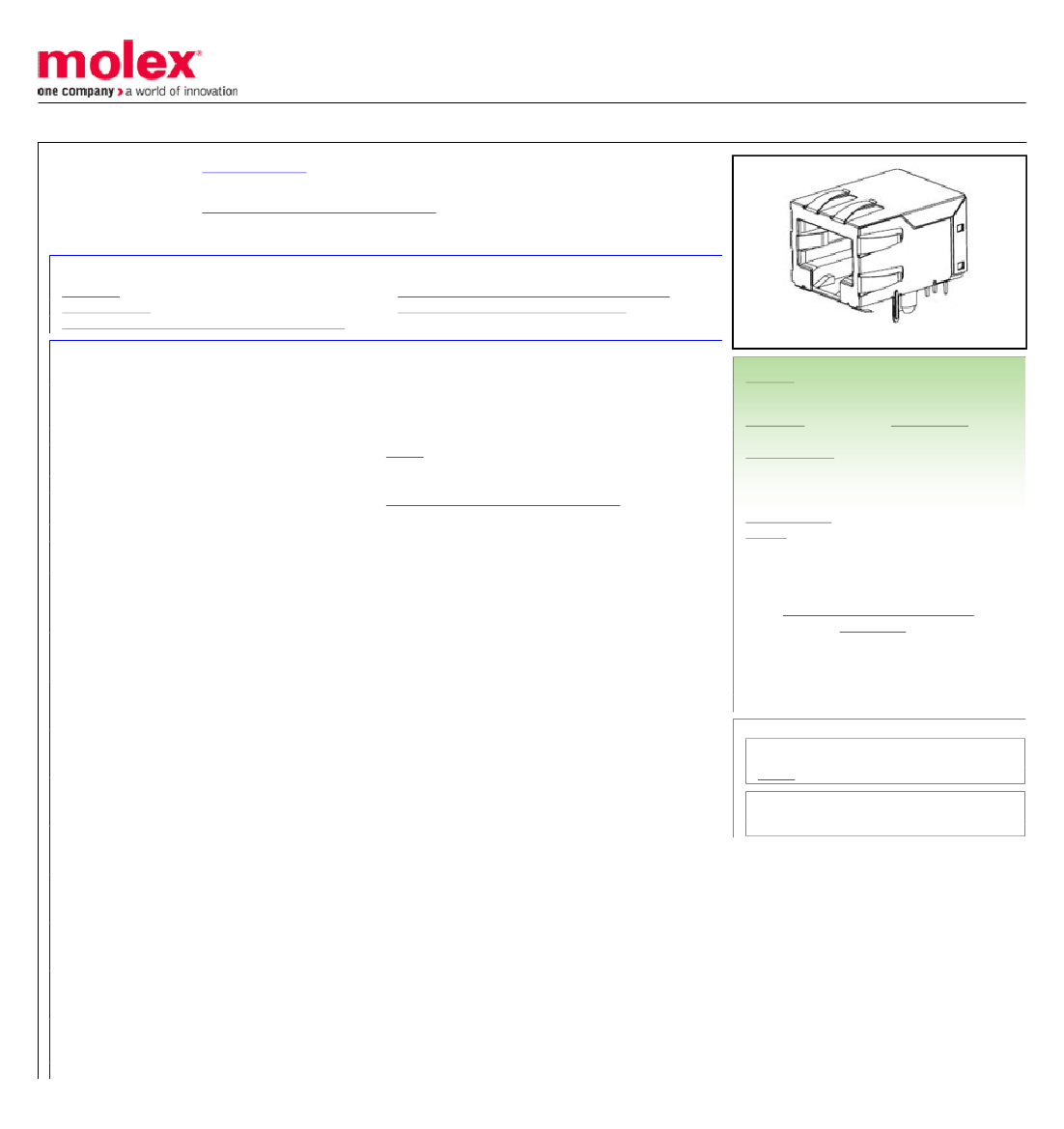

This document was generated on 12/01/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0432028816

Active

Magnetic and Modular Jacks and Plugs

Modular Jack, Right Angle, Low Profile, Shielded, No Panel Grounding Tabs, without

Bottom Grounding Tab, Front Position PCB Ground Tab, 8/8

Documents:

3D Model

Drawing (PDF)

Product Specification PS-43202-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Component Type

Magnetic

Overview

Performance Category

Power over Ethernet (PoE)

Product Name

UPC

Physical

Color - Resin

Durability (mating cycles max)

Flammability

Inverted / Top Latch

Jack Height

Lightpipes/LEDs

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Orientation

PCB Retention

PCB Thickness - Recommended

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Ports

Positions / Loaded Contacts

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Grounding to PCB

Packaging Specification PK-43202-004 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E107635

Modular Jacks/Plugs

43202

PCB Jack

Magnetic and Modular Jacks and Plugs

N/A

Modular Jack 8/8, RJ45

800756072708

Black

500

94V-0

11.81mm

None

Brass, Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

4.359/g

Right Angle (Side Entry)

Yes

1.57mm

Tray

With Flange

1.02mm

1.27mm

1.270µm

2.540µm

8/8

Yes

-40°C to +85°C

Through Hole

N/A

1.5A

Yes

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

43202 Series

Mates With

FCC 68 Plugs
